Attributes
| Features Html | Protects Equipment — protect your heavy equipment from contaminates that cause substantial damage and shorten life, such as dirt, rust, microbial growth, and water, Highest Risk — water contamination is the highest risk to your fuel source, finding its way in during delivery, from rain, humidity, condensation, leaks and numerous other methods, Replacement Interval — Fill-Rite recommends changing filters every six months to maintain the highest degrees of protection and performance, Water Detecting Filters — the best filtering solution for your application, water detecting filters capture particulates and detect excess water by causing flow restriction and indicating your attention is required, Particulate Filters — second only to water detecting filters in protection, particulate filters remove dirt, rust, and microbial growth contaminates from your fuel supply before they make their way into your equipment |
|---|---|
| Accessories | Filter Function: Particulate |
| Series Code | filter-canister-replacements-series |
| Series Name | Filter Canister Replacements |
| Series Url | https://www.fillrite.com/filter-canister-replacements-series |
Description
The F4030HM0 is a fuel transfer filter that strains particulates down to 30 micron and is designed for fuel transfer systems with flow rates up to 40 gallons per minute. This filter is equipped with 1.5"-16 UNF threads and is compatible with filter head 700ACCF7017.
Specifications
| Max Flowrate | 40 GPM / 151 LPM |
|---|---|
| Compatible Fluids | Diesel, Gasoline, B20, E15 |
| Inlet Size / Connection / Thread | 1.5 " / Female / NPT |
| Filter | 30 Micron Particulate Filter and Filter Head |
| Filter Function | Particulate |

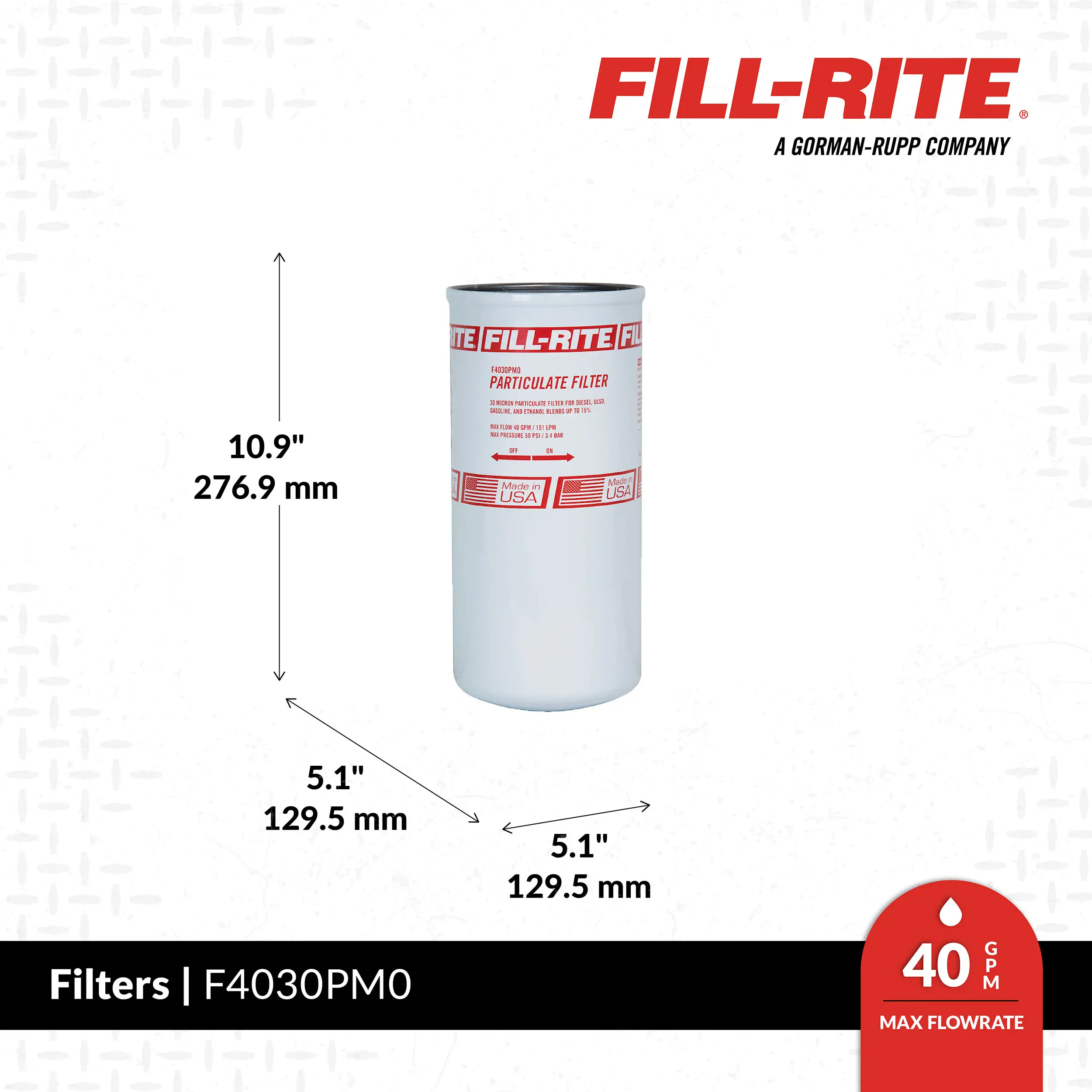

| Assembled Product Height x Width x Depth (in.) | 10.9 x 5.1 x 5 |
| Assembled Product Weight (lbs.) | 3.1 |
| Package Height x Width x Depth (in.) | 10.9 x 5.1 x 5 |
| Gross Weight (lbs.) | 3.10000 lbs |
| Less Than Load (LTL) Freight | Yes |
