Attributes
| Features Html | Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling large equipment with fuel tanks sized at 20-80 gallons, Stationary Tanks — powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks, Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump, Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry, Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment |
|---|---|

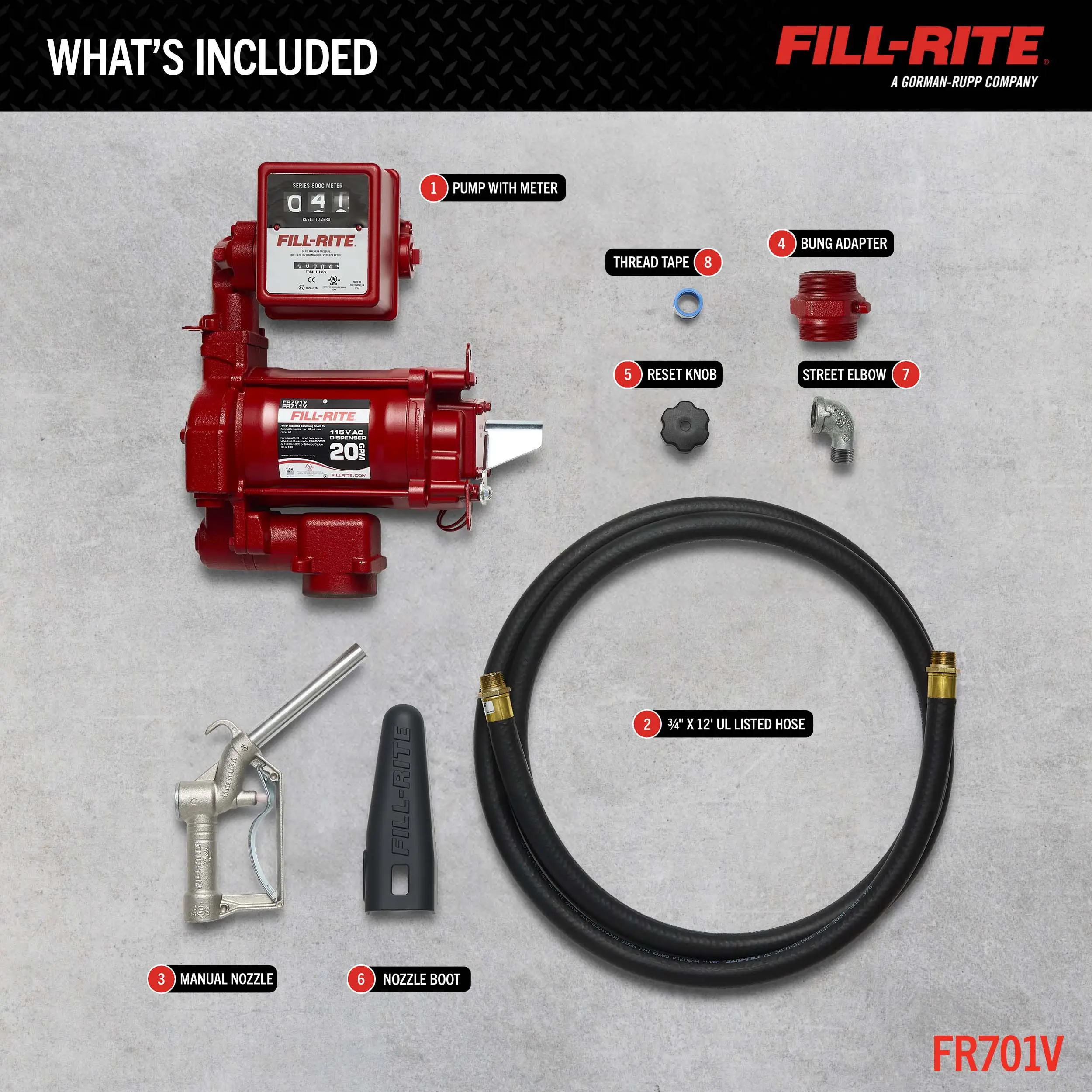

| Accessories | Additional Accessories: Nozzle Boot, Meter Reset Knob, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener, Cable Connection: Hard-Wire, Discharge Hose: ¾” X 12’ UL Listed Hose with Static Ground Wire, Nozzle: ¾” Cast Aluminum Manual Nozzle, Meter: 807C Mechanical Meter (Gallons) |
| Series Code | fr700-series-fr700 |
| Series Name | FR700 Series |
| Series Url | https://www.fillrite.com/fr700-series-fr700 |
Description

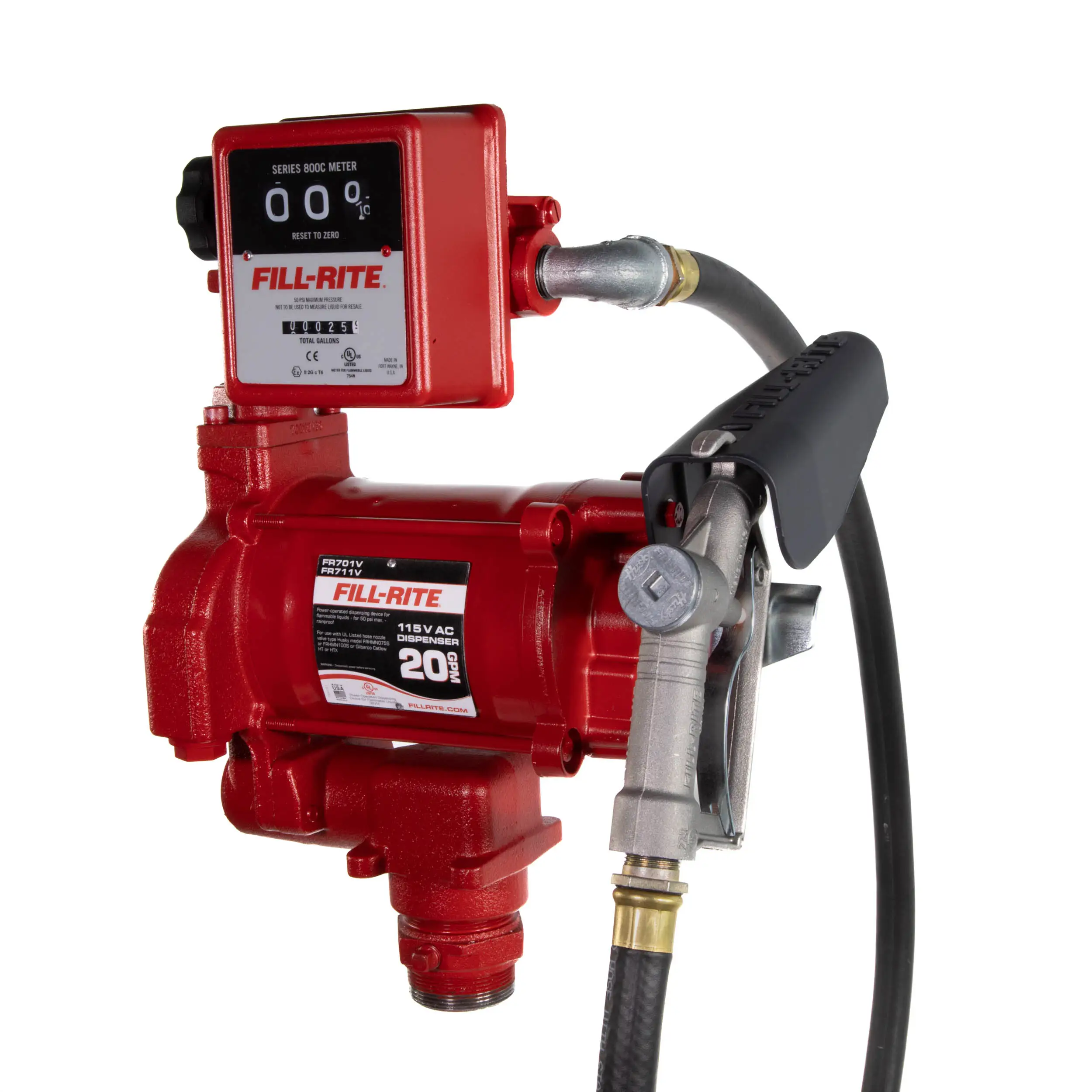

The FR701V model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.
Specifications
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.33 |
| Max Current (A) | 5.5 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 15 ' |
| Dry Vacuum (in. Hg) | 12 |
| Discharge Head (ft) | 53 ' |
| Strainer Mesh Size (Micron) | 40 x 40 x .010" |
| Max Discharge Pressure (PSI) | 23 PSI |
| Viscosity Range (cSt) | 0.38 - 2.4 |
| Repeatability (+/- %) | 0.38 % |
| Accuracy (+/- %) | 1 % |
| Display Digits | 3 |
| Display Type | Mechanical |
| AC Frequency (Hz) | 60 |

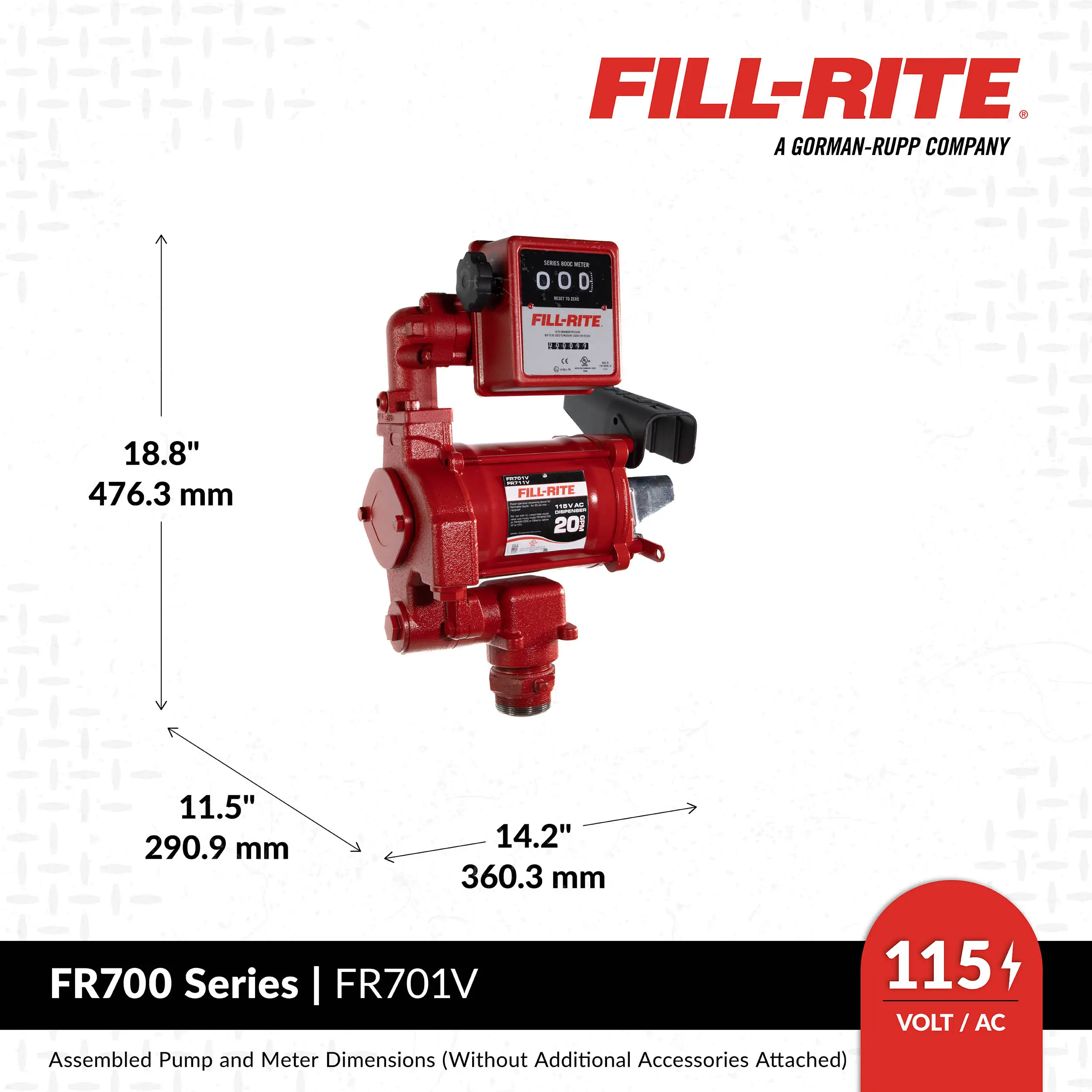

| Assembled Product Height x Width x Depth (in.) | 19 x 14.2 x 11.9 |
| Assembled Product Weight (lbs.) | 54.3 |
| Package Height x Width x Depth (in.) | 10.25 x 20.56 x 19.56 |
| Gross Weight (lbs.) | 62.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
