Attributes
| Features Html | Precise Measurement: Accuracy in measuring flow rates, ensuring reliable data for various fluids and applications., Compact Design: Ideal for installations where space is limited, maximizing efficiency without compromising performance., Versatile Compatibility: Compatible with a wide range of fluids, from water and oils to chemicals, making it adaptable across industries such as manufacturing, automotive, and many others., Durable Construction: Built to withstand the harshest environments, the anodized aluminum body of this meter boasts a robust construction that ensures durability and longevity., Cost-Effective Solution: Cost-effective flow measurement solution, offering a balance of performance, reliability, and affordability, delivering long-term value for businesses of all sizes., Low Maintenance: Low maintenance in nature, as it only contains two moving parts and there is no metal-to-metal contact virtually eliminating any wear. reducing maintenance expenses over time., Accurate Readouts: Provides precise, real-time flow measurements, enabling users to monitor and control fluid flow with confidence, ultimately improving process efficiency. |
|---|
Description

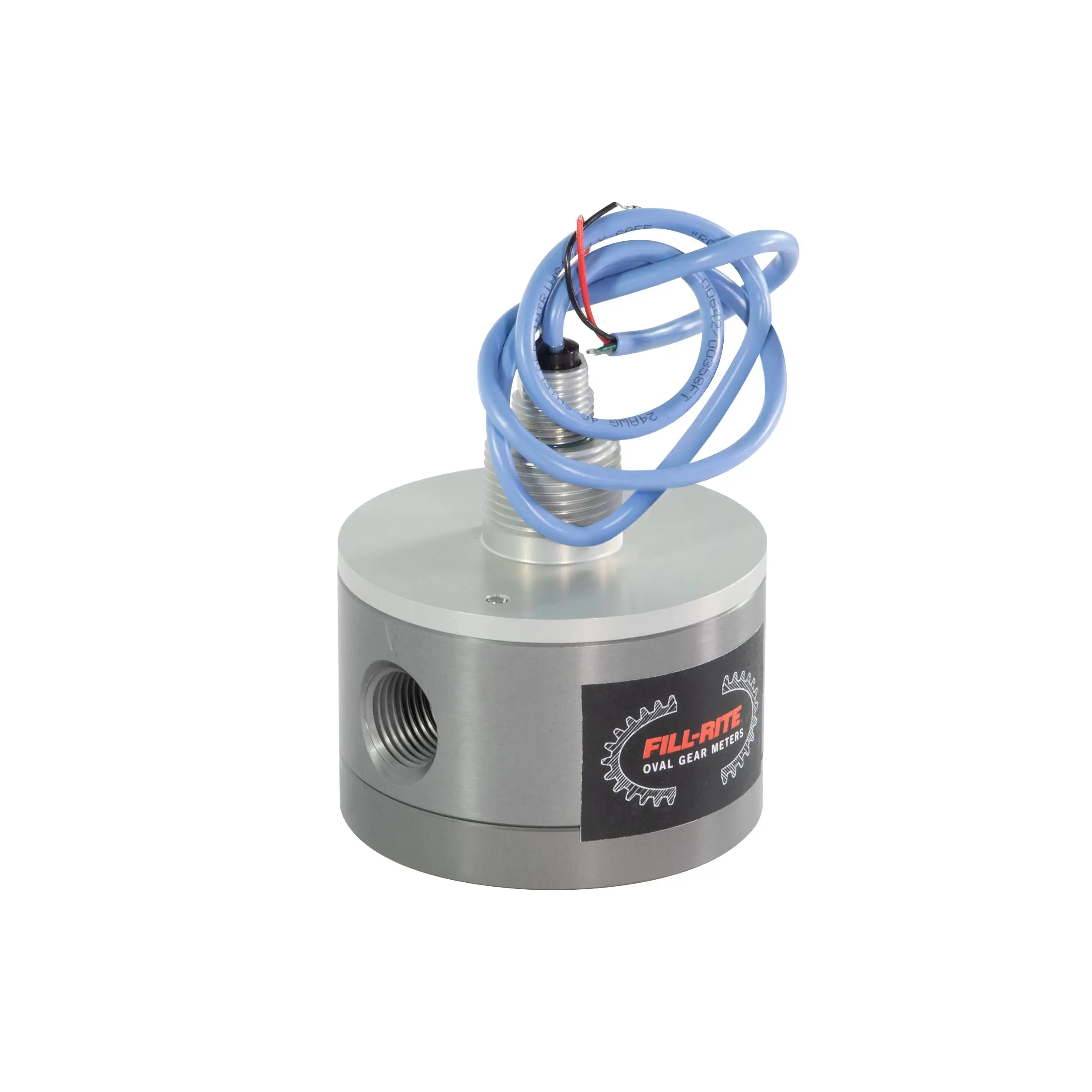

The TM04DSHEAXKK4HB is a Electronic High Temperature High Viscosity transfer meter equipped with a Hall Effect Sensor and 1/2" NPT threads and is designed to register 0.25-10 gallons per minute at 0.05% repeatability.
Specifications
| Flowrate Range (GPM) | .25-10 GPM |
|---|---|
| Inlet Size / Connection / Thread | 0.5 " / Female / BSPP |
| Outlet Size / Connection / Thread | 0.5 " / Female / BSPP |
| Max Operating Pressure (PSI) | 1500 |
| Housing Materials | Anodized Aluminum |
| Seal Materials | Teflon |
| Wetted Materials | Anodized Aluminum PPS |
| Strainer Mesh Size (Micron) | N/A |
| Package Height x Width x Depth (in.) | 6 x 6 x N/A |
| Gross Weight (lbs.) | 1.32400 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
No PDF documents.
