1.5" BSPP 6-45 GPM Electronic Custody Transfer Rated DEF and High Caustics Meter with a MID:COM E:Count Register.

Scraped SKU: TS15CM64BC2XEN Price: 12,233.00 USD 2026-06-05 18:19:16

Attributes

Features Html
Precision You Can Trust - Fill-Rite Oval Gear Meters with the MID:COM E:Count register for Accurate, Reliable Fluid Measurement and Data Collection., The MID:COM E:Count can hold up to 99 Products - Each with a custom product label, price, two taxes, cash discount and two special charges while measuring in either gallons or liters., With the MID:COM E:Count preset deliveries can be made by volume or price, certified through US NTEP CC 06-031, The MID:COM E:Count contains, pulse input, pulse output, a backlit display, 2 auxiliary inputs and 4 auxiliary outputs., Enhanced Operational Efficiency: The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently., Easy Installation and Maintenance: Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Precision Engineering: Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Cost Efficiency: By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings.

Description

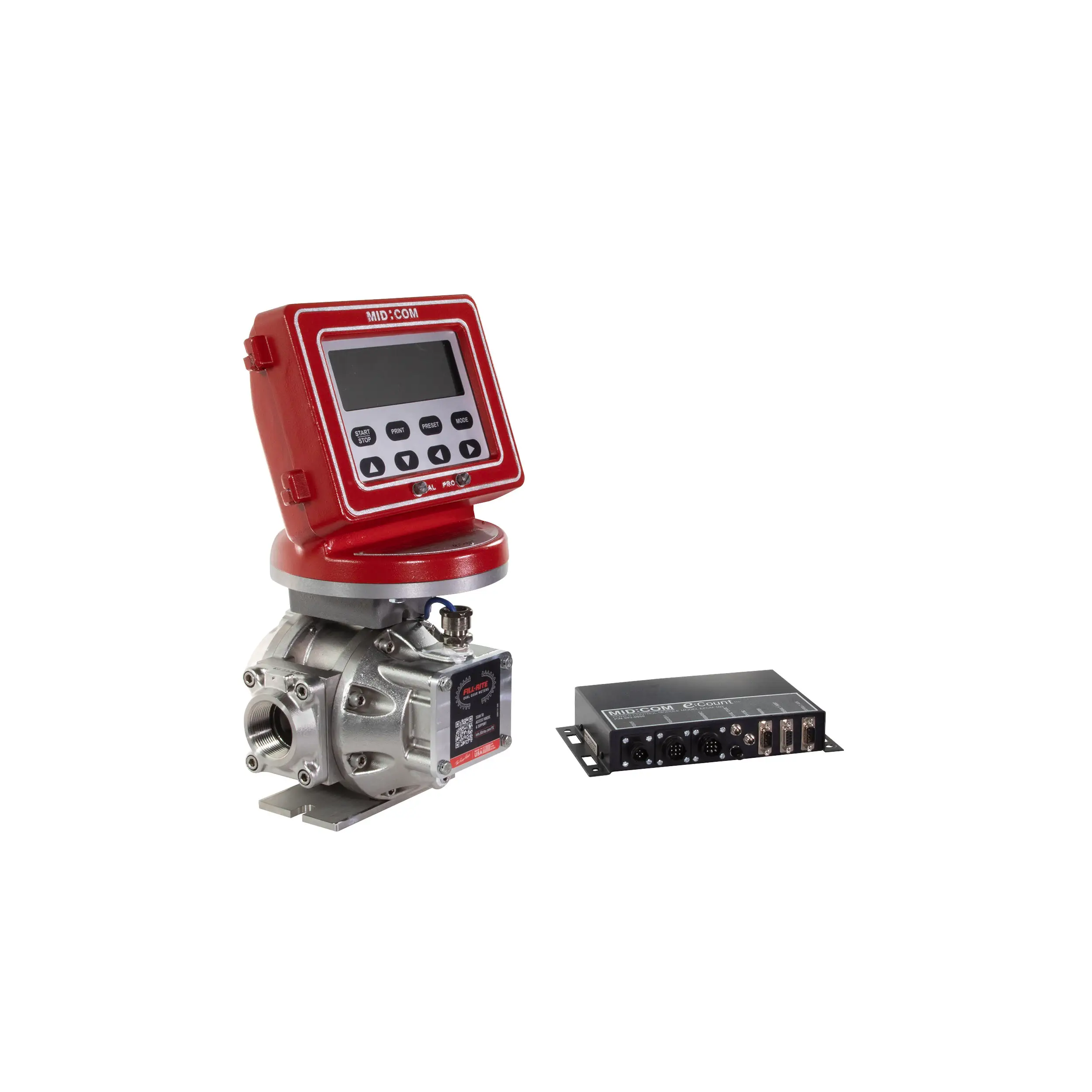

The TS15CM64BC2XEN is a 100% non-ferrous Electronic DEF and High Caustics transfer meter with a MID:COM E:Count Register. This meter is equipped with 1.5" BSPP threads and is designed to register 6-45 gallons per minute at 0.05% repeatability.

Specifications

Flowrate Range (GPM)6-45 GPM
Inlet Size / Connection / Thread1.5 " / Female / BSPP
Outlet Size / Connection / Thread1.5 " / Female / BSPP
Repeatability (+/- %)0.05 %
Linearity (+/- %) over 5:1 Turndown.175
Linearity (+/- %) over 10:1 Turndown.3
Linearity (+/- %) over 30:1 Turndown.5
Max Operating Pressure (PSI)400
Operating Temperature Range (°F)-40 - 180°F / -40 - 82°C
Compatible FluidsDEF
Housing Materials316 Stainless Steel
Seal MaterialsPTFE
Bearing MaterialsTeflon
Wetted Materials316 Stainless Steel PPS PTFE
Strainer Mesh Size (Micron)N/A
Gross Weight (lbs.)43.00000 lbs
Less Than Load (LTL) FreightYes
