Attributes
| Features Html | Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications, Easy to Use – included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage, Adjustable Latching – three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment, Automatic Shut-Off – automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient, Multiple Configurations – available in a variety of configurations to meet your application’s temperature, flow, and fluid compatibility requirements |
|---|---|
| Accessories | Nozzle: 1” Ultra Hi-Flow Automatic Diesel Nozzle (Yellow) |
Description

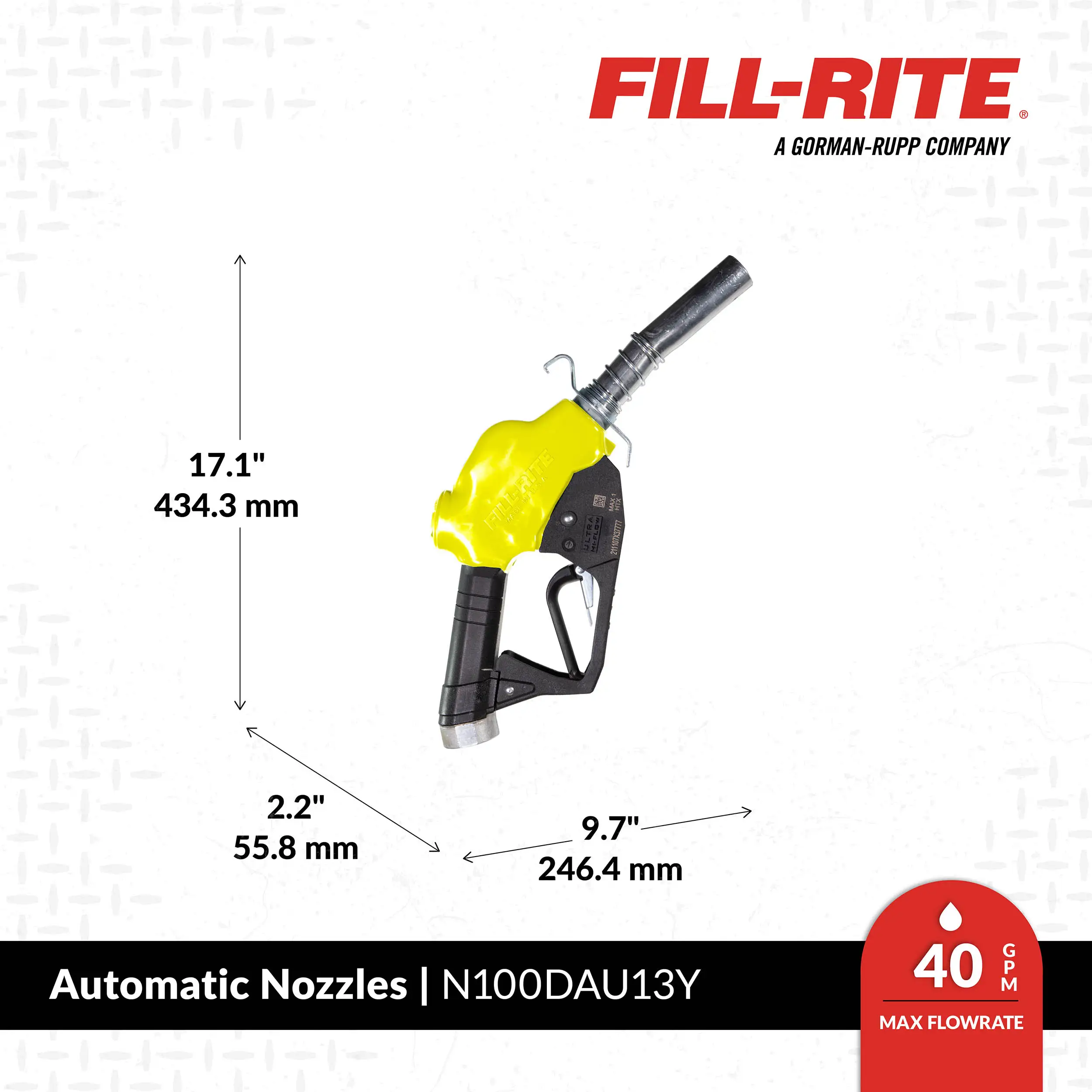

The N100DAU13Y is a 1" ultra-high-flow automatic shutoff nozzle designed for fuel transfer. This model is equipped with a 1-3/16" diesel-sized spout and yellow jacket, ideal for kerosene applications.
Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems
Specifications
| Nozzle | 1” Ultra Hi-Flow Automatic Diesel Nozzle (Yellow) |
|---|---|
| Max Flowrate | 40 GPM / 151 LPM |
| Compatible Fluids | Diesel, Gasoline, Kerosene, B20, E15, Biodiesel |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Spout Diameter (in.) | 1.1875 |
| Min Operating Temperature (°F) | -20 |
| Max Operating Pressure (PSI) | 50 |
| Nozzle Type | Automatic |
| Assembled Product Height x Width x Depth (in.) | 17.5 x 5.5 x 2 |
| Assembled Product Weight (lbs.) | 3.8 |
| Package Height x Width x Depth (in.) | 4 x 9.25 x 18 |
| Gross Weight (lbs.) | 3.95000 lbs |
| Less Than Load (LTL) Freight | Yes |
