Attributes
| Features Html | Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters, Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance, Extreme Accuracy — measures fuel within +/- 1% accuracy, ensuring your record-keeping is precise as possible, Low-Volume Applications – 3-digit counter registers flow rates between 19-76 LPM and up to 99.9 liters per batch, perfect for equipment with small fuel tanks, Lifetime Tracking — 5-digit non-resettable counter tracks total volume transferred over lifetime of meter, Fluid Compatibility — designed for daily use with diesel, gasoline, kerosene, mineral spirits, heptane, hexane |
|---|---|
| Accessories | Batteries Required: No, Batteries Included: No, Additional Accessories: Meter Reset Knob, 1" NPT Street Elbow |
Description

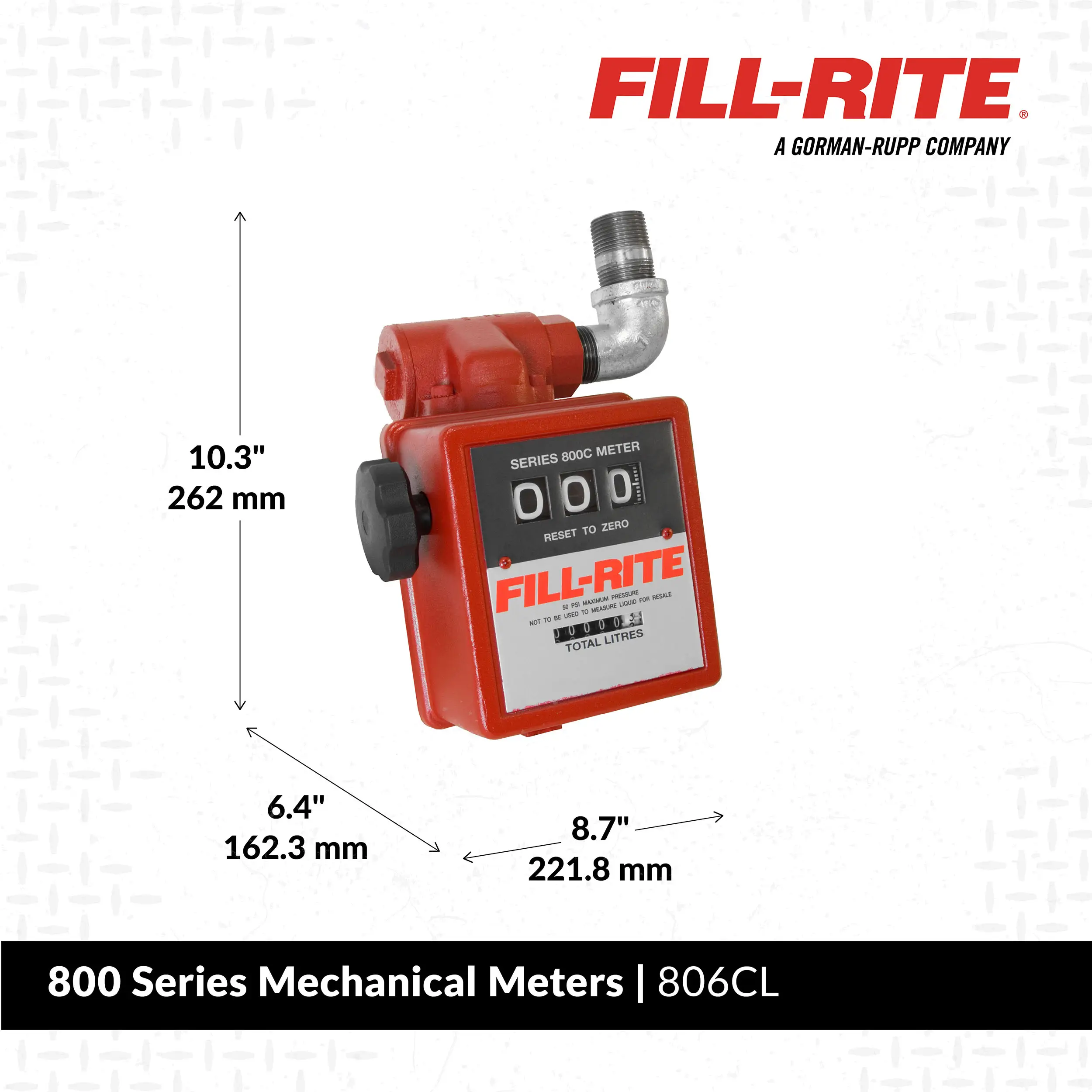

The 806CL is a gravity-fed, 3-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 19-76 liters per minute at +/- 1% accuracy. This model does not include additional installation components.
Specifications
| Flowrate Range (GPM) | 19-76 LPM |
|---|---|
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Hexane |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Operating Temperature Range (°F) | -15 - 150°F / -26 - 66°C |
| Max Operating Pressure (PSI) | 50 |
| Accuracy (+/- %) | 1 % |
| Repeatability (+/- %) | 0.38 % |
| Display Type | Mechanical |
| Display Digits | 3 |
| Power Source | Mechnical |
| Totalizer | Yes |
| Pulse Output | No |
| Assembled Product Height x Width x Depth (in.) | 9 x 6.25 x 4.75 |
| Assembled Product Weight (lbs.) | 5.2 |
| Package Height x Width x Depth (in.) | 7.38 x 7.25 x 10.5 |
| Gross Weight (lbs.) | 6.80000 lbs |
| Less Than Load (LTL) Freight | Yes |
