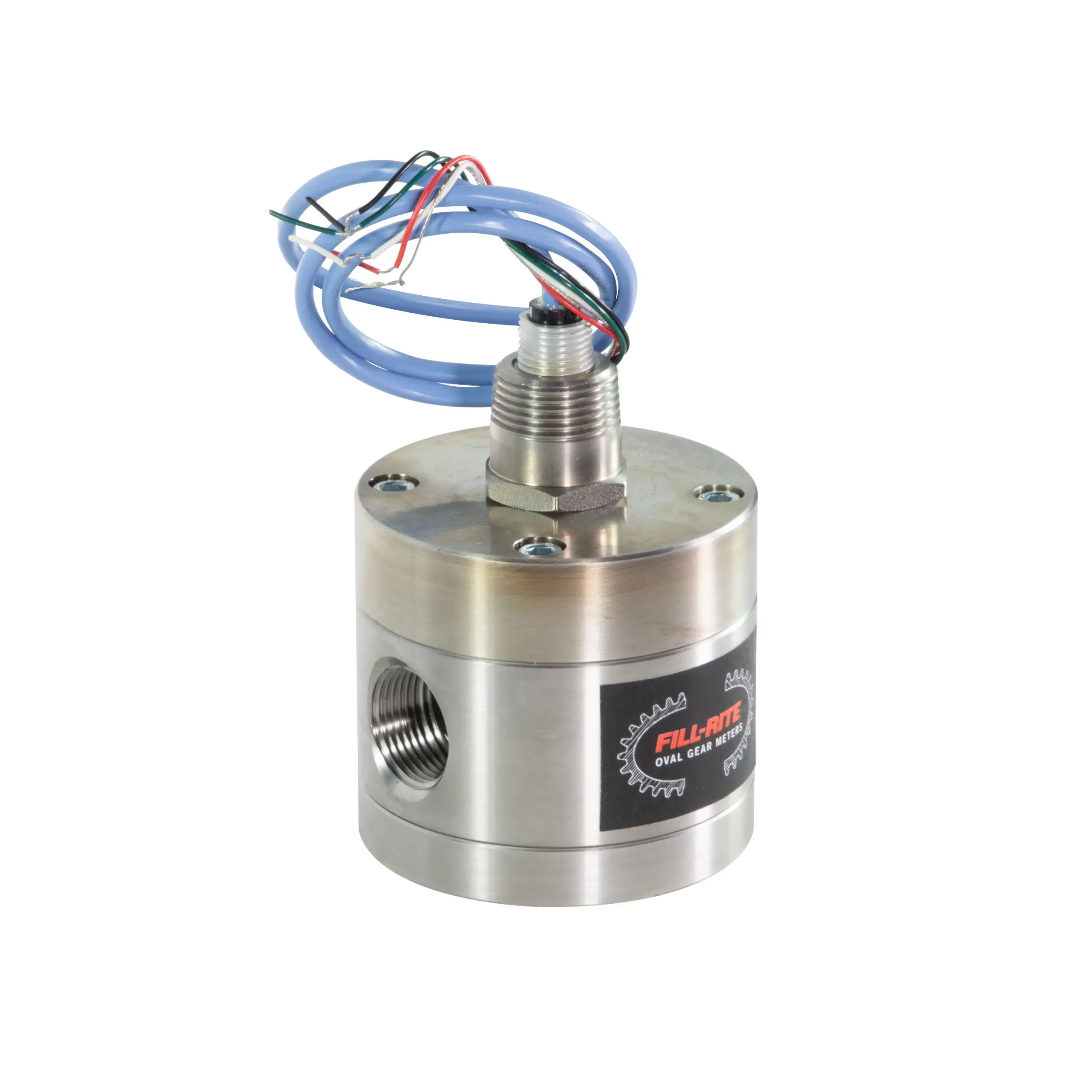

0.35 - 20 GPM Electronic 3/4" NPT Stainless-Steel Meter with Hall Effect Sensor (NOT FOR FLUID RESALE)

Scraped SKU: TM06DSHEAXKA4HB Price: 2,490.00 USD 2026-06-05 18:19:48

Attributes

Features Html
Precise Measurement: Accuracy in measuring flow rates, ensuring reliable data for various fluids and applications., Compact Design: Ideal for installations where space is limited, maximizing efficiency without compromising performance., Versatile Compatibility: Compatible with a wide range of fluids, from water and oils to chemicals, making it adaptable across industries such as manufacturing, automotive, and many others., Durable Construction: Built to withstand the harshest environments, the Stainless-Steel of this meter boasts a robust construction that ensures durability and longevity., Cost-Effective Solution: Cost-effective flow measurement solution, offering a balance of performance, reliability, and affordability, delivering long-term value for businesses of all sizes., Low Maintenance: Low maintenance in nature, as it only contains two moving parts and there is no metal-to-metal contact virtually eliminating any wear. reducing maintenance expenses over time., Accurate Readouts: Provides precise, real-time flow measurements, enabling users to monitor and control fluid flow with confidence, ultimately improving process efficiency.

Description

The TM06DSHEAXKA4HB is a stainless-steel E85 & Low Caustics transfer meter equipped with a Hall Effect sensor and 3/4" NPT threads and is designed to register 0.35-20 gallons per minute at 0.05% repeatability.

Specifications

Flowrate Range (GPM)2-20GPM
Inlet Size / Connection / Thread0.75 " / Female / NPT
Outlet Size / Connection / Thread0.75 " / Female / NPT
Max Operating Pressure (PSI)1500
Compatible FluidsHeptane, Hexane, Ethylene Glycol, Stoddard Solvents, E85, Benzaldehyde, Formaldehyde, Xylene, Vinegar
Housing Materials316 Stainless Steel
Seal MaterialsTeflon
Strainer Mesh Size (Micron)N/A

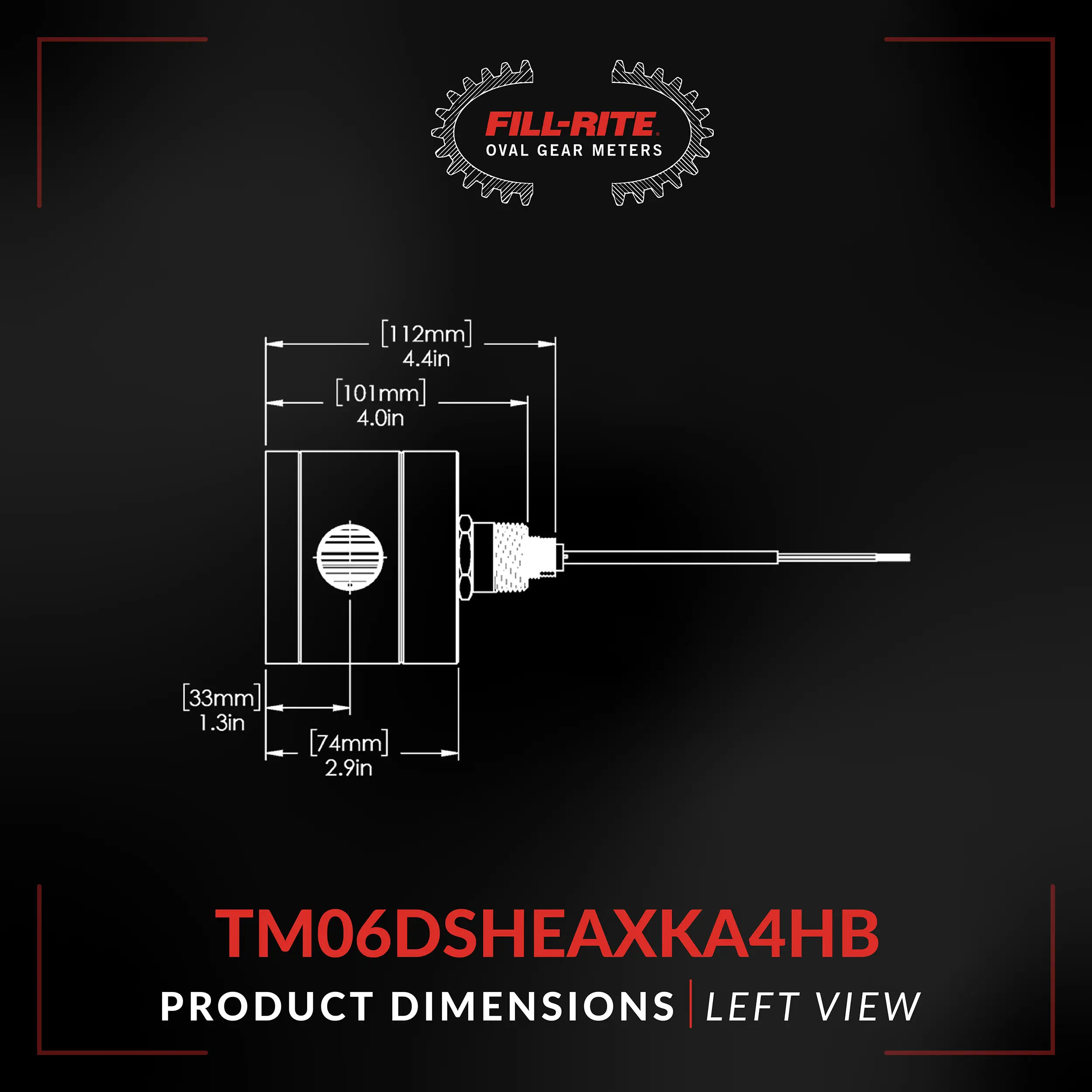

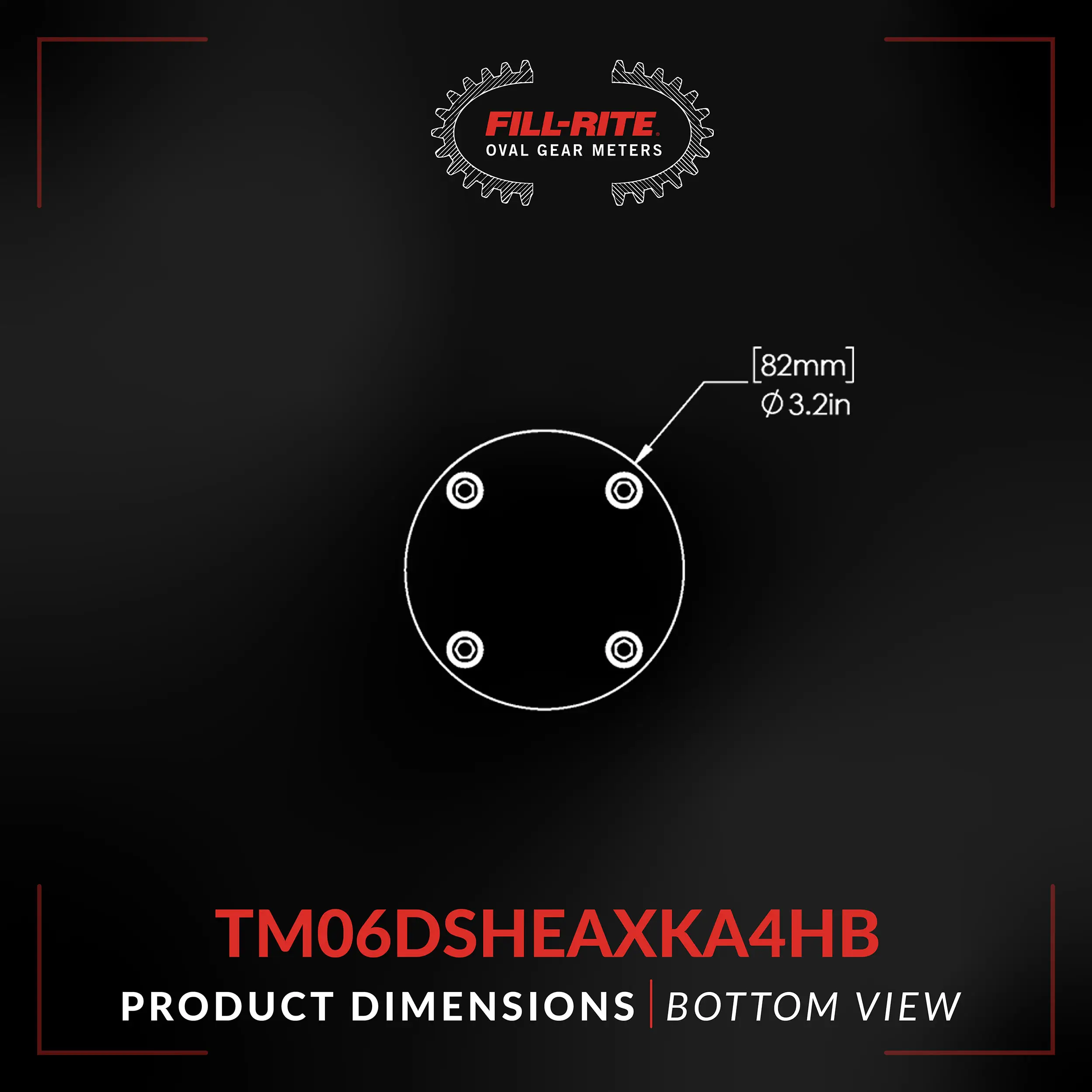

Assembled Product Height x Width x Depth (in.)5 x 3.25 x 3.5
Assembled Product Weight (lbs.)6.2
Package Height x Width x Depth (in.)6 x 6 x 6.25
Gross Weight (lbs.)6.60000 lbs
Less Than Load (LTL) FreightYes
