Attributes

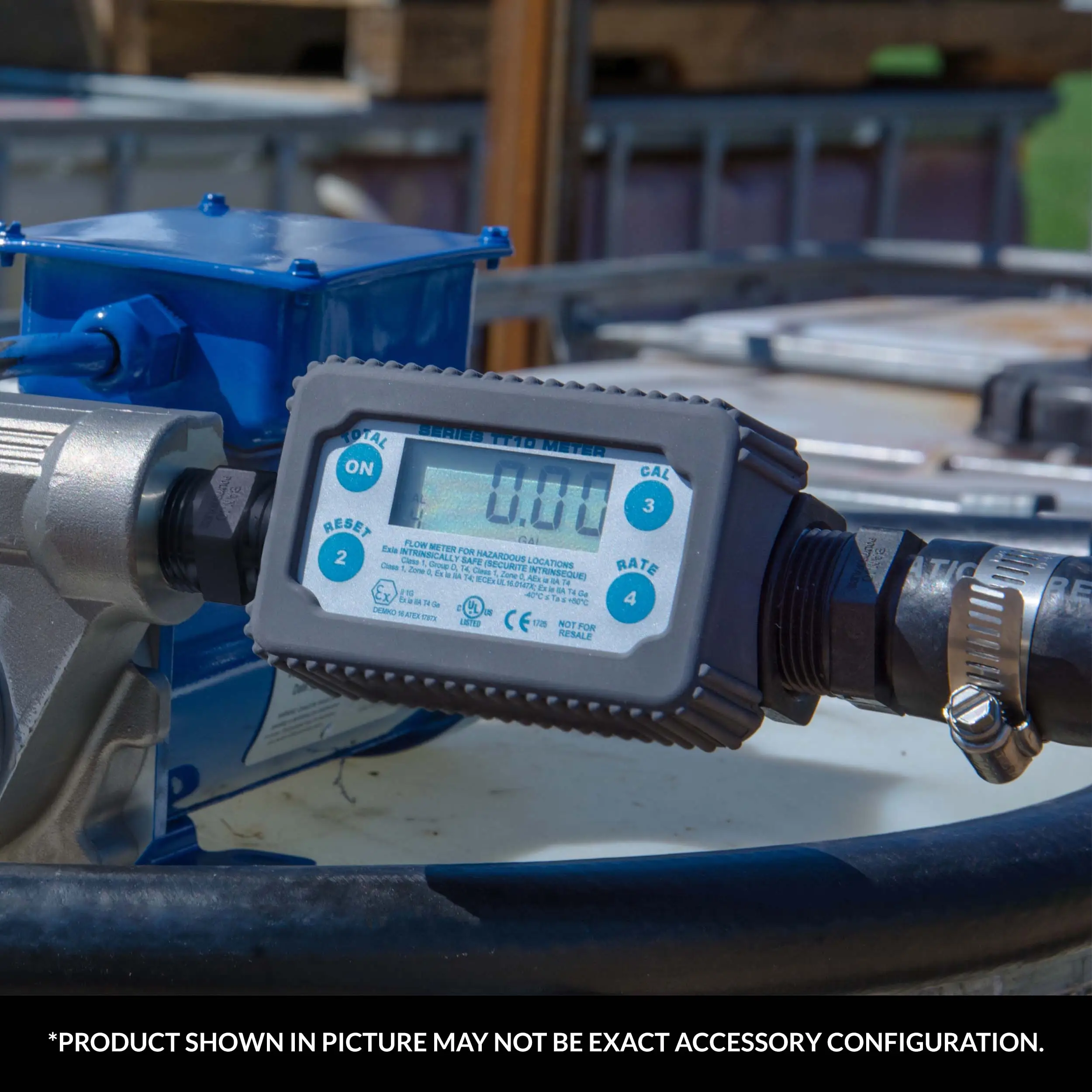

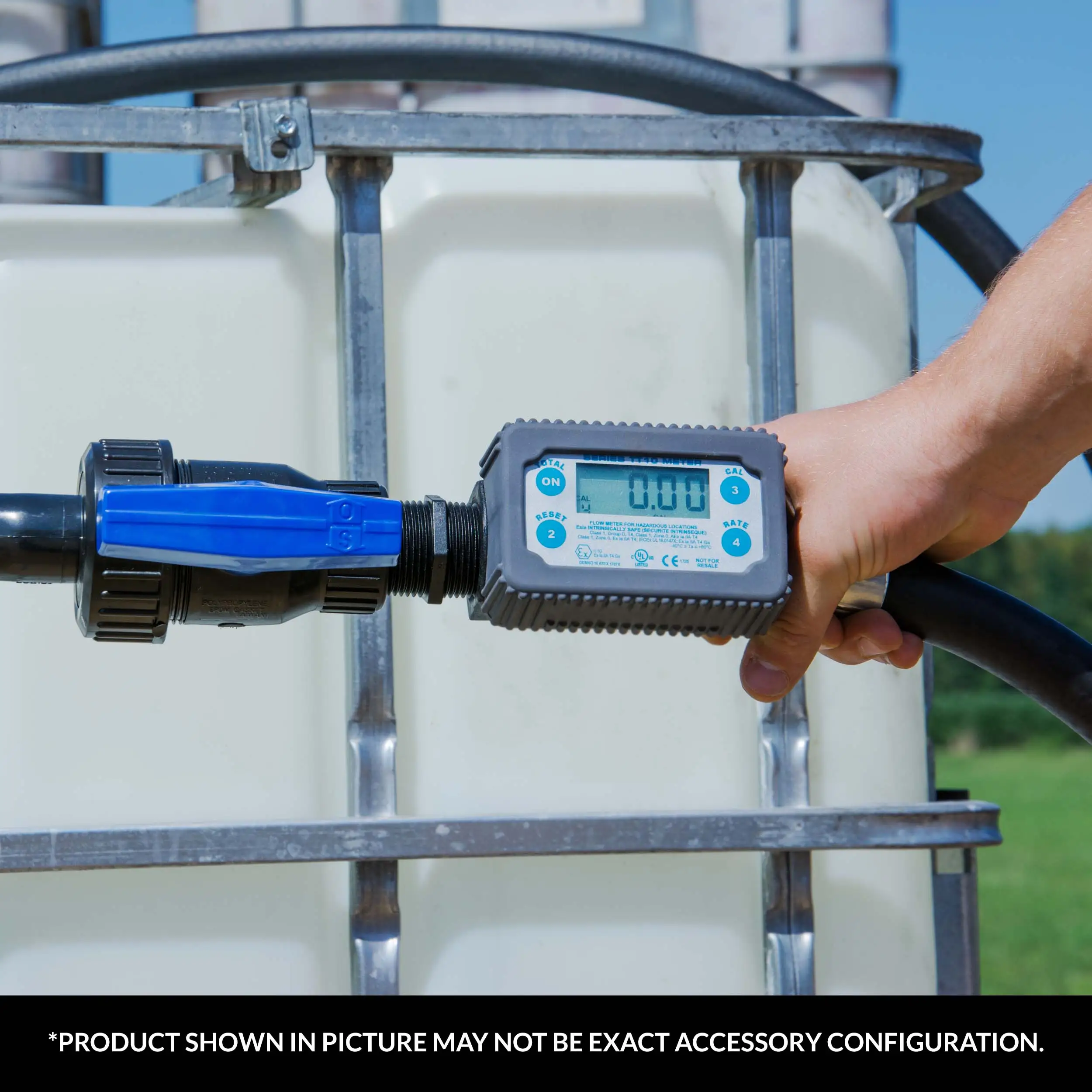

| Features Html | Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility, Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible, Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience, Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts, Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration, Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications, Lifetime Tracking – non-resettable counter tracks total volume transferred over lifetime of meter, even if batteries are replaced |
|---|---|
| Accessories | Batteries Required: Yes, Batteries Included: Yes, Battery Quantity: 2, Battery Size: AA, Battery Type: Alkaline |
| Series Code | turbine-meters-series |
| Series Name | Inline Digital Meters |
| Series Url | https://www.fillrite.com/turbine-meters-series |
Description

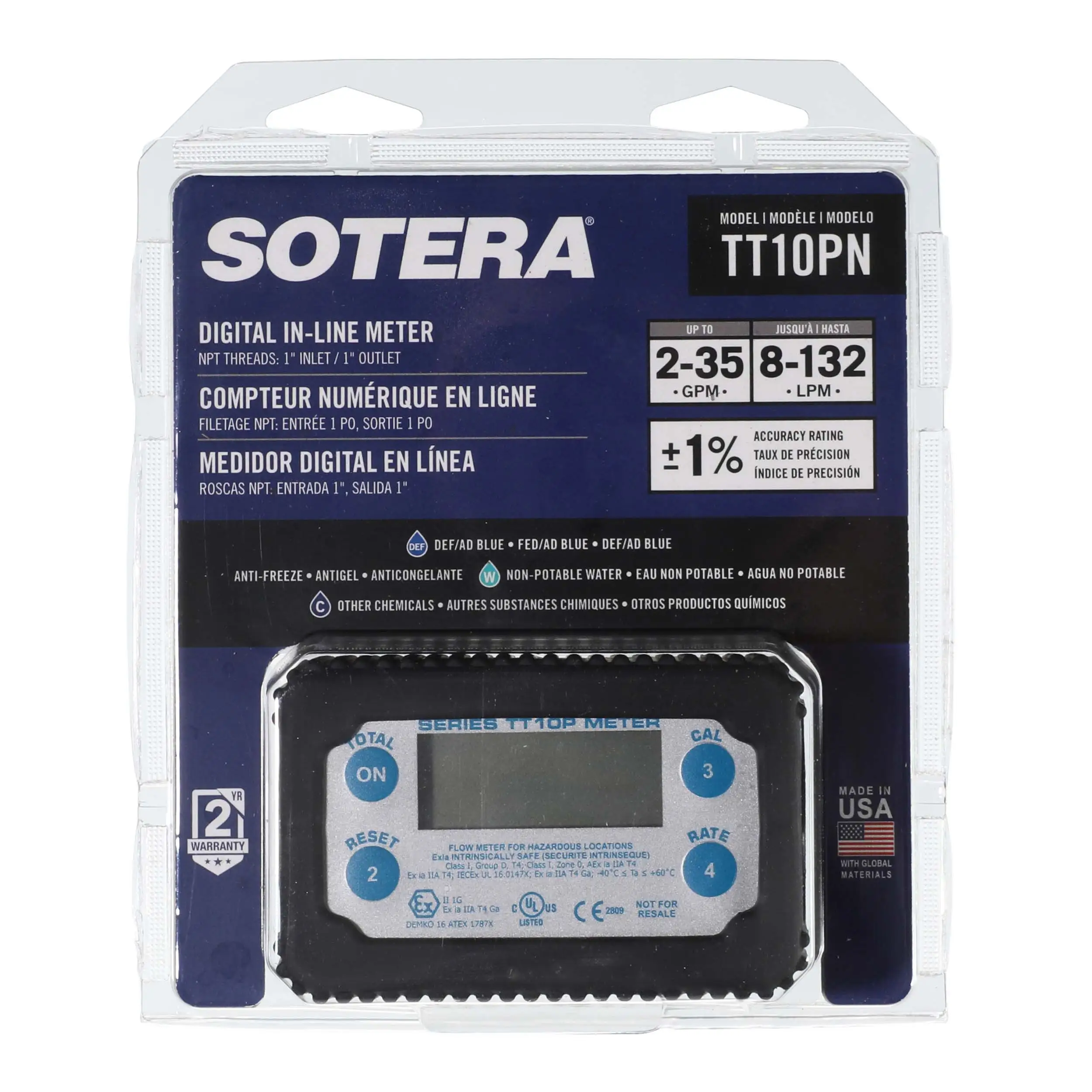

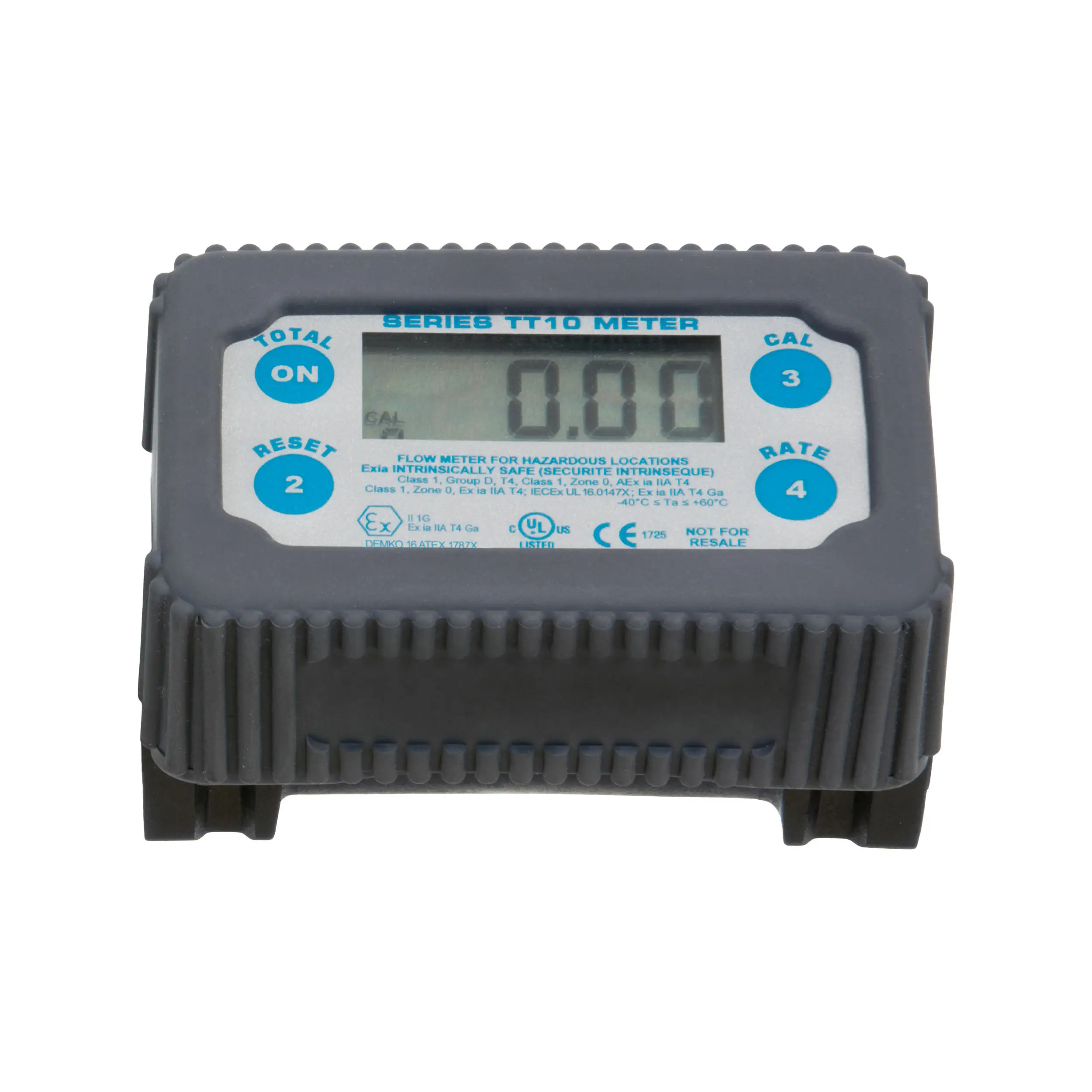

The TT10PN model is a 4-digit, digital, low-viscosity chemical transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/- 1% accuracy.
Specifications
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Compatible Fluids | DEF, Antifreeze, Pesticides, Non-Potable Water, De-icing Fluid, Herbicides |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Max Operating Pressure (PSI) | 50 |
| Operating Temperature Range (°F) | -15 - 140°F / -26 - 60°C |

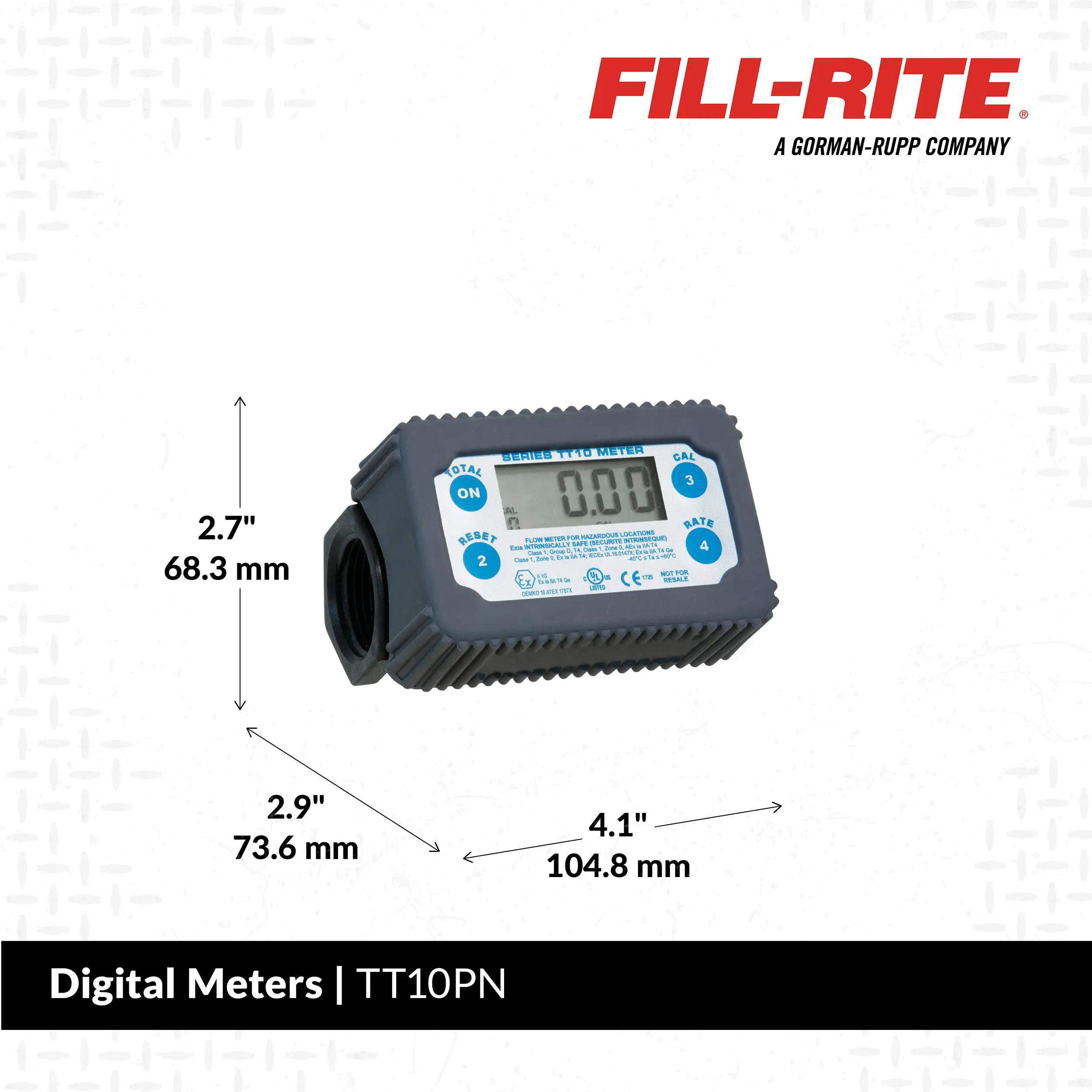

| Assembled Product Height x Width x Depth (in.) | 2.7 x 4.1 x 2.9 |
| Assembled Product Weight (lbs.) | 0.8 |
| Package Height x Width x Depth (in.) | 7.4 x 6.2 x 3 |
| Gross Weight (lbs.) | 0.90000 lbs |
| Less Than Load (LTL) Freight | Yes |
