Attributes
| Features Html | Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance, Nickel-Plated Exterior — thick nickel-plated exterior provides additional corrosion resistance and protection from tough environmental conditions, Extreme Accuracy — measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business, Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters, Ready Out of Box — factory pre-calibration for numerous fluids makes installation quick, saving you time and eliminating frustration, Complete Customization — track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts, High-Volume Applications — 4-digit digital counter registers flow rates between 6-40 GPM and up to 999.9 gallons or liters per batch, perfect for heavy equipment with large fuel tanks, Lifetime Tracking — 7-digit non-resettable counter tracks total volume transferred over lifetime of meter, Fluid Compatibility — designed for daily use with designed for daily use with diesel, gasoline, kerosene, mineral Spirits, heptane, hexane, and biodiesel blends up to B20 |
|---|---|

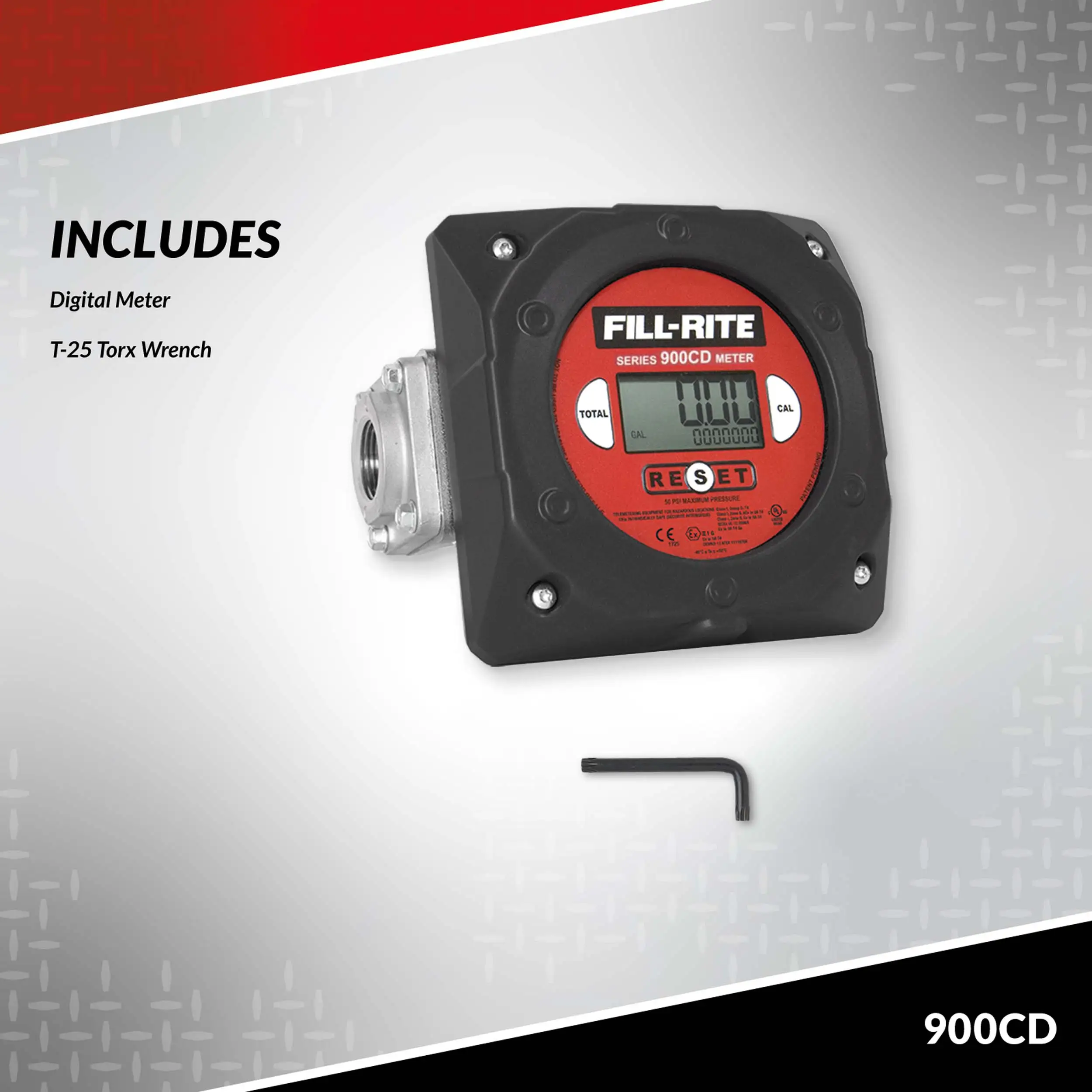

| Accessories | Pulser: No, Batteries Required: Yes, Batteries Included: Yes, Battery Quantity: 2, Battery Size: AA, Battery Type: Alkaline, Additional Accessories: T-25 Torx Wrench |
| Series Code | 900-digital-meters-series |
| Series Name | Heavy Duty Digital Meters |
| Series Url | https://www.fillrite.com/900-digital-meters-series |
Description
The 900CD is a nickel-plated, 4-digit digital fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-40 gallons per minute at +/- 1.25% accuracy. This model does not include additional installation components.
Specifications
| Flowrate Range (GPM) | 6-40 GPM/ 23-151 LPM |
|---|---|
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Mineral Spirits, Heptane, Hexane |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Operating Temperature Range (°F) | -40 - 140°F / -40 - 60°C |
| Max Operating Pressure (PSI) | 50 |
| Accuracy (+/- %) | 1.25 % |
| Repeatability (+/- %) | 0.25 % |
| Display Digits | 4 |
| Power Source | Electrical |
| Pulse Output | No |

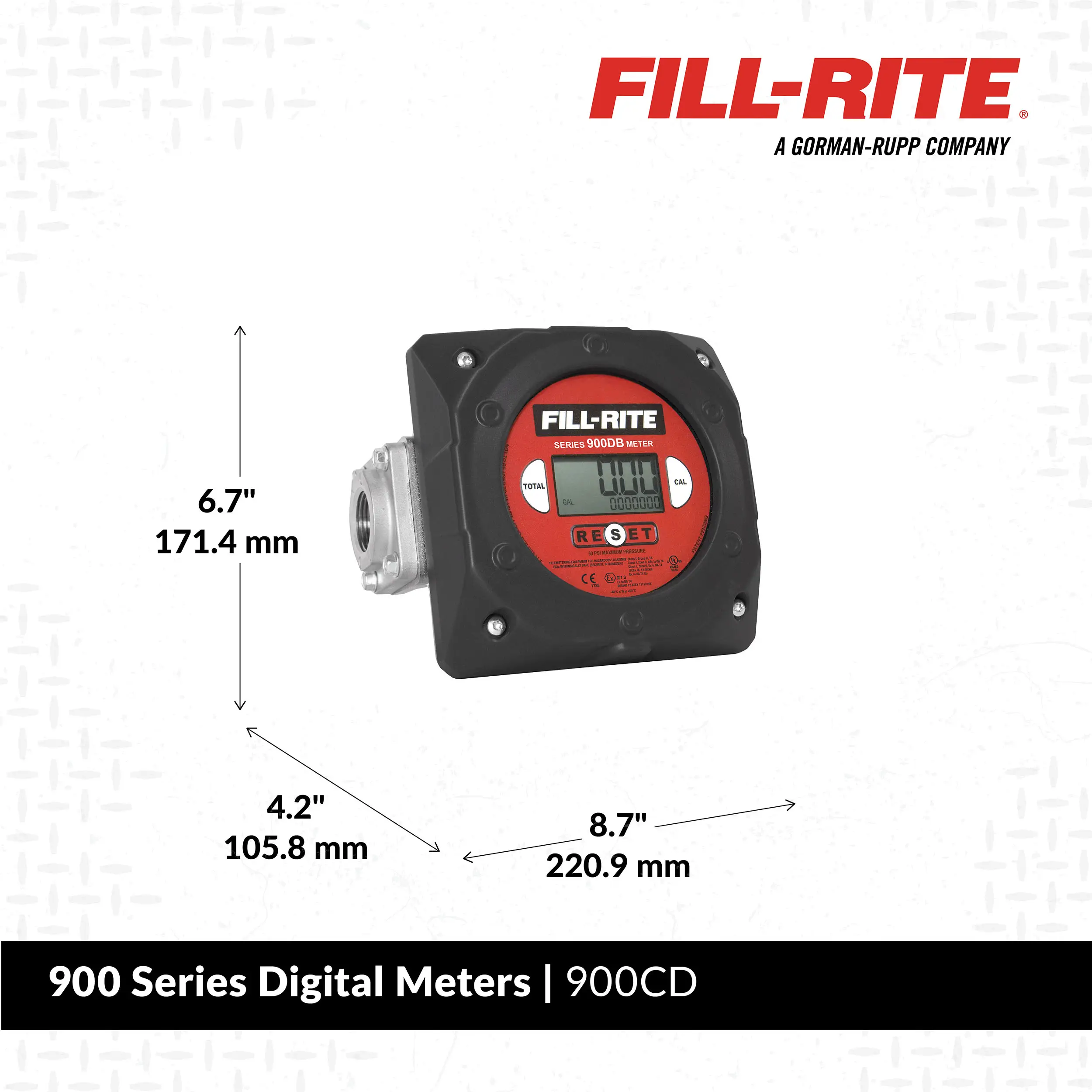

| Assembled Product Height x Width x Depth (in.) | 7 x 9.5 x 4.25 |
| Assembled Product Weight (lbs.) | 6.8 |
| Package Height x Width x Depth (in.) | 5.13 x 10 x 11.88 |
| Gross Weight (lbs.) | 8.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
