Attributes
| Features Html | Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 132 liters per minute, perfect for filling your largest equipment with fuel tanks sized at 132-528+ liters, Dual Voltage Motor — powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch, Stationary Tanks — Equipped with a 2 inch bung mount, this pump is ideal for installing onto stationary aboveground tanks, Fluid Compatibility — designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20, Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump, Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry, Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment |
|---|---|

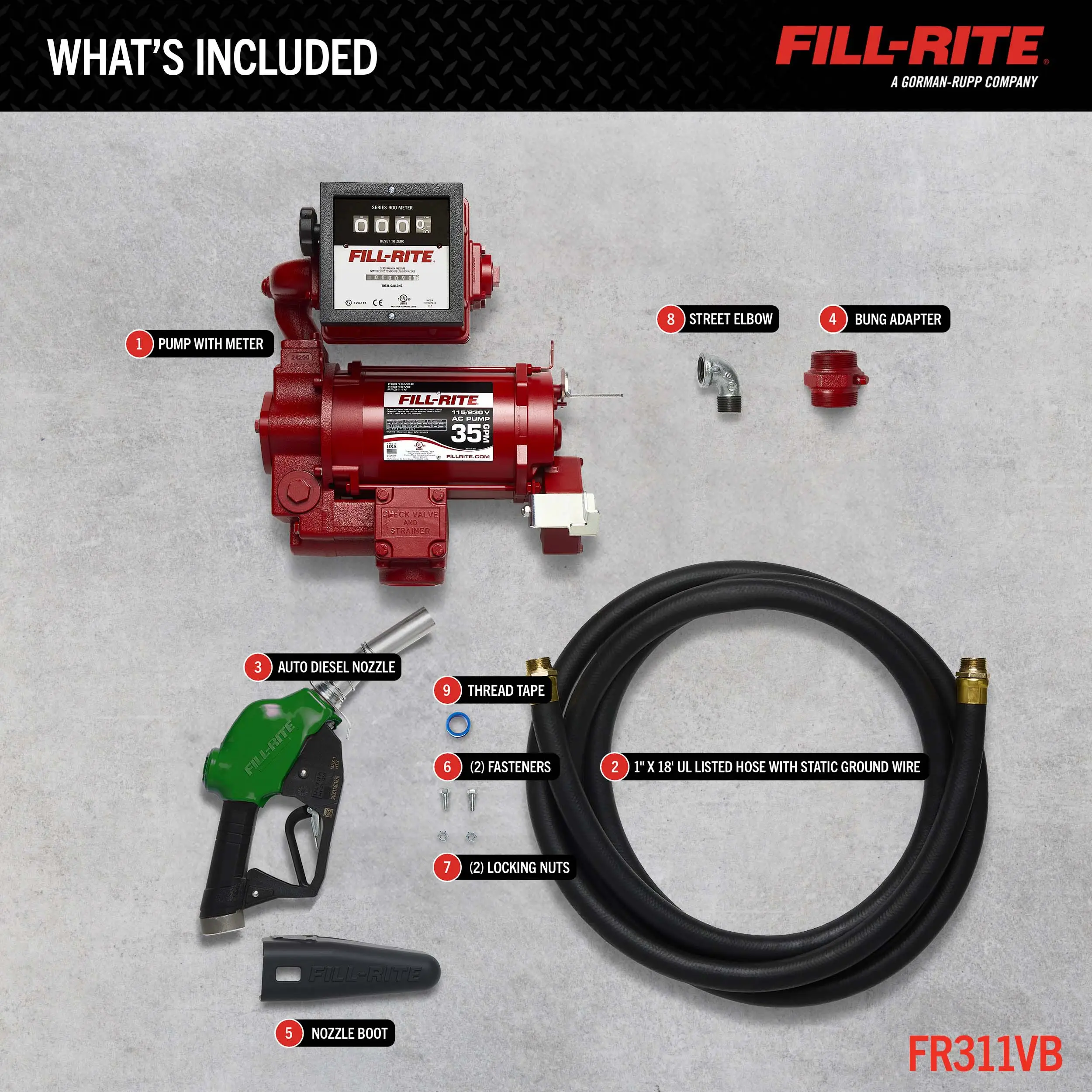

| Accessories | Additional Accessories: Nozzle Boot, 2" Tank Bung Adapter, Meter Reset Knob, PTFE Tape Roll, 1" NPT Street Elbow, (4) Locking Nuts, (4) Fasteners, Check Valve Cover, Cable Length (ft): 1, Cable Gauge (GA): 14, Cable Connection: Bare Leads, Discharge Hose: 1” X 18’ UL Listed Hose with Static Ground Wire, Nozzle: 1” Ultra Hi-Flow Automatic Diesel Nozzle (Green), Meter: 901C Mechanical Meter (Gallons), Batteries Included: No, Batteries Required: No |
| Series Code | fr300-series-fr300 |
| Series Name | FR300 Series |
| Series Url | https://www.fillrite.com/fr300-series-fr300 |
Description

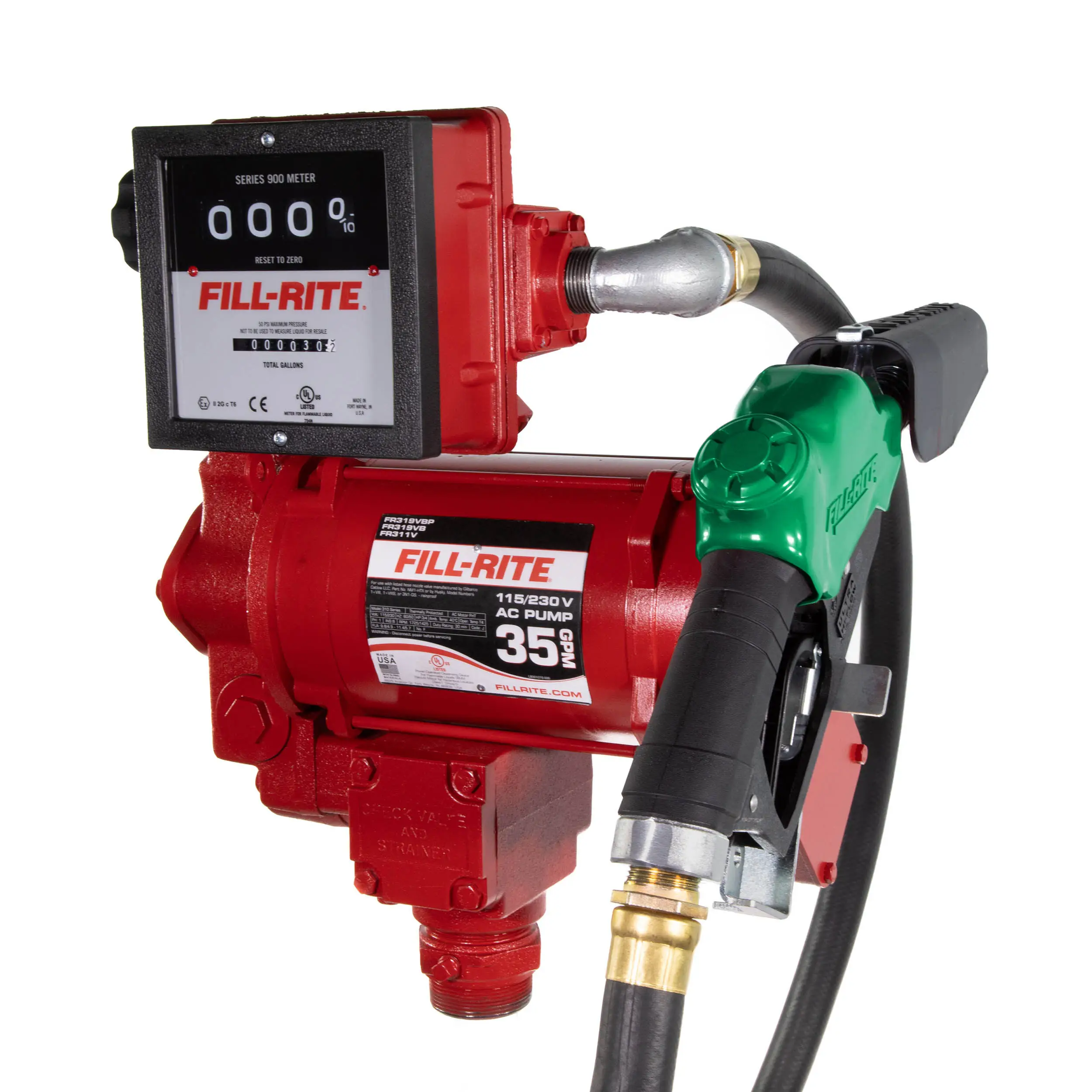

The FR311VB model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.
Specifications
| Max Flowrate | 35 GPM / 132 LPM |
|---|---|
| Power Type | 115V/230V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20 |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.75 |
| Suction Lift (ft.) | 18 ' |
| Dry Vacuum (in. Hg) | 14 |
| Discharge Head (ft) | 60 ' |
| Strainer Mesh Size (Micron) | 40x 40 x .008” |
| Max Discharge Pressure (PSI) | 26 PSI |
| Repeatability (+/- %) | 0.38 % |
| Accuracy (+/- %) | 2 % |
| Display Digits | 4 |
| Display Type | Mechanical |
| Batteries Included | No |
| Batteries Required | No |
| AC Frequency (Hz) | 50/60 |

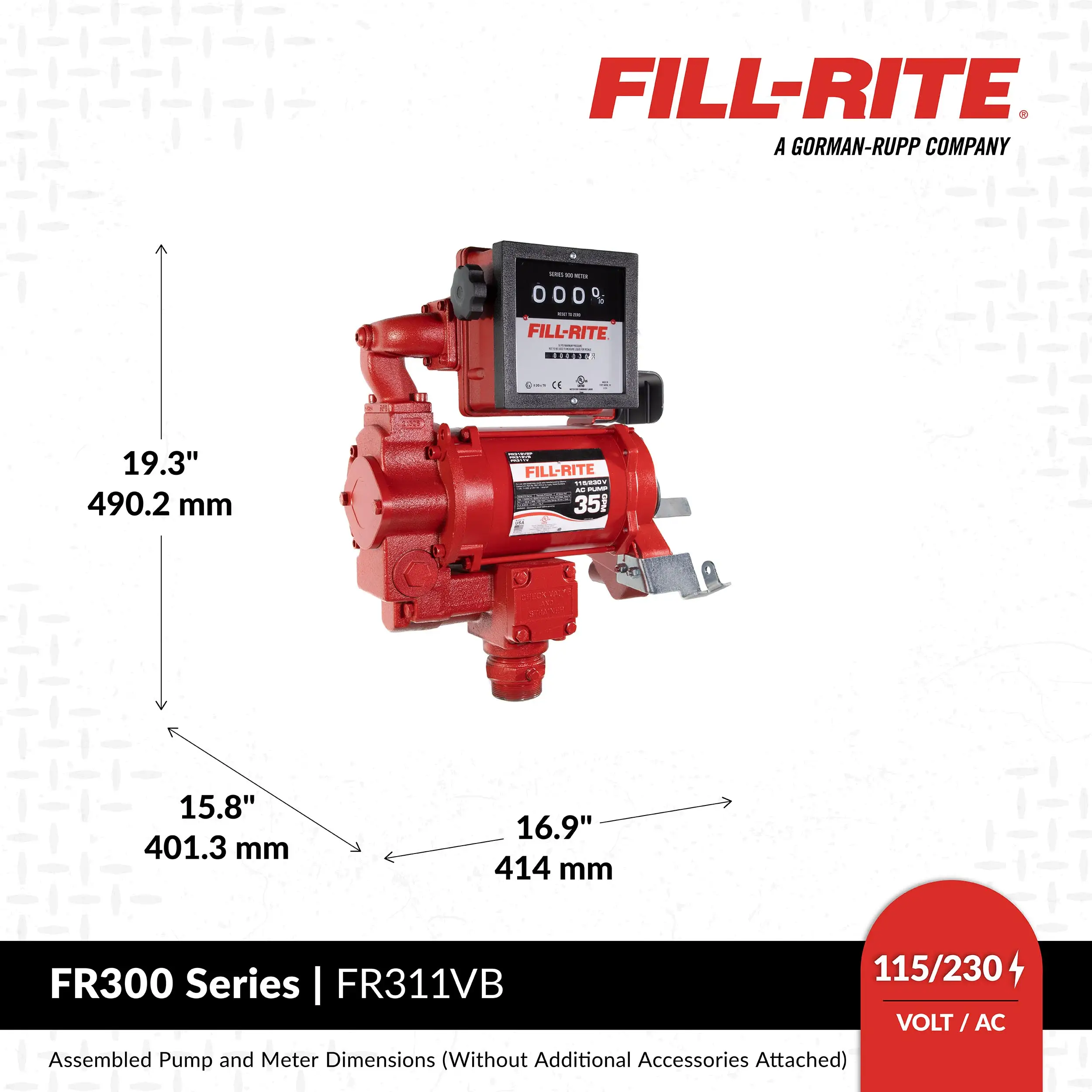

| Assembled Product Height x Width x Depth (in.) | 19.3 x 16.9 x 15.9 |
| Assembled Product Weight (lbs.) | 80.4 |
| Package Height x Width x Depth (in.) | 12.25 x 22.31 x 19.75 |
| Gross Weight (lbs.) | 91.97000 lbs |
| Less Than Load (LTL) Freight | Yes |
