115/230V AC 35 GPM Fuel Transfer Pump

Scraped SKU: FR310VN Price: 1,426.00 USD 2026-06-05 18:18:19

Attributes

Features Html
Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 35 gallons per minute, perfect for filling your largest equipment with fuel tanks sized at 35-140+ gallons, Dual Voltage Motor — powered by a dual voltage 115-230V AC motor, you can conveniently select the right voltage during installation with a simple switch, Stationary Tanks — Equipped with a 2 inch bung mount, this pump is ideal for installing onto stationary aboveground tanks, Fluid Compatibility — designed for daily use with diesel fuel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20, Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump, Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry, Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment

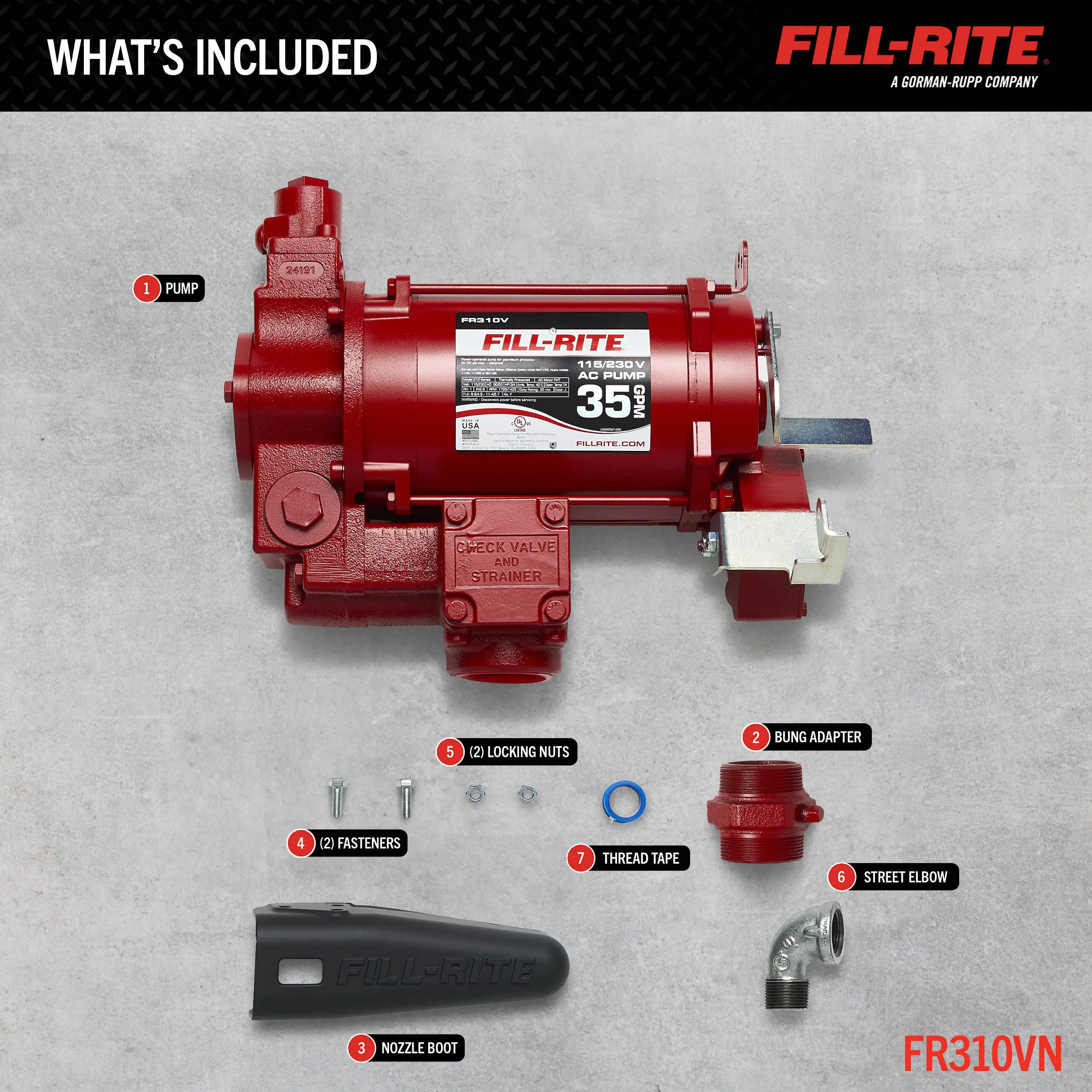

AccessoriesAdditional Accessories: Nozzle Boot, 2" Tank Bung Adapter, PTFE Tape Roll, 1" NPT Street Elbow, (2) Locking Nuts, (4) Fasteners, Check Valve Cover, Cable Length (ft): 1, Cable Gauge (GA): 14, Cable Connection: Bare Leads
Series Codefr300-series-fr300
Series NameFR300 Series
Series Urlhttps://www.fillrite.com/fr300-series-fr300

Description

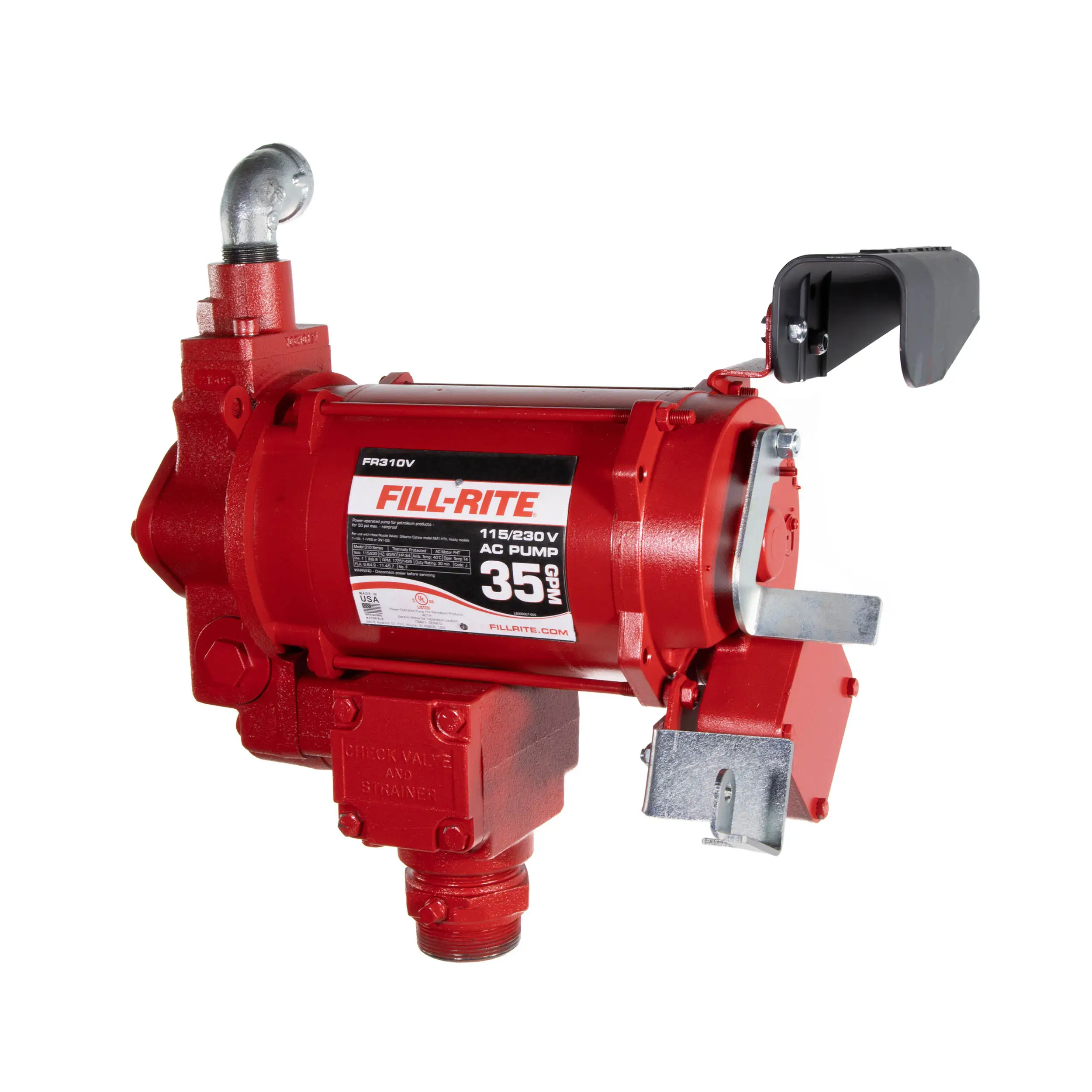

The FR310VN model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Specifications

Max Flowrate35 GPM / 132 LPM
Power Type115V/230V AC
Compatible FluidsDiesel, Kerosene, Biodiesel up to B20
Inlet Size / Connection / Thread1.25 " / Female / NPT
Outlet Size / Connection / Thread1 " / Female / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount
Duty Cycle (min)30 min on / 30 min off
Power SourceElectrical
Motor Power (HP)0.75
Suction Lift (ft.)18 '
Dry Vacuum (in. Hg)14
Discharge Head (ft)60 '
Strainer Mesh Size (Micron)40x 40 x .008”
Max Discharge Pressure (PSI)26 PSI

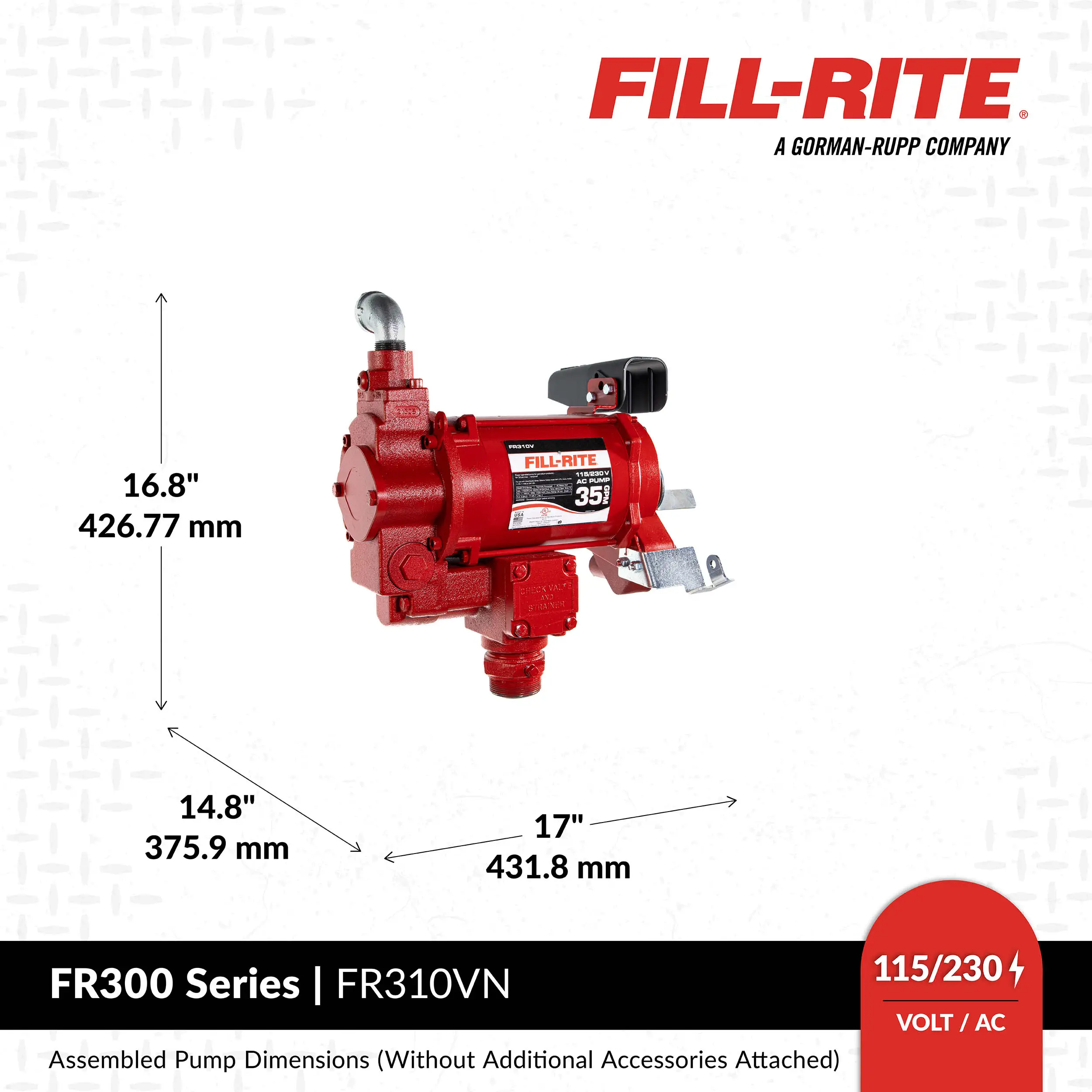

Assembled Product Height x Width x Depth (in.)17.4 x 17.0 x 14.8
Assembled Product Weight (lbs.)65.8
Package Height x Width x Depth (in.)12.25 x 22.31 x 19.75
Gross Weight (lbs.)74.70000 lbs
Less Than Load (LTL) FreightYes
