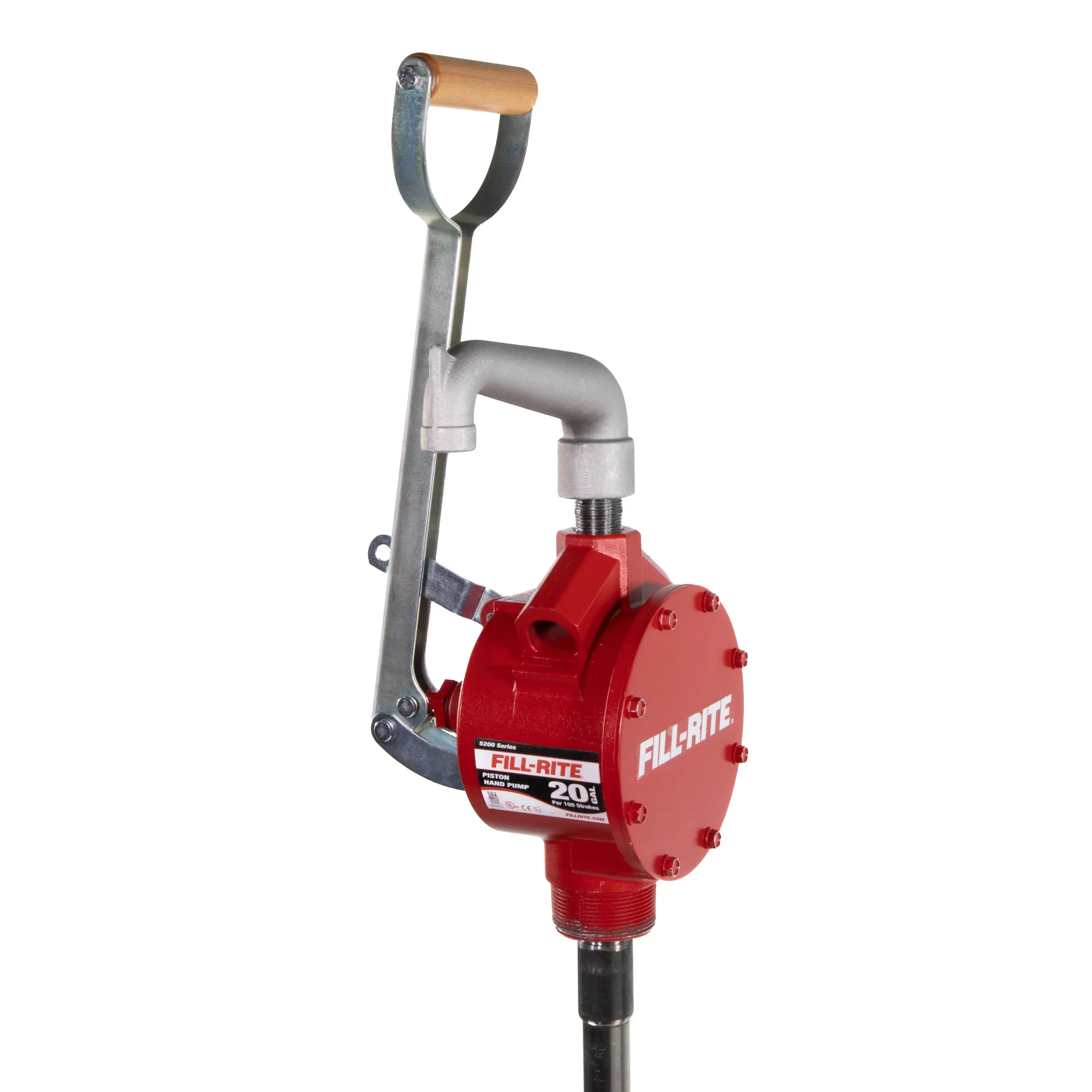

Piston Hand-Operated Fuel Transfer Pump with Pail Spout

Scraped SKU: FR151 Price: 304.00 USD 2026-06-05 18:18:19

Attributes

Features Html
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and corrosion resistance, Faster Filling — Double piston action delivers premium performance with 20 gallons every 100 strokes, saving time and reducing physical strain, No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility, Consistent Performance — onboard vacuum breaker facilitates uninterrupted performance and creates smoother flow at the discharge, Theft Prevention — padlock-compatible handle adds security to protect your investment, Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety, Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

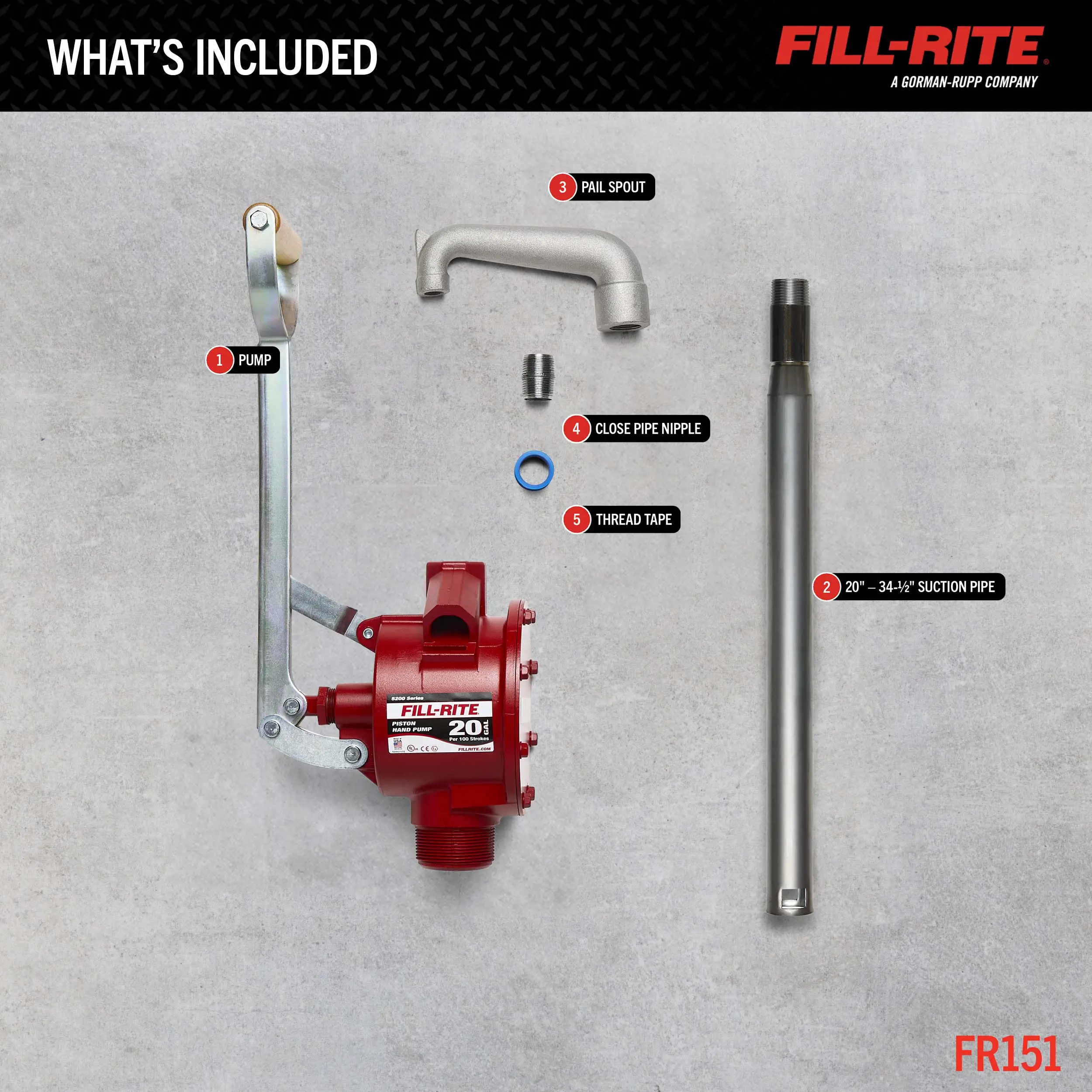

AccessoriesSuction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe, Nozzle: ¾” Cast Aluminum Pail Spout, Additional Accessories: PTFE Tape Roll
Series Codepiston-hand-pumps-series-piston-hand-pumps
Series NameHand-Operated Piston Style
Series Urlhttps://www.fillrite.com/piston-hand-pumps-series-piston-hand-pumps

Description

The FR151 model is a 20 gallons per 100 strokes, hand lever fuel transfer pump. This pump and accessory bundle comes complete with a spout, suction pipe, and installation components.

Specifications

Max Flowrate20 Gal / 75 Liters Per 100 Strokes
Power TypeHand-Operated
Compatible FluidsDiesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size / Connection / Thread1 " / Female / NPT
Outlet Size / Connection / Thread0.75 " / Female / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount

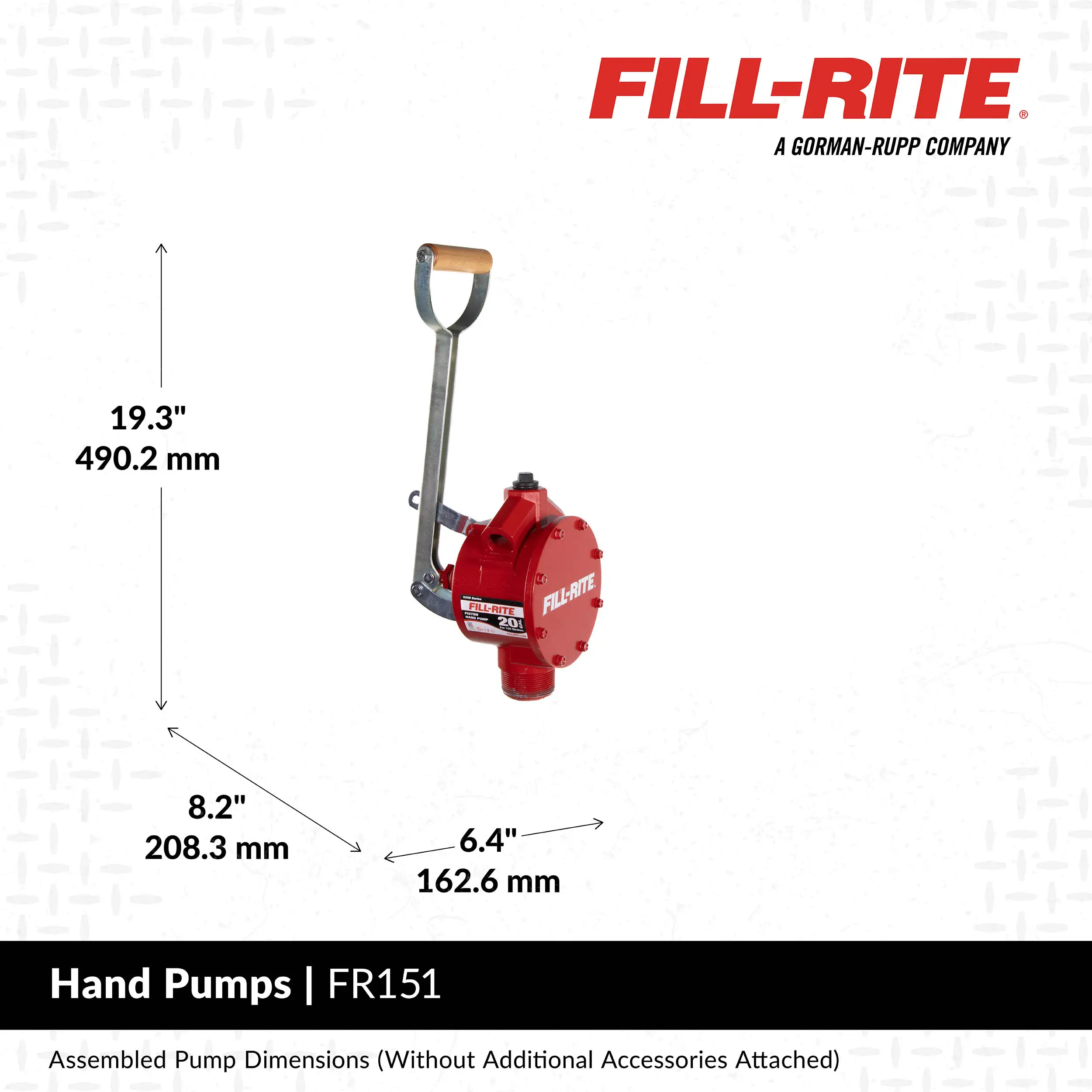

Assembled Product Height x Width x Depth (in.)20 x 6.5 x 9.25
Assembled Product Weight (lbs.)8.2
Package Height x Width x Depth (in.)8.56 x 23.38 x 8.63
Gross Weight (lbs.)12.30000 lbs
Less Than Load (LTL) FreightYes
