Attributes
| Features Html | Use to convert any FR1200 / FR2400 / FR4200 / FR4400 / FR600 / SD1200 / SD600 to be used with Bio-Diesel blends of B21 or greater, or E85., All of the items in this kit are made of Fluorocarbon (Viton). |
|---|---|
| Series Code | small-pump-rebuild-parts-series |
| Series Name | Small Pump Rebuild Parts Series |
| Series Url | https://www.fillrite.com/small-pump-rebuild-parts-series |
Description

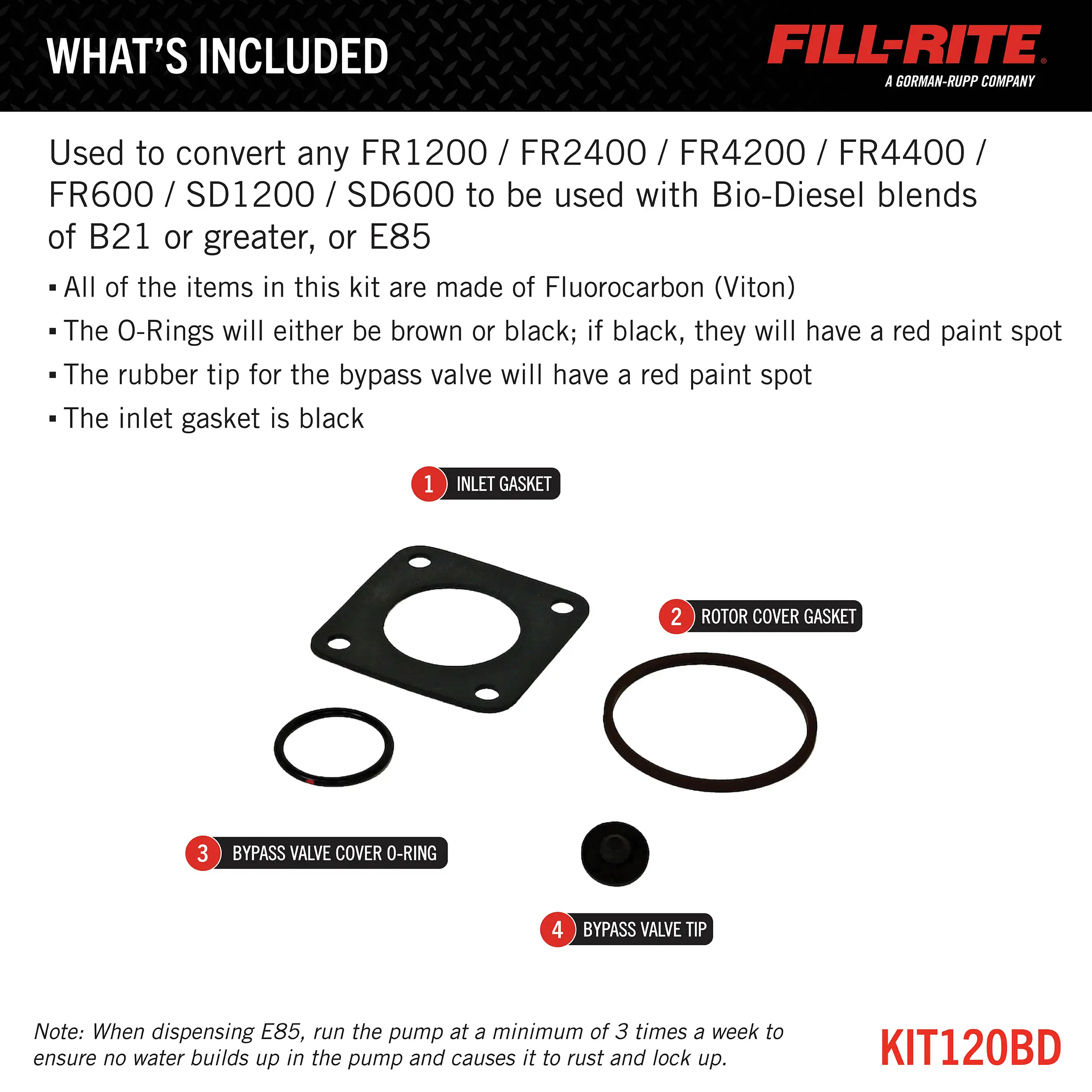

KIT120BD contains the materials to convert Fill-Rite FR1200, FR2400, FR4200, FR4400, FR600, SD1200, and SD600 series pumps. This kit includes inlet gasket, bypass valve tip, bypass valve cover O-ring, and rotor cover gasket. For use with biodiesel and E85 gasoline.
Specifications
| Inlet Size / Connection / Thread | -- / -- / -- |
|---|---|
| Outlet Size / Connection / Thread | -- / -- / -- |
| Mounting Size / Thread / Type | -- / -- / -- |
| Assembled Product Weight (lbs.) | 1.1 |
| Package Height x Width x Depth (in.) | 7.5 x 8 x 10 |
| Gross Weight (lbs.) | 1.50000 lbs |
| Less Than Load (LTL) Freight | Yes |
