Attributes
| Features Html | Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and corrosion resistance, Faster Filling — Double piston action delivers premium performance with 20 gallons every 100 strokes, saving time and reducing physical strain, No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility, Consistent Performance — onboard vacuum breaker facilitates uninterrupted performance and creates smoother flow at the discharge, Theft Prevention — padlock-compatible handle adds security to protect your investment, Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety, Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits |
|---|---|
| Accessories | Suction Pipe: None |
| Series Code | piston-hand-pumps-series-piston-hand-pumps |
| Series Name | Hand-Operated Piston Style |
| Series Url | https://www.fillrite.com/piston-hand-pumps-series-piston-hand-pumps |
Description

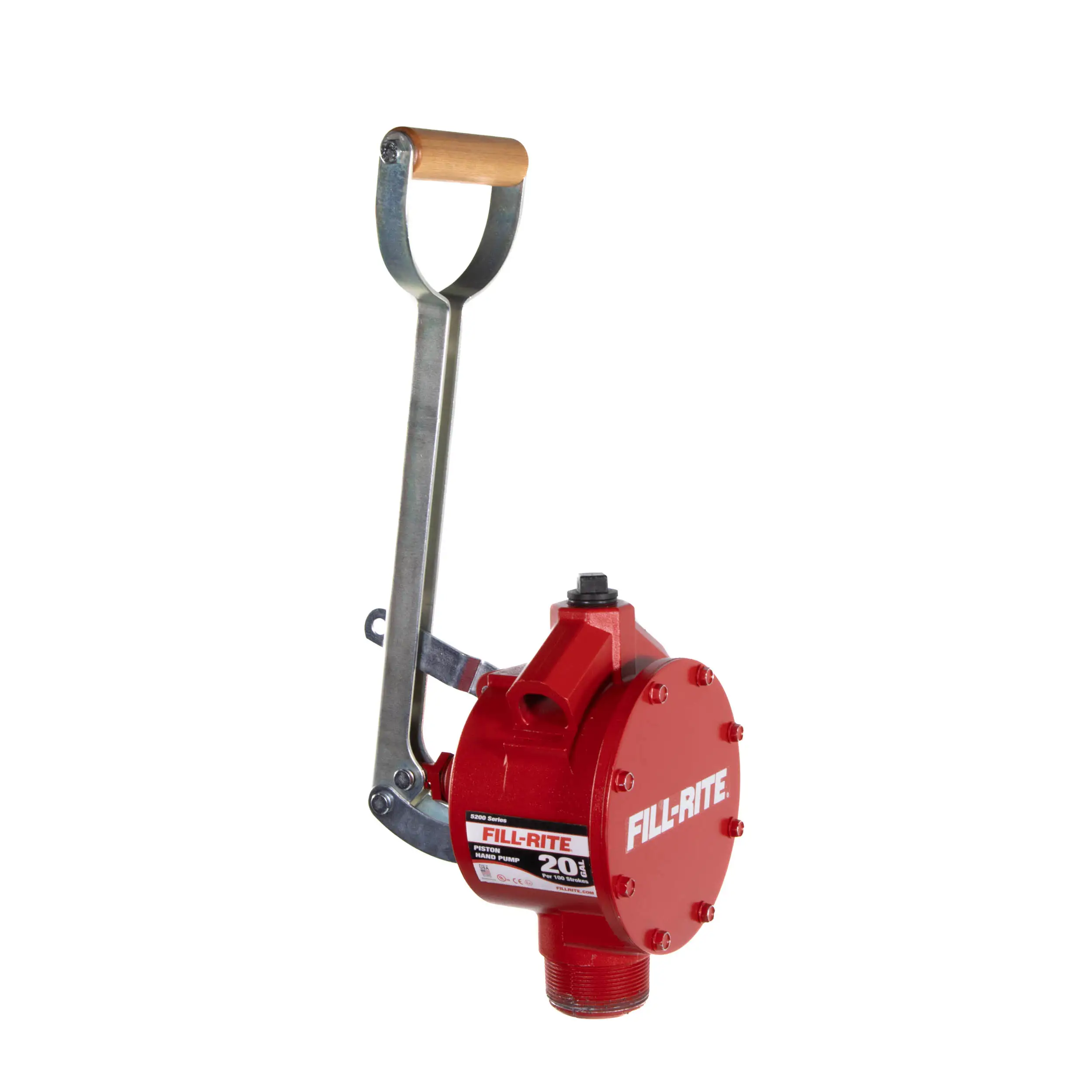

The FR150 model is a 20 gallons per 100 strokes, hand lever fuel transfer pump. This model includes installation components and no additional accessories.
Specifications
| Max Flowrate | 20 Gal / 75 Liters Per 100 Strokes |
|---|---|
| Power Type | Hand-Operated |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | Continuous Duty |

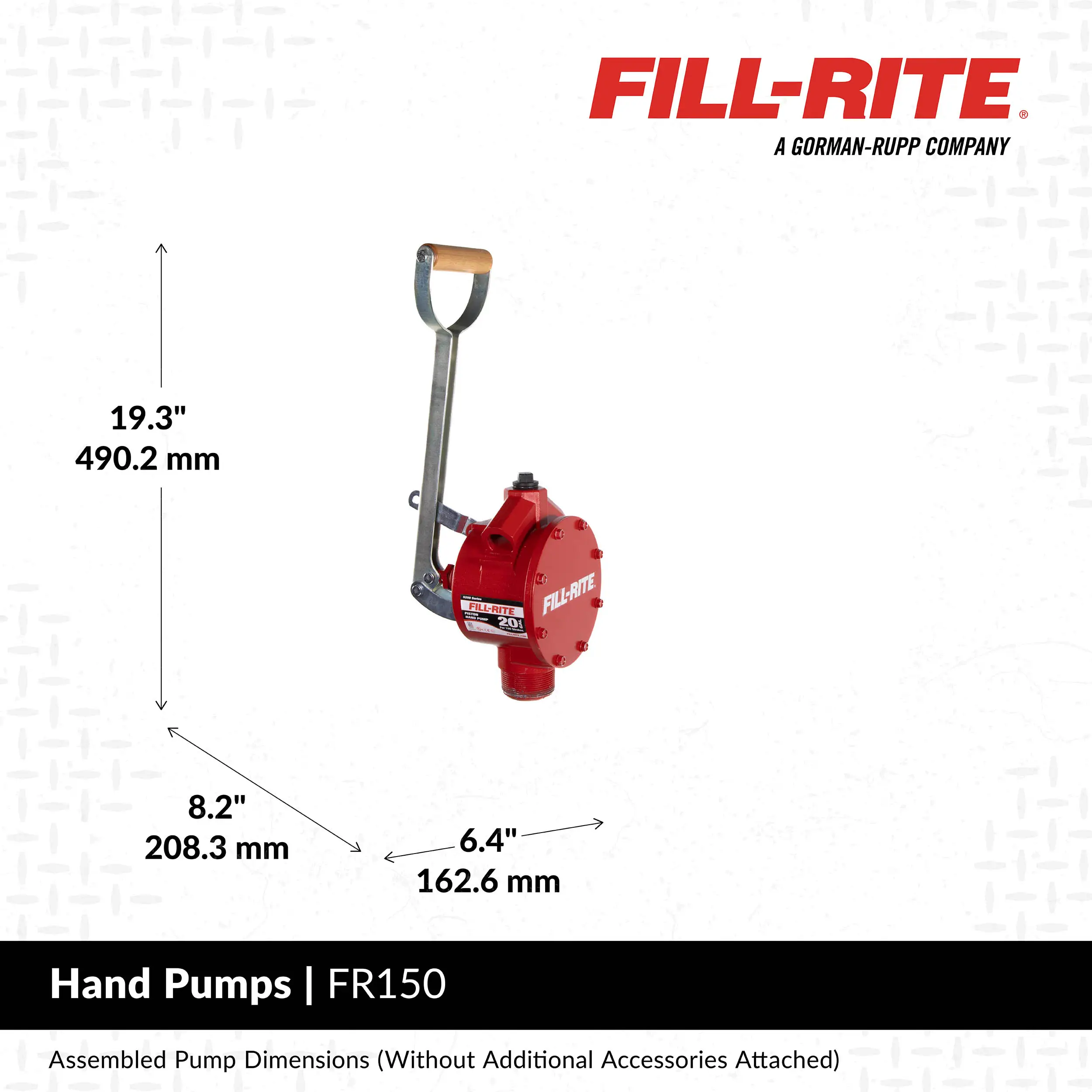

| Assembled Product Height x Width x Depth (in.) | 19.4 x 6.4 x 8.4 |
| Assembled Product Weight (lbs.) | 8.2 |
| Package Height x Width x Depth (in.) | 8.56 x 23.38 x 8.63 |
| Gross Weight (lbs.) | 9.50000 lbs |
| Less Than Load (LTL) Freight | Yes |
