Attributes
| Features Html | Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications, Economical Solution – reliably transfers 11 oz. per stroke from 55-gallon drums in low-volume transfer applications, No Electricity Needed– ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility, Flexible Fluid Compatibility – compatible with a wide variety of fuel, oil, and chemical fluids |
|---|---|

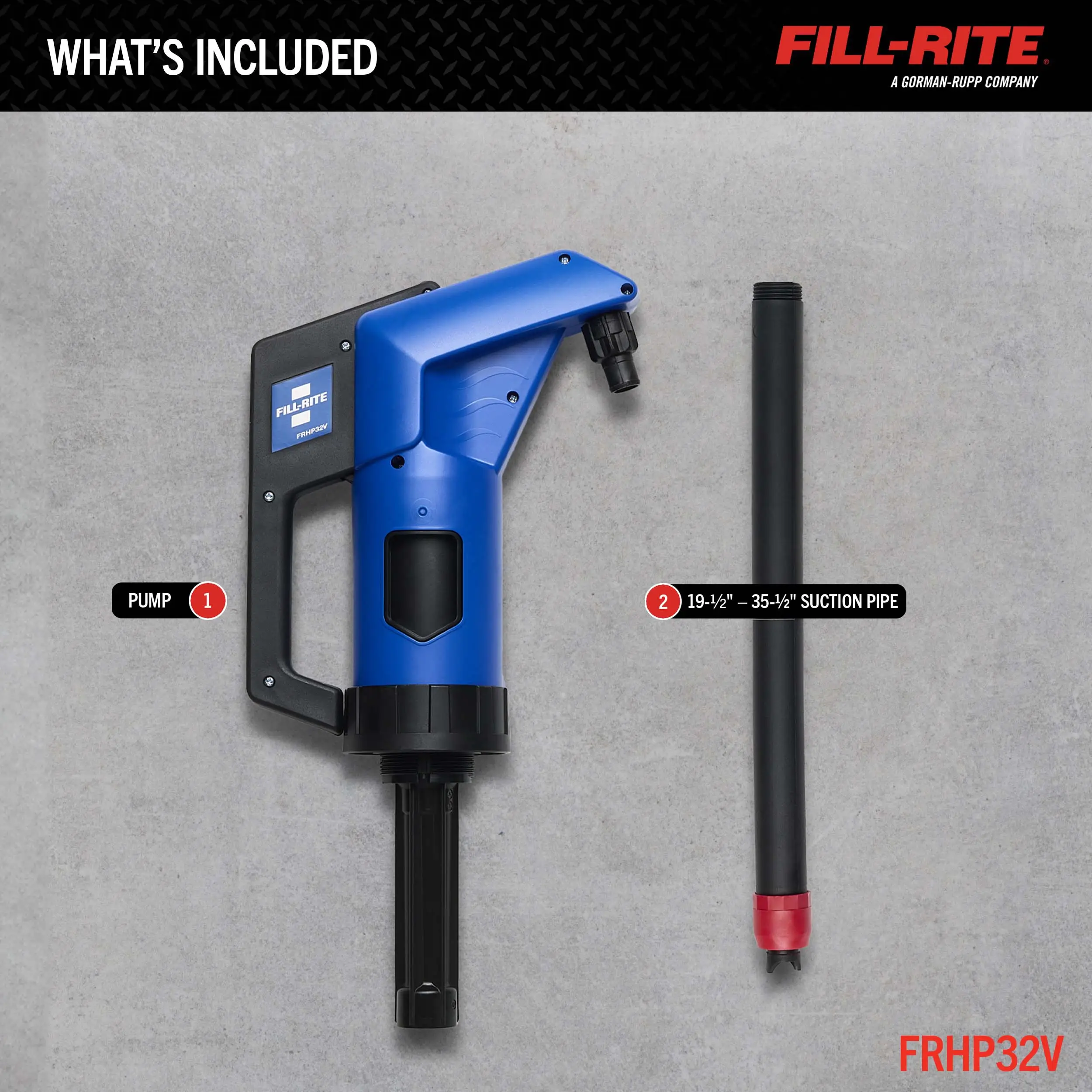

| Accessories | Suction Pipe: 19 ½" - 35 ½" Polypropylene Telescoping Suction Pipe |
| Series Code | def-hand-pumps-series |
| Series Name | DEF Hand Pumps Series |
| Series Url | https://www.fillrite.com/def-hand-pumps-series |
Description

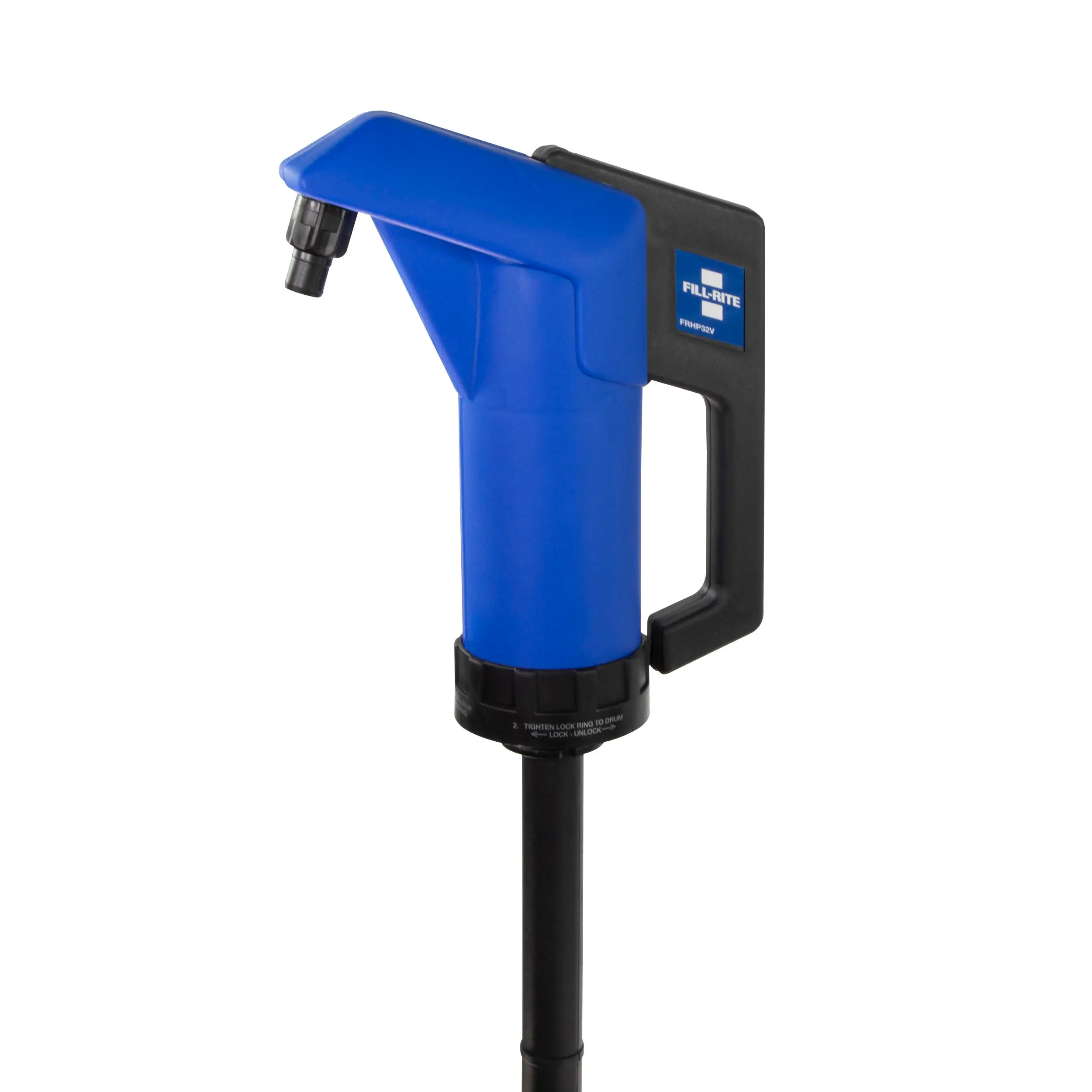

The FRHP32V model is a hand-operated, economy chemical transfer pump that delivers 11 oz. per stroke. This pump and accessory bundle comes complete with a suction pipe and installation components.
Specifications
| Max Flowrate | 11 oz. Per Stroke / 33 mL |
|---|---|
| Power Type | Hand-Operated |
| Compatible Fluids | Diesel, DEF, Antifreeze, Mild Acids, Light Oils |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 0.75 " / -- / Hose Barb |
| Mounting Type | Bung Mount |
| Duty Cycle (min) | Continuous Duty |

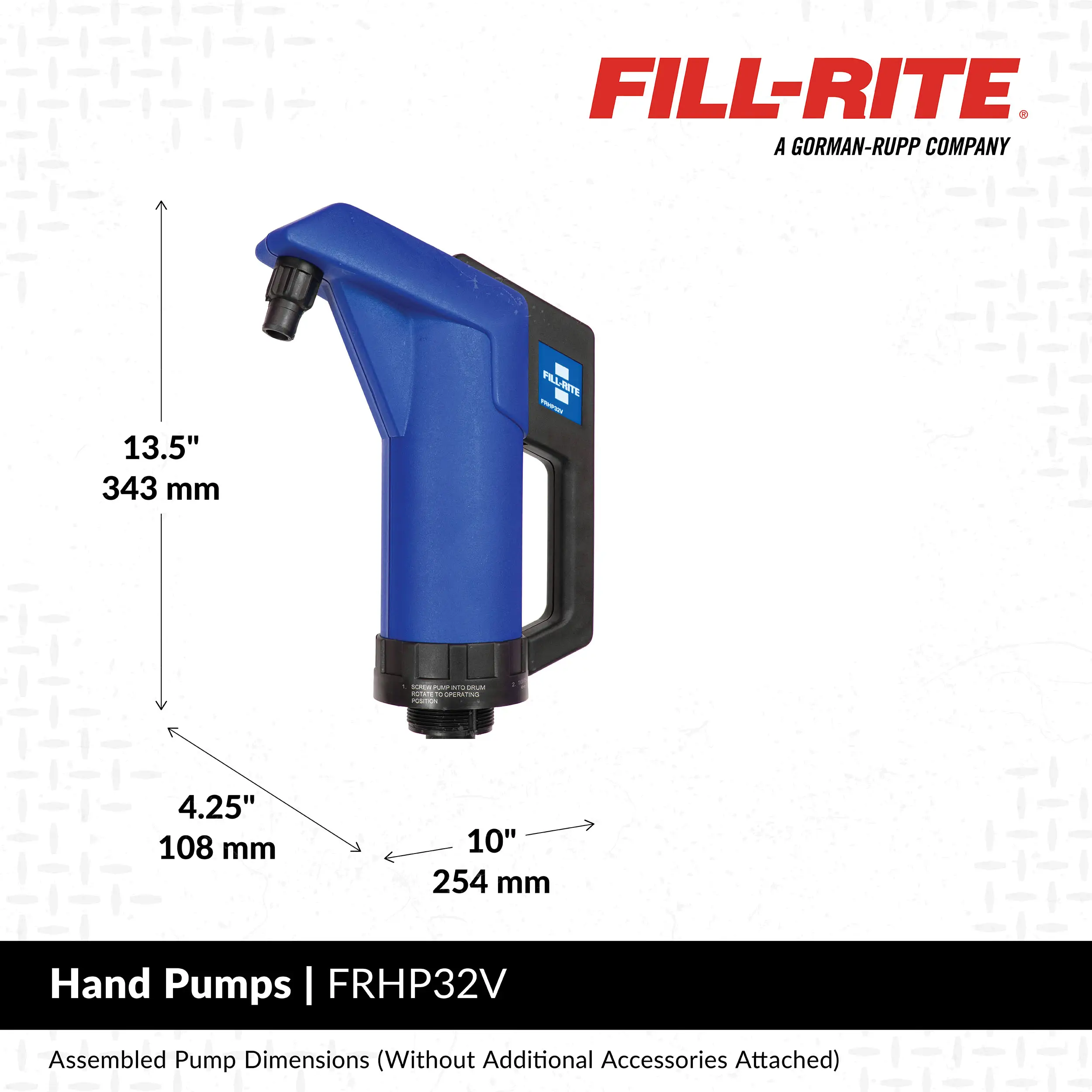

| Assembled Product Height x Width x Depth (in.) | 13.5 x 9.25 x 4.0 |
| Assembled Product Weight (lbs.) | 2.7 |
| Package Height x Width x Depth (in.) | 9.33 x 20.79 x 4.45 |
| Gross Weight (lbs.) | 3.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
