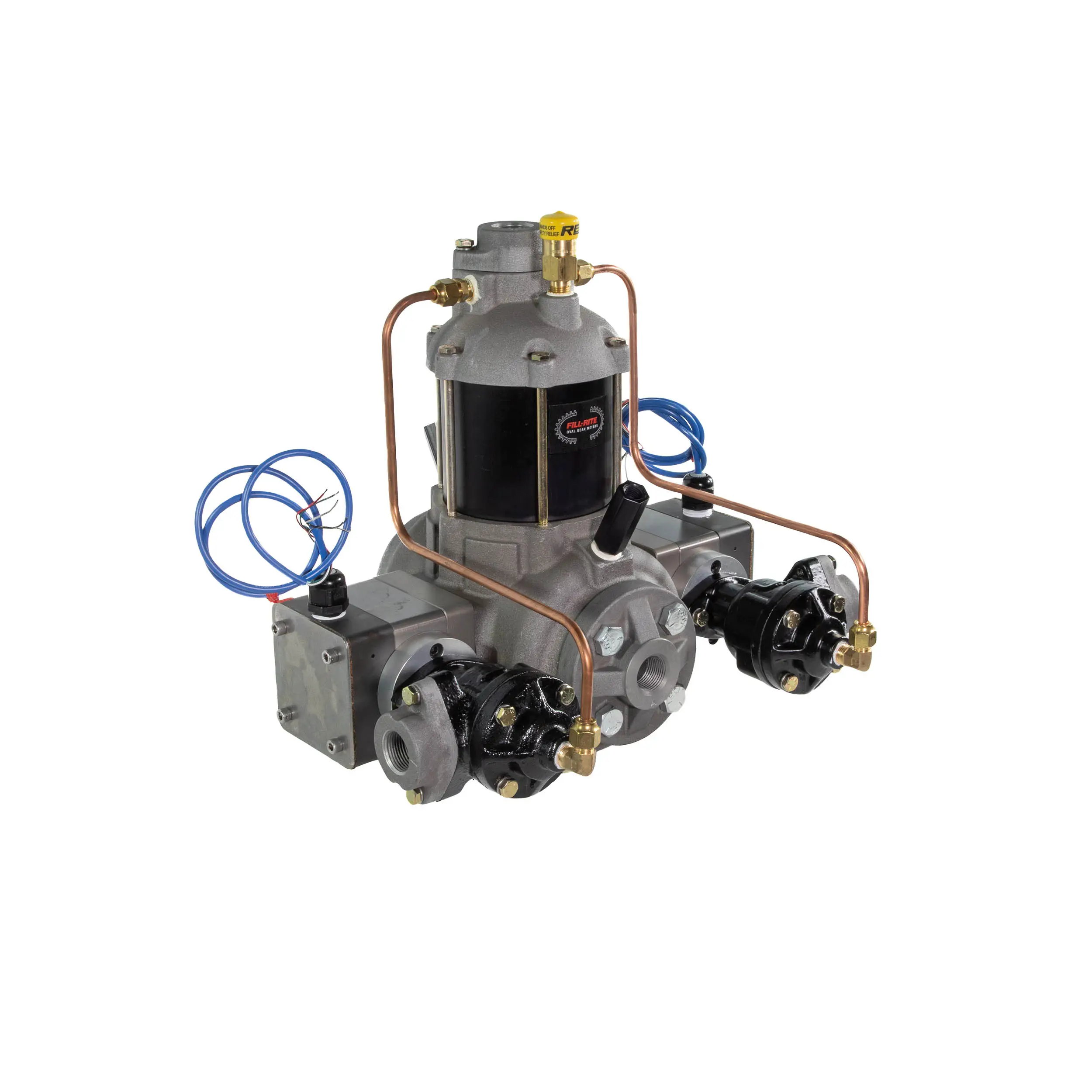

2-18 GPM/7-70 LPM Electronic Twin Flow Sensor Custody Transfer Rated LPG Meter

Scraped SKU: TS06AS84AUPXXT9N Price: 4,557.00 USD 2026-06-05 18:18:28

Attributes

Features Html
Precision Engineering — Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Robust Construction — Built to withstand the harshest environments, the anodized aluminum body of this meter boasts a robust construction that ensures durability and longevity., High Accuracy — Designed to minimize uncertainties in measurement, making it a trustworthy instrument for custody transfer applications where precision is paramount., Easy Installation and Maintenance — Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Compliance — Our oval gear flow meter meets industry standards and compliances for custody transfer applications, providing peace of mind when it comes to regulatory requirements., Cost Efficiency — By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings., Reliable Data for Transactions — Trust is essential in custody transfer transactions, and our flow meter provides the reliability you need. Eliminate uncertainties and ensure fair and accurate transactions every time., Enhanced Operational Efficiency — The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently.
Series Codets06as84aupxxt9-ts06as84aupxxt9
Series Name2-18 GPM/7-70 LPM Electronic Twin Flow Sensor Custody Transfer Rated LPG Meter
Series Urlhttps://www.fillrite.com/ts06as84aupxxt9-ts06as84aupxxt9

Specifications

Flowrate Range (GPM)2-18 GPM/7-70 LPM
Inlet Size / Connection / Thread0.75 " / Female / NPT
Outlet Size / Connection / Thread0.75 " / Female / NPT
Repeatability (+/- %)0.2 %
Max Operating Pressure (PSI)350
Pulse OutputYes
Compatible FluidsLPG
Housing MaterialsAnodized Aluminum
Seal MaterialsUL listed Buna Viton
Bearing MaterialsCarbon Graphite
Wetted MaterialsAnodized Aluminum 316 Stainless Steel Carbon
Strainer Mesh Size (Micron)200

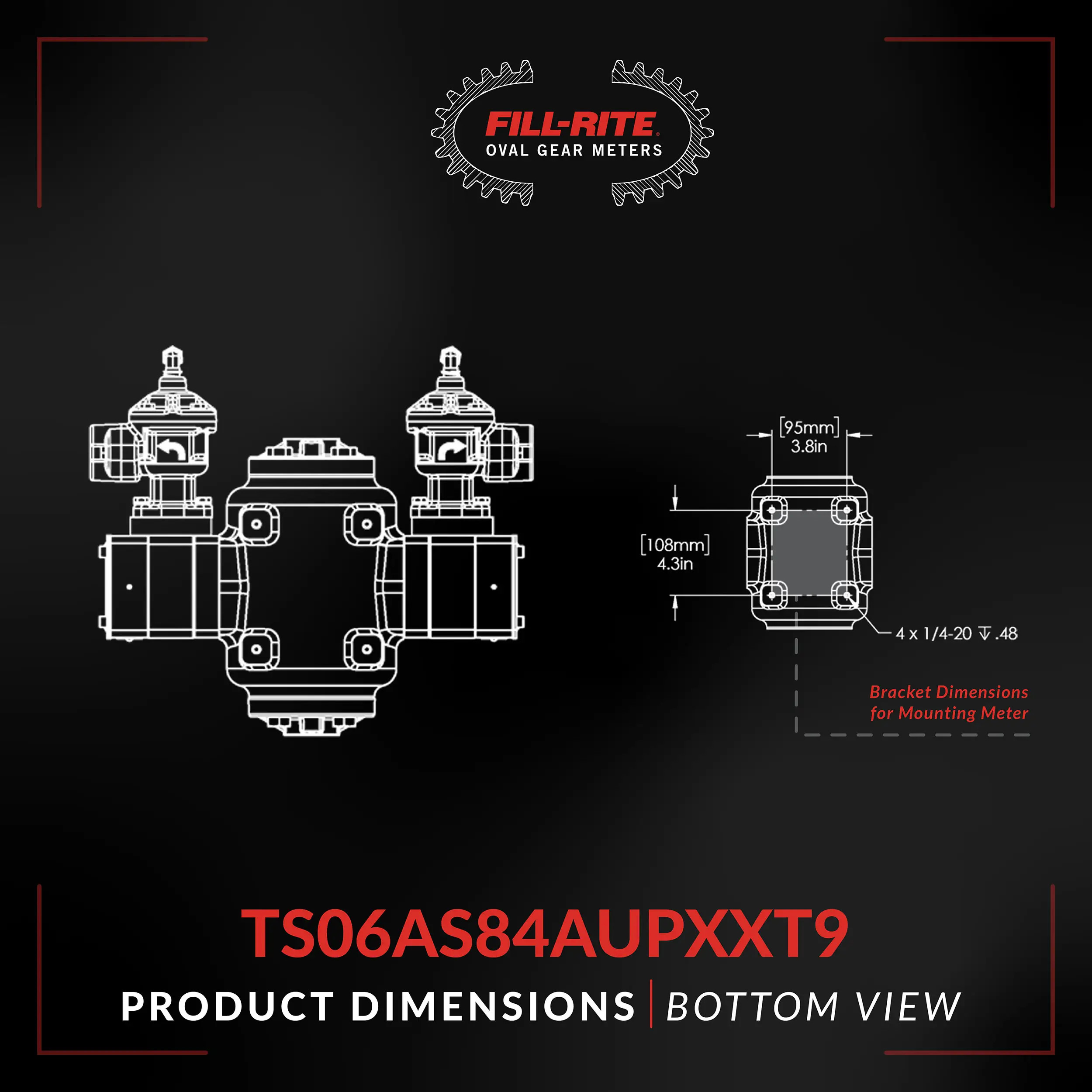

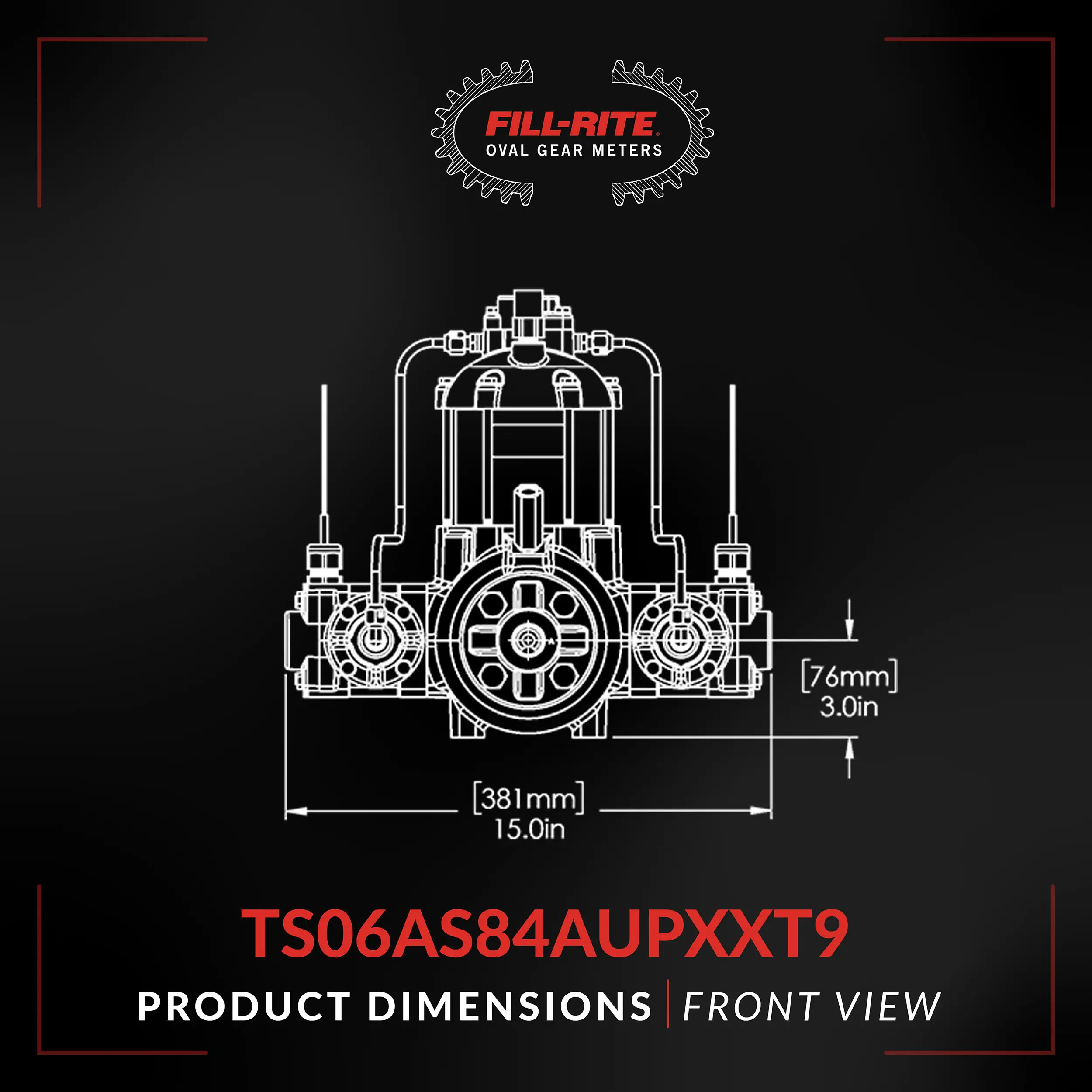

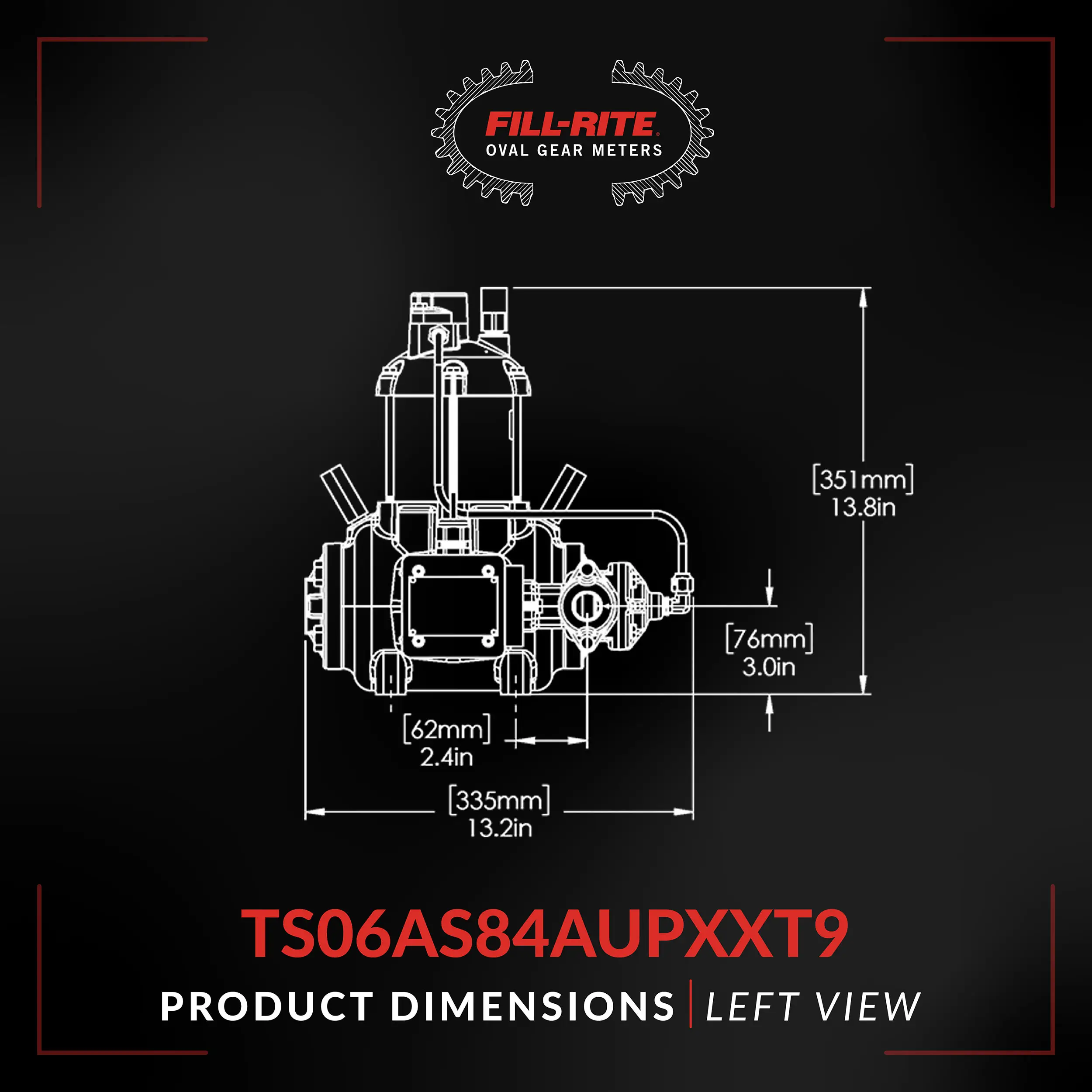

Assembled Product Height x Width x Depth (in.)14.0 x 15 x 13.25
Package Height x Width x Depth (in.)24 x 20 x N/A
Gross Weight (lbs.)6.50000 lbs
Less Than Load (LTL) FreightYes
