Rotary Hand-Operated Fuel Transfer Pump with Nozzle Spout

Scraped SKU: FR112 Price: 321.00 USD 2026-06-05 18:18:19

Attributes

Features Html
Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and corrosion resistance, Flexible Fueling — reversible flow design allows you to use your pump for fueling and draining vehicle fuel tanks, No Electricity Needed — ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility, Theft Prevention — padlock-compatible handle adds security to protect your investment, Prevents Spillage — included discharge nozzle storage and anti-siphon technology prevent accidental fuel spillage, eliminating mess enhancing safety, Protects Equipment — included strainer keeps large particulate contaminants out of your equipment, Fluid Compatibility — designed for daily use with gasoline, diesel, heptane, kerosene, Stoddard solvents, light oils, and mineral spirits

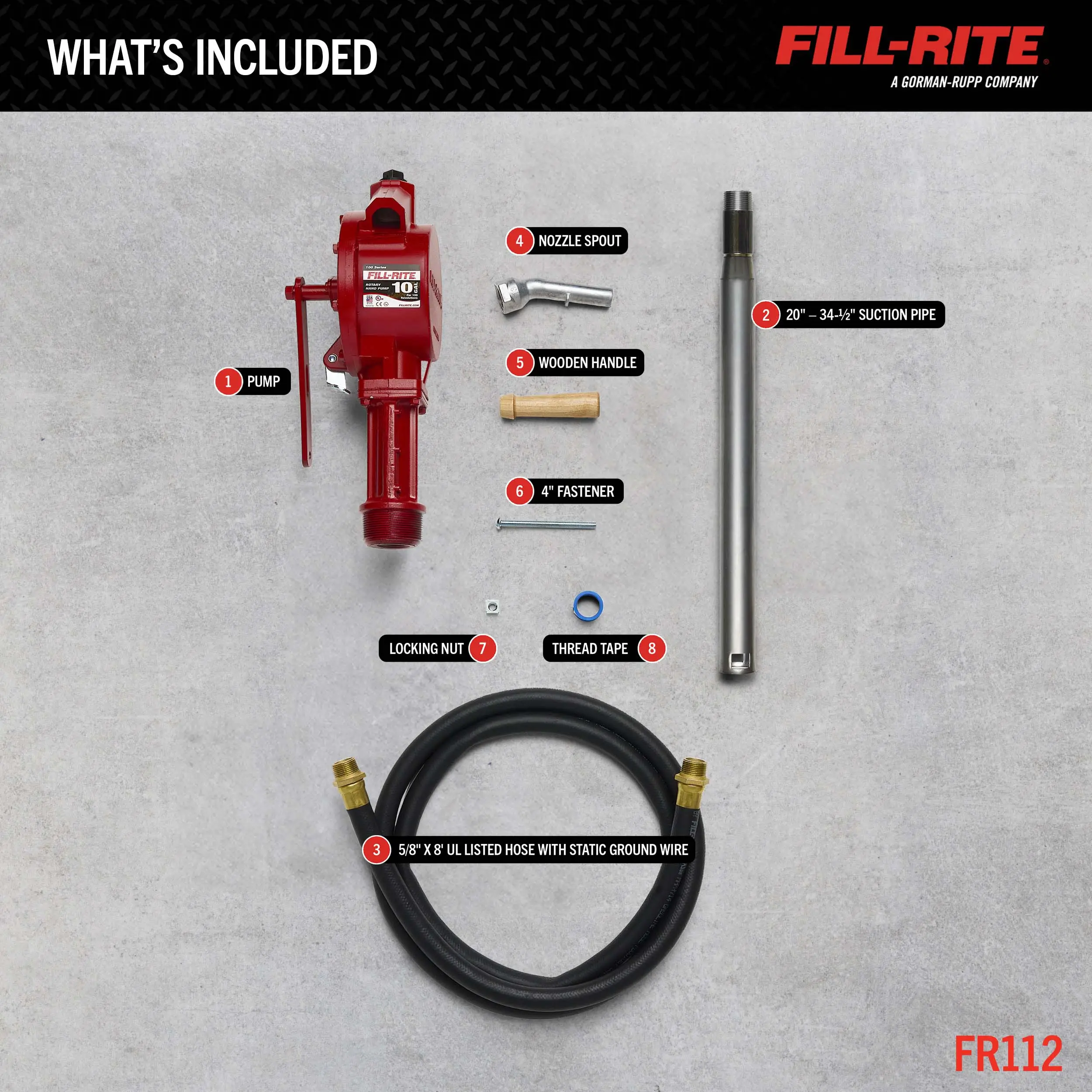

AccessoriesSuction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe, Nozzle: ¾” Cast Aluminum Nozzle Spout, Discharge Hose: 5/8" X 8' UL Listed Hose with Static Ground Wire, Additional Accessories: PTFE Tape Roll
Series Coderotary-hand-pumps-series-rotary-hand-pumps
Series NameHand-Operated Rotary Style
Series Urlhttps://www.fillrite.com/rotary-hand-pumps-series-rotary-hand-pumps

Description

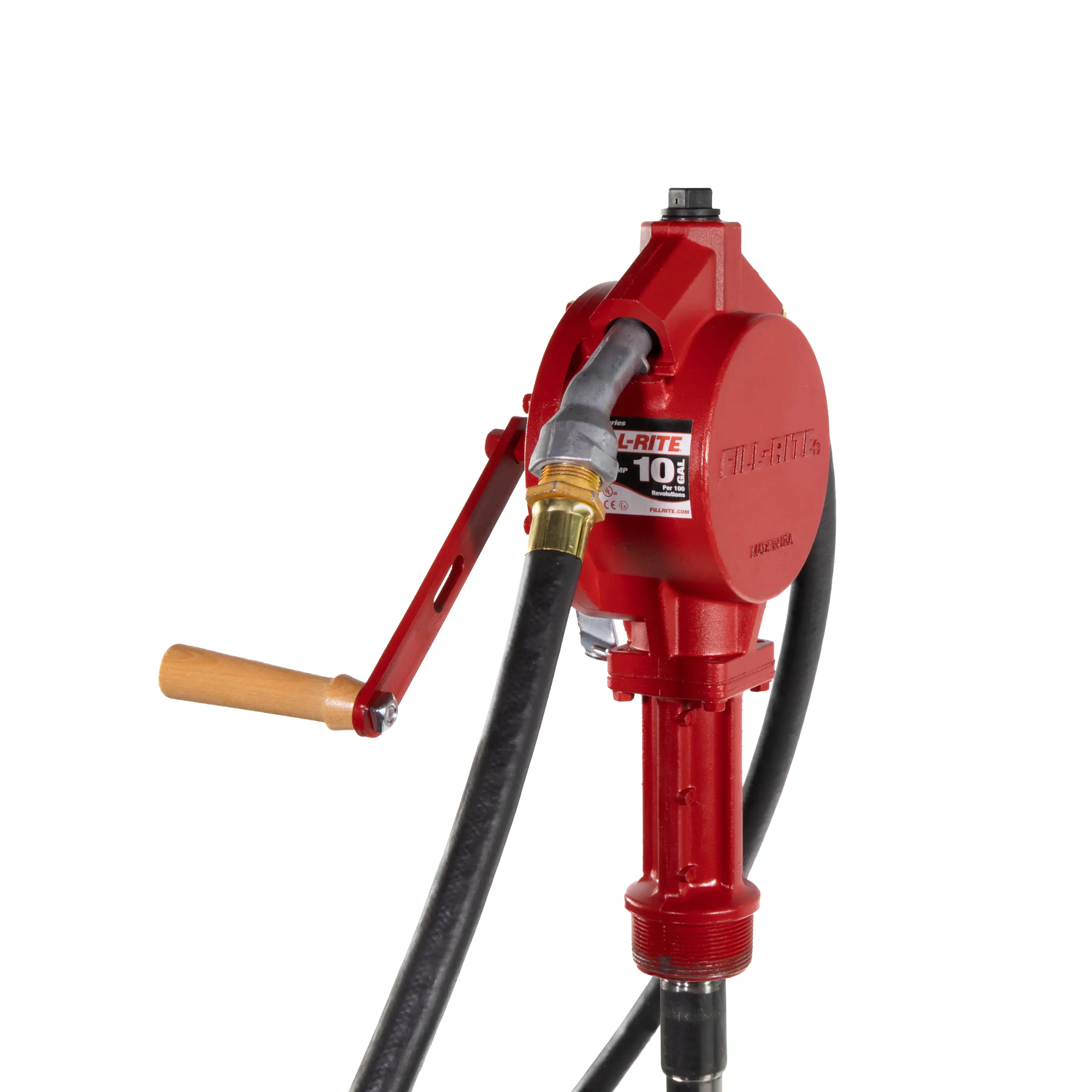

The FR112 model is hand-operated, heavy-duty fuel transfer pump that delivers 10 gallons per 100 rotations. This pump and accessory bundle comes complete with a hose, nozzle spout, suction pipe, and installation components.

Specifications

Max Flowrate10 Gal / 38 Liters Per 100 Revolutions
Power TypeHand-Operated
Compatible FluidsDiesel, Gasoline, Kerosene, Mineral Spirits, Heptane, Stoddard Solvents
Inlet Size / Connection / Thread1 " / Female / NPT
Outlet Size / Connection / Thread0.75 " / Female / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount
Duty Cycle (min)Continuous Duty

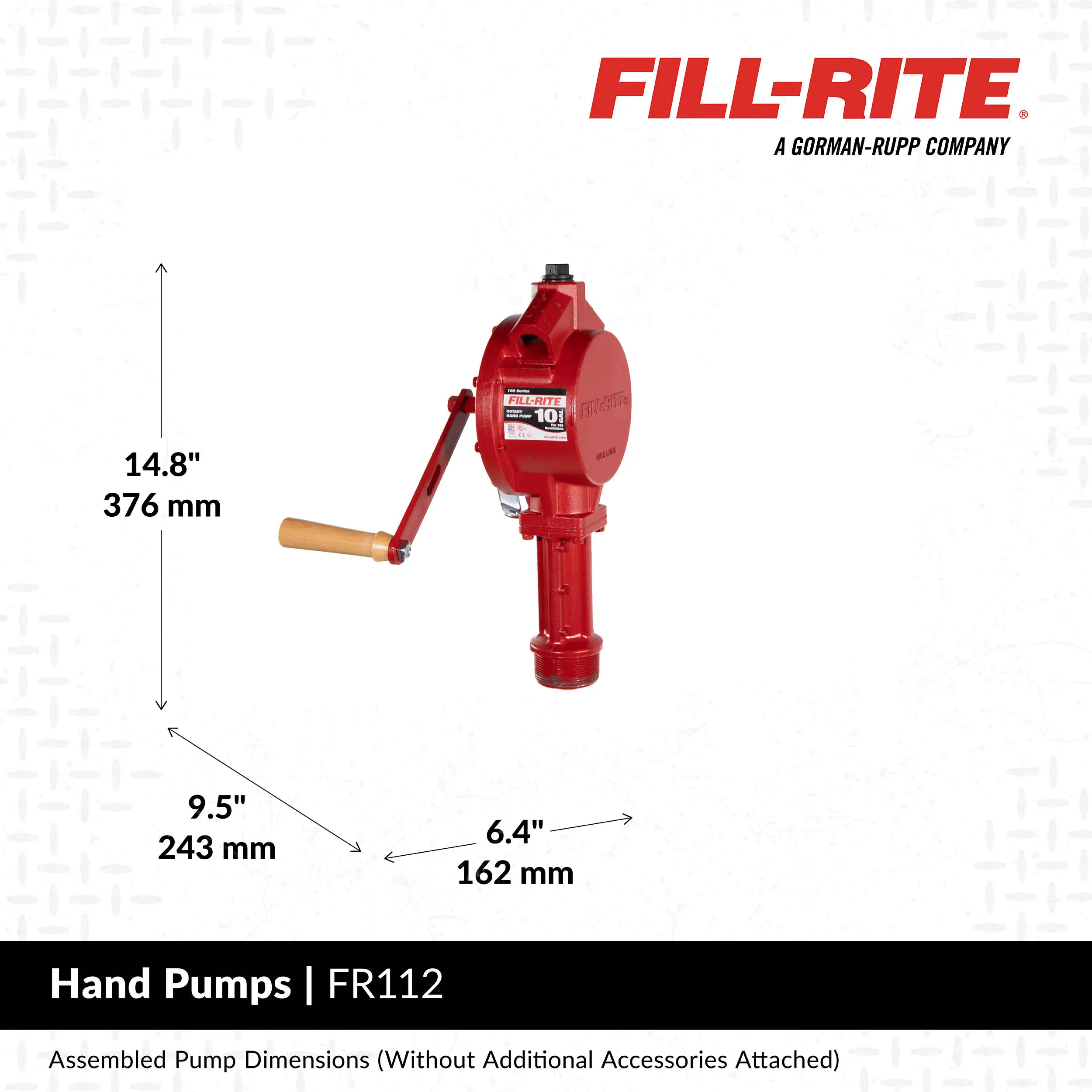

Assembled Product Height x Width x Depth (in.)15 x 6.5 x 5
Assembled Product Weight (lbs.)14.5
Package Height x Width x Depth (in.)8.56 x 23.38 x 8.63
Gross Weight (lbs.)15.60000 lbs
Less Than Load (LTL) FreightYes
