Attributes
| Features Html | Creates a safer, more organized workspace – The auto-retracting system pulls the hose neatly out of the way when fueling is complete, reducing trip hazards and keeping work areas clean, Reduces operator strain and fatigue – An adjustable arm bracket allows the hose to be aimed exactly where needed, minimizing awkward pulls and improving ergonomics during fueling, Smooth operation with no kinks or snags – Integrated rollers and swivel joint ensure easy pullout without twisting or kinking, helping prevent hose damage and downtime, Predictable, controlled hose retraction – Adjustable spring tension lets operators dial in smooth, consistent retraction for heavier hoses or longer lengths, Precise hose control and added safety – Multiple hose lock positions keep the hose exactly where needed and prevent unexpected snapbacks during use, Built to last in demanding environments – Constructed with corrosion-resistant materials, protective plates, and a solid anchoring base for stable, quiet operation under heavy use, Improves fueling accuracy and efficiency – Compatible with an auto shut-off nozzle and a wide range of fluids, helping reduce spills, prevent overfills, and protect equipment, Multiple Sizes Available – Configurations available in 25-, 35-, and 50-foot hose lengths with 3/4" and 1" NPT outlet/inlet connection sizes, meeting the specific needs of your application |
|---|---|
| Accessories | Nozzle: 1” Hi-Flow Automatic Diesel Nozzle (Green) |
| Series Code | hose-reels-series |
| Series Name | Hose Reels Series |
| Series Url | https://www.fillrite.com/hose-reels-series |
Description

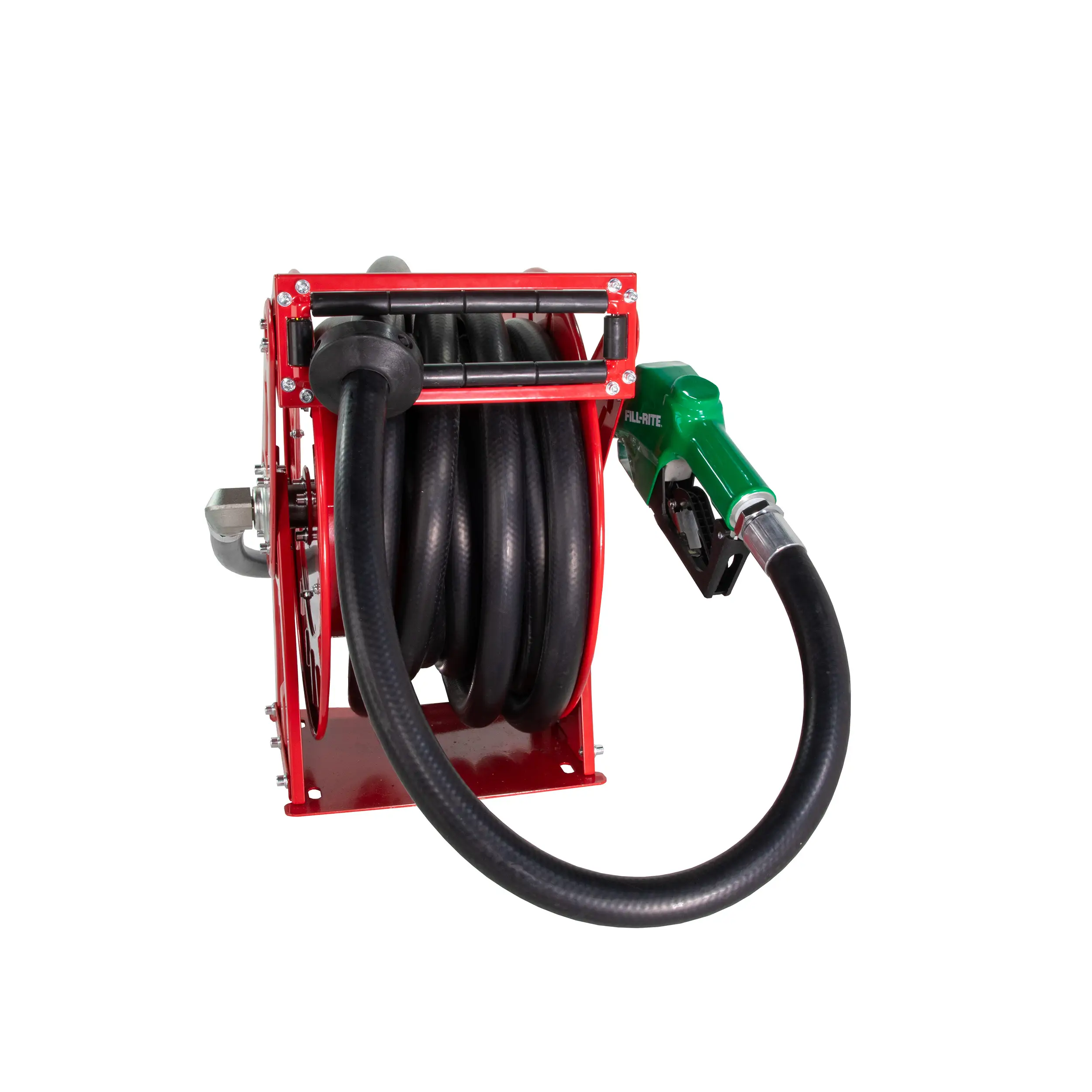

This item is on pre-order and is expected to ship in June. Your order will be fulfilled as soon as the product becomes available. The FRHR10035 1" x 35' retractable fuel hose reel features smooth auto-retraction, adjustable tension, and an auto shut-off nozzle. Designed for gasoline, diesel, kerosene, and light oils in fleet, shop, and industrial fueling setups.
Specifications
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, E15, Light Oils |
|---|---|
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Size / Thread / Type | -- / -- / -- |

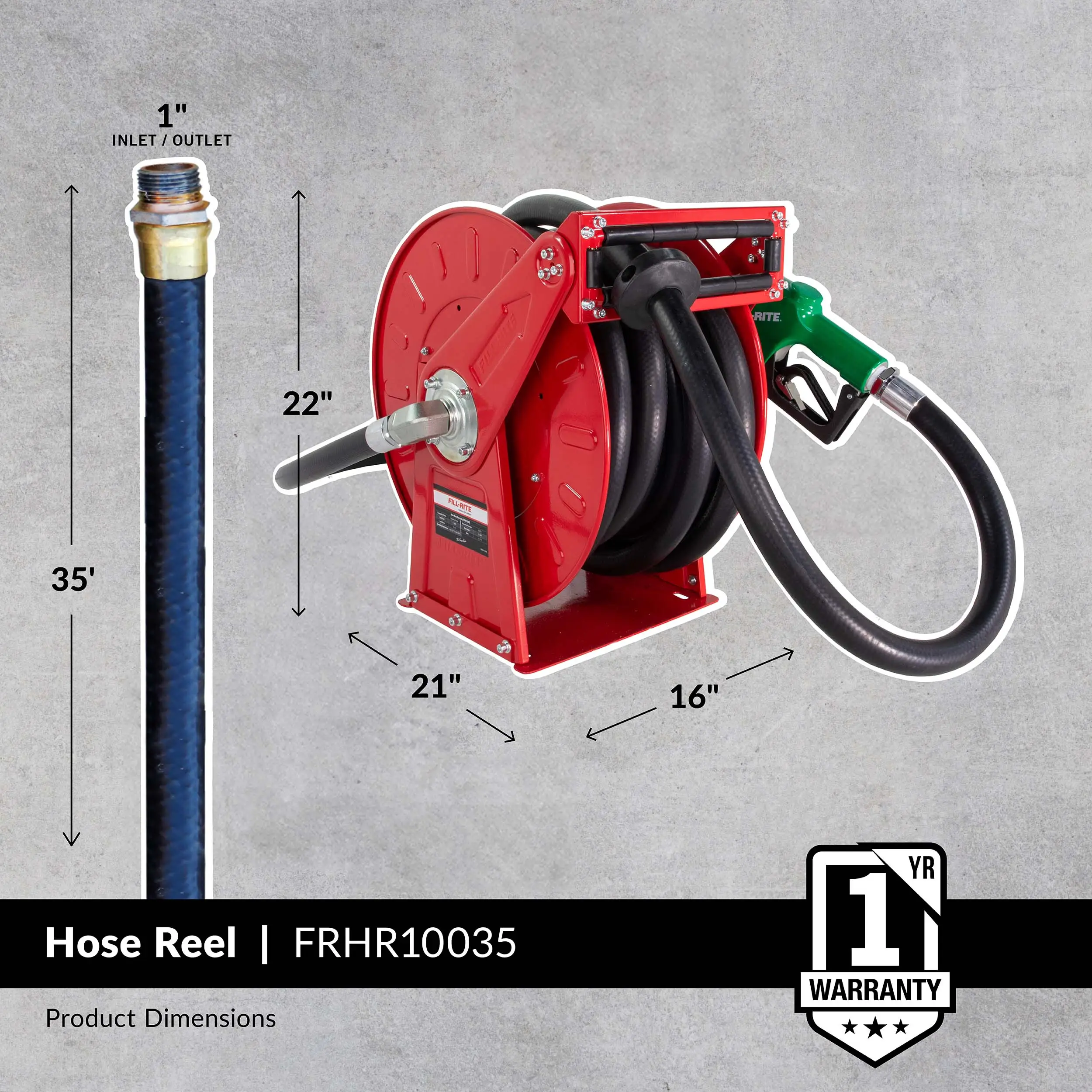

| Assembled Product Height x Width x Depth (in.) | 21 x 17 x 22 |
| Assembled Product Weight (lbs.) | 93 |
| Gross Weight (lbs.) | 93.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
