Attributes
| Features Html | Economical Solution – standard-duty performance is ideal for small volume applications around the home or shop, No Electricity Needed– ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility, Flexible Fluid Compatibility – compatible with a variety of fluids including automotive fluids for use on a drum, tote, or barrel |
|---|---|

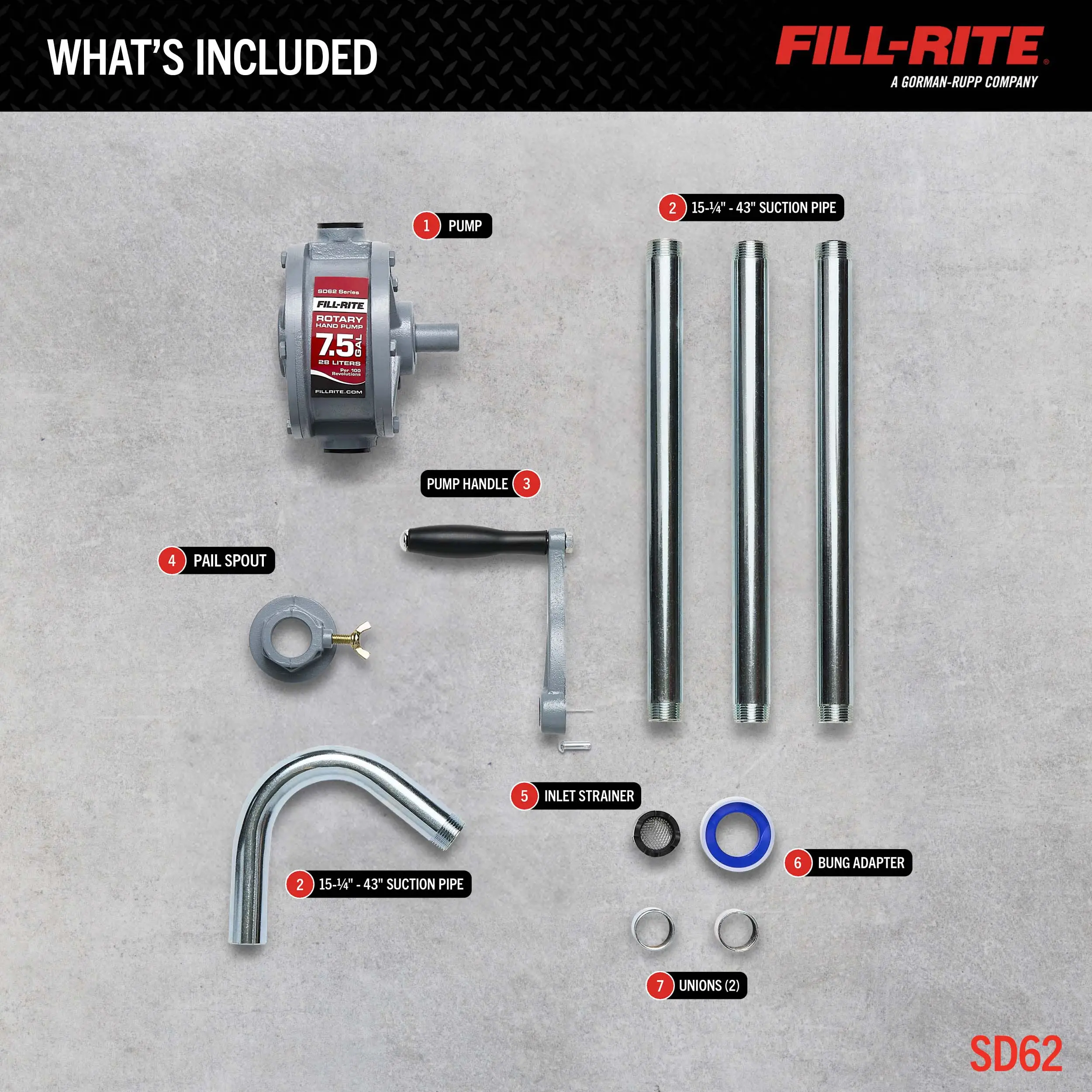

| Accessories | Suction Pipe: 15 1/4" - 43" Steel 3-Piece Suction Pipe, Nozzle: ¾” Cast Aluminum Pail Spout |
| Series Code | rotary-hand-pumps-series-rotary-hand-pumps |
| Series Name | Hand-Operated Rotary Style |
| Series Url | https://www.fillrite.com/rotary-hand-pumps-series-rotary-hand-pumps |
Description

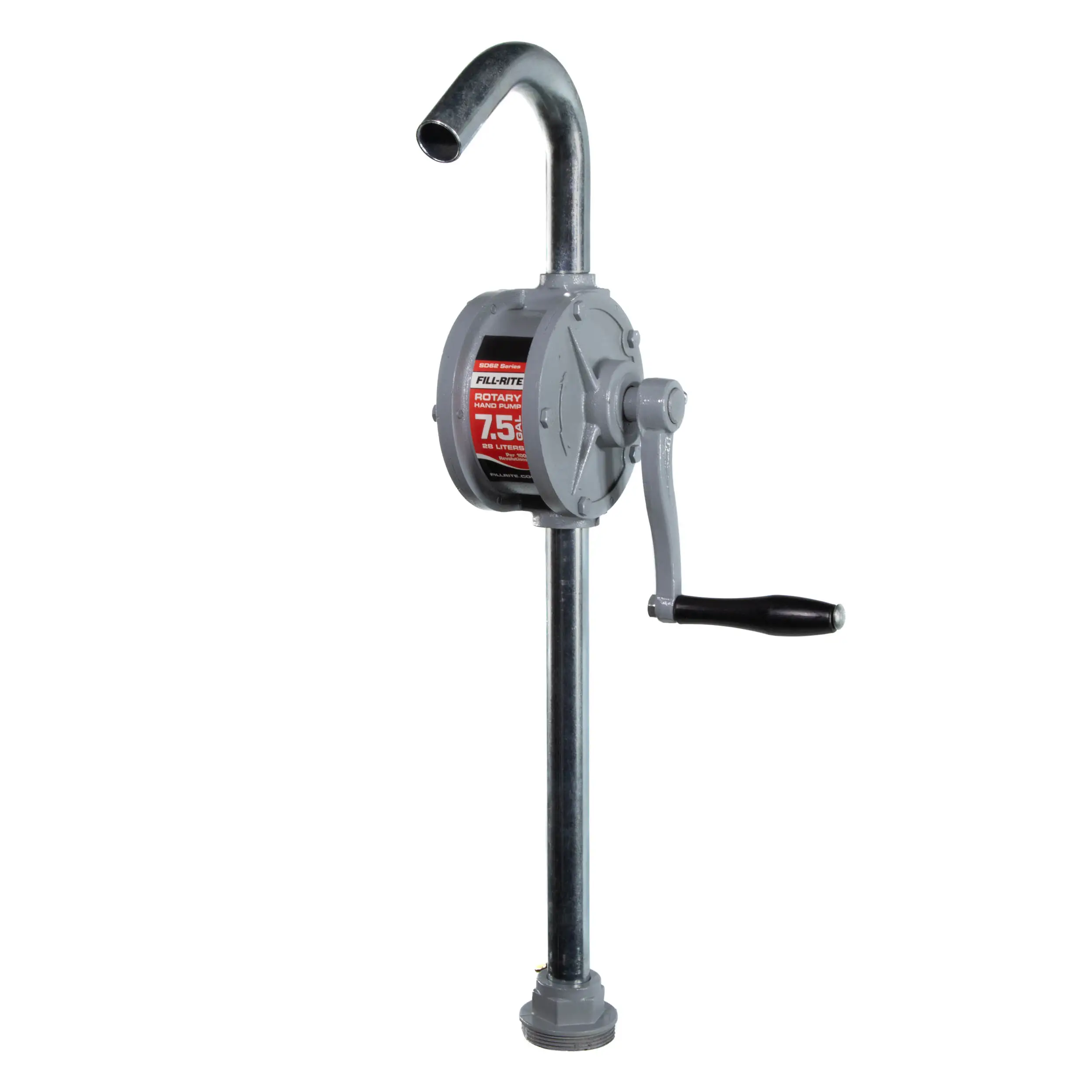

The SD62 model is a hand-operated, economy fuel transfer pump that delivers 7.5 gallons per 100 revolutions. This pump and accessory bundle comes complete with a spout, suction pipe, and installation components.
Specifications
| Max Flowrate | 7.5 Gal. / 28 Liters Per 100 Revolutions |
|---|---|
| Power Type | Hand-Operated |
| Compatible Fluids | Diesel, Mineral Spirits |
| Inlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | Continuous Duty |
| Assembled Product Height x Width x Depth (in.) | 10.6 x 10.0 x 8.1 |
| Assembled Product Weight (lbs.) | 9.8 |
| Package Height x Width x Depth (in.) | 5.75 x 6.5 x 14.5 |
| Gross Weight (lbs.) | 11.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
