Attributes
| Features Html | Enhanced Operational Efficiency: The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently., Precision Engineering: Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Robust Construction: Built to withstand the harshest environments, the anodized aluminum body of this meter boasts a robust construction that ensures durability and longevity., High Accuracy: Designed to minimize uncertainties in measurement, making it a trustworthy instrument for custody transfer applications where precision is paramount., Easy Installation and Maintenance: Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Compliance: Our oval gear flow meter meets industry standards and compliances for custody transfer applications, providing peace of mind when it comes to regulatory requirements., Cost Efficiency: By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings., Reliable Data for Transactions: Trust is essential in custody transfer transactions, and our flow meter provides the reliability you need. Eliminate uncertainties and ensure fair and accurate transactions every time., Enhanced Operational Efficiency: The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently. |
|---|---|
| Series Code | ts15av06alcbmxas4-ts15av06alcbmxas4 |
| Series Name | 22-227 LPM 5 Digit Mechanical Custody Transfer Rated Fuel Meter with Strainer and Air Eliminator |
| Series Url | https://www.fillrite.com/ts15av06alcbmxas4-ts15av06alcbmxas4 |
Description
The TS15AV06ALCBMXAS4N is a 100% non-ferrous 5-digit mechanical Standard Fuels transfer meter. This meter is equipped with 1.5" NPT threads and is designed to register 22-227 liters per minute at 0.05% repeatability.
Specifications
| Flowrate Range (GPM) | 22-227 LPM |
|---|---|
| Inlet Size / Connection / Thread | 1.5 " / Female / NPT |
| Outlet Size / Connection / Thread | 1.5 " / Female / NPT |
| Repeatability (+/- %) | 0.05 % |
| Linearity (+/- %) over 5:1 Turndown | .175 |
| Linearity (+/- %) over 10:1 Turndown | .3 |
| Linearity (+/- %) over 30:1 Turndown | .5 |
| Max Operating Pressure (PSI) | 150 |
| Operating Temperature Range (°F) | -40 - 180°F / -40 - 82°C |
| Power Source | Mechnical |
| Power Type | N/A |
| Display Type | Mechanical |
| Display Digits | 5 |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Non-Potable Water, Light Oils, Biodiesel |
| Housing Materials | Anodized Aluminum |
| Seal Materials | Viton |
| Bearing Materials | Carbon Graphite |
| Wetted Materials | Anodized Aluminum Fluorocarbon PPS |
| Strainer Mesh Size (Micron) | 40 |

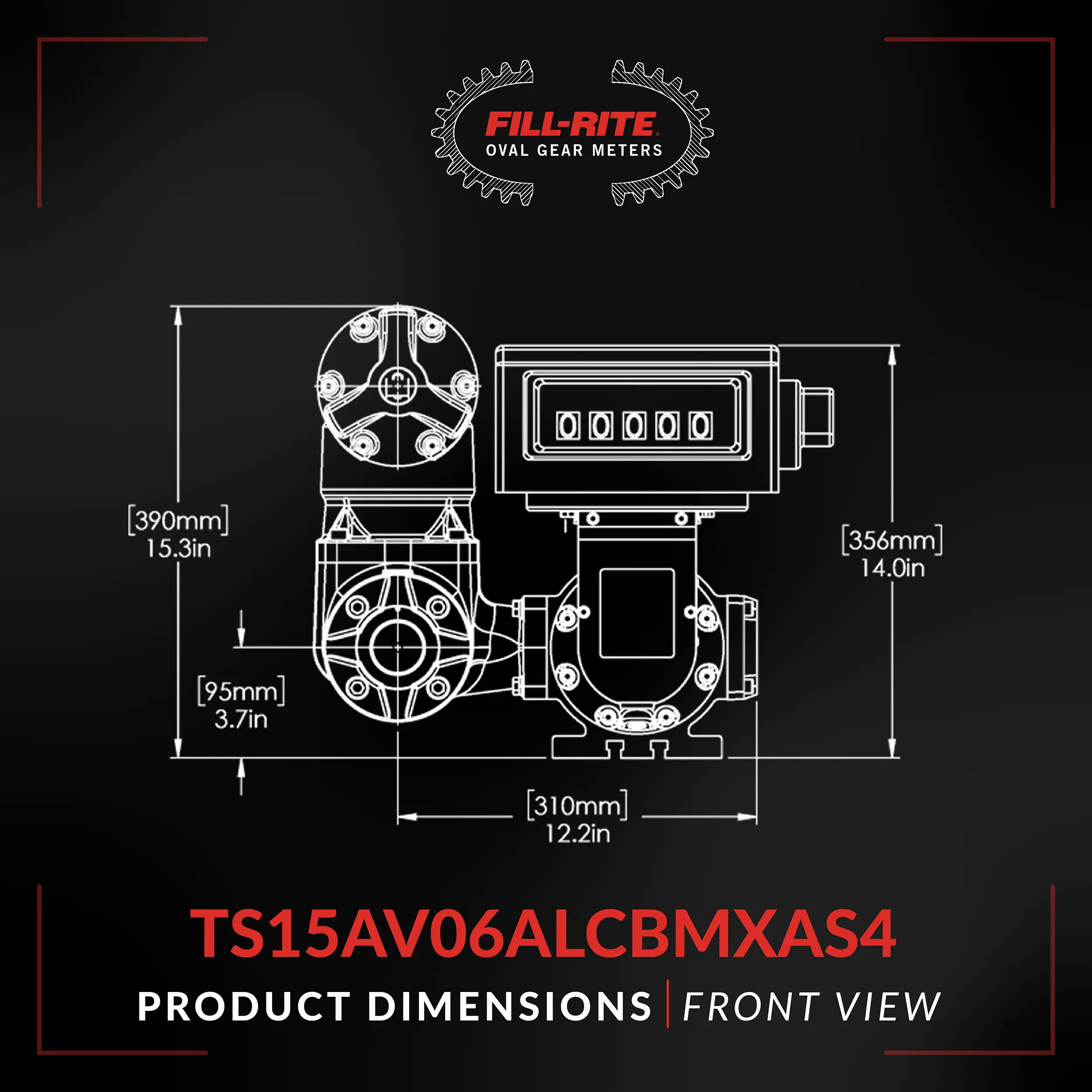

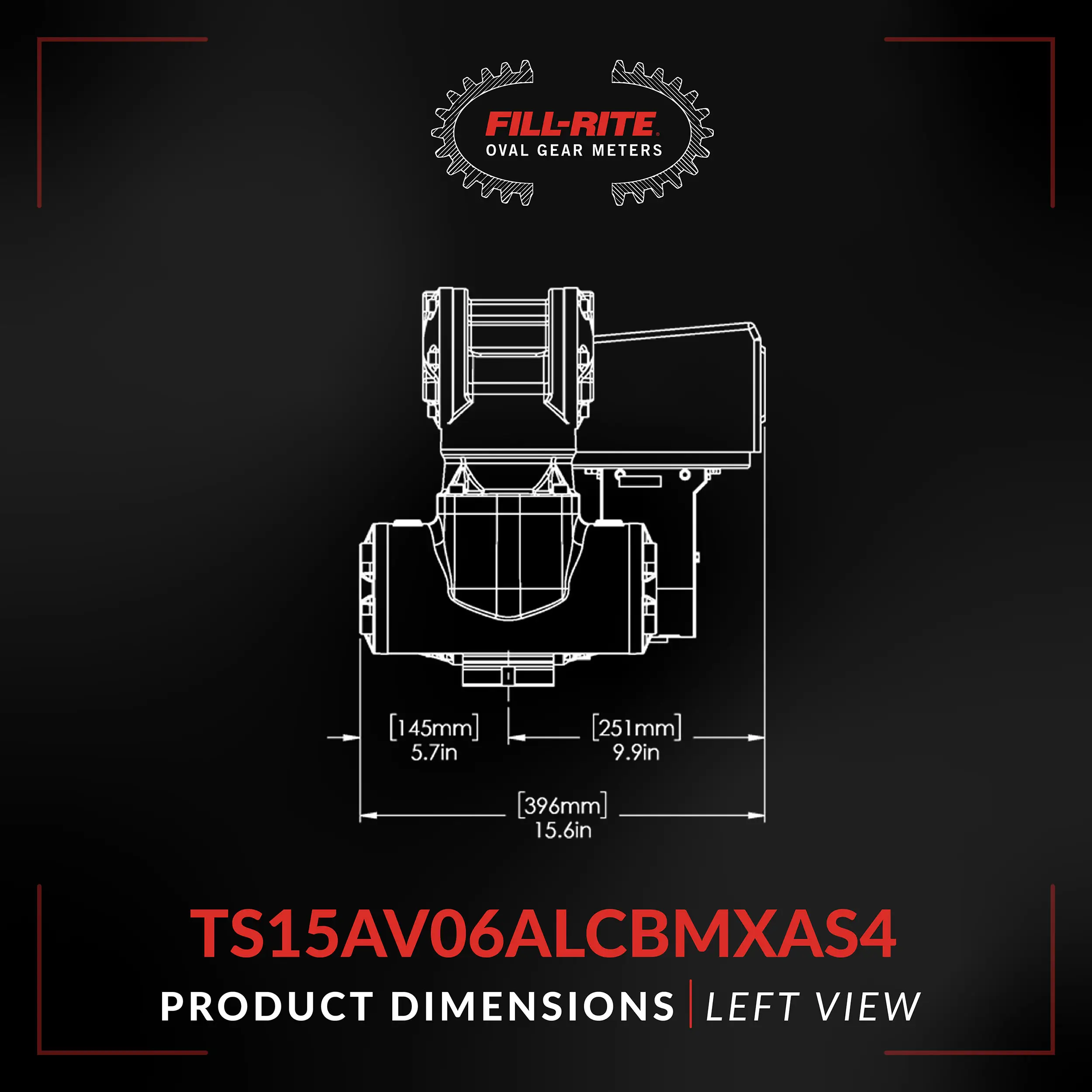

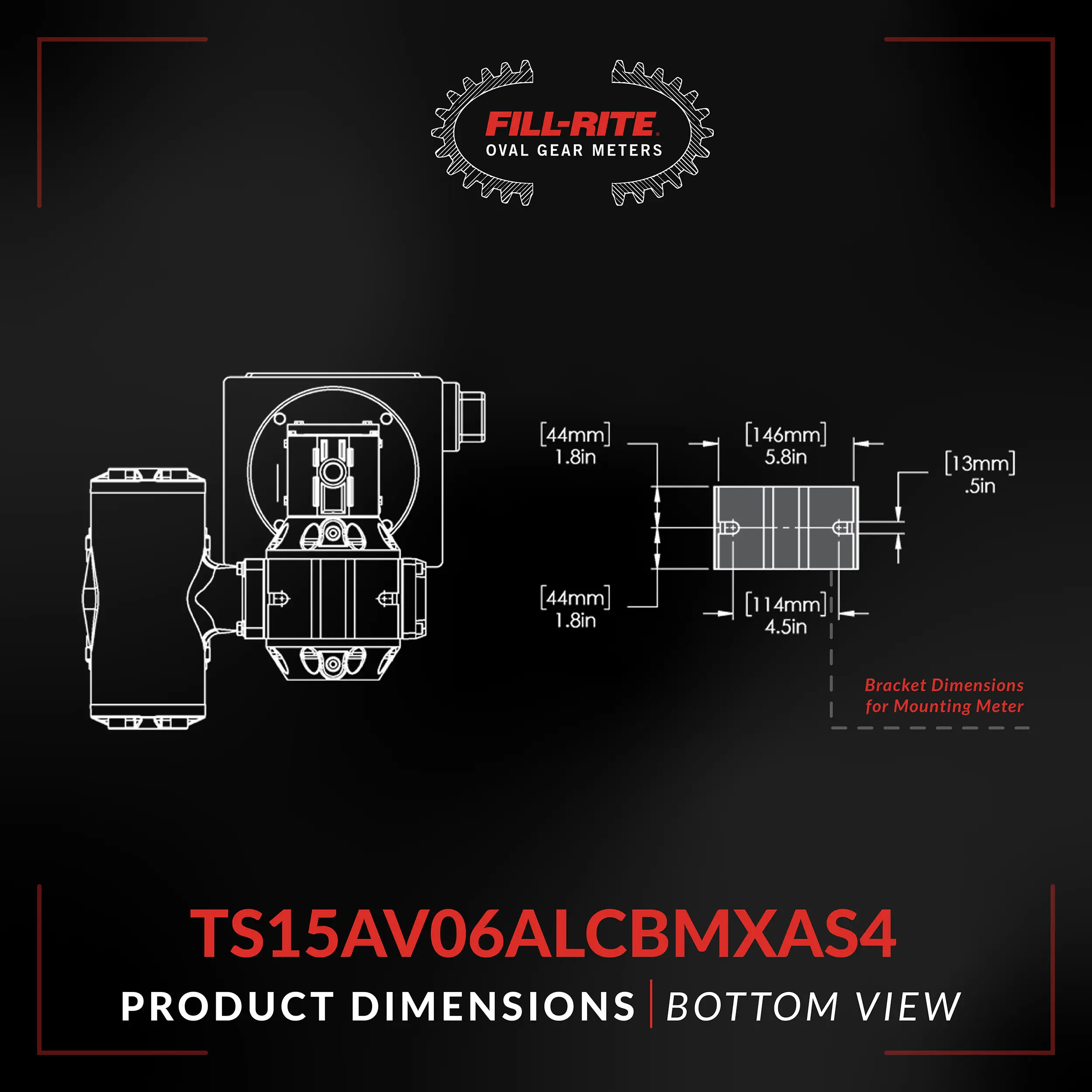

| Assembled Product Height x Width x Depth (in.) | 14.0 x 17.5 x 15.61 |
| Assembled Product Weight (lbs.) | 60 |
| Package Height x Width x Depth (in.) | 24 x 20 x N/A |
| Gross Weight (lbs.) | 60.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
