120V AC 25 GPM Fuel Transfer Pump with Nozzle

Scraped SKU: NX25-120NB-AA Price: 1,406.00 USD 2026-06-05 18:18:19

Attributes

Features Html
Unmatched Performance — Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment, Continuous Operation — brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime, Energy Efficient — Consumes up to 45% less electricity, slashing operating costs and boosting efficiency, Ultra-Lightweight — pump weighs 60% less at only 25 pounds, making installation faster and strain free, Reduced Maintenance Costs — 75% reduction in common field repair costs through patented design and robust construction, Powder-Coated Exterior — thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business, Fluid Compatibility — designed for daily use with diesel, gasoline, ethanol blends up to E15, kerosene, mineral spirits, methanol up to 15%, and biodiesel blends up to B20
Accessories

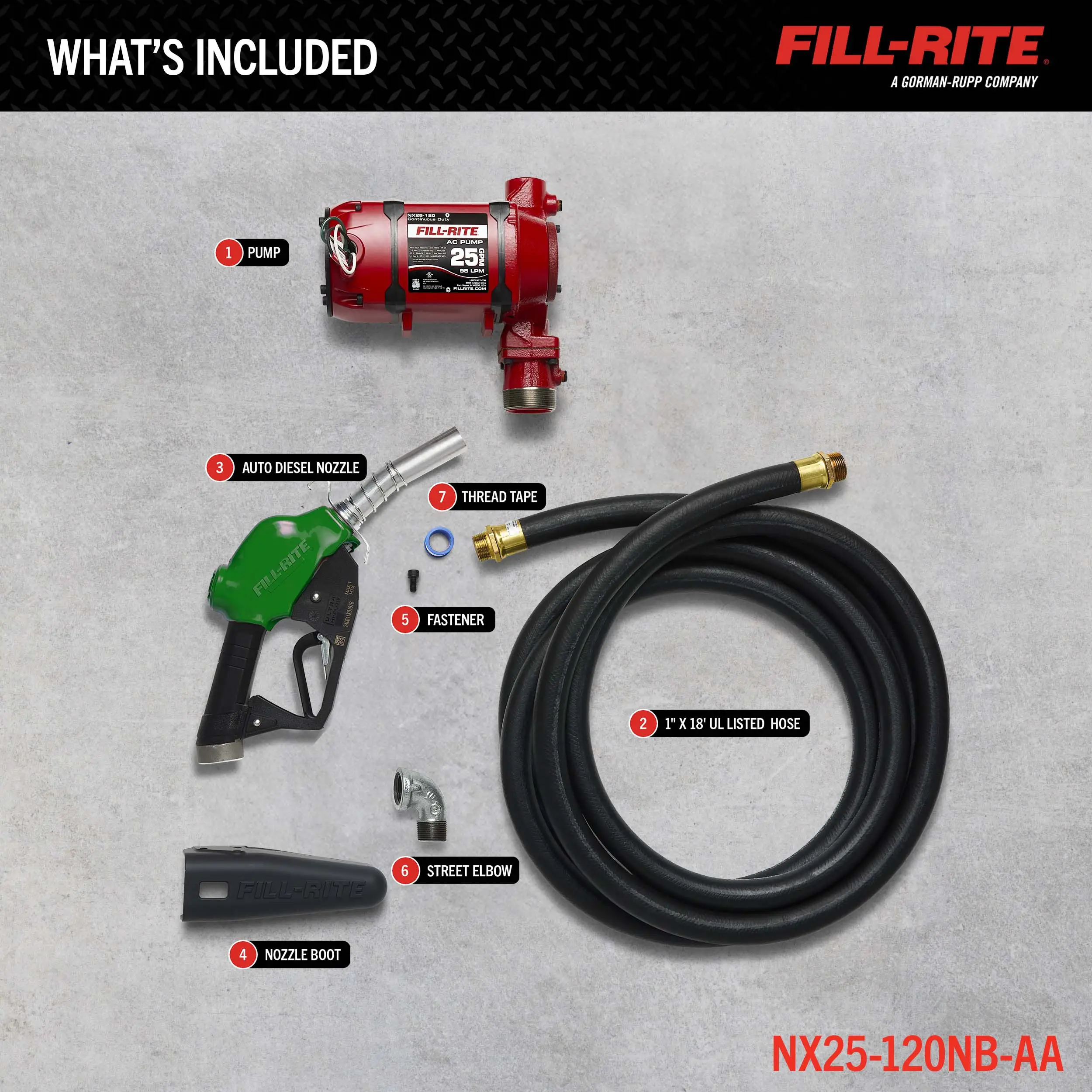

Additional Accessories: Nozzle Boot, PTFE Tape Roll, 1" NPT Street Elbow, Locking Nut, Ground Wire: Yes, Cable Gauge (GA): 16, Cable Connection: Bare Leads, Suction Pipe: None, Suction Hose: None, Discharge Hose: 1” X 18’ UL Listed Hose with Static Ground Wire, Nozzle: 1” Ultra Hi-Flow Automatic Diesel Nozzle (Green)
Series Codenx25-series-nx25
Series NameNX25 Series
Series Urlhttps://www.fillrite.com/nx25-series-nx25

Description

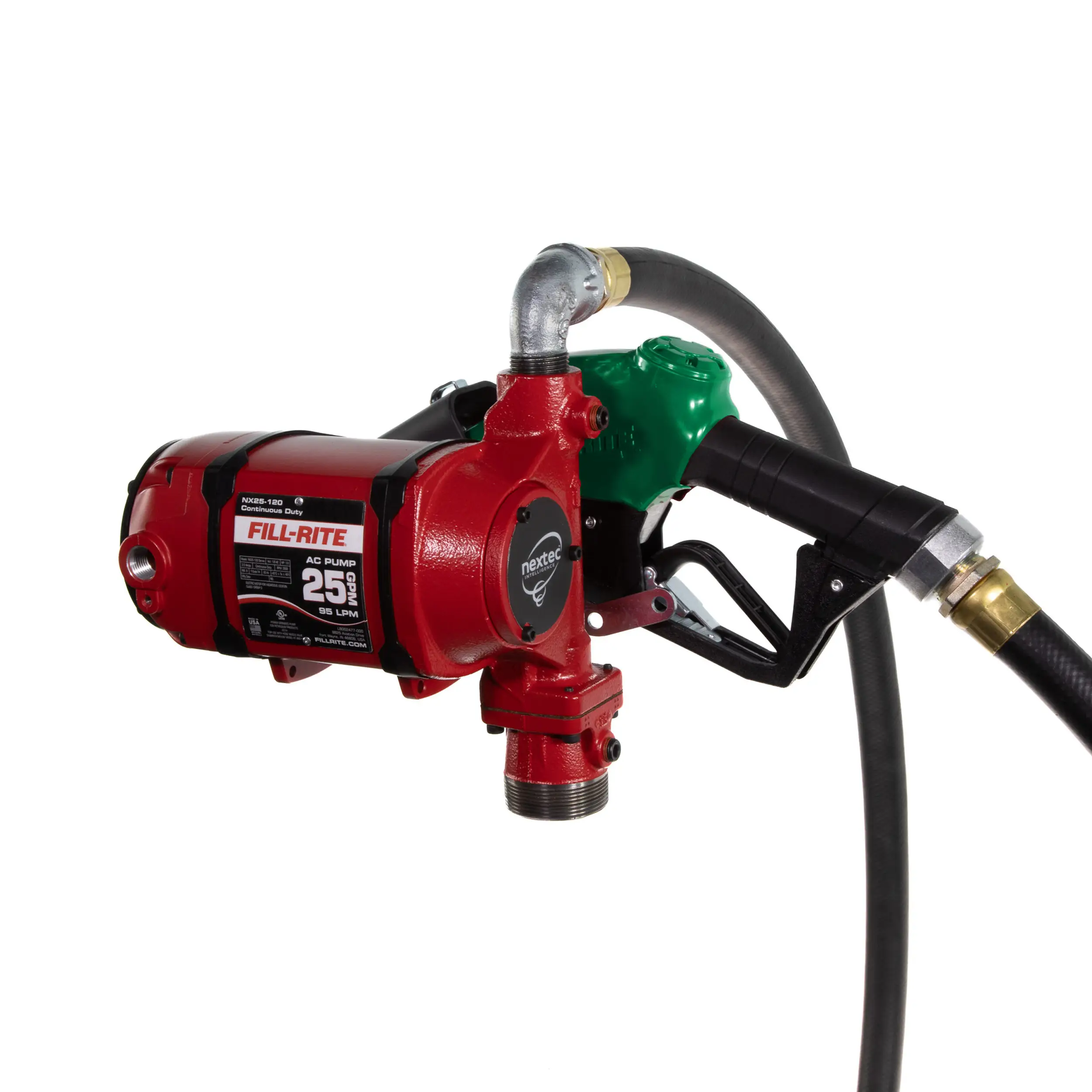

The NX25-120NB-AA model is a 120V AC, 25 GPM premiere fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, and installation components.

Specifications

Max Flowrate25 GPM / 94 LPM
Power Type115V AC
Compatible FluidsDiesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread1.25 " / Female / NPT
Outlet Size / Connection / Thread1 " / Female / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount
Duty Cycle (min)Continuous Duty
Power SourceElectrical
Motor Power (HP)0.33
Max Current (A)3.5 A
Suction Lift (ft.)12 '
Dry Vacuum (in. Hg)11
Discharge Head (ft)48 '
Strainer Mesh Size (Micron)20 x 20 x .008”
Max Discharge Pressure (PSI)25 PSI

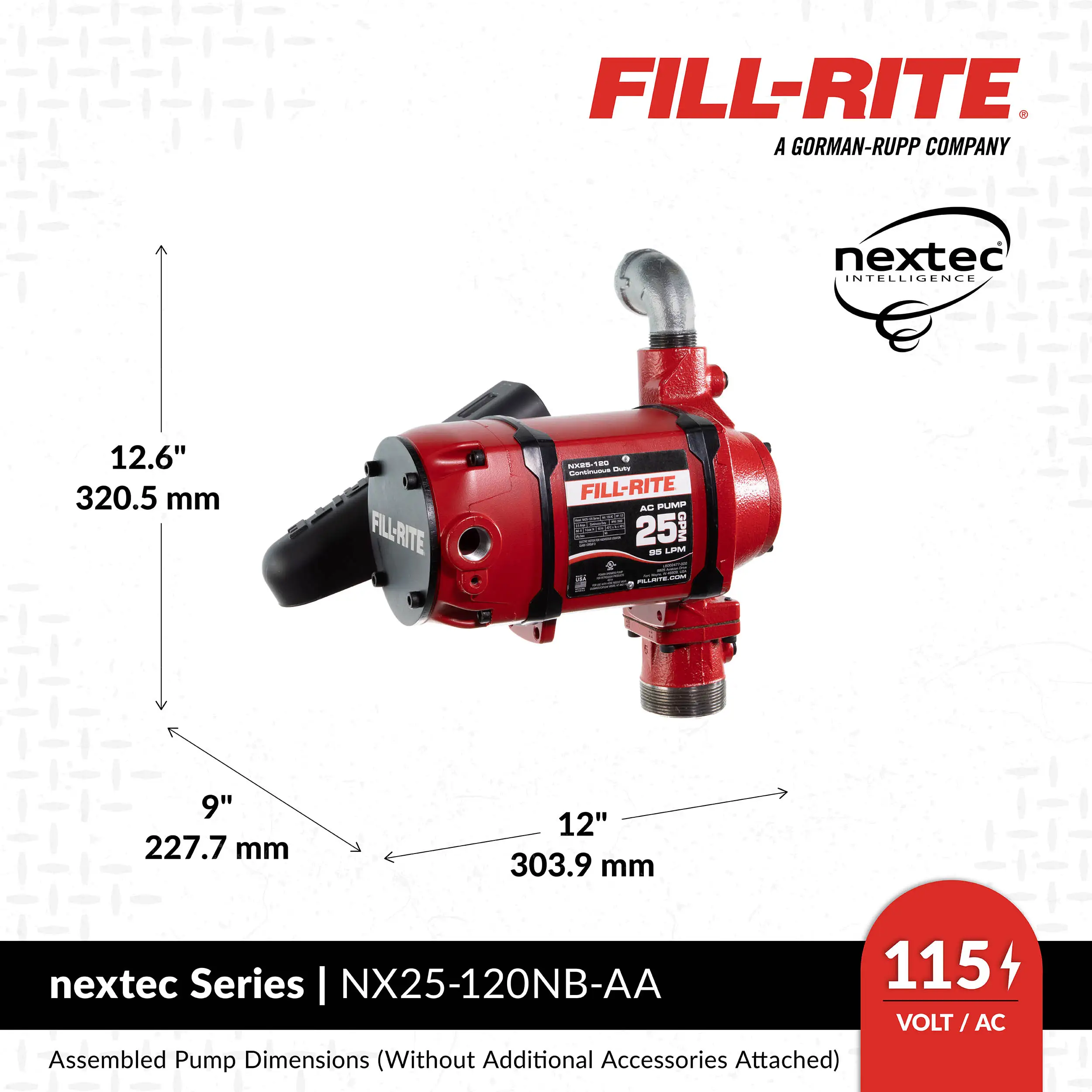

Assembled Product Height x Width x Depth (in.)10.4 x 9.0 x 12.5
Assembled Product Weight (lbs.)22.6
Package Height x Width x Depth (in.)11.38 x 21.81 x 19.81
Gross Weight (lbs.)44.00000 lbs
Less Than Load (LTL) FreightYes
