2-20 GPM 4-Digit Digital Chemical Transfer Meter, Air-Sensing (NOT FOR FLUID RESALE)

Scraped SKU: 000000000000000850 Price: 443.93 USD 2026-06-05 18:18:38

Attributes

Features Html
Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters, Polypropylene Construction — rugged polypropylene body resists corrosion in demanding chemical and industrial applications, Extreme Accuracy — measures fluids within +/- 0.5% accuracy, ensuring your record-keeping is precise as possible, Flexible Use — in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 360° for your convenience, Complete Customization — track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts, Ready Out of Box — one-step field calibration for numerous fluids makes installation quick, saving you time and eliminating frustration, Seamless Integration — pulser models available for seamless integration with fluid management systems, Fluid Compatibility — equipped with fluorocarbon seals, this meter is compatible with most pesticides, automotive fluids (except gasoline), and mild acids (see instruction manual for detailed list)
AccessoriesBatteries Required: Yes, Batteries Included: No, Battery Quantity: 2, Battery Size: CR2032, Battery Type: Alkaline
Series Code800-digital-meters-series-800-digital-meters
Series NameDigital Meters for Chemical & DEF
Series Urlhttps://www.fillrite.com/800-digital-meters-series-800-digital-meters

Description

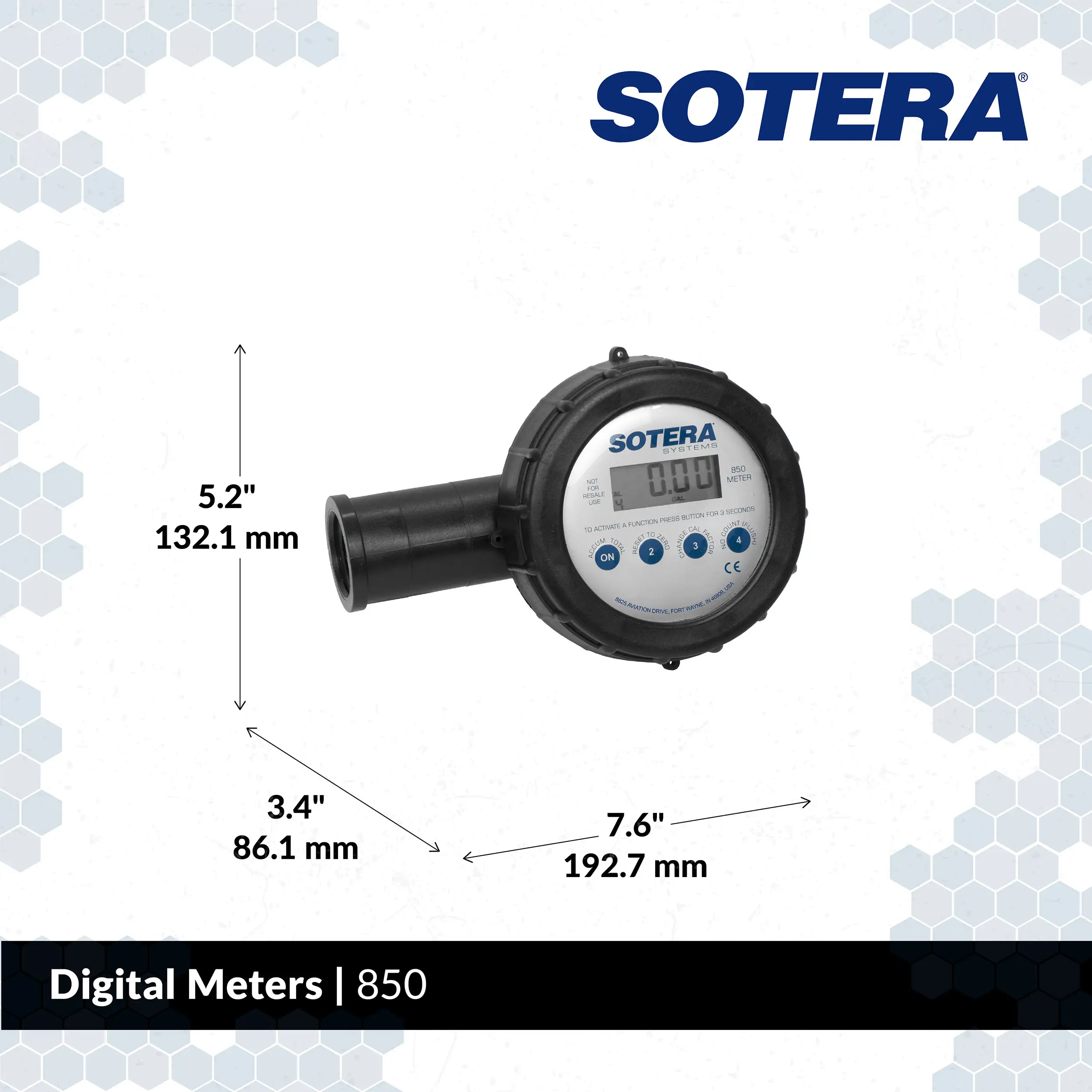

The 850 is a 4-digit, digital, multi-viscosity chemical transfer meter. This air-sensing meter is equipped with NPT threads and is designed to register 2-20 gallons per minute at +/- 0.5% accuracy.

Specifications

Max Flowrate20 GPM / 75 LPM
Compatible FluidsMineral Spirits, Antifreeze, Crop Oil, Fertilizers, Pesticides, Water
Inlet Size / Connection / Thread1 " / Female / NPT
Outlet Size / Connection / Thread1 " / Female / NPT
Max Operating Pressure (PSI)125
Operating Temperature Range (°F)0 - 130°F / -18 - 54°C
Assembled Product Height x Width x Depth (in.)5 x 5 x 3.5
Assembled Product Weight (lbs.)1.3
Package Height x Width x Depth (in.)7.5 x 10.5 x 7.3
Gross Weight (lbs.)1.90000 lbs
Less Than Load (LTL) FreightYes
