Attributes
| Features Html | Versatile Technology – designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters, Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications, Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible, Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 360° for your convenience, Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts, Ready Out of Box – one-step field calibration for numerous fluids makes installation quick, saving you time and eliminating frustration |
|---|---|
| Accessories | Pulser: No, Batteries Required: Yes, Batteries Included: Yes, Battery Quantity: 2, Battery Size: CR2032, Battery Type: Lithium ; Non-Rechargable |
| Series Code | 800-digital-meters-series-800-digital-meters |
| Series Name | Digital Meters for Chemical & DEF |
| Series Url | https://www.fillrite.com/800-digital-meters-series-800-digital-meters |
Description
This electronic polymer meter is designed for agriculture chemicals but is useful in many applications. The chemically resistant materials meet the most versatile applications, one meter for many uses. Powered by two AA batteries provides long life with no external power requirements. Applications include pesticides, fertilizers, water, crop oil, mineral spirits, anti-freeze, and many others.
Specifications
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Compatible Fluids | Mineral Spirits, Antifreeze, Crop Oil, Fertilizers, Pesticides, Water |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Max Operating Pressure (PSI) | 125 |
| Operating Temperature Range (°F) | 0 - 130°F / -18 - 54°C |

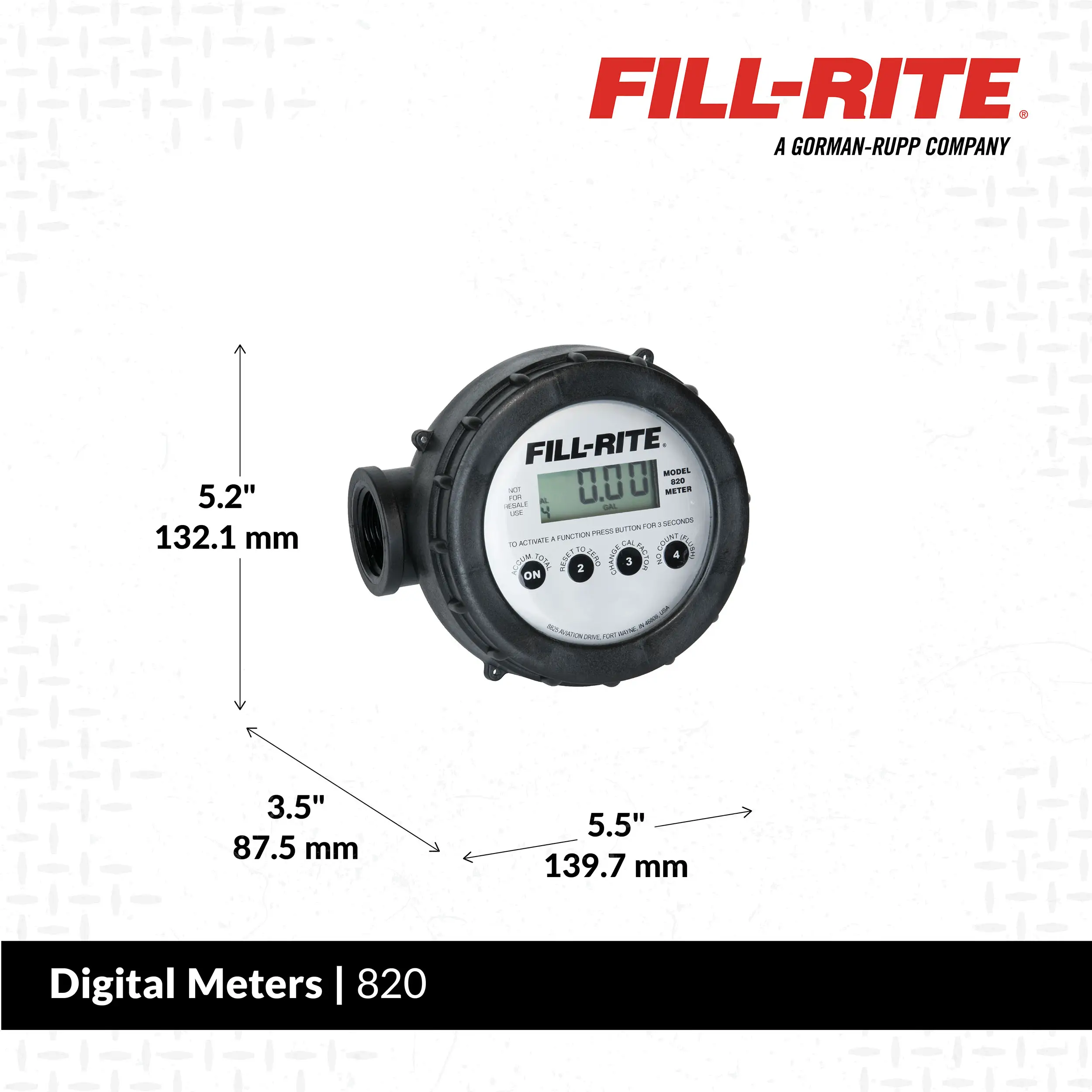

| Assembled Product Height x Width x Depth (in.) | 5 x 5 x 3.5 |
| Assembled Product Weight (lbs.) | 1.3 |
| Package Height x Width x Depth (in.) | 7.5 x 7.3 x 10.5 |
| Gross Weight (lbs.) | 1.90000 lbs |
| Less Than Load (LTL) Freight | Yes |
