Attributes
| Features Html | Versatile Technology – designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters, Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications, Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible, Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 360° for your convenience, Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts, Ready Out of Box – one-step field calibration for numerous fluids makes installation quick, saving you time and eliminating frustration, Seamless Integration – pulser models available for seamless integration with fluid management systems |
|---|---|
| Accessories | Batteries Required: Yes, Batteries Included: No, Battery Quantity: 2, Battery Size: CR2032, Battery Type: Lithium ; Non-Rechargable |
| Series Code | 800-digital-meters-series-800-digital-meters |
| Series Name | Digital Meters for Chemical & DEF |
| Series Url | https://www.fillrite.com/800-digital-meters-series-800-digital-meters |
Description

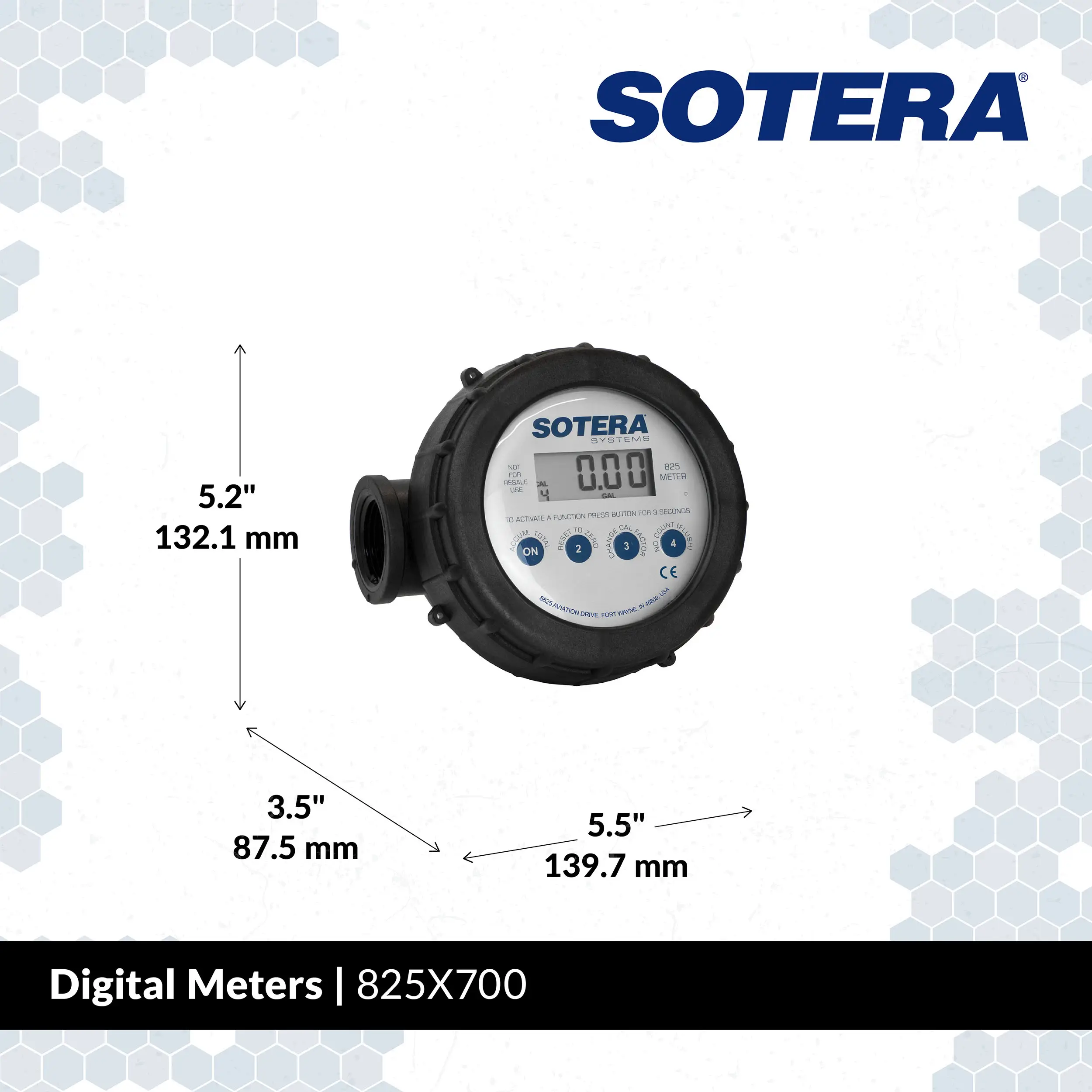

The 825X700 is a 4-digit, digital, multi-viscosity chemical transfer meter. This meter is equipped with NPT threads and is designed to register 2-20 gallons per minute at +/- .5% accuracy.
Specifications
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Compatible Fluids | Diesel, DEF, Mineral Spirits, Crop Oil, Pesticides, Water, Detergents, Ethylene Glycol, Mild Acids, Motor Oils |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Max Operating Pressure (PSI) | 120 |
| Operating Temperature Range (°F) | 0 - 130°F / -18 - 54°C |
| Assembled Product Height x Width x Depth (in.) | 5.2 x 5.5 x 3.3 |
| Assembled Product Weight (lbs.) | 1.53 |
| Package Height x Width x Depth (in.) | 7.5 x 10.5 x 7.3 |
| Gross Weight (lbs.) | 1.53000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
825P & 850P - Owner's Manual
Open PDF
