Attributes
| Features Html | Unmatched Performance — Pumps 25% faster, eliminating hours of costly driver downtime while filling up equipment, Continuous Operation — brushless variable speed motor transfers fuel all day without overheating, extending pump life and eliminating driver downtime, Energy Efficient — Consumes up to 45% less electricity, slashing operating costs and boosting efficiency, Ultra-Lightweight — pump weighs 60% less at only 25 pounds, making installation faster and strain free, Reduced Maintenance Costs — 75% reduction in common field repair costs through patented design and robust construction, Powder-Coated Exterior — thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business, Fluid Compatibility — designed for daily use with diesel, gasoline, ethanol blends up to E15, kerosene, mineral spirits, methanol up to 15%, and biodiesel blends up to B20 |
|---|---|

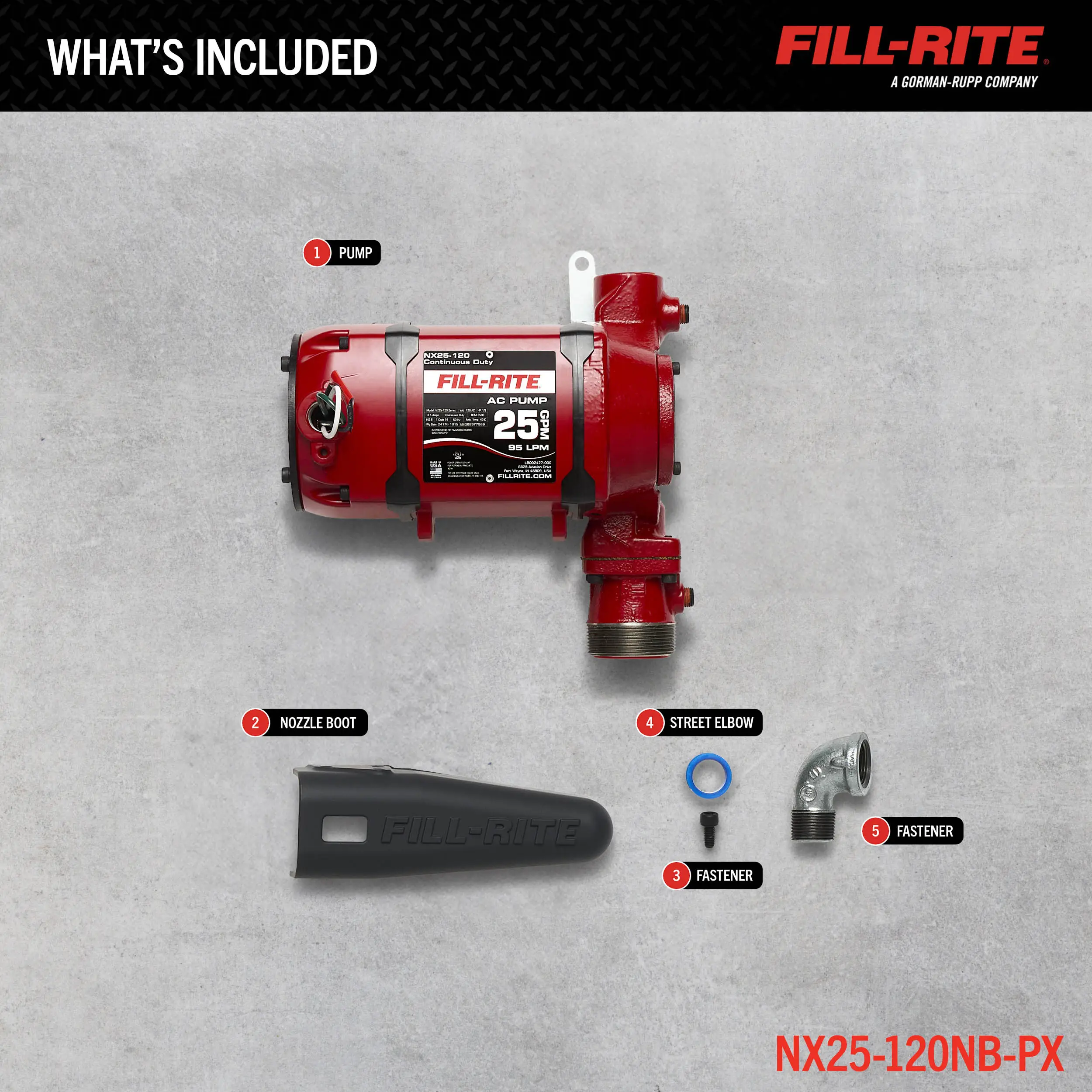

| Accessories | Additional Accessories: Nozzle Boot, PTFE Tape Roll, 1" NPT Street Elbow, Locking Nut, Cable Gauge (GA): 16, Cable Connection: Bare Leads |
| Series Code | nx25-series-nx25 |
| Series Name | NX25 Series |
| Series Url | https://www.fillrite.com/nx25-series-nx25 |
Description

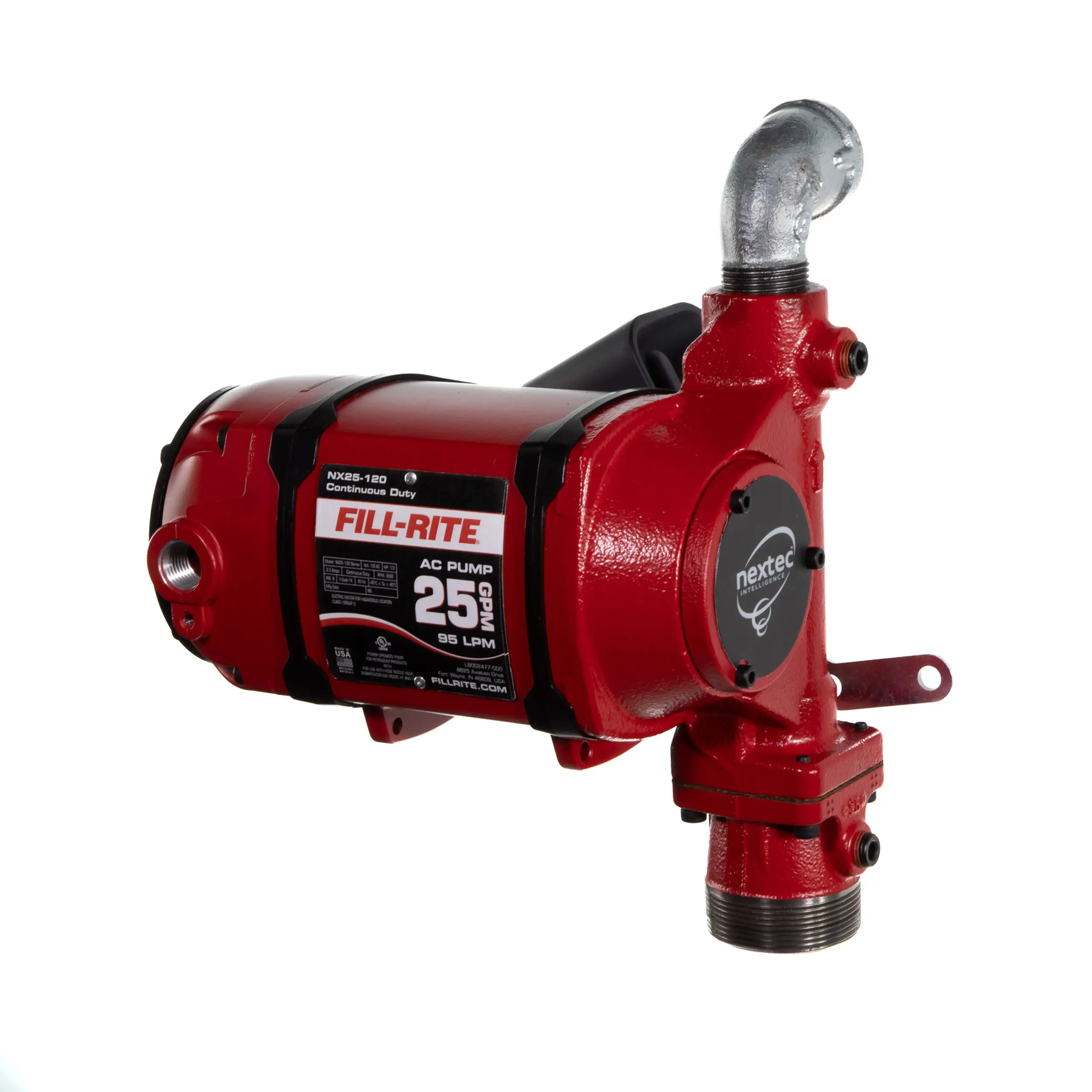

The NX25-120NB-PX model is a 120V AC, 25 GPM premiere fuel transfer pump. This model includes installation components and no additional accessories.
Specifications
| Max Flowrate | 25 GPM / 94 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | Continuous Duty |
| Power Source | Electrical |
| Motor Power (HP) | 0.33 |
| Max Current (A) | 3.5 A |
| Suction Lift (ft.) | 12 ' |
| Dry Vacuum (in. Hg) | 11 |
| Discharge Head (ft) | 48 ' |
| Strainer Mesh Size (Micron) | 20 x 20 x .008” |
| Max Discharge Pressure (PSI) | 25 PSI |

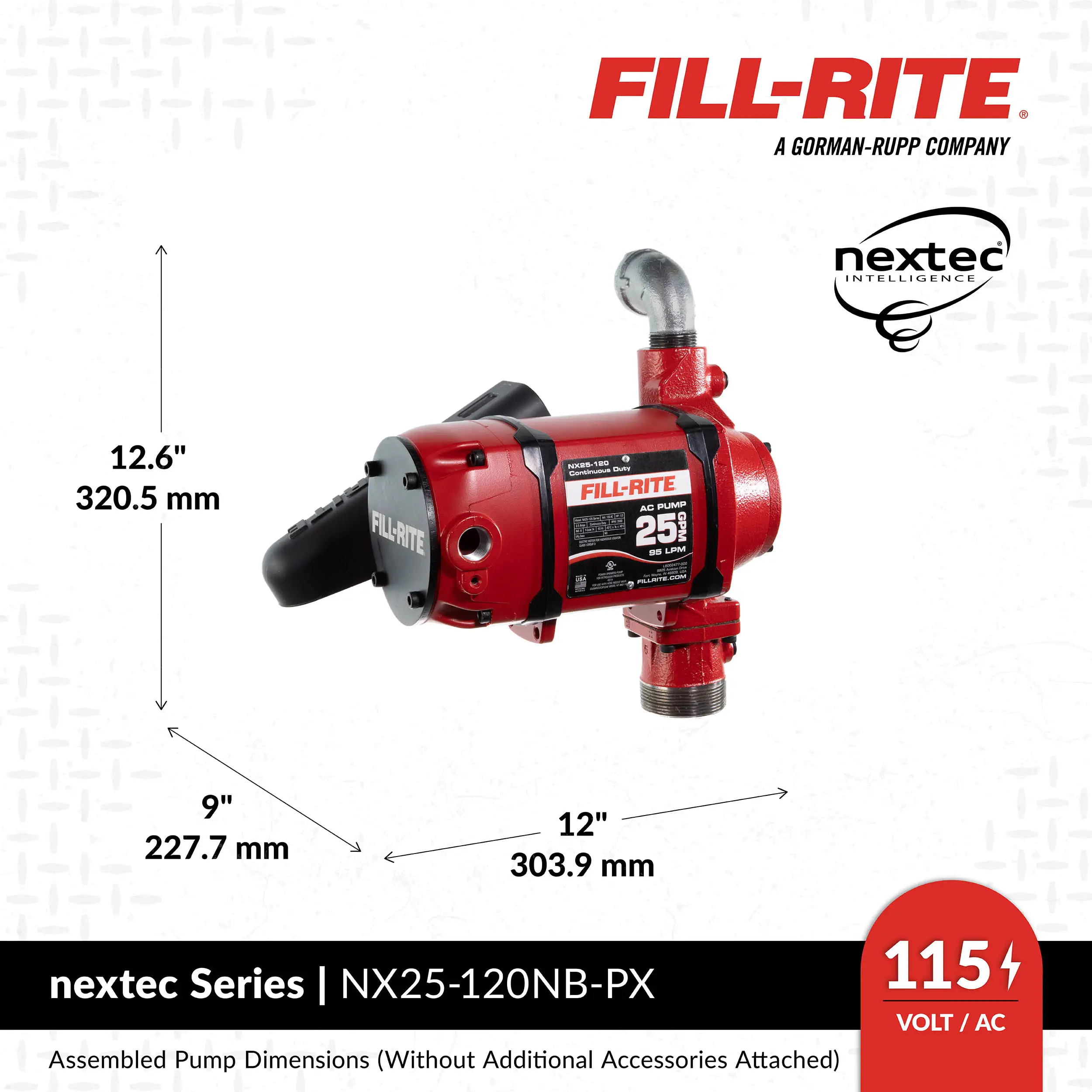

| Assembled Product Height x Width x Depth (in.) | 10.4 x 9.0 x 12.5 |
| Assembled Product Weight (lbs.) | 22.4 |
| Package Height x Width x Depth (in.) | 11.38 x 15.44 x 18.31 |
| Gross Weight (lbs.) | 29.30000 lbs |
| Less Than Load (LTL) Freight | Yes |
