Attributes
| Features Html | Durable Construction – engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer, No Mess Performance – integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal, No Crystallization – fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization, Flexible Installation – convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration, Closed-Loop System – create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity |
|---|---|
| Accessories | Cable Connection: Battery Clips |
| Series Code | def-12v-dc-electric-series |
| Series Name | DEF 12V DC Electric Series |
| Series Url | https://www.fillrite.com/def-12v-dc-electric-series |
Description

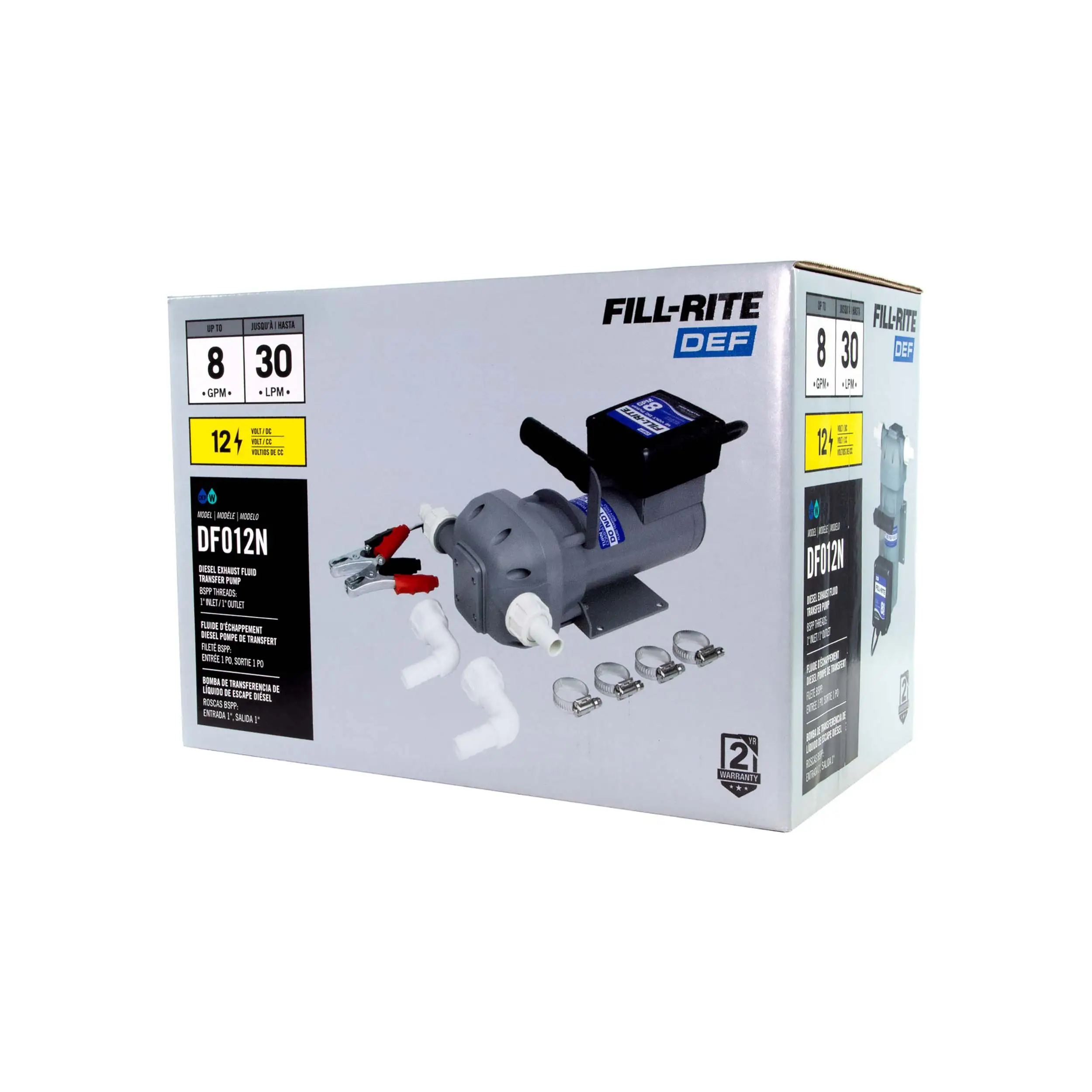

The DF012N model is a 12V DC DEF transfer pump. This model includes installation components and no additional accessories.
Specifications
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | DEF, Water |
| Inlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Outlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 6 ' |
| Max Operating Pressure (PSI) | 38 |
| Discharge Head (ft) | 87 ' |
| Max Current (A) | 22 A |
| Assembled Product Height x Width x Depth (in.) | 6.5 x 12 x 8 |
| Assembled Product Weight (lbs.) | 14.3 |
| Package Height x Width x Depth (in.) | 10.25 x 14.75 x 19.81 |
| Gross Weight (lbs.) | 16.70000 lbs |
| Less Than Load (LTL) Freight | Yes |
