Attributes
| Features Html | Durable Construction – engineered with multi-diaphragm technology and EPDM seals, this pump excels in daily DEF transfer, No Mess Performance – integral pulsation dampener reduces excessive foaming and splashing, keeping your flow smooth and mess minimal, No Crystallization – fill the included nozzle storage boot with water to eliminate mess and headaches from DEF crystallization, Flexible Installation – convenient IBC tote and drum mounting brackets and included fittings make installation quick, saving you time and eliminating frustration, Closed-Loop System – create a completely closed-loop system with the included RPV coupler in many models, enhancing safety and preserving fluid purity |
|---|---|

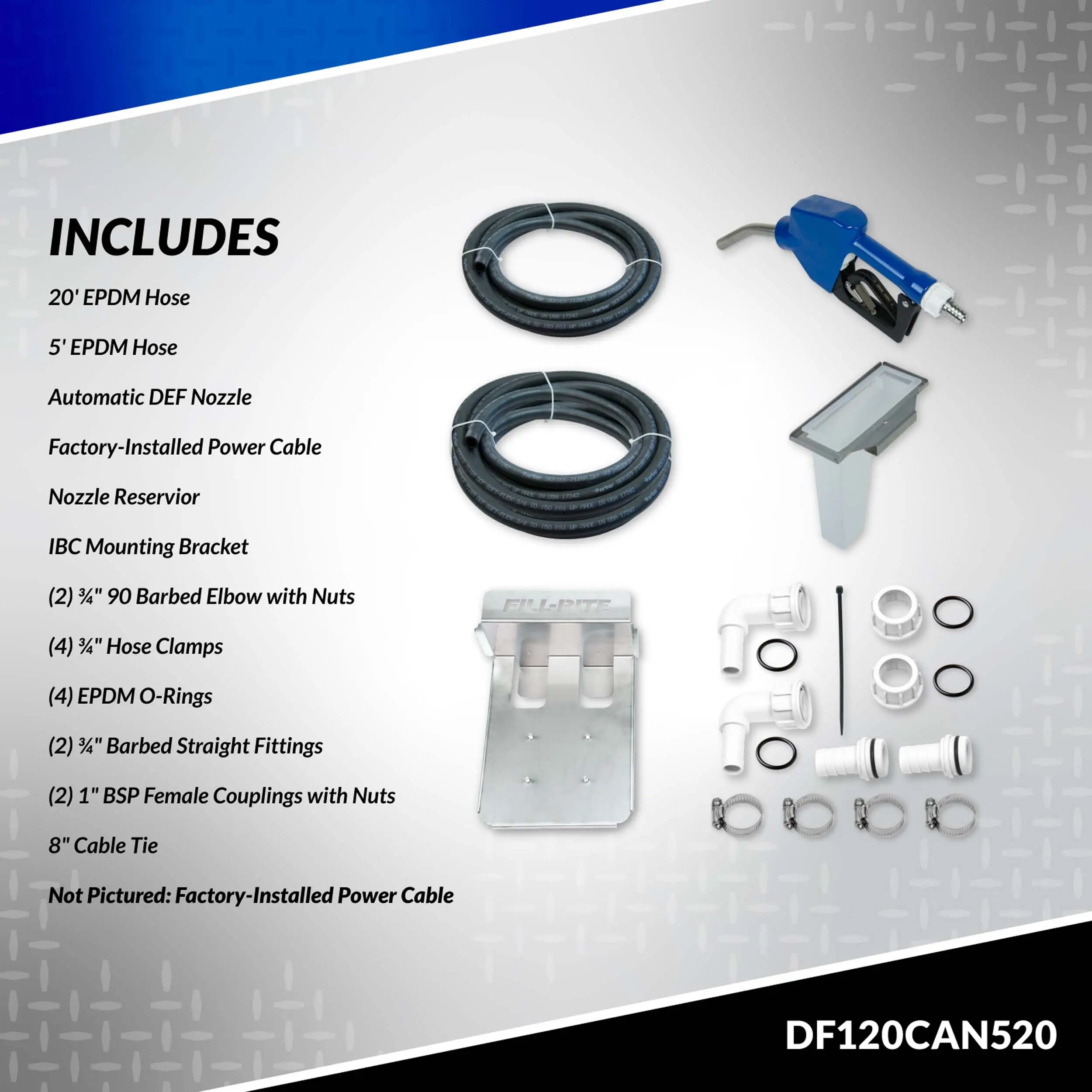

| Accessories | Suction Hose: ¾” x 5’ EPDM Suction Hose with Hose Barbs, Discharge Hose: ¾” X 20’ EPDM Hose, Nozzle: 1" Automatic DEF Nozzle (Stainless Steel Spout), Cable Connection: Type B |
| Series Code | def-120v-ac-electric-series |
| Series Name | DEF 120V AC Electric Series |
| Series Url | https://www.fillrite.com/def-120v-ac-electric-series |
Description

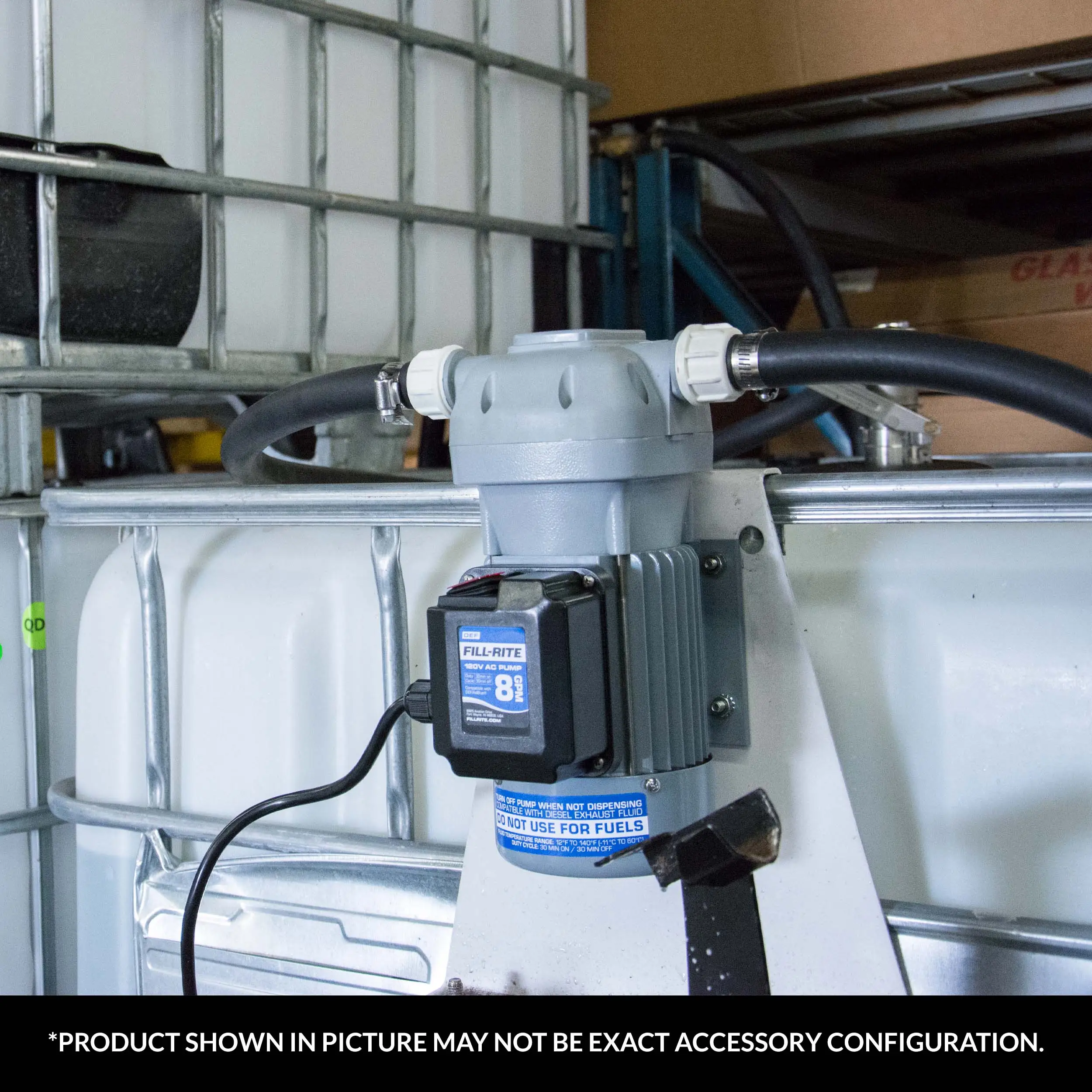

The DF120CAN520 model is a 120V AC DEF transfer pump. This pump and accessory bundle includes a stainless steel IBC tote mount, suction hose, discharge hose, automatic nozzle, and all fittings needed for installation.
Specifications
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | DEF, Water |
| Inlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Outlet Size / Connection / Thread | 1 " / Male / Hose Barb |
| Mounting Type | IBC Tote Bracket |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 6 ' |
| Max Operating Pressure (PSI) | 38 |
| Discharge Head (ft) | 87 ' |
| Max Current (A) | 2.4 A |
| AC Frequency (Hz) | 60 |
| Assembled Product Height x Width x Depth (in.) | 15.4 x 11.0 x 8.3 |
| Assembled Product Weight (lbs.) | 33 |
| Package Height x Width x Depth (in.) | 10 x 21.81 x 19.81 |
| Gross Weight (lbs.) | 35.20000 lbs |
| Less Than Load (LTL) Freight | Yes |
