Attributes
| Features Html | Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications, Easy to Use – included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage, Adjustable Latching – three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment, Automatic Shut-Off – automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient, Multiple Configurations – available in a variety of configurations to meet your application’s temperature, flow, and fluid compatibility requirements |
|---|---|
| Series Code | def-automatic-nozzles-series |
| Series Name | DEF Automatic Nozzles Series |
| Series Url | https://www.fillrite.com/def-automatic-nozzles-series |
Description

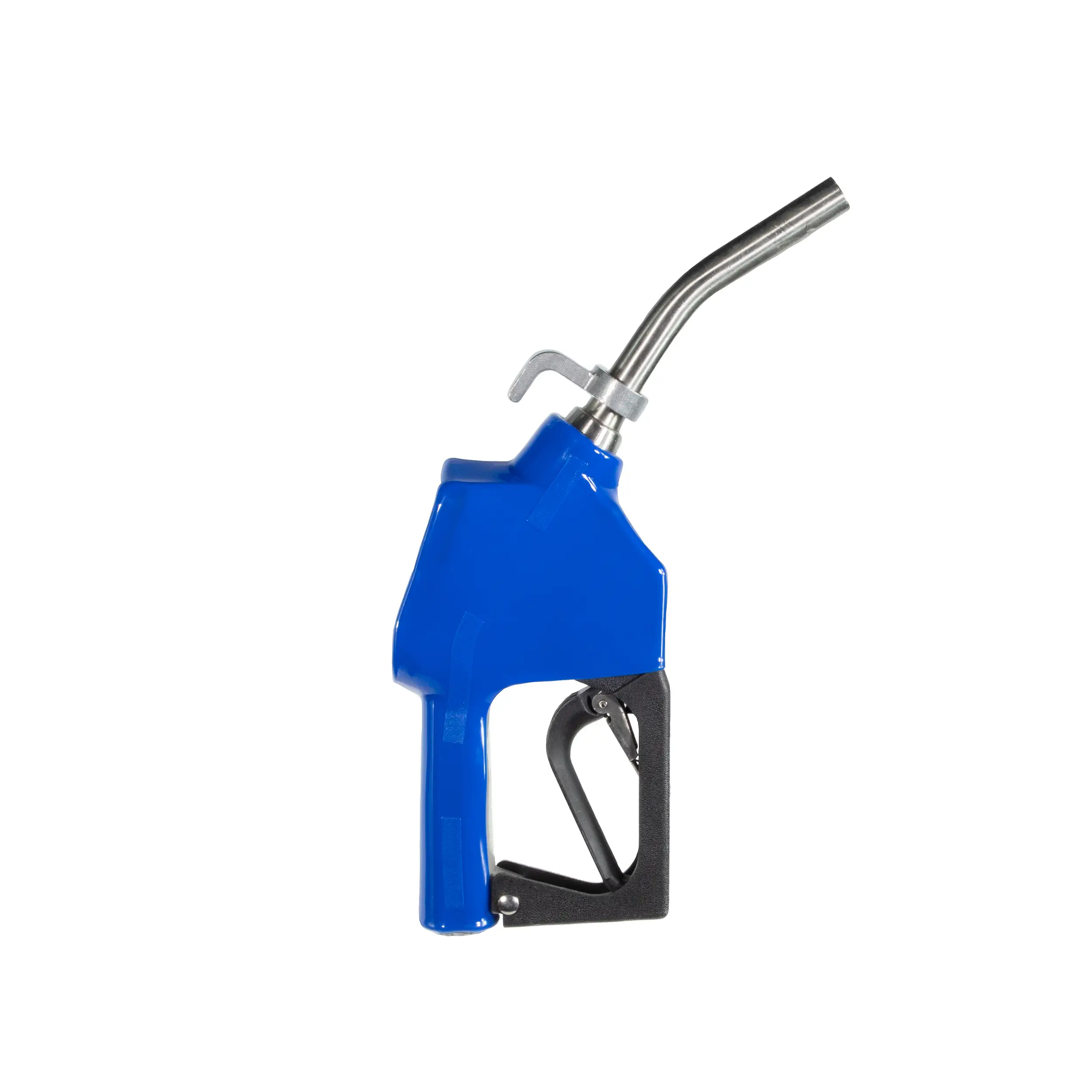

The FRNS075ALCN is a 0.75" stainless steel automatic shutoff nozzle designed for DEF transfer. This model is equipped with a stainless steel diesel-sized spout, an integrated swivel, and BSPP threads.
Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems
Specifications
| Inlet Size / Connection / Thread | 0.75 " / Female / BSPP |
|---|---|
| Max Operating Pressure (PSI) | 50 |
| Assembled Product Height x Width x Depth (in.) | 13.91 x 8.64 x 2.25 |
| Package Height x Width x Depth (in.) | 4 x 19.25 x 18 |
| Gross Weight (lbs.) | 4.85000 lbs |
| Less Than Load (LTL) Freight | Yes |
