Attributes

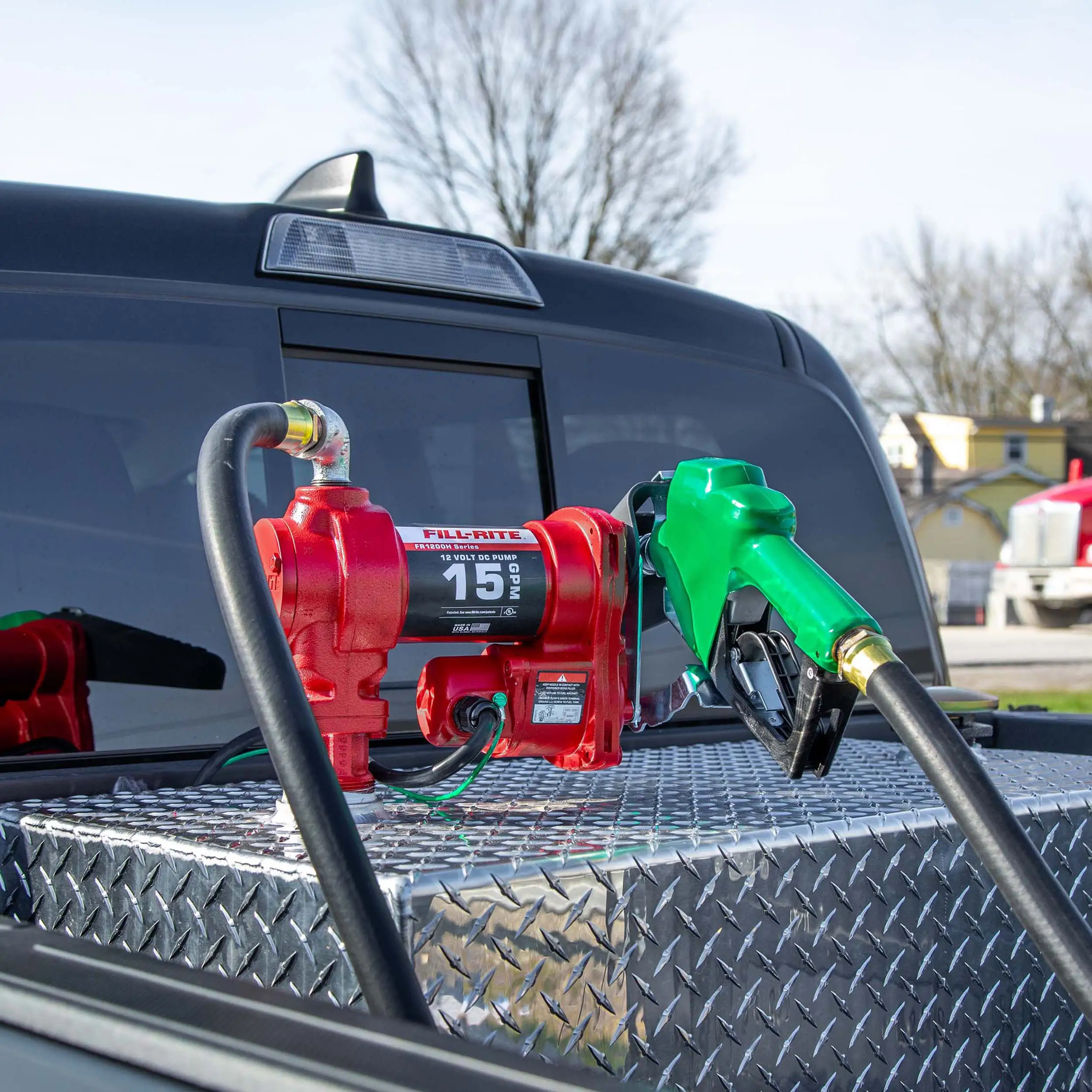

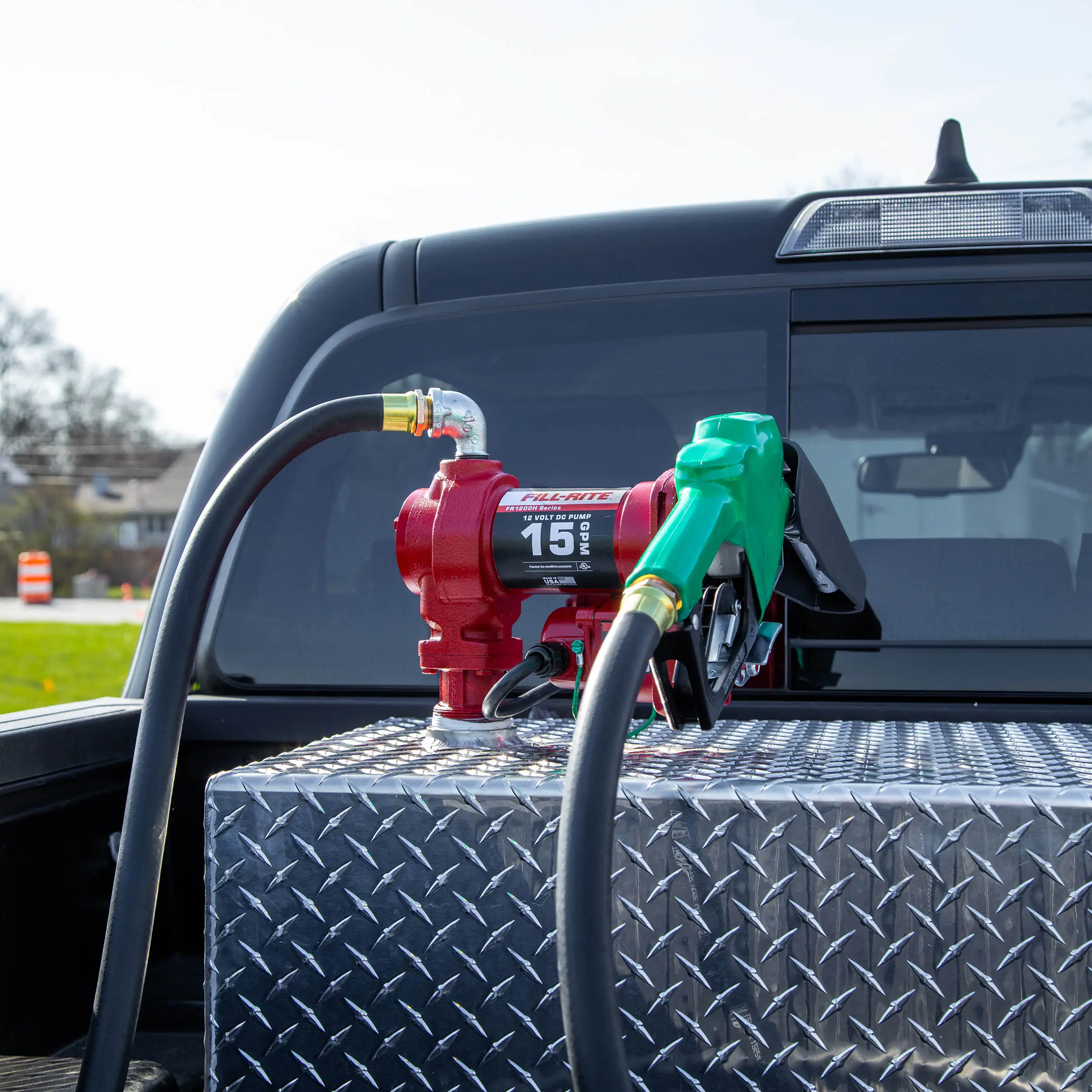

| Features Html | Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons, Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment |
|---|---|

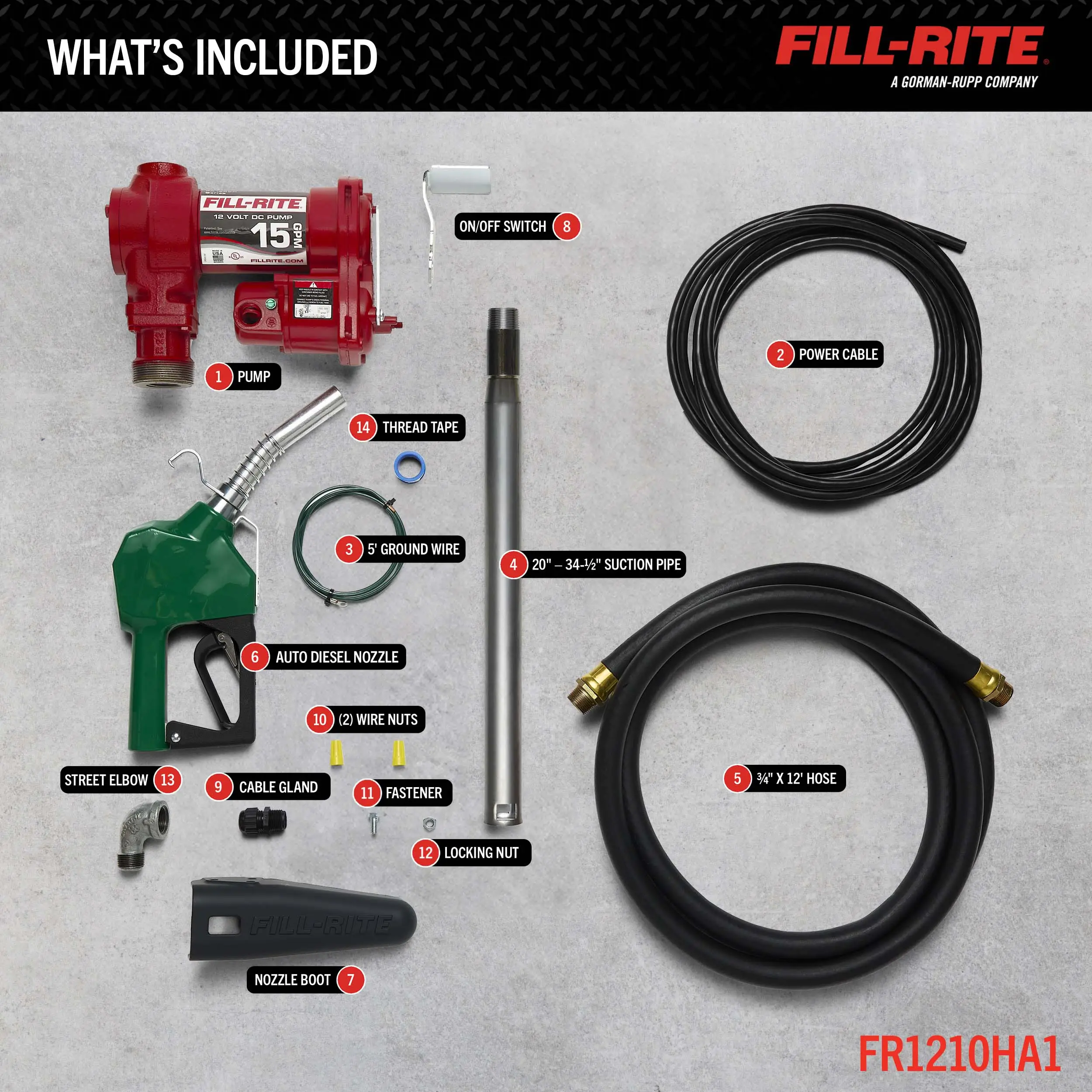

| Accessories | Additional Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Ground Wire, Cable Gland, (2) Wire Nuts, Locking Nut, Fastener, Cable Length (ft): 18, Cable Gauge (GA): 12, Cable Connection: Bare Leads, Suction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe, Discharge Hose: ¾” X 12’ Hose with Static Ground Wire, Nozzle: ¾” Automatic Diesel Nozzle |
| Series Code | fr1200-series-fr1200 |
| Series Name | FR1200 Series |
| Series Url | https://www.fillrite.com/fr1200-series-fr1200 |
Description

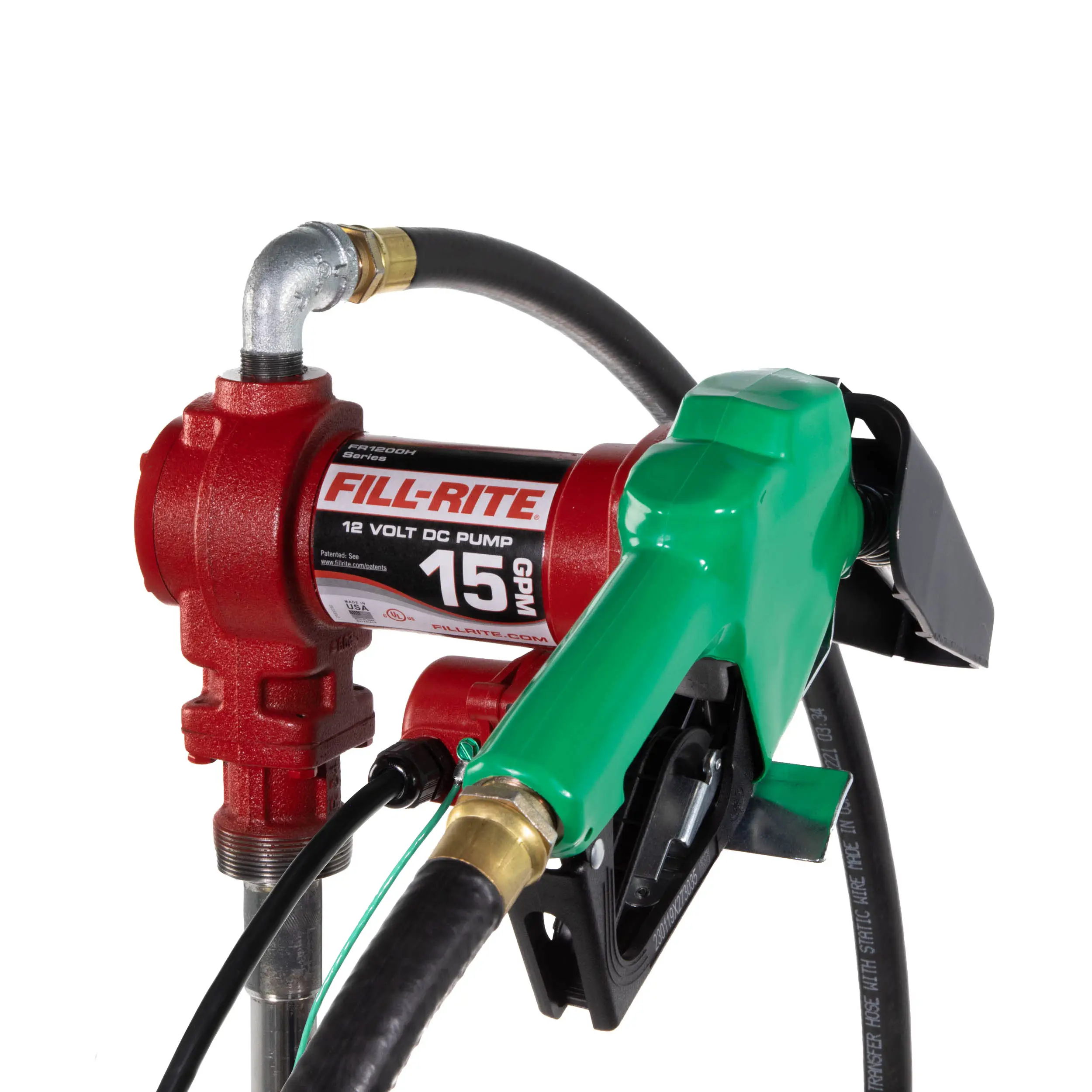

The FR1210HA1 model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe and installation components.
Specifications
| Max Flowrate | 15 GPM / 57 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Max Current (A) | 20 A |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) | 1 to 4 |

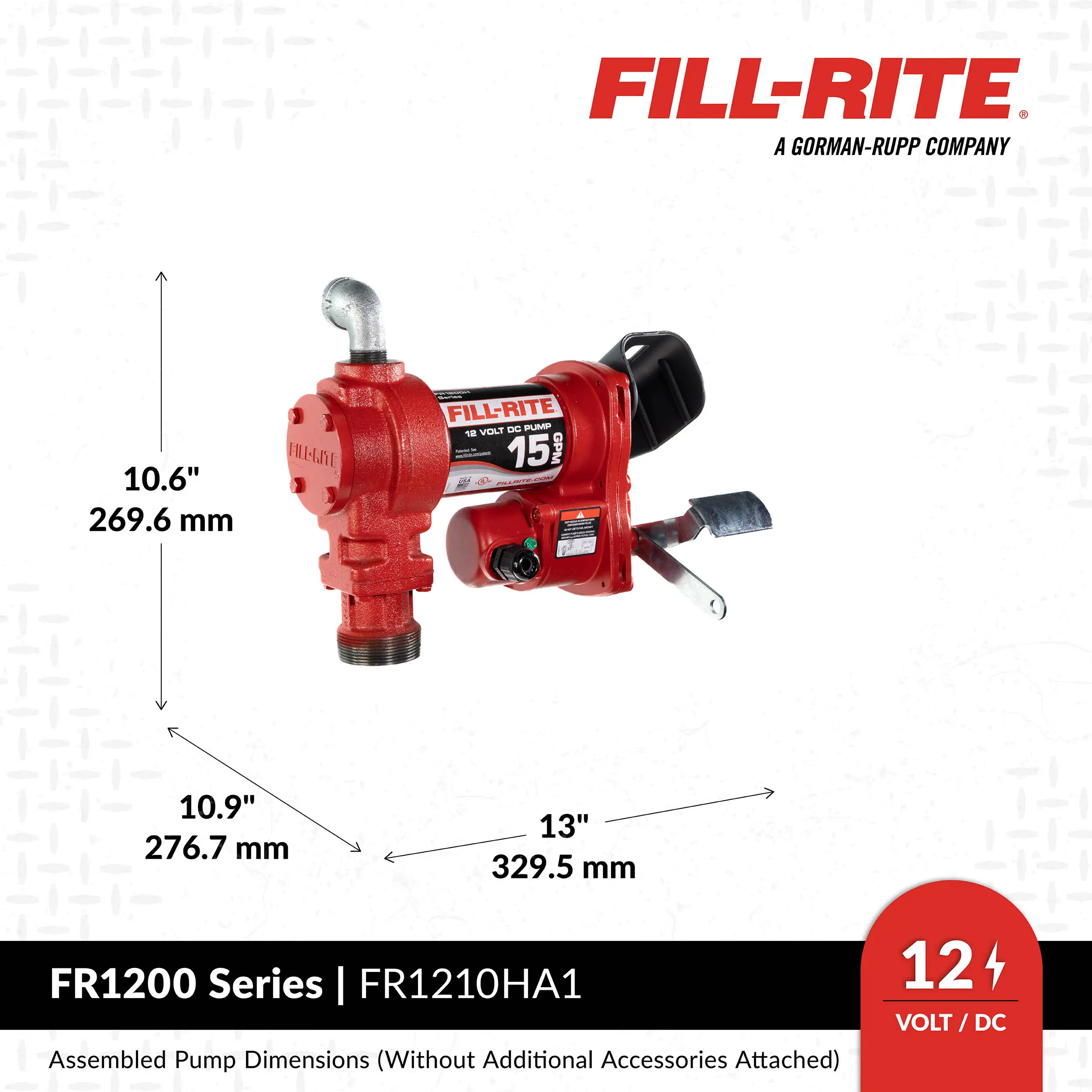

| Assembled Product Height x Width x Depth (in.) | 8.4 x 13.0 x 6.5 |
| Assembled Product Weight (lbs.) | 31.1 |
| Package Height x Width x Depth (in.) | 10.63 x 15.44 x 18.31 |
| Gross Weight (lbs.) | 33.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
