Attributes
| Features Html | Telescoping and Multi-Piece — Fill-Rite offers telescoping and multi-piece suction pipes that can be shortened, extended, and custom configured based on the length requirement of your tank and application, Steel and Polypropylene — Fill-Rite offers both heavy-duty steel suction pipes (recommended for fuel transfer) and durable polypropylene suction pipes (recommended for chemical and industrial fluid transfer), Multiple Diameters Available — with suction pipe diameters from ½" to 1", Fill-Rite can meet the suction requirements for your drum, IBC tote, or mobile fuel tank, Tall Aboveground Storage Tanks — Fill-Rite does not offer 1-¼" suction pipes for AC product lines, instead we recommend users purchase a 1-¼" galvanized steel pipe from a local hardware store and custom cut it to the required length |
|---|---|
| Series Code | suction-pipe-hose-series-suction-pipe-hose |
| Series Name | Inlet Pipes & Hoses |
| Series Url | https://www.fillrite.com/suction-pipe-hose-series-suction-pipe-hose |
Description

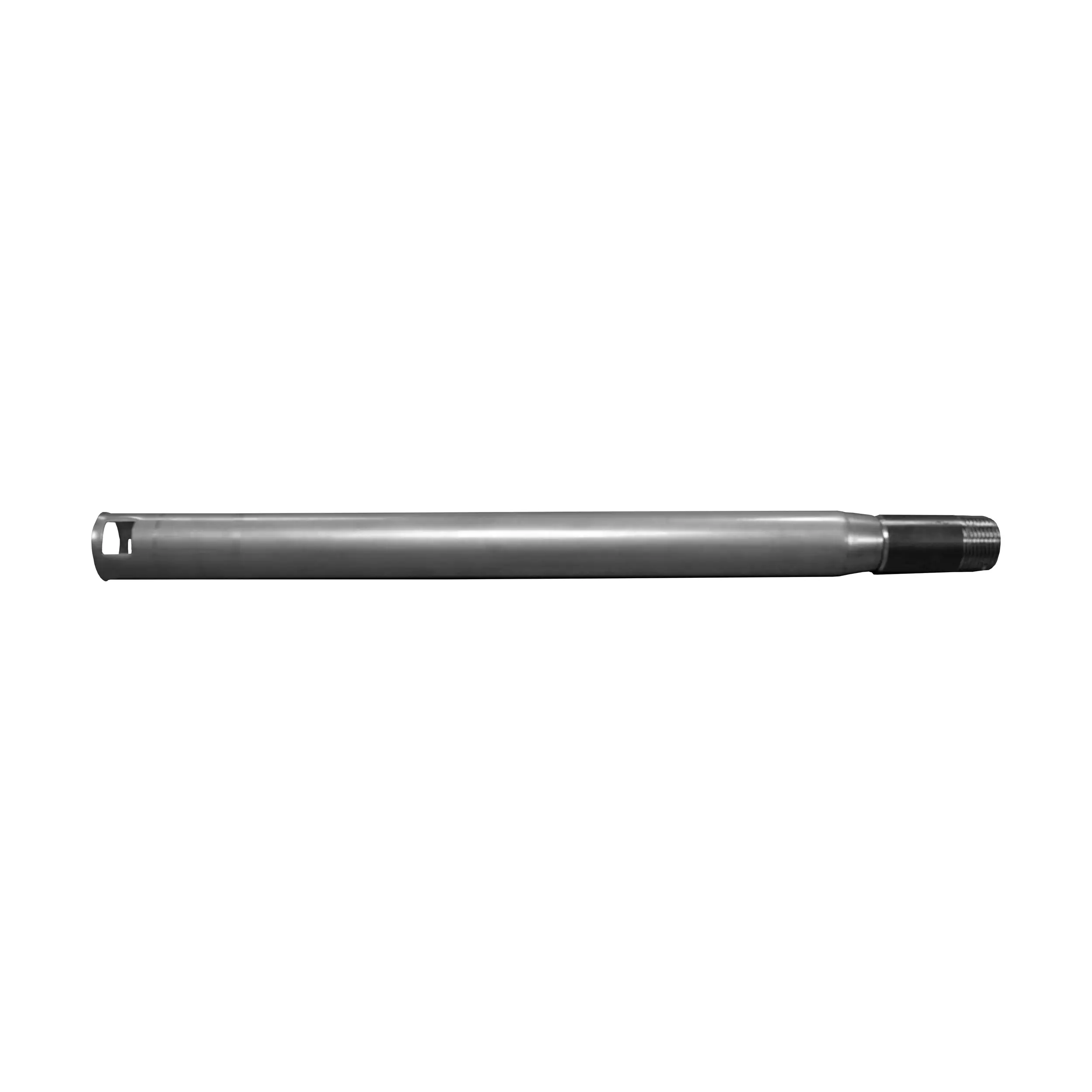

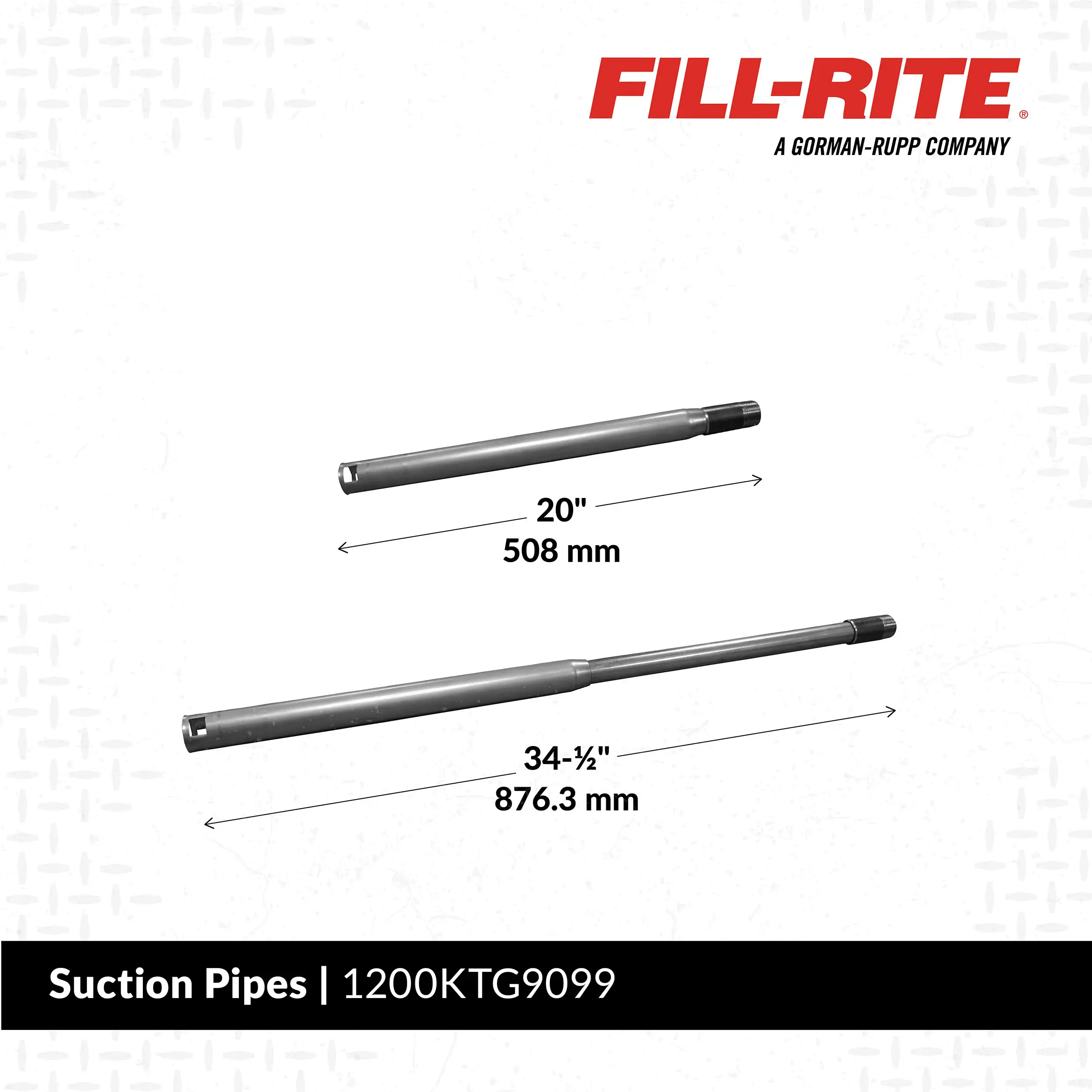

The 1200KTG9099 is a 1", telescoping, steel suction pipe that extends 20" to 34-?".
Specifications
| Compatible Fluids | Diesel, Gasoline, Mineral Spirits, B20, E15 |
|---|---|
| Outlet Size / Connection / Thread | 1 " / Male / NPT |
| Suction Pipe Materials | Steel |
| Suction Collapsed Length (in.) | 20 |
| Suction Extended Length (in.) | 34.5 |
| Assembled Product Height x Width x Depth (in.) | 1.6 x 1.6 x 20 |
| Assembled Product Weight (lbs.) | 2.26 |
| Gross Weight (lbs.) | 2.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
