Attributes
| Features Html | Cast-Aluminum Construction — built to last with solid cast-aluminum construction, designed for maximum application durability and lifetime corrosion resistance, No Leak Design — quality seal and casting designs maintain tight connection over time, preventing messy leaks from occurring, Ease of Use — adding a Fill-Rite in-line swivel relieves stress, prevents kinks, and avoids twisting up of your hose, extending product life and making filling easier, Smooth Rotation — engineered and manufactured with precision, this swivel features a smooth 360-degree rotation that allows you to put the dispensing nozzle in any angle or position while filling, Adds Length to Hose — in addition to improving ease of use, adding a swivel also increases the total length of your dispensing hose for added comfortability |
|---|---|
| Series Code | swivels-series-swivels |
| Series Name | Swivels |
| Series Url | https://www.fillrite.com/swivels-series-swivels |
Description

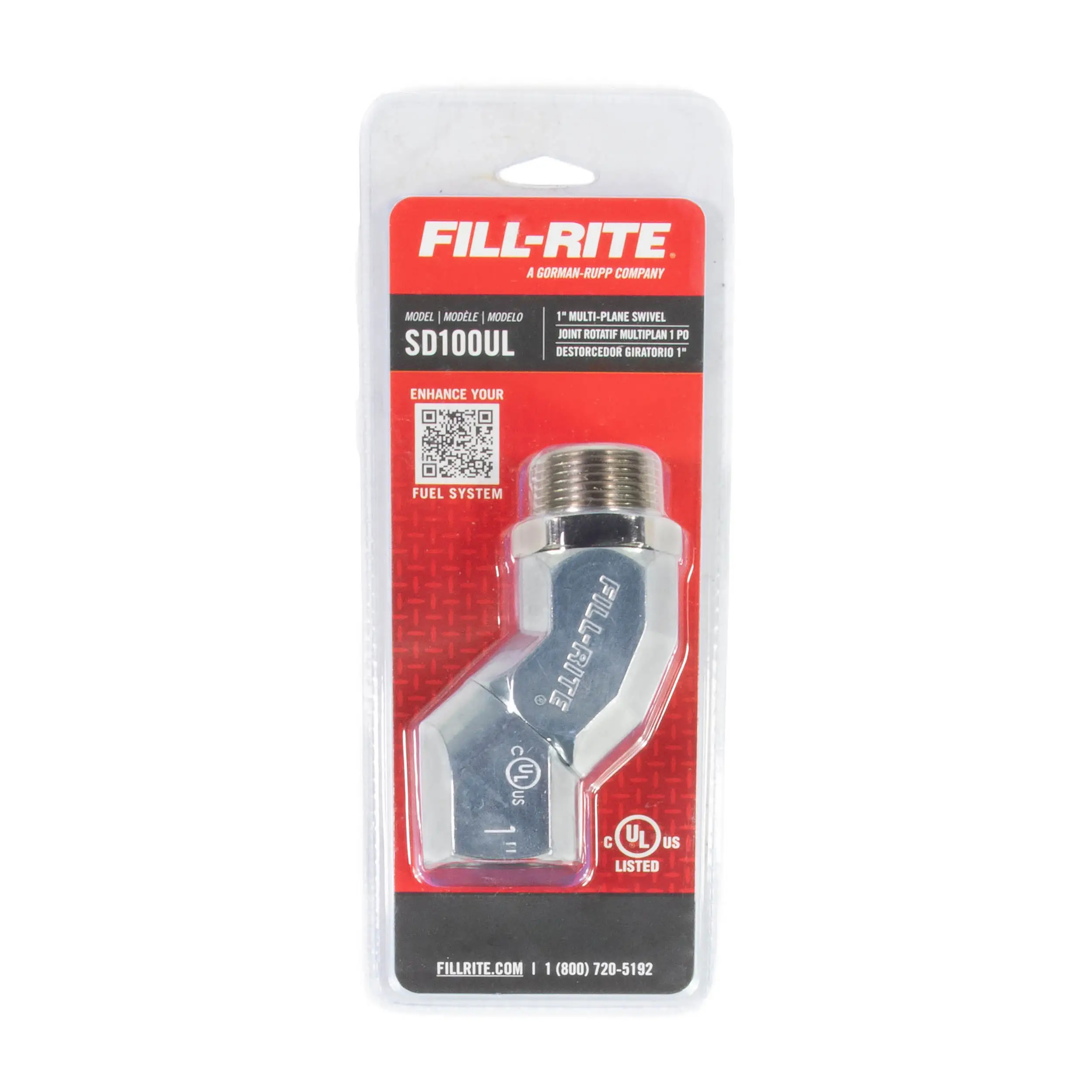

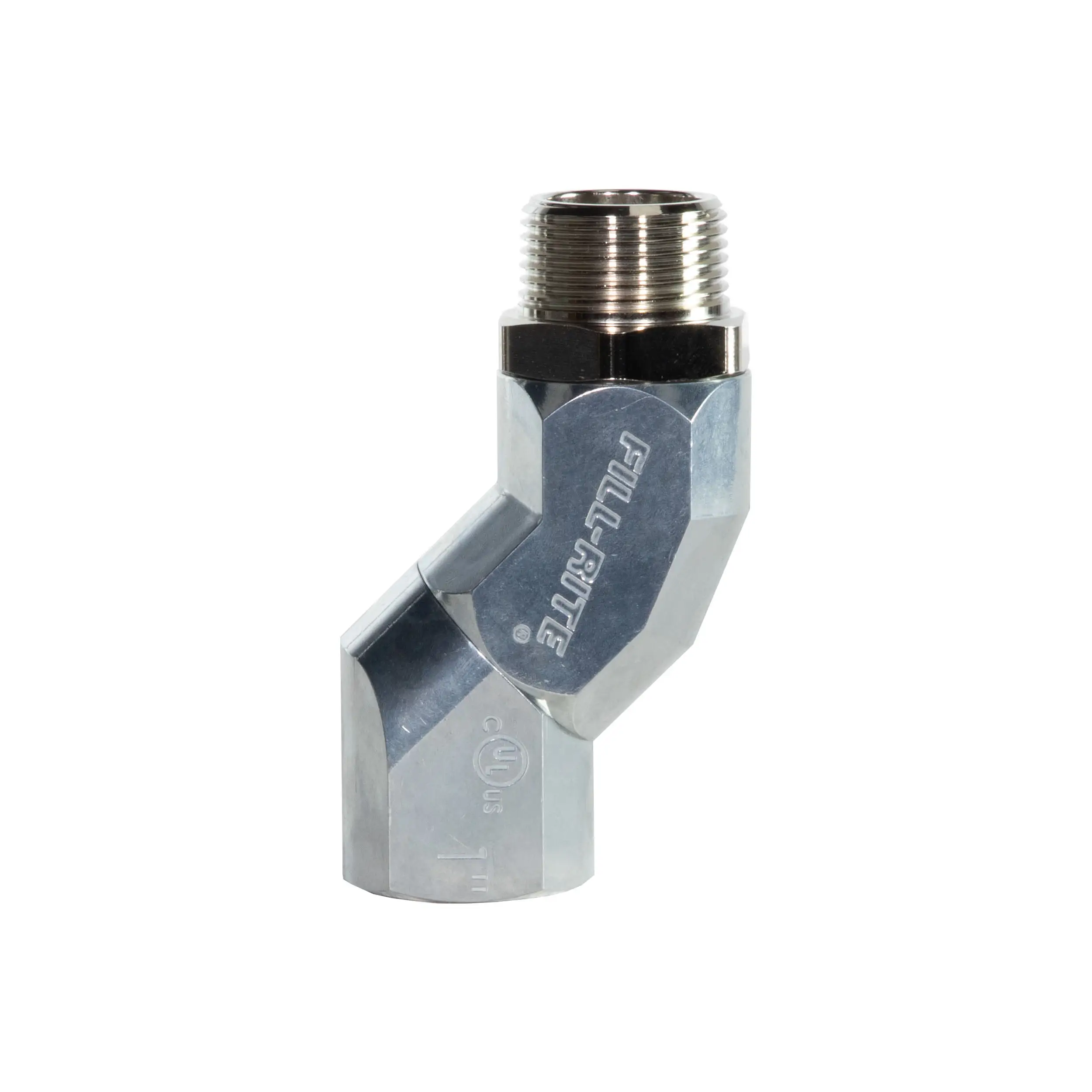

The SD100UL is a 1" multi-plane fuel transfer swivel, which allows you to achieve a 360(o) range of motion with your nozzle at the dispensing point. This model is designed to transfer unleaded gasoline, diesel, and ethanol blends.
Specifications
| Compatible Fluids | Diesel, Biodiesel up to B20, Gasoline up to E15 |
|---|---|
| Inlet Size / Connection / Thread | 1.0 " / Female / NPT |
| Outlet Size / Connection / Thread | 1.0 " / Male / NPT |
| Fluid Temperature Range | -40 to 150 |
| Assembled Product Height x Width x Depth (in.) | 2.4 x 1.6 x 5.3 |
| Assembled Product Weight (lbs.) | 0.9 |
| Package Height x Width x Depth (in.) | 8 x 7.5 x N/A |
| Gross Weight (lbs.) | 0.53000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
No PDF documents.
