Attributes
| Features Html | Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications |
|---|---|
| Accessories | Nozzle: ¾” Cast Aluminum Manual Nozzle |
| Series Code | manual-nozzles-series-manual-nozzles |
| Series Name | Manual Nozzles |
| Series Url | https://www.fillrite.com/manual-nozzles-series-manual-nozzles |
Description

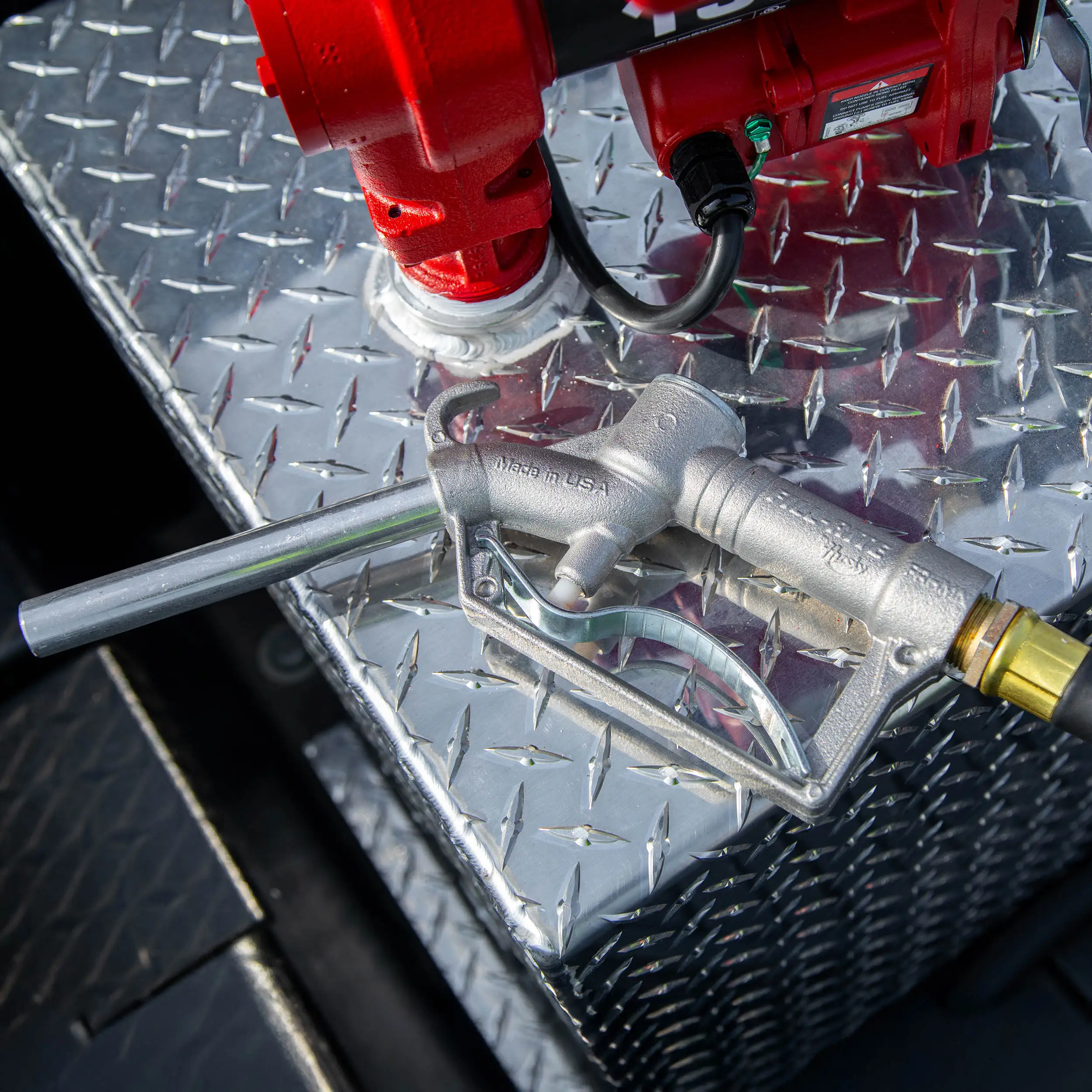

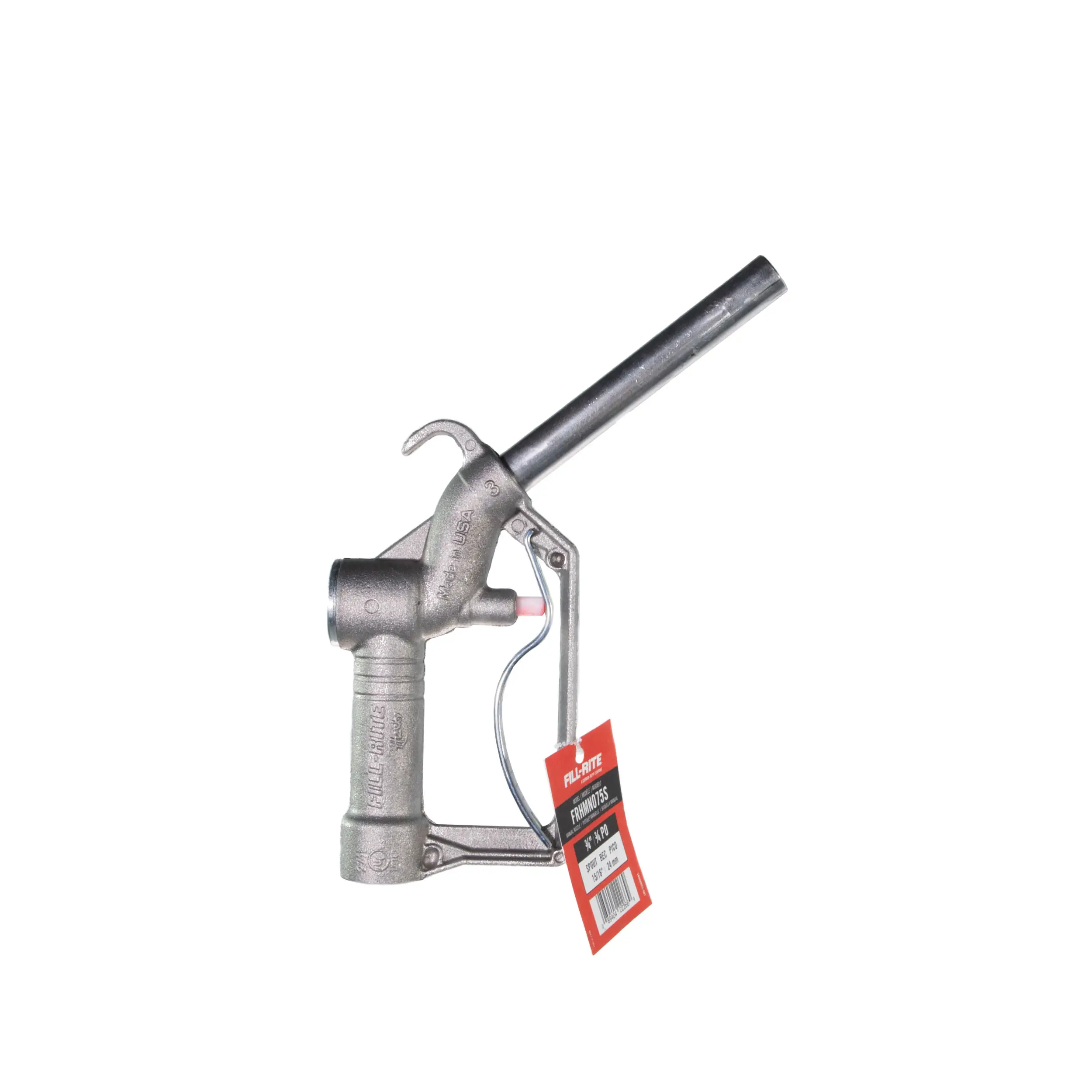

The FRHMN075S is a 0.75" aluminum manual nozzle designed for fuel transfer. This model is equipped with a 13/16" sized spout ideal for gasoline applications.
Specifications
| Nozzle | ¾” Cast Aluminum Manual Nozzle |
|---|---|
| Max Flowrate | 20 GPM / 75 LPM |
| Compatible Fluids | Diesel, Gasoline, Kerosene, B20, E15 |
| Inlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Spout Diameter (in.) | 0.812 |
| Min Operating Temperature (°F) | -20 |
| Max Operating Pressure (PSI) | 50 |
| Nozzle Type | Manual |

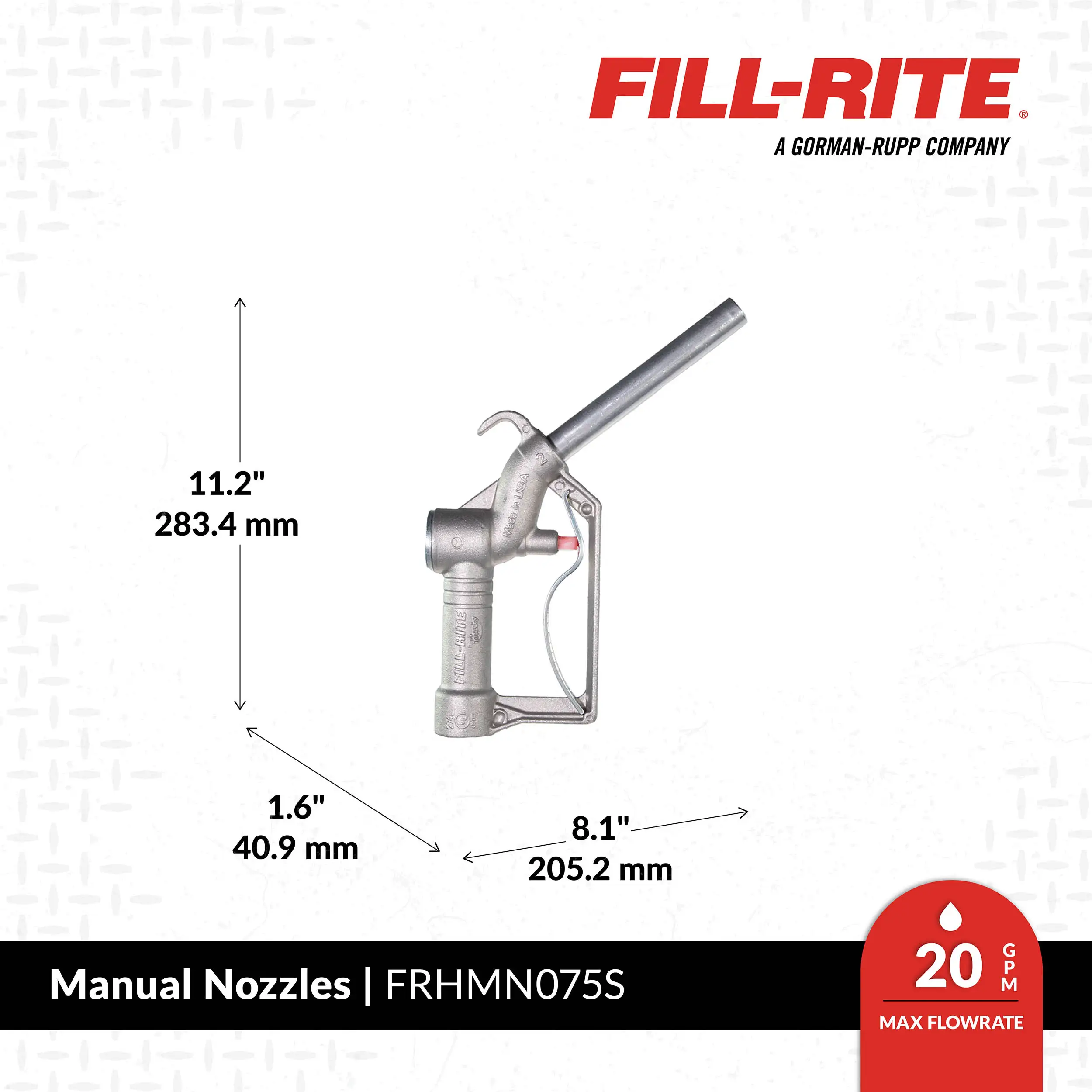

| Assembled Product Height x Width x Depth (in.) | 11.2 x 1.6 x 8.1 |
| Assembled Product Weight (lbs.) | 1.1 |
| Package Height x Width x Depth (in.) | 4.25 x 11.5 x 1.5 |
| Gross Weight (lbs.) | 1.06700 lbs |
| Less Than Load (LTL) Freight | Yes |
