Attributes
| Features Html | Cast-Aluminum Construction – engineered with rugged cast-aluminum construction, built to last through the most demanding applications, Easy to Use – included spout spring on automatic nozzles ensure optimal nozzle placement each time you fill, eliminating opportunity for damage, Adjustable Latching – three separate latch positions on automatic nozzles allow you to quickly and easily tailor flow rates for different equipment, Automatic Shut-Off – automatic shut-off reduces mess by preventing overfilling and spilling, keeping you safe and efficient, Multiple Configurations – available in a variety of configurations to meet your application’s temperature, flow, and fluid compatibility requirements |
|---|---|
| Accessories | Nozzle: 1” Hi-Flow Automatic Diesel Nozzle (Green) |
| Series Code | automatic-nozzles-series-automatic-nozzles |
| Series Name | Automatic Nozzles |
| Series Url | https://www.fillrite.com/automatic-nozzles-series-automatic-nozzles |
Description

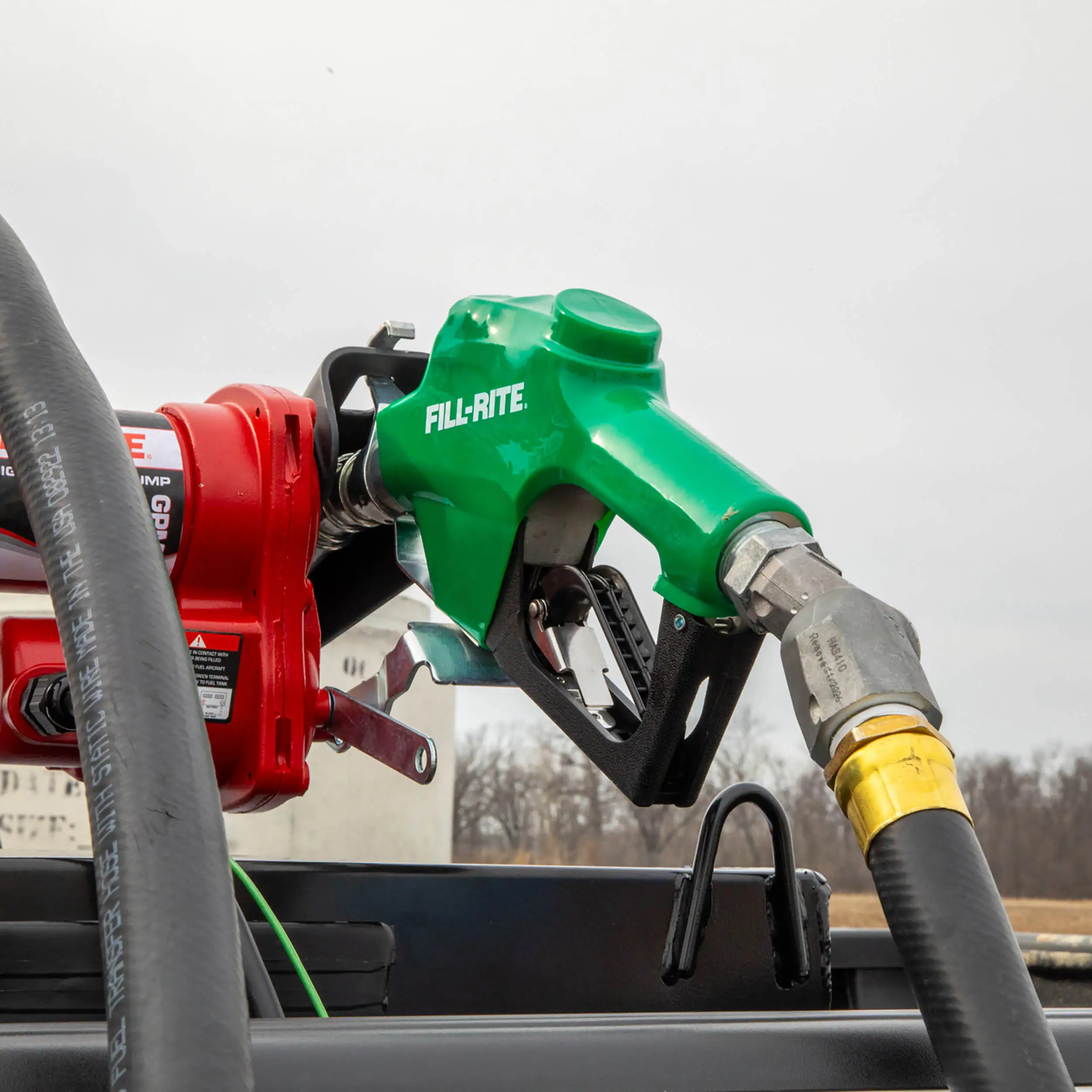

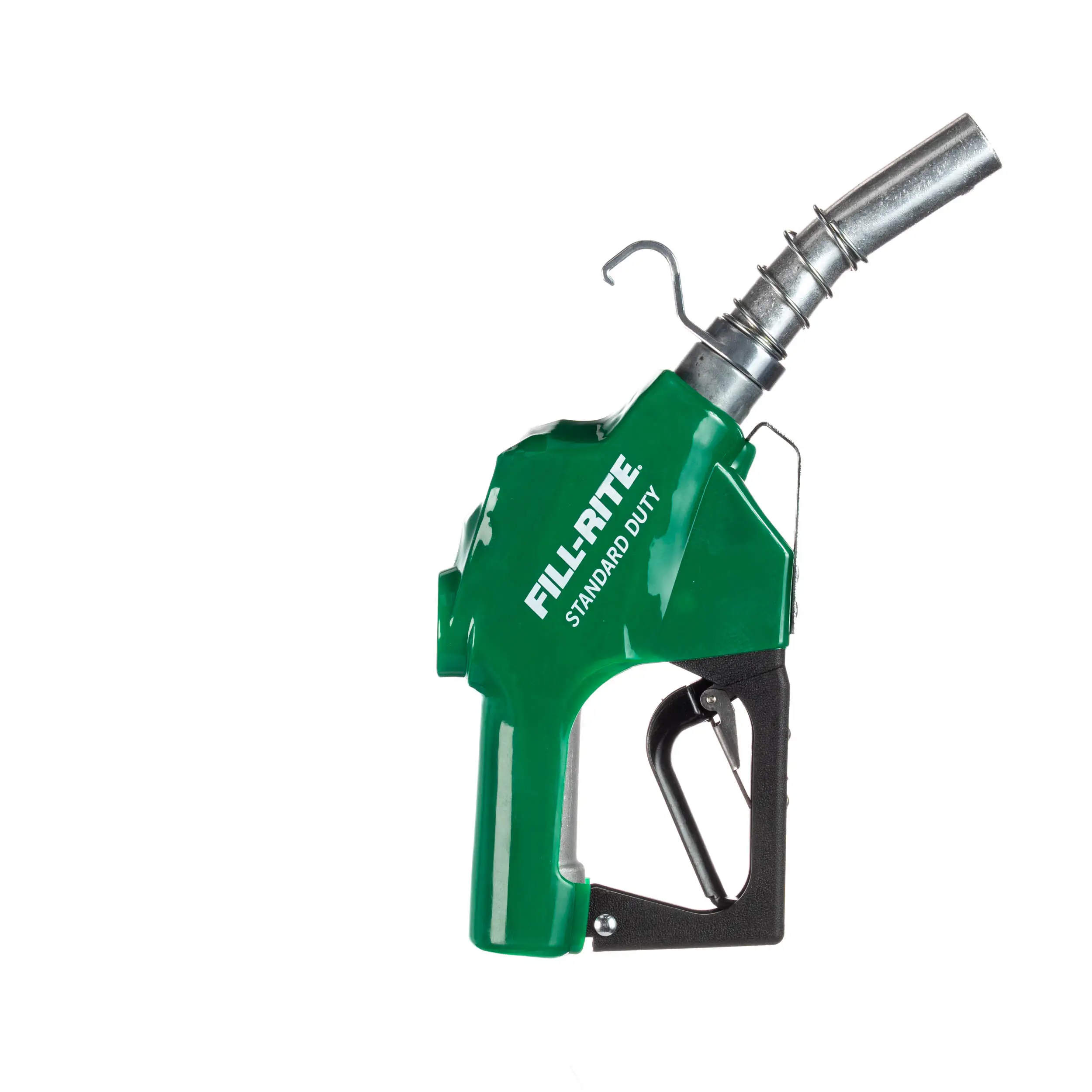

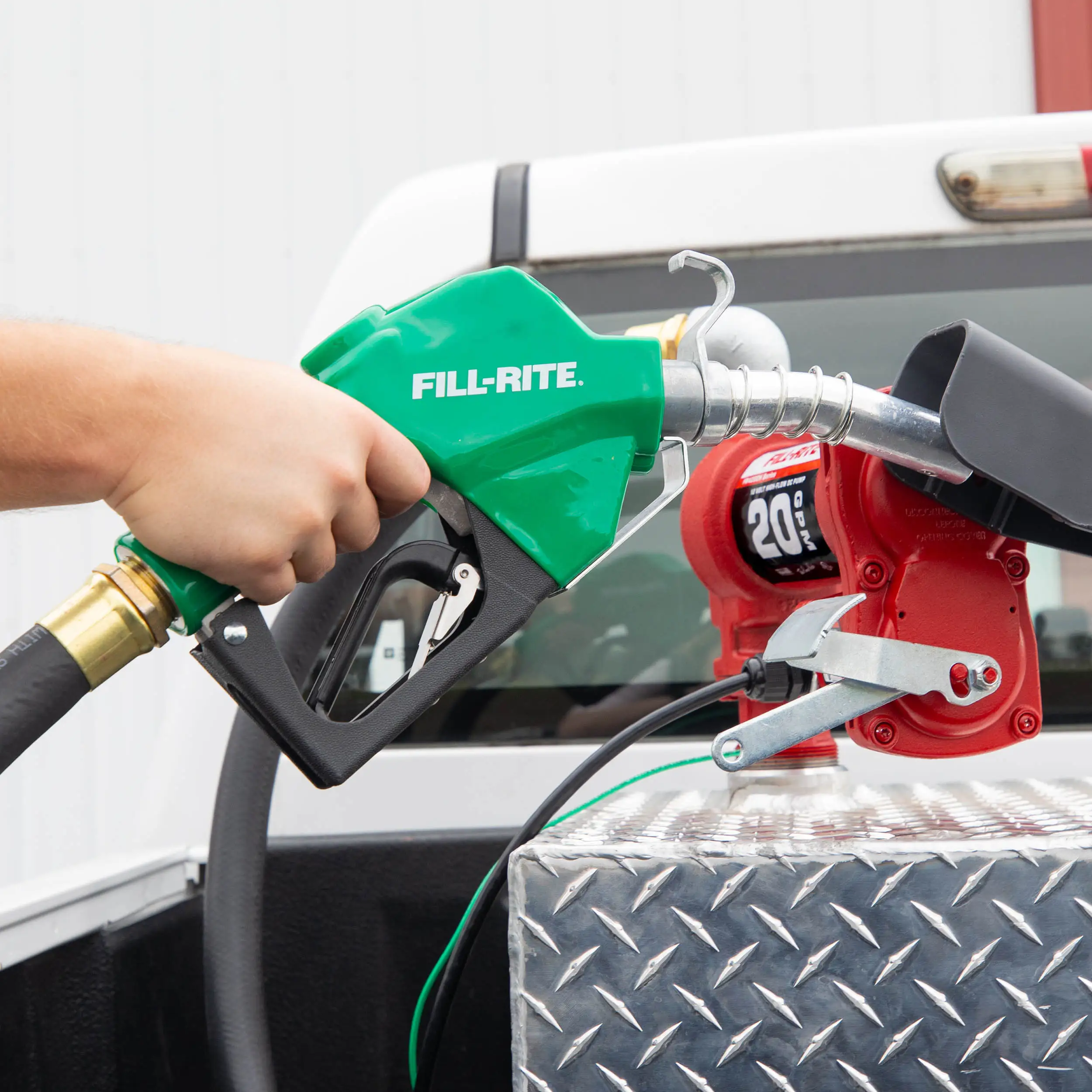

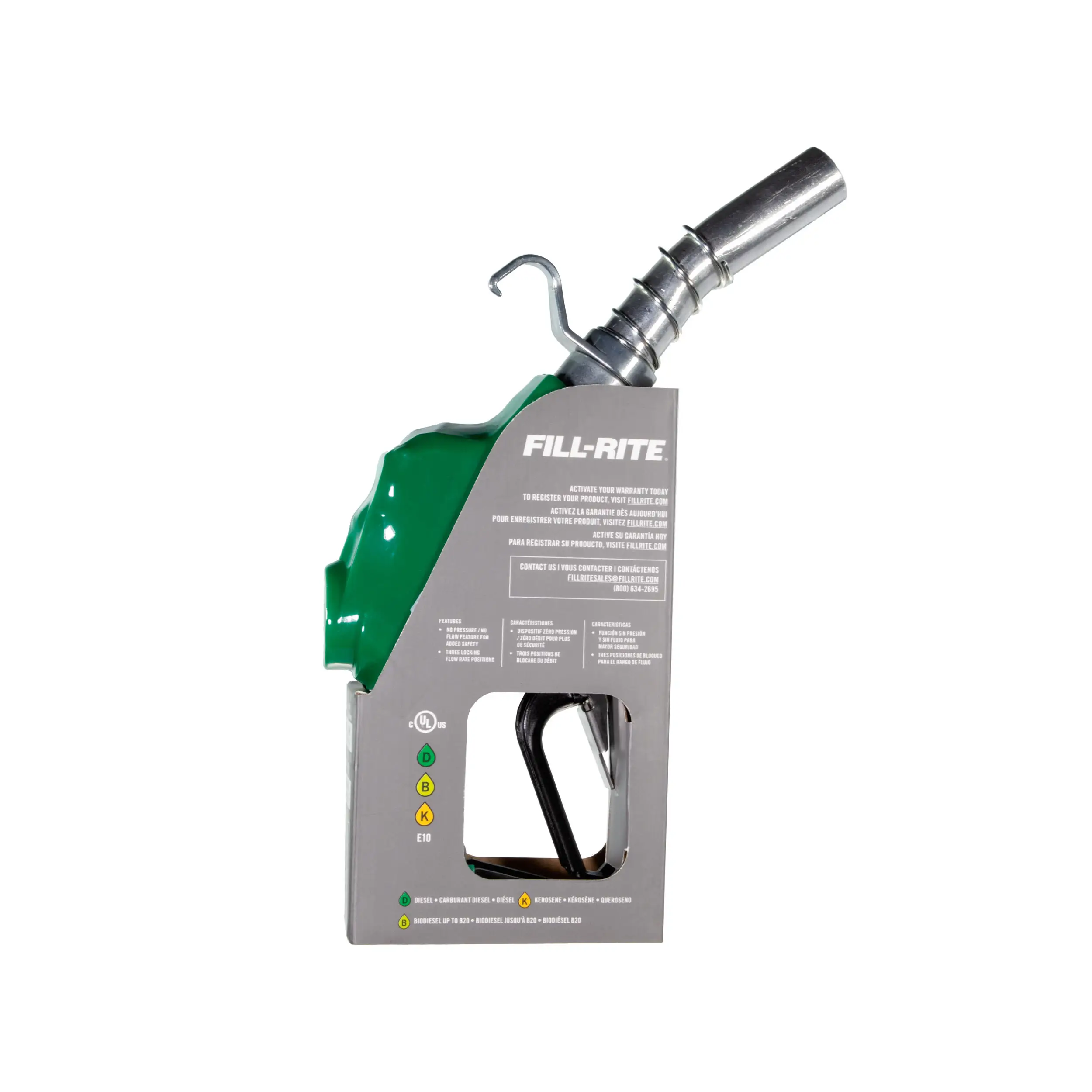

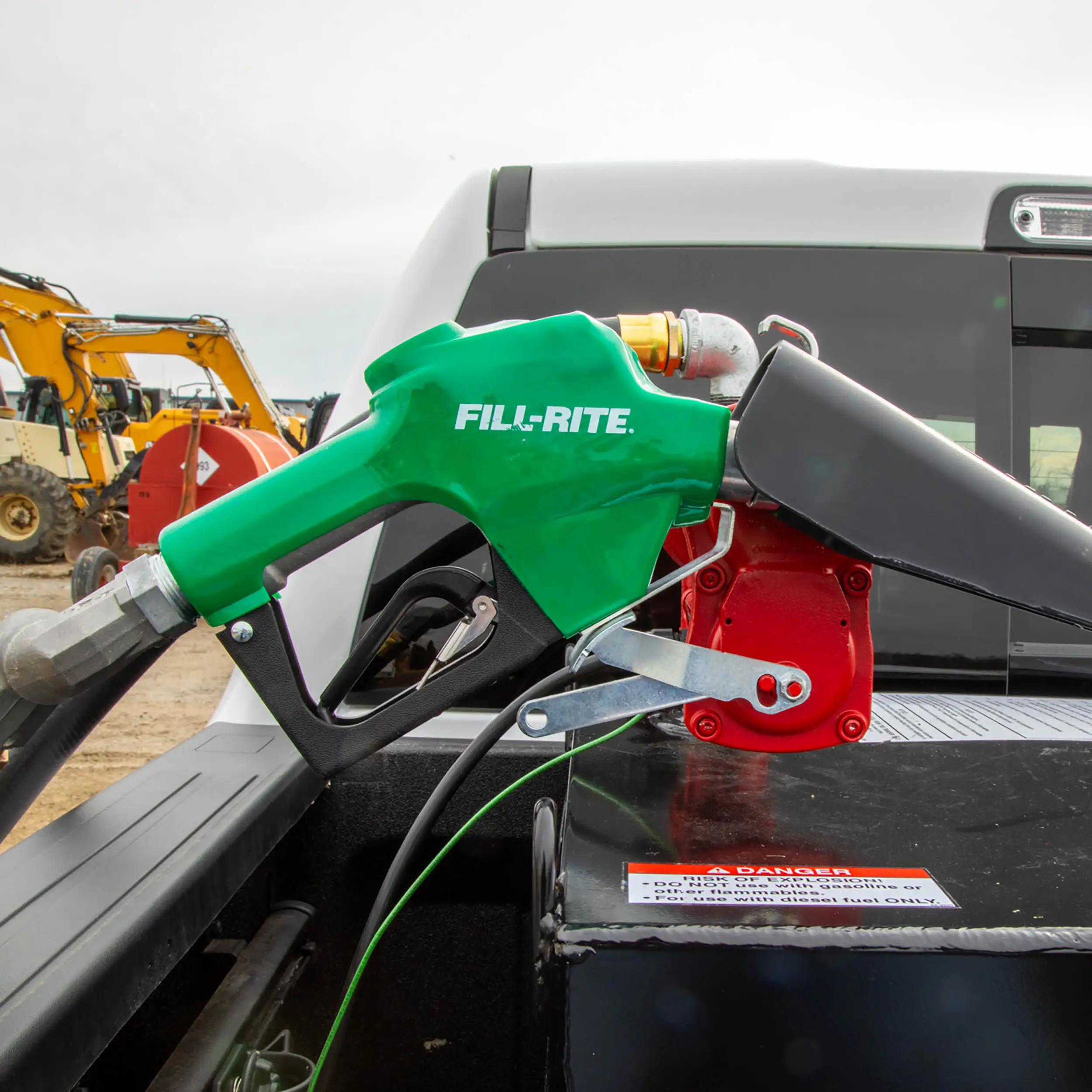

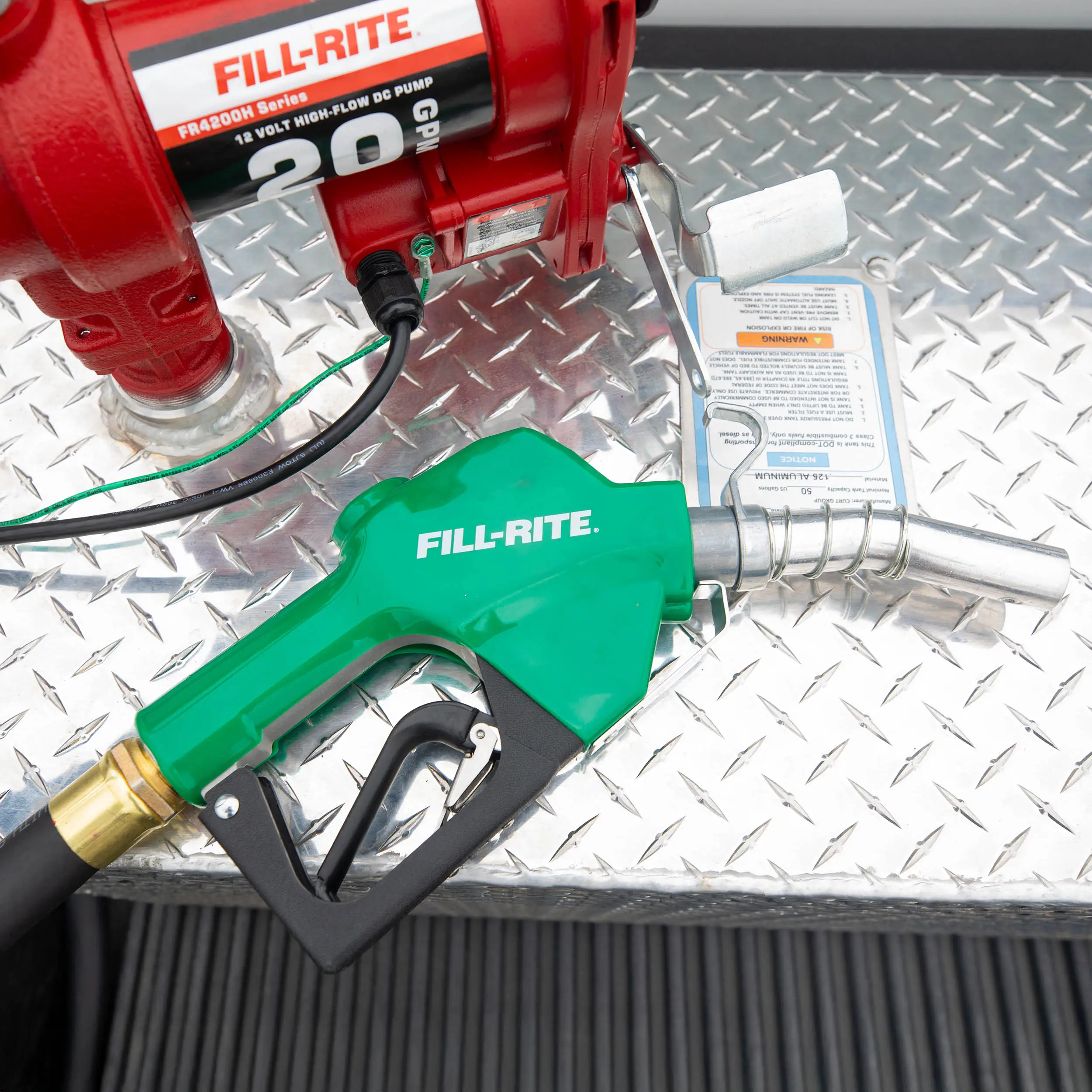

The SDN100GAN is a 1" automatic shutoff nozzle designed for fuel transfer. This model is designed for diesel applications with a 1-1/8" large spout size and green jacket. The SD Series nozzles from Fill-Rite usher in a new era of both value and performance. These nozzles are graded standard-duty and are offered at competitive prices, yet still feature the trusted Fill-Rite reliability and durability customers expect.
Please note: Fill-Rite auto shut off nozzles are not intended to be used for gravity flow systems
Specifications
| Nozzle | 1” Hi-Flow Automatic Diesel Nozzle (Green) |
|---|---|
| Max Flowrate | 25 GPM / 94 LPM |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Spout Diameter (in.) | 1.125 |
| Min Operating Temperature (°F) | -20 |
| Max Operating Pressure (PSI) | 50 |
| Nozzle Type | Automatic |
| Package Height x Width x Depth (in.) | 14.75 x 9 x N/A |
| Gross Weight (lbs.) | 3.87000 lbs |
| Less Than Load (LTL) Freight | Yes |
