Attributes
| Features Html | Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons, Mobile Tanks – powered by a 24V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 24 volt batteries and installing onto transfer tanks in truck beds, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment |
|---|---|

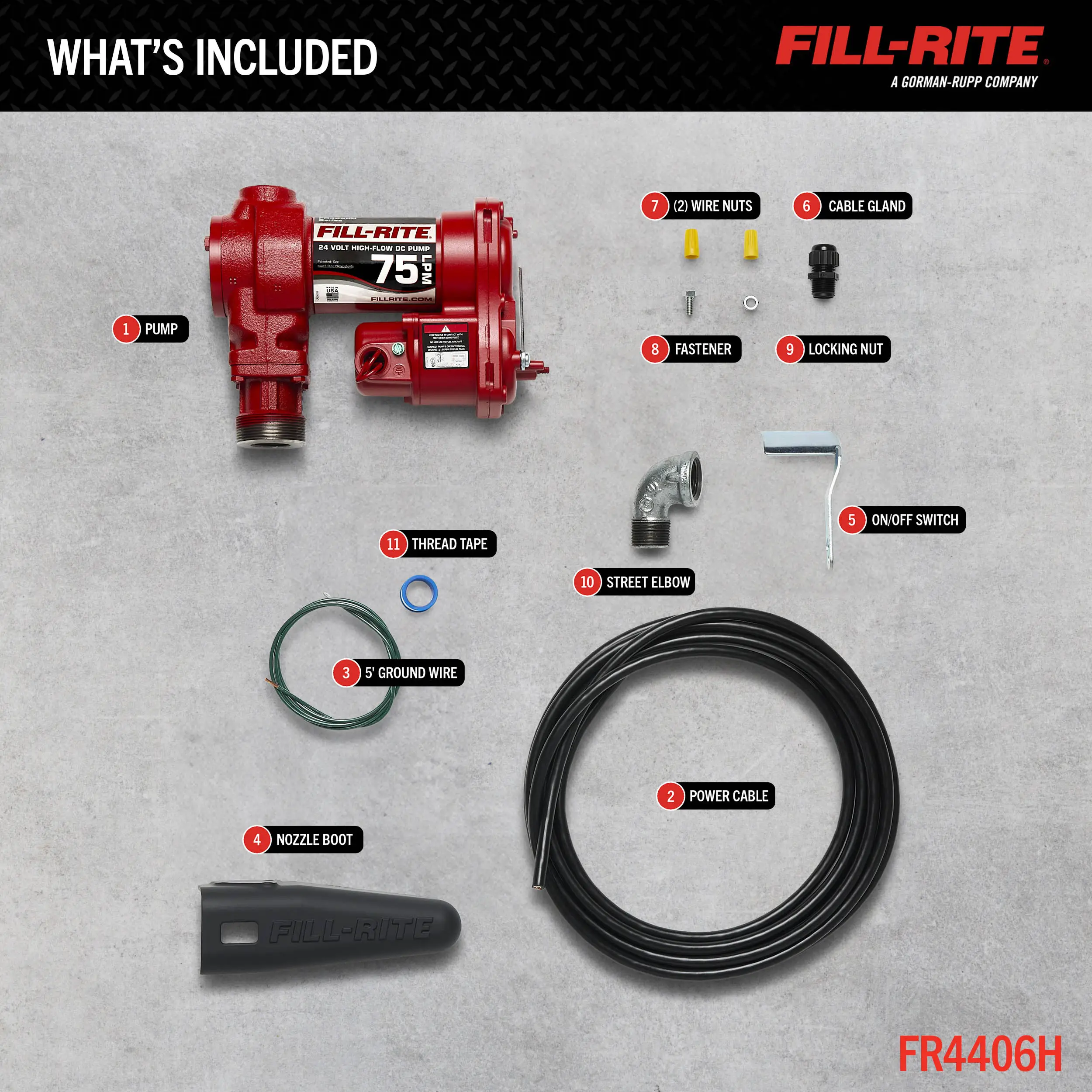

| Accessories | Additional Accessories: Nozzle Boot, PTFE Tape Roll, 1" NPT Street Elbow, Ground Wire, Cable Gland, (2) Wire Nuts, Fastener, Ground Wire: Yes, Cable Length (ft): 18, Cable Gauge (GA): 12, Cable Connection: Bare Leads, Suction Pipe: None |
| Series Code | fr4400-series-fr4400 |
| Series Name | FR4400 Series |
| Series Url | https://www.fillrite.com/fr4400-series-fr4400 |
Description

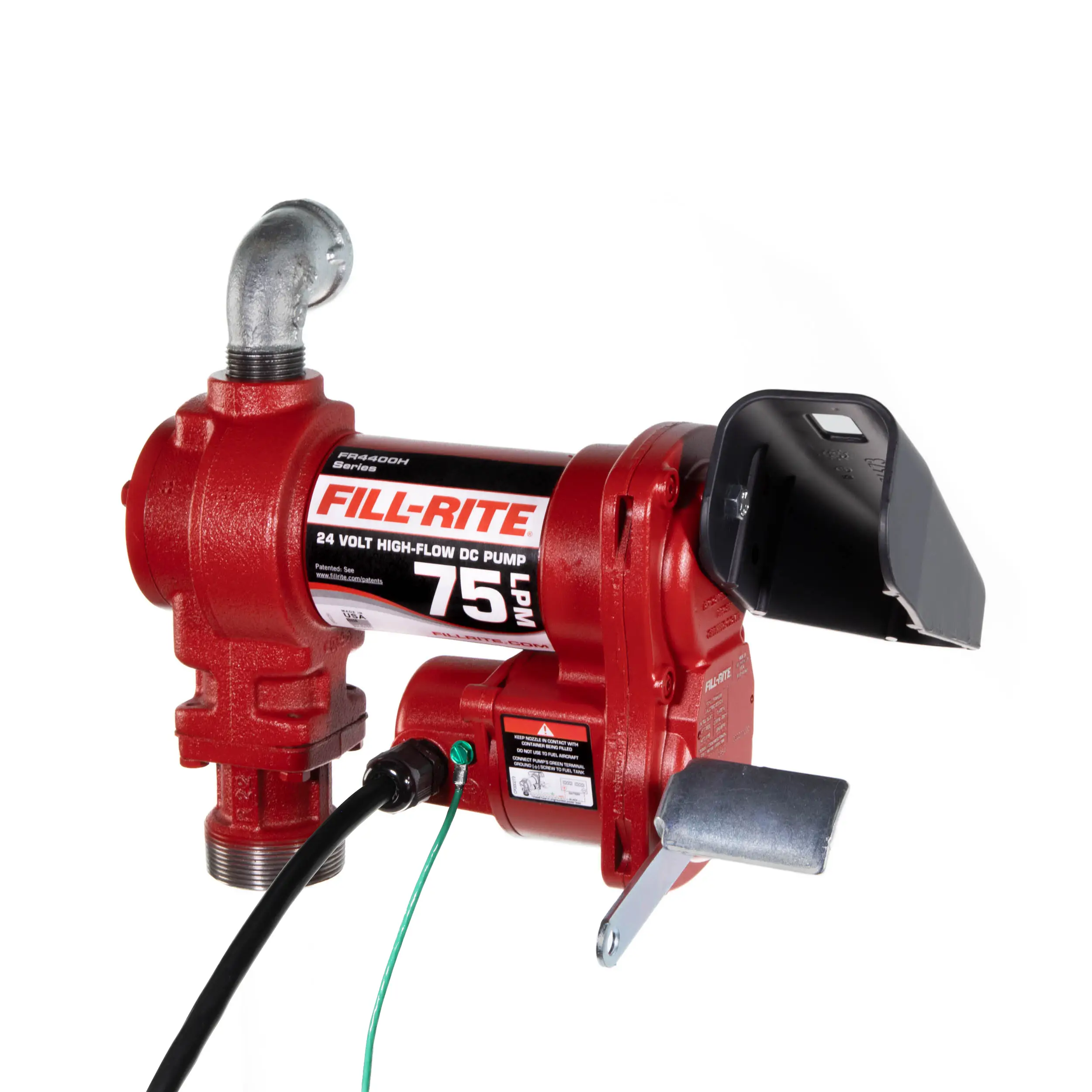

The FR4406H model is a 24V DC, 75 LPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories; ATEX motor.
Specifications
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 24V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.25 |
| Max Current (A) | 13 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) | 1 to 4 |

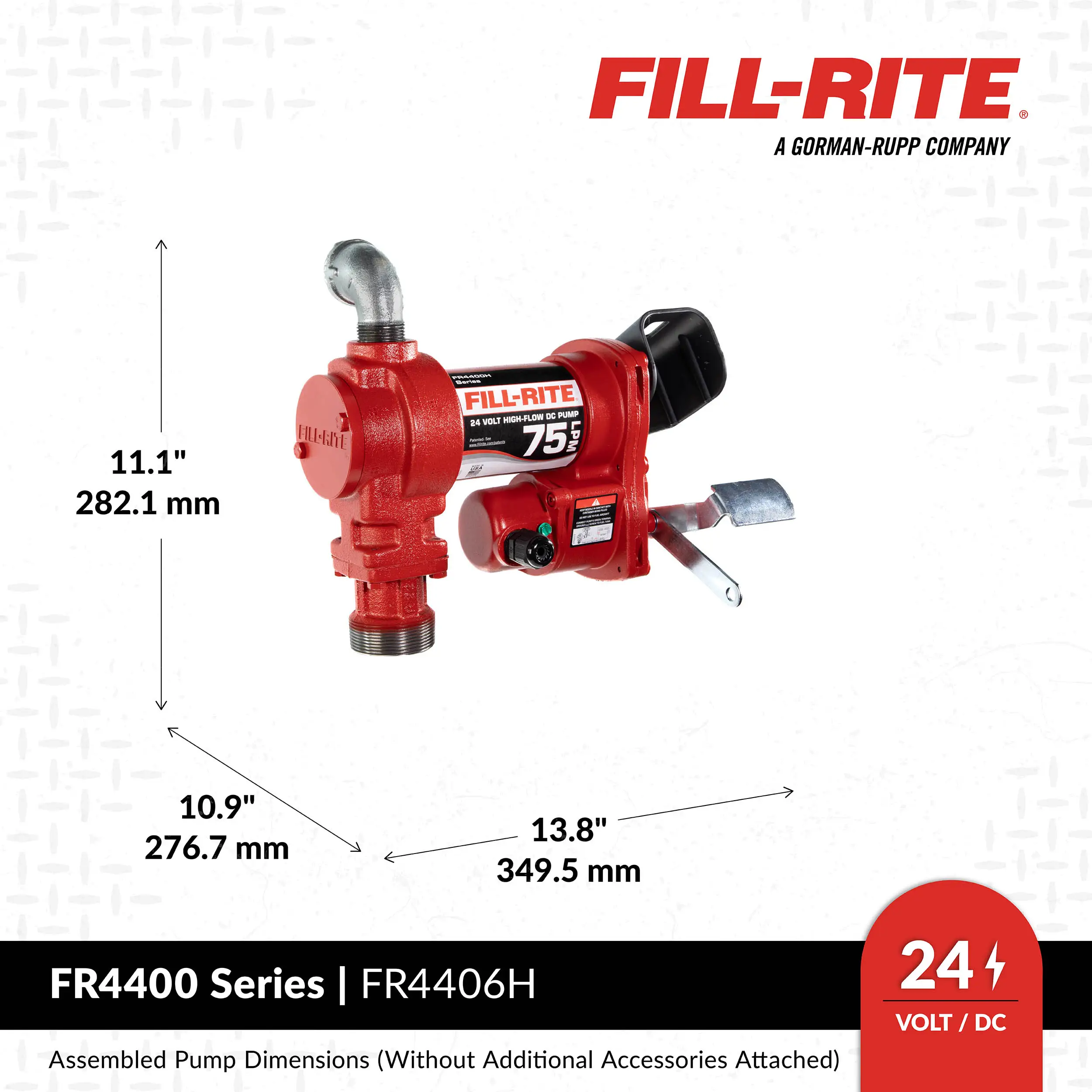

| Assembled Product Height x Width x Depth (in.) | 9.5 x 10 x 4.75 |
| Assembled Product Weight (lbs.) | 19.1 |
| Package Height x Width x Depth (in.) | 6.63 x 12.63 x 15.25 |
| Gross Weight (lbs.) | 22.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
