115V AC 15 GPM Fuel Transfer Pump with Nozzle

Scraped SKU: FR610H Price: 628.30 USD 2026-06-05 18:18:19

Attributes

Features Html
Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons, Stationary Tanks – powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
Accessories

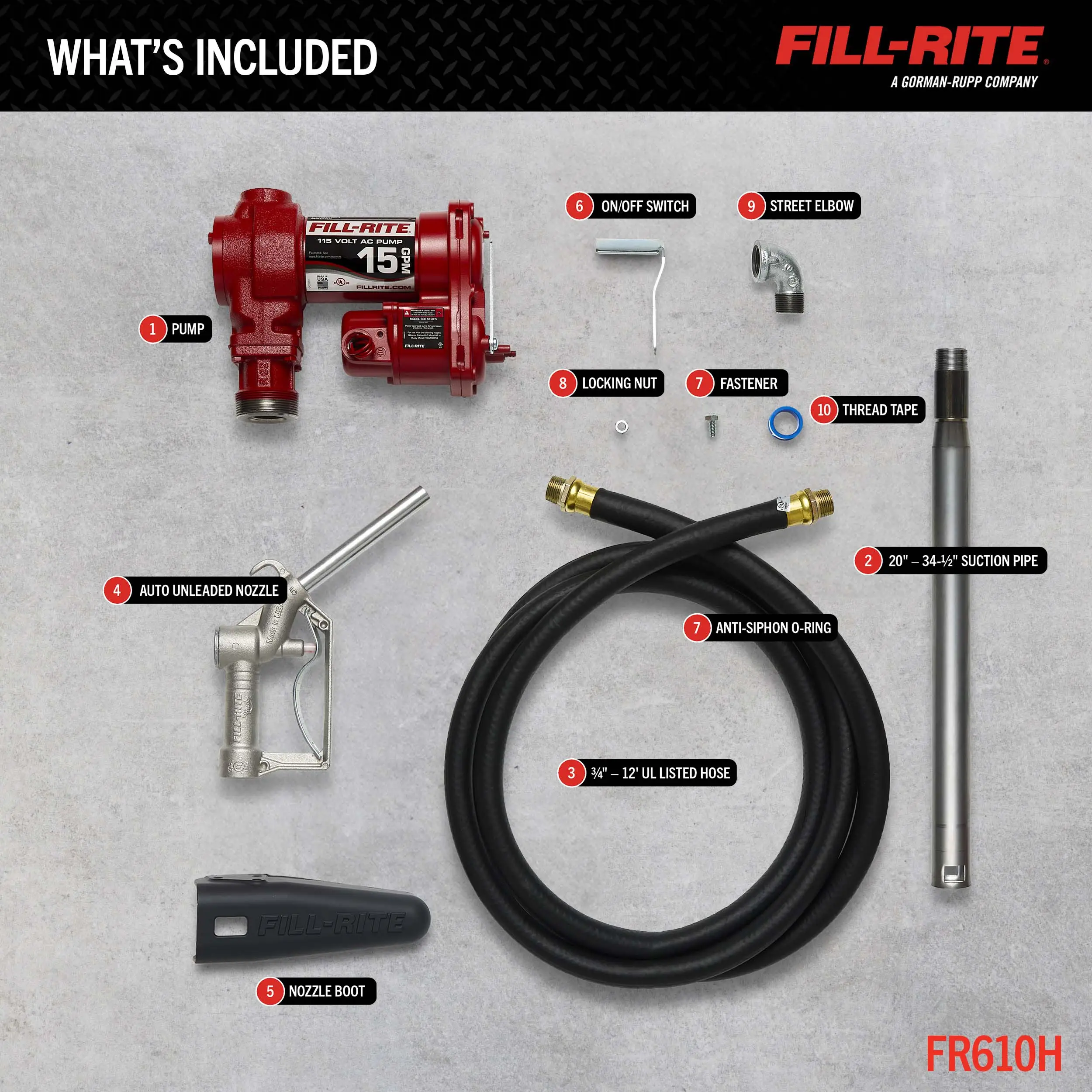

Additional Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener, Cable Connection: Bare Leads, Suction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe, Discharge Hose: ¾” X 12’ UL Listed Hose with Static Ground Wire, Nozzle: ¾” Cast Aluminum Manual Nozzle
Series Codefr600-series-fr600
Series NameFR600 Series
Series Urlhttps://www.fillrite.com/fr600-series-fr600

Description

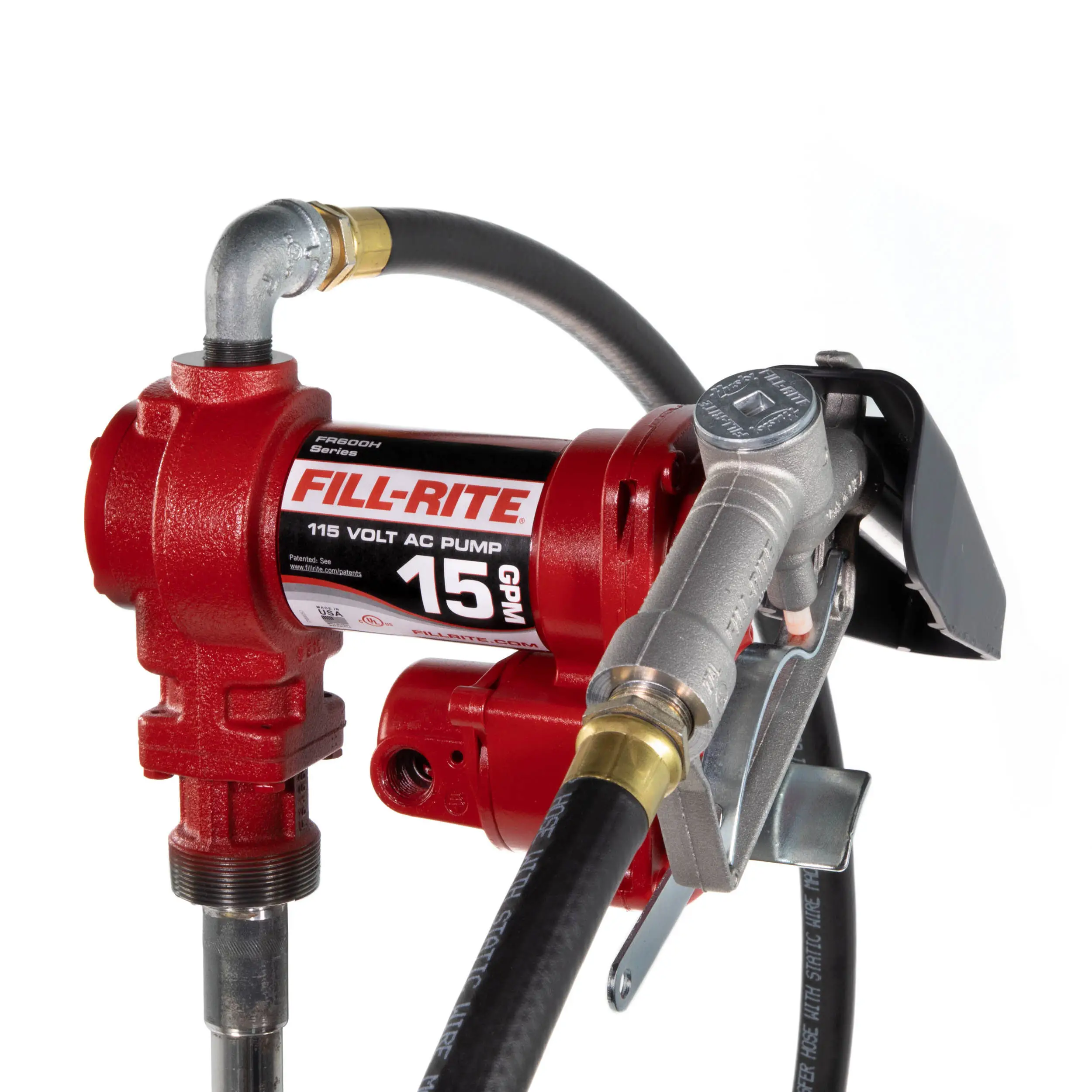

The FR610H model is a 115V AC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, manual nozzle, and installation components.

Specifications

Max Flowrate15 GPM / 57 LPM
Power Type115V AC
Compatible FluidsDiesel, Gasoline, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread1 " / Female / NPT
Outlet Size / Connection / Thread0.75 " / Female / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount
Duty Cycle (min)30 min on / 30 min off
Motor Power (HP)0.17
Max Current (A)2 A
Suction Lift (ft.)8 '
Dry Vacuum (in. Hg)5
Discharge Head (ft)37 '
Strainer Mesh Size (Micron)20x20
Max Discharge Pressure (PSI)16 PSI

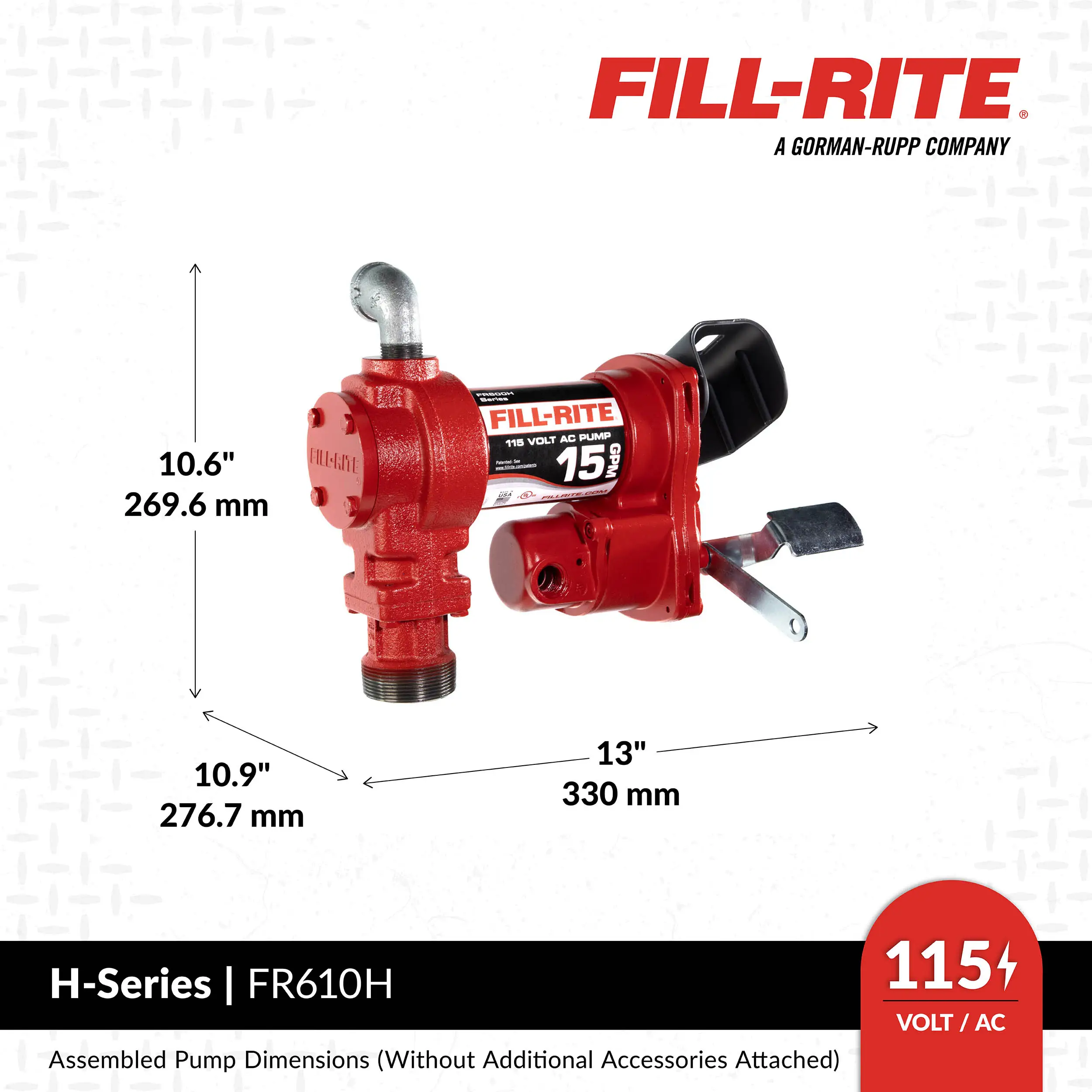

Assembled Product Height x Width x Depth (in.)10.5 x 12.8 x 10.8
Assembled Product Weight (lbs.)26.9
Package Height x Width x Depth (in.)10.63 x 15.44 x 18.31
Gross Weight (lbs.)30.00000 lbs
Less Than Load (LTL) FreightYes
