Attributes
| Features Html | Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons, Stationary Tanks – powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment |
|---|---|

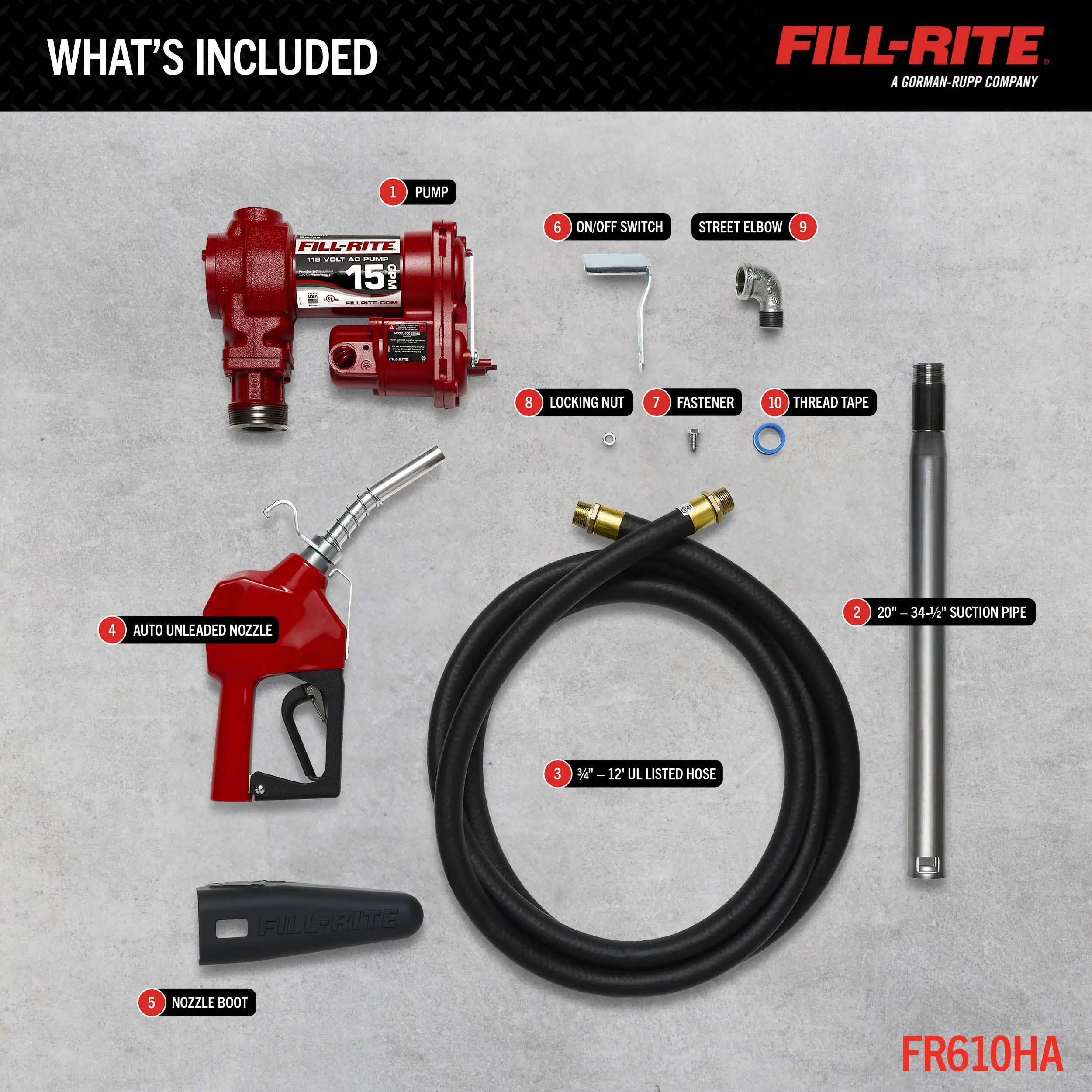

| Accessories | Additional Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener, Cable Connection: Bare Leads, Suction Pipe: 20” – 34 ½” Steel Telescoping Suction Pipe, Discharge Hose: ¾” X 12’ UL Listed Hose with Static Ground Wire, Nozzle: ¾” Automatic Unleaded Nozzle |
| Series Code | fr600-series-fr600 |
| Series Name | FR600 Series |
| Series Url | https://www.fillrite.com/fr600-series-fr600 |
Description

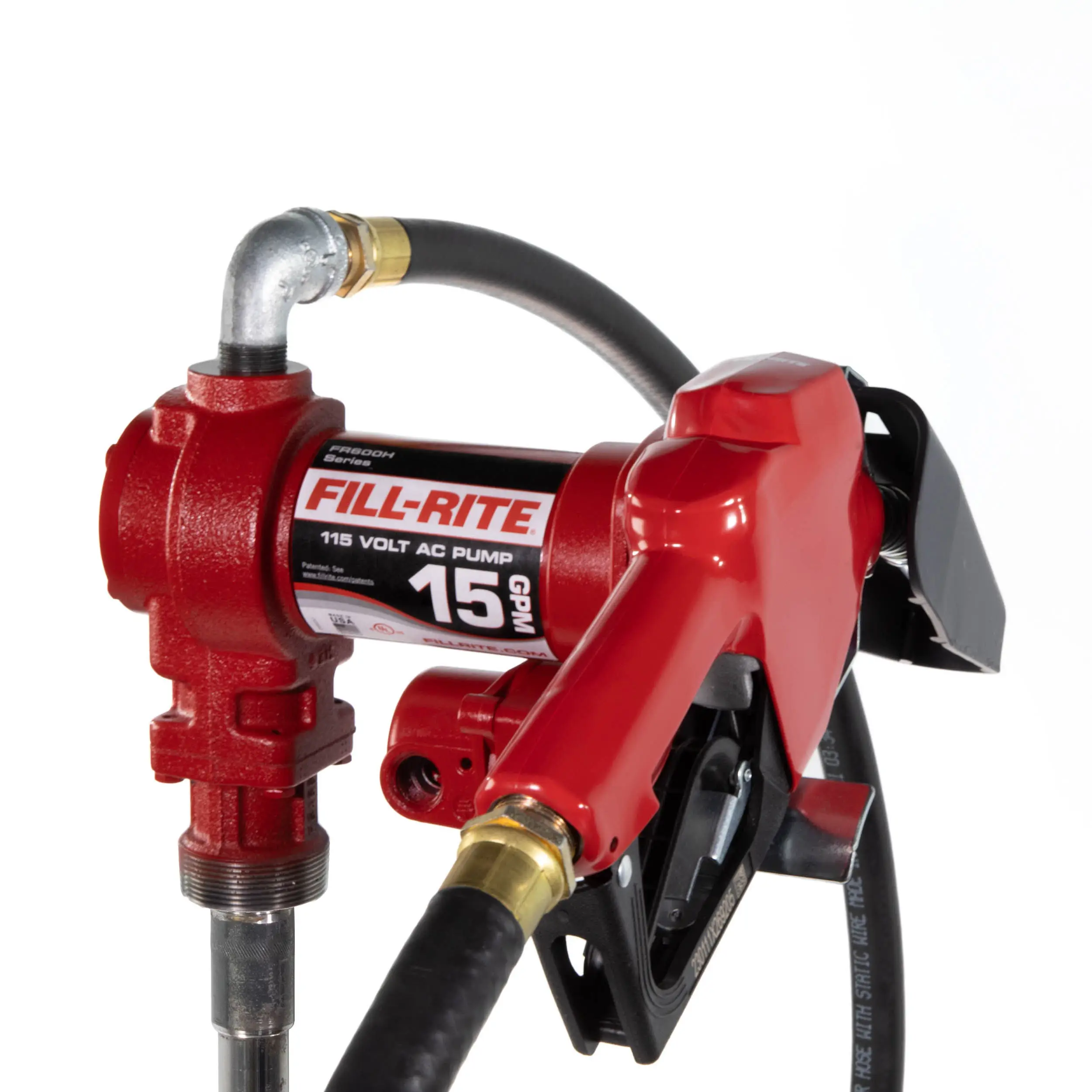

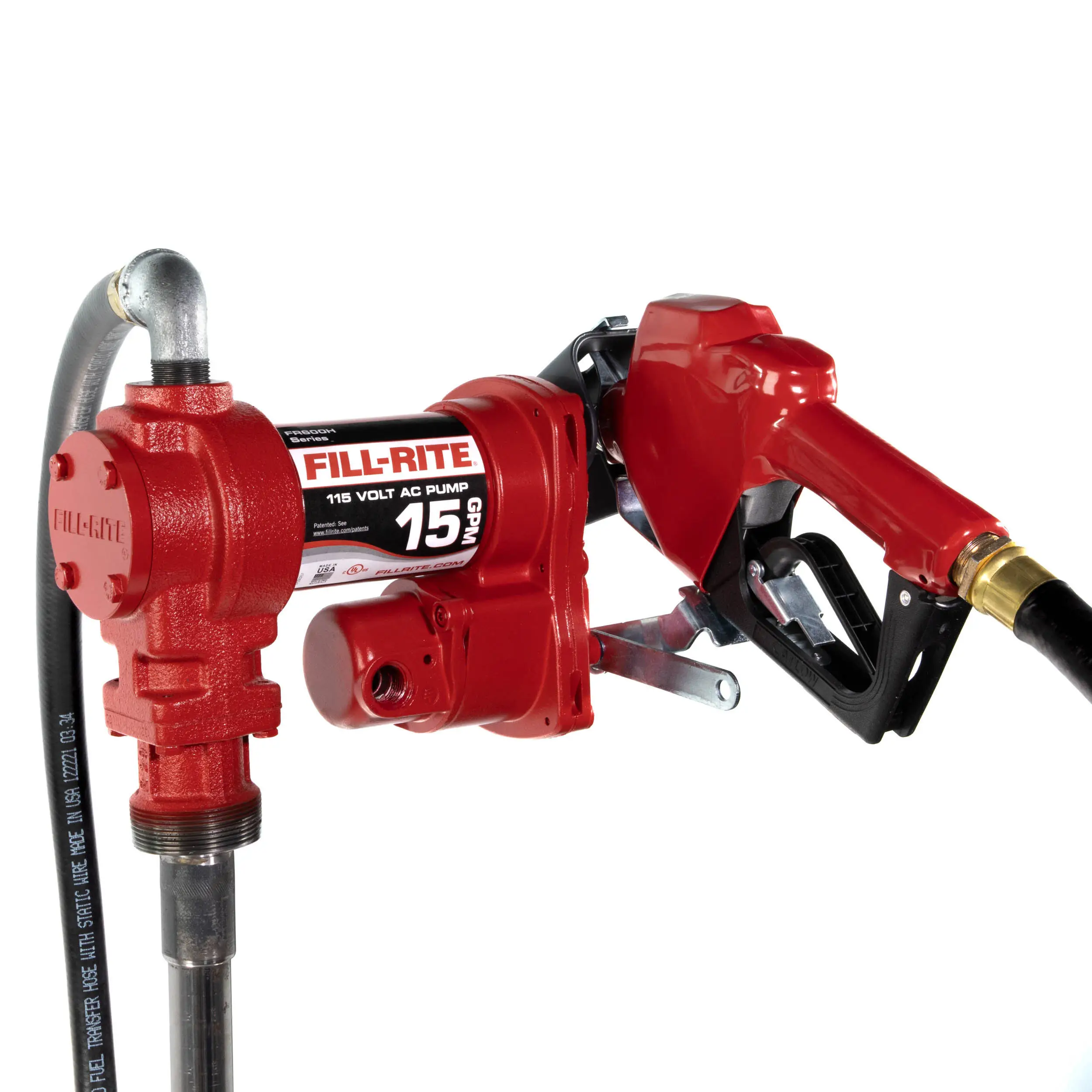

Upgrade your fuel transfer operations with the Fill-Rite FR610HA, a robust 115V AC fuel transfer pump that delivers 15 GPM / 57 LPM. Engineered with durable cast-iron construction, this pump is built to last and withstand the harsh conditions of the agriculture and construction industries. Designed for stationary applications, the FR610HA is perfect for use in the field or at the job site. This model includes a pump, ¾” X 12’ UL Listed Hose with Static Ground Wire, and other components needed for installation including a Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, and Fastener. It features a reliable 115V AC motor, making it ideal for wiring to a standard 115V AC electrical supply. Easily install this pump on an on-site storage tank to efficiently transfer various fuels including diesel, gasoline, kerosene, and mineral spirits. The Fill-Rite FR610HA ensures smooth and efficient fuel transfer for all your needs.
Specifications
| Max Flowrate | 15 GPM / 57 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |

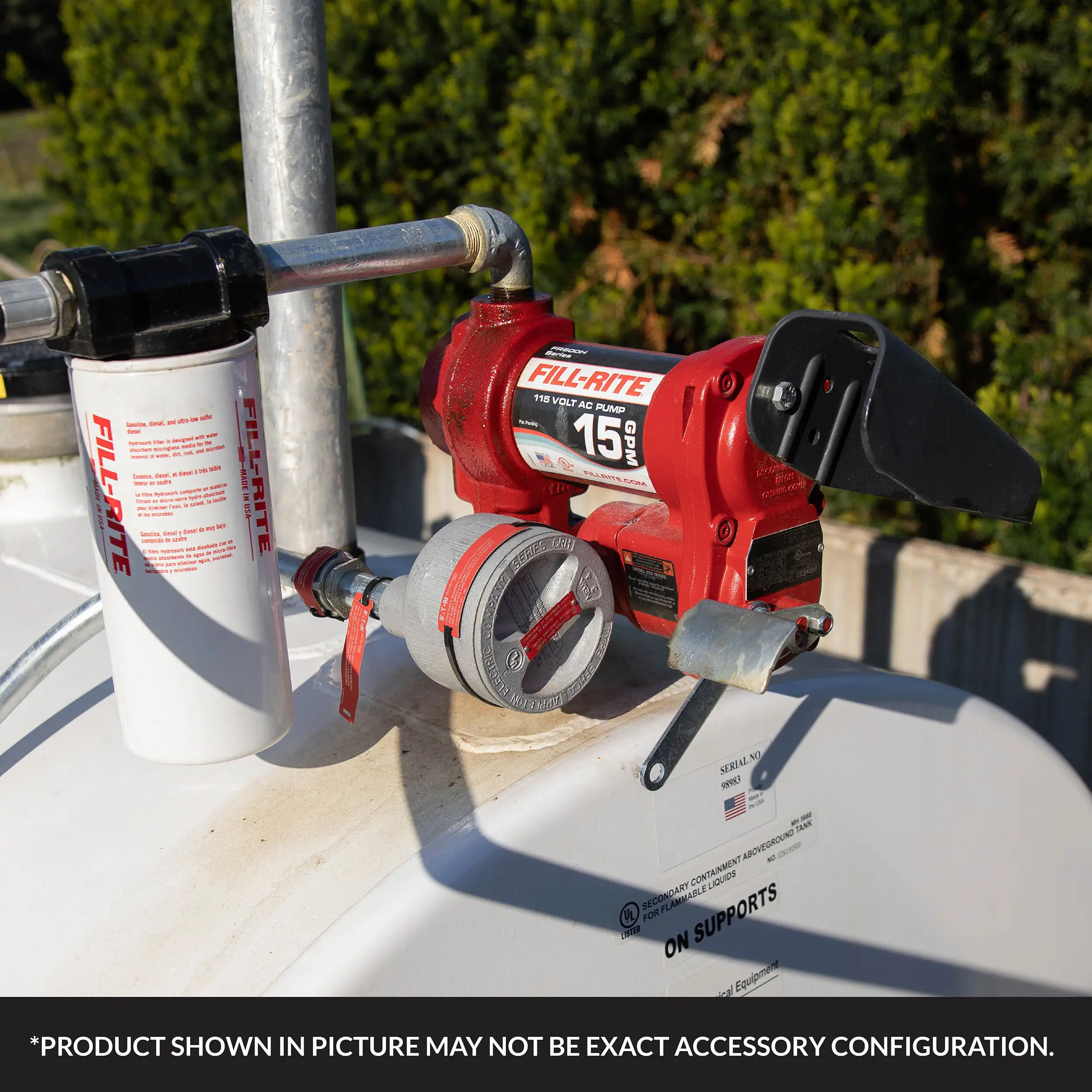

| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.17 |
| Max Current (A) | 2 A |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Discharge Pressure (PSI) | 16 PSI |

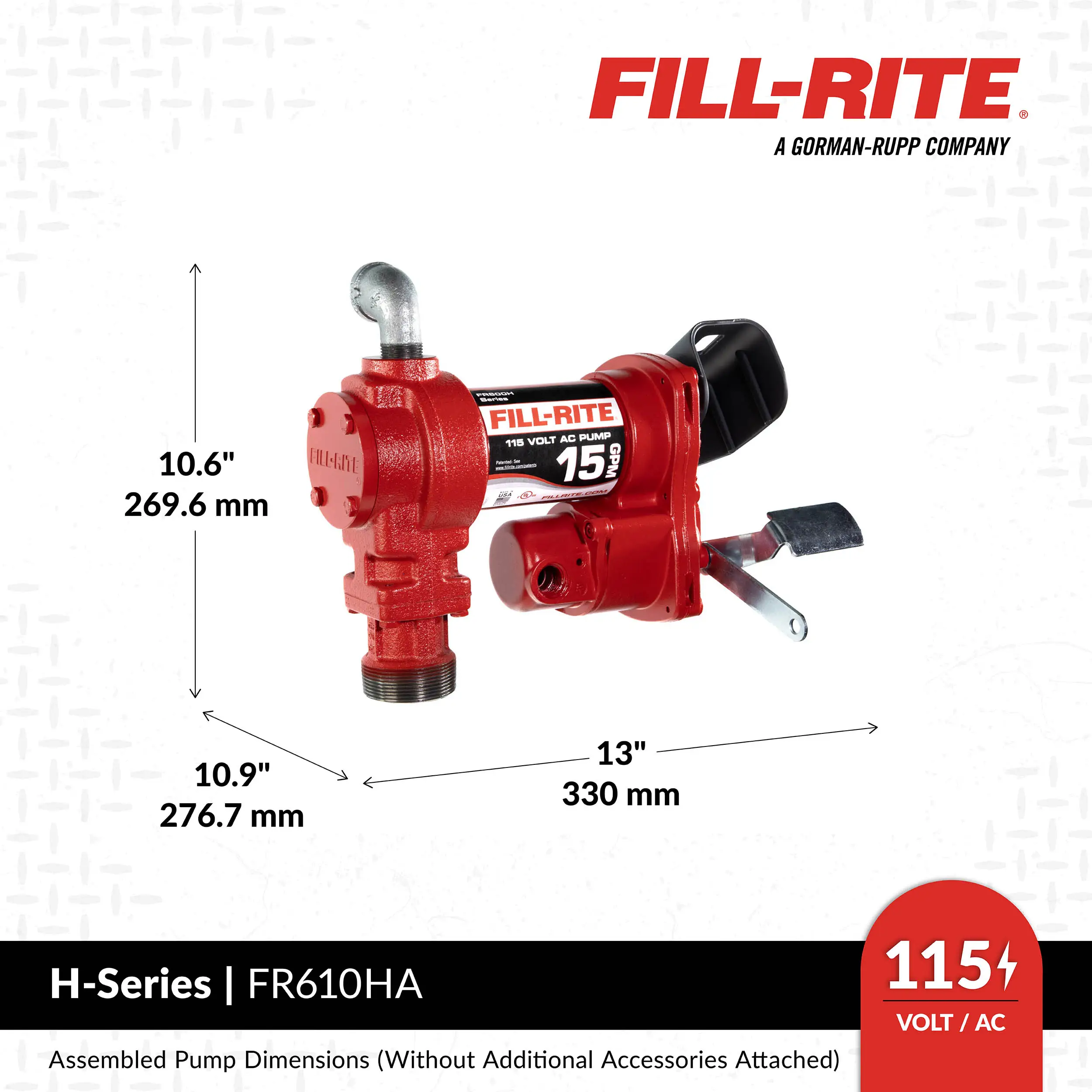

| Assembled Product Height x Width x Depth (in.) | 10.5 x 12.8 x 10.8 |
| Assembled Product Weight (lbs.) | 28.5 |
| Package Height x Width x Depth (in.) | 10.63 x 15.44 x 18.31 |
| Gross Weight (lbs.) | 32.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
