Attributes
| Features Html | Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons, Stationary Tanks – powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115V volt AC electrical supply and installing onto stationary aboveground tanks, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment |
|---|---|
| Accessories | Additional Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener, Cable Connection: Bare Leads |
| Series Code | fr600-series-fr600 |
| Series Name | FR600 Series |
| Series Url | https://www.fillrite.com/fr600-series-fr600 |
Description

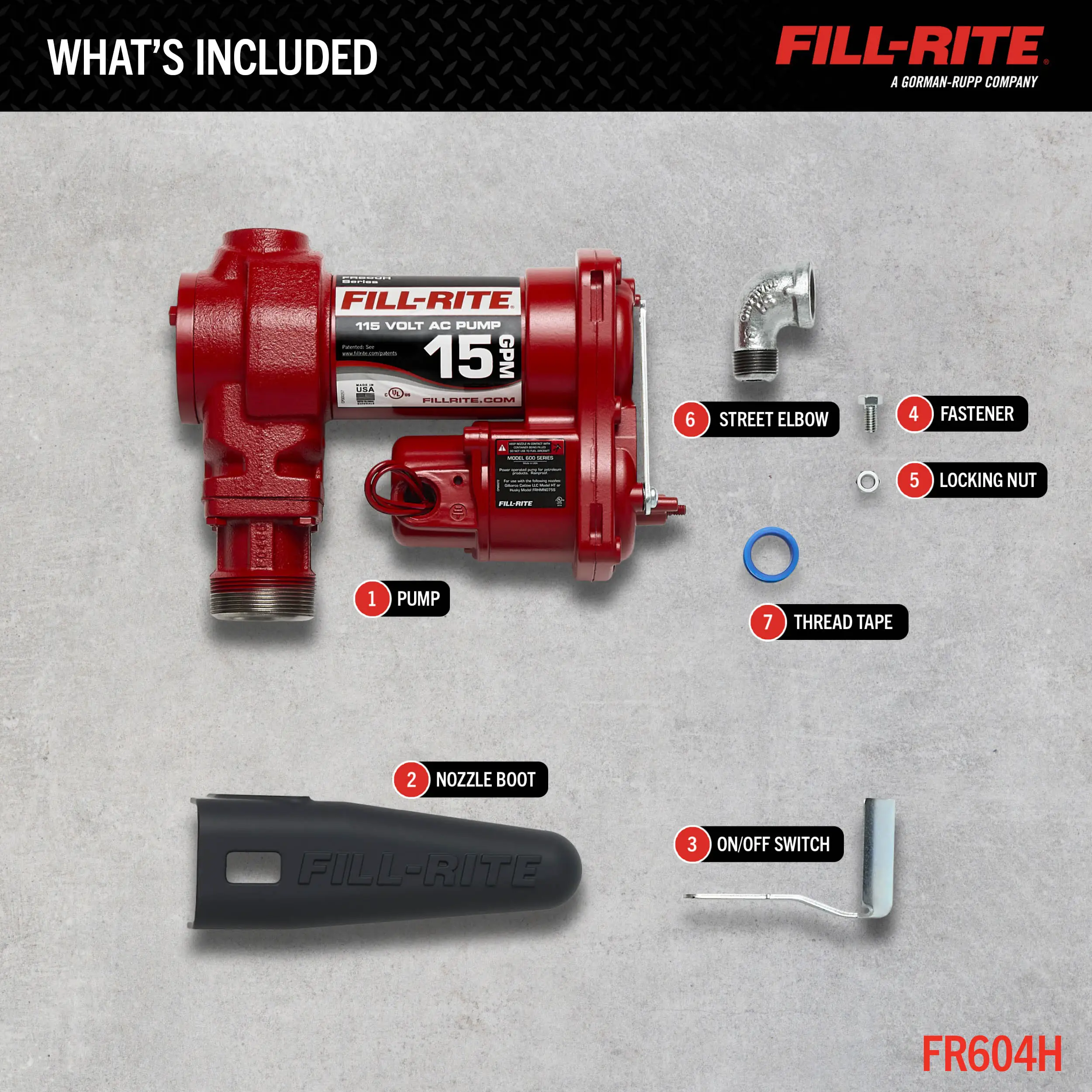

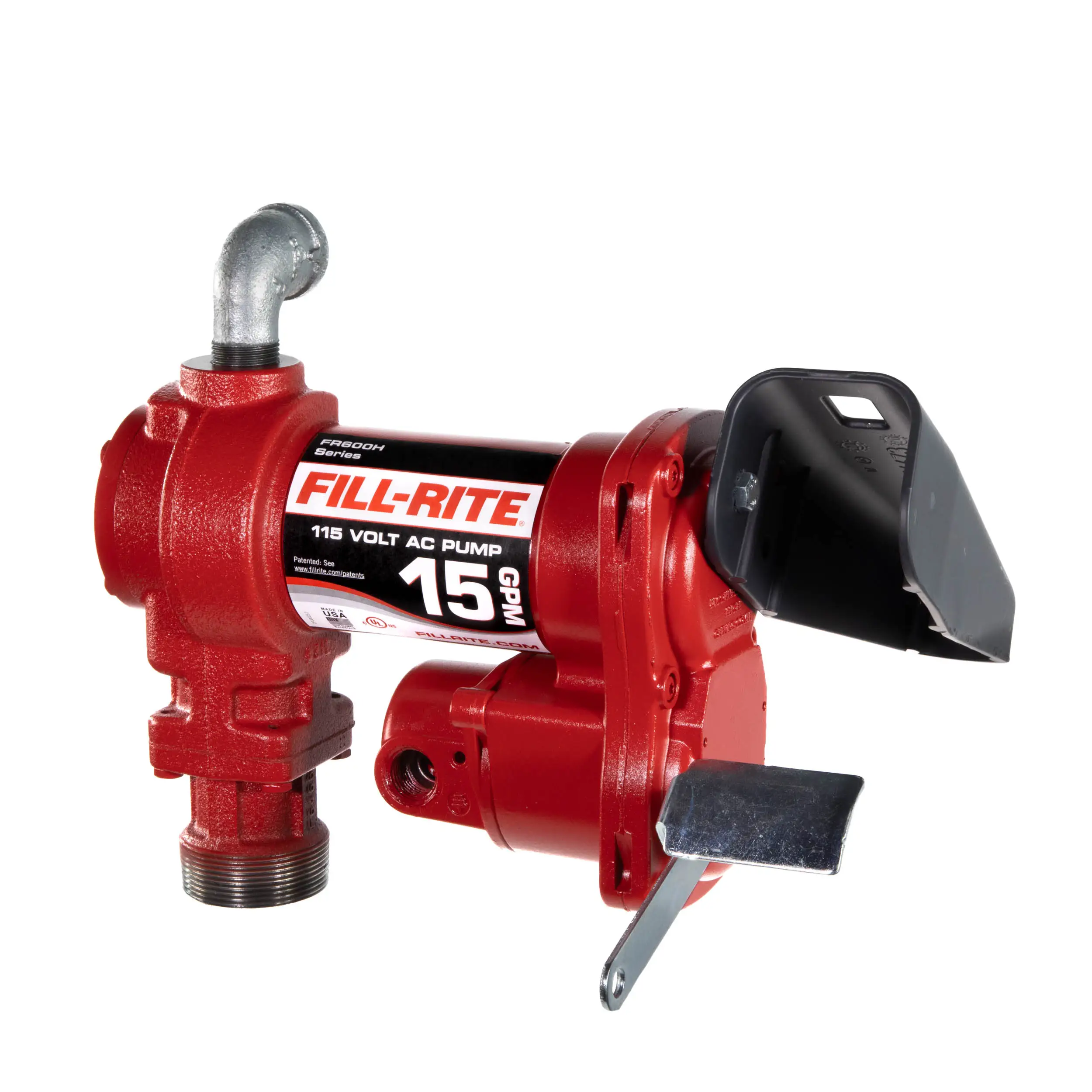

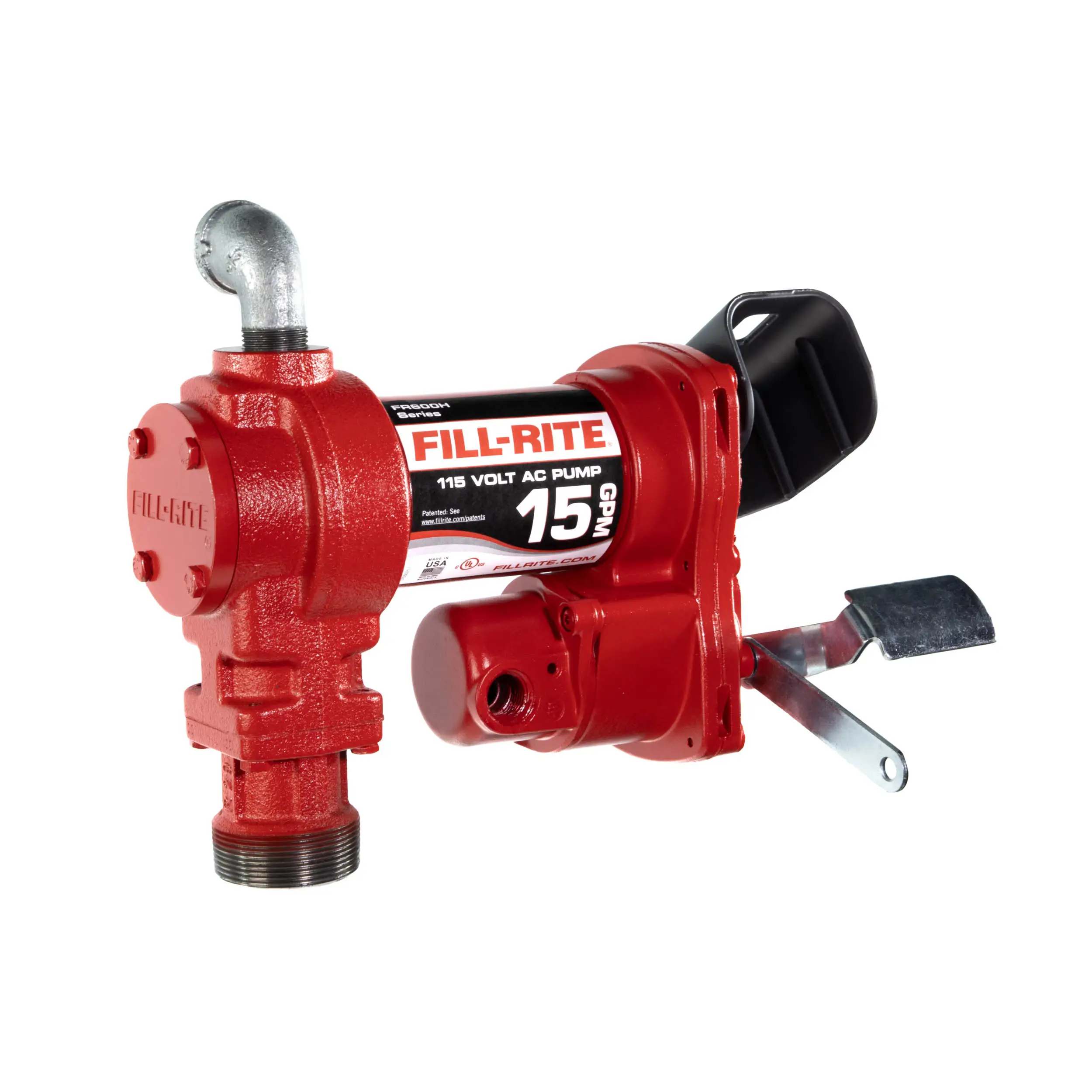

The Fill-Rite FR604H is a 115V AC 15 GPM / 57 LPM fuel transfer pump built to last with durable, cast-iron construction. Designed for stationary applications in the agriculture and construction industries, it can withstand harsh conditions out in the field or at the job site. Powered by a 115V AC motor, this pump is ideal for wiring to a standard 115V AC electrical supply. Install it to an on-site storage tank and efficiently move a variety of fuels including diesel, gasonline, kerosene, mineral spirits, gasoline up to E15, and biodiesel up to B20. WHAT'S IN THE BOX: This package includes a pump and other components needed for installation. Additional accessories include: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Locking Nut, Fastener. WARRANTY: Backed by a Limited Lifetime Warranty and the industry’s top safety certifications, Fill-Rite is your trusted choice for fuel transfer needs.
Specifications
| Max Flowrate | 15 GPM / 57 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.17 |
| Max Current (A) | 2 A |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Discharge Pressure (PSI) | 16 PSI |

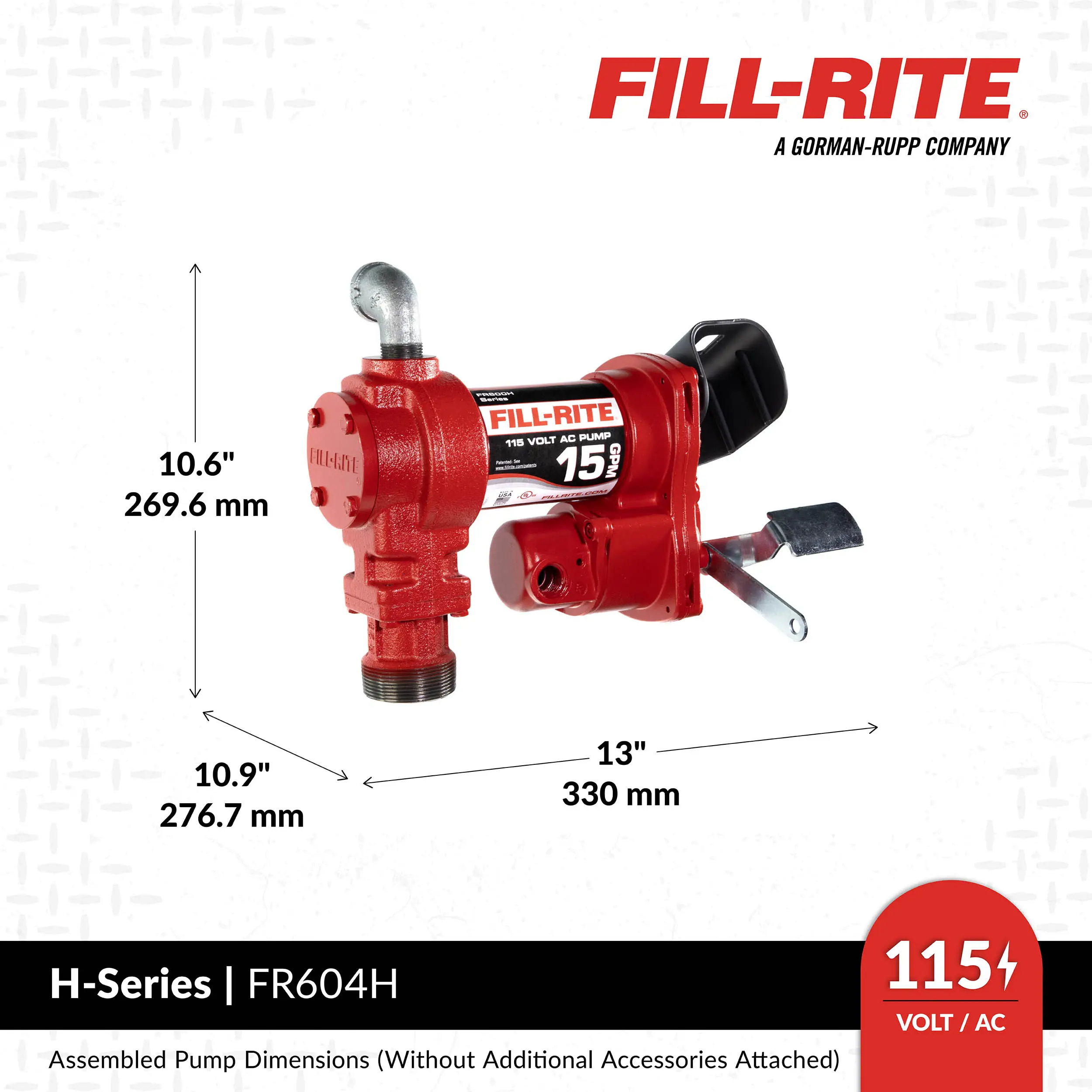

| Assembled Product Height x Width x Depth (in.) | 10.5 x 12.8 x 10.8 |
| Assembled Product Weight (lbs.) | 19.9 |
| Package Height x Width x Depth (in.) | 6.63 x 12.63 x 15.25 |
| Gross Weight (lbs.) | 21.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
