Attributes
| Features Html | Reliable Technology – dependable positive displacement, nutating disc technology provides trusted accuracy in non-custody transfer applications, Versatile Compatibility – ideal for transferring a wide range of liquids quickly and safely, Durable Construction – engineered to handle the most demanding applications |
|---|---|
| Accessories | Additional Accessories: Meter Reset Knob |
| Series Code | tn860s-series-tn860s |
| Series Name | TN860 Mechanical Meters |
| Series Url | https://www.fillrite.com/tn860s-series-tn860s |
Description

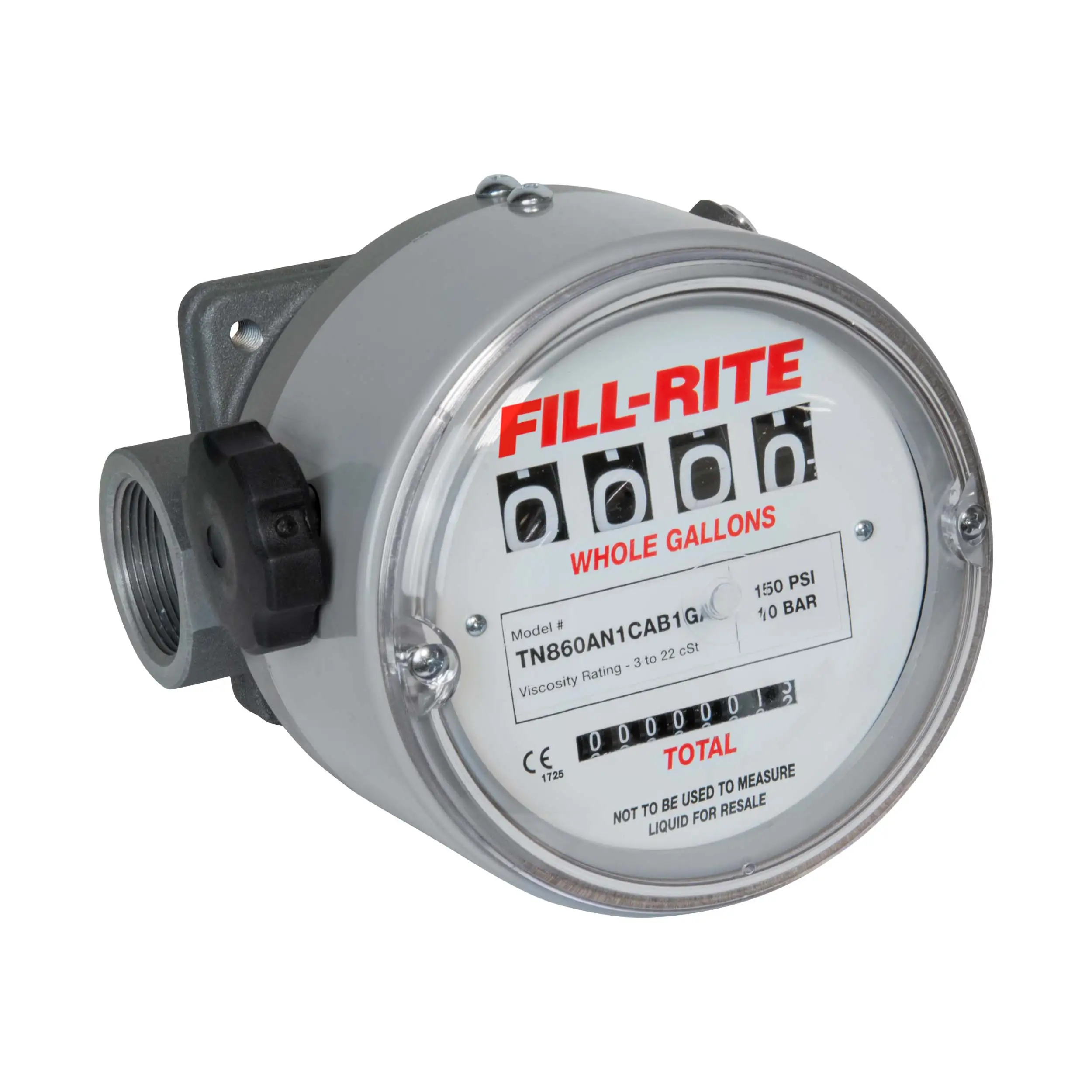

The TN860AN1CAB1GAC-RL is a high pressure, high viscosity, and highly accurate 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 6-60 gallons per minute at +/- 2% accuracy. This model does not include additional accessories.
Specifications
| Flowrate Range (GPM) | 6.0-60GPM |
|---|---|
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20 |
| Inlet Size / Connection / Thread | 1.5 " / Female / NPT |
| Outlet Size / Connection / Thread | 1.5 " / Female / NPT |
| Operating Temperature Range (°F) | -15 - 180°F / -26 - 82°C |
| Max Operating Pressure (PSI) | 150 |
| Accuracy (+/- %) | 2 % |
| Repeatability (+/- %) | 0.25 % |
| Display Type | Mechanical |
| Display Digits | 4 |
| Power Source | Mechnical |
| Totalizer | Yes |
| Pulse Output | No |
| Assembled Product Height x Width x Depth (in.) | 6.5 x 7.5 x 7.25 |
| Assembled Product Weight (lbs.) | 8 |
| Package Height x Width x Depth (in.) | 10.75 x 7.94 x 7.31 |
| Gross Weight (lbs.) | 8.70000 lbs |
| Less Than Load (LTL) Freight | Yes |
