12V DC 15 GPM Fuel Transfer Pump

Scraped SKU: FR1204H Price: 493.37 USD 2026-06-05 18:18:19

Attributes

Features Html

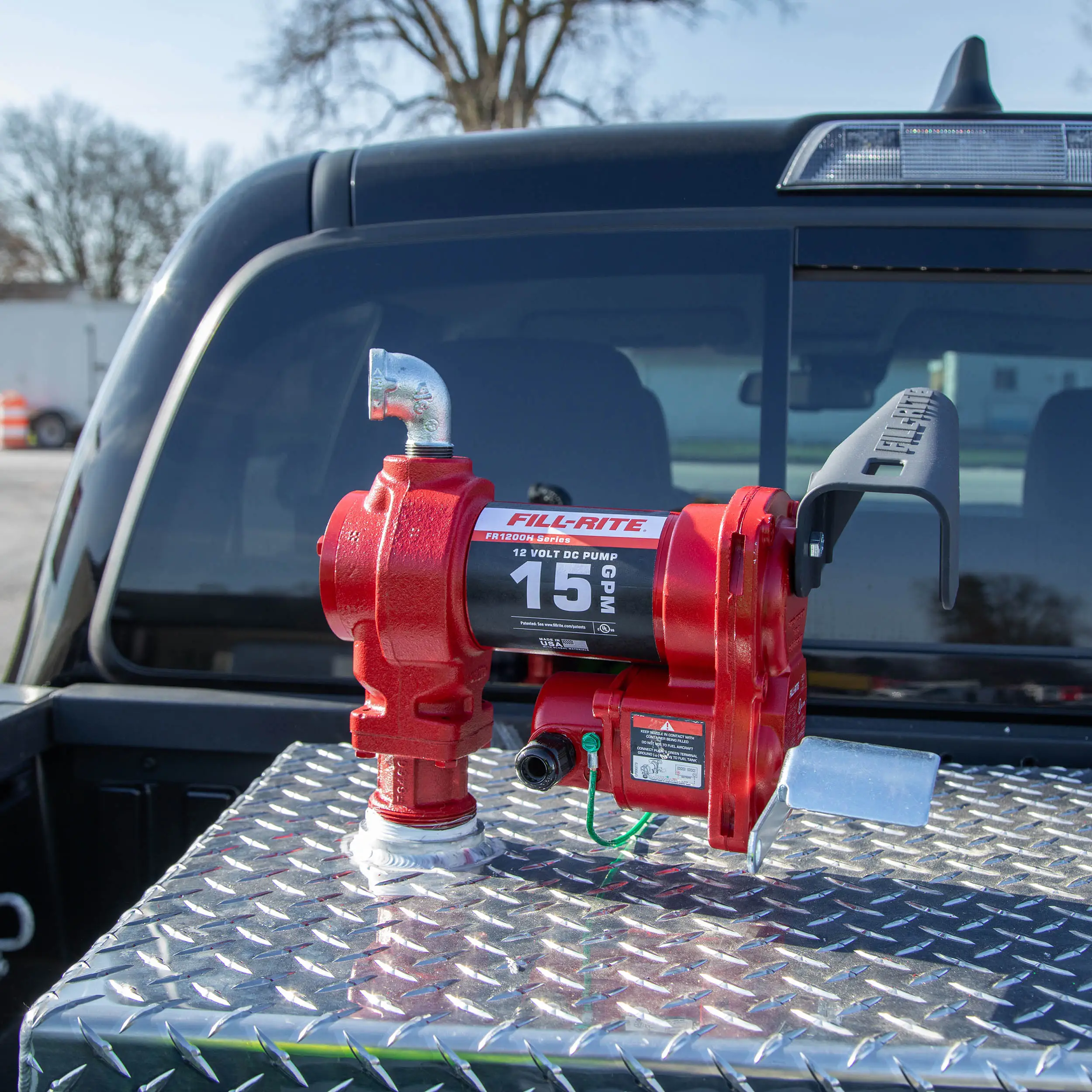

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site, Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons, Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds, Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits, Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces, Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free, Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment, Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use, Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

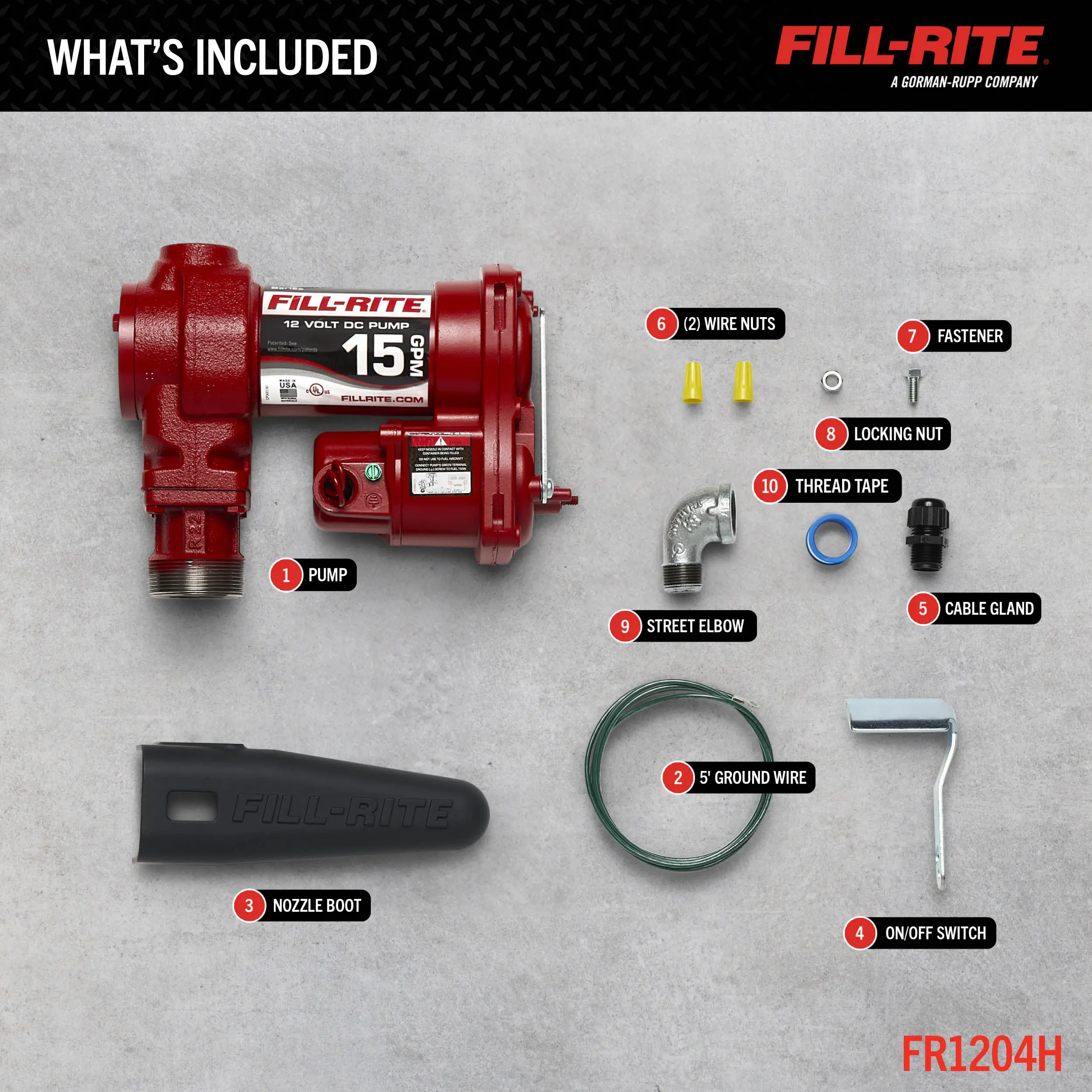

AccessoriesAdditional Accessories: Nozzle Boot, PTFE Tape Roll, 3/4" NPT Street Elbow, Ground Wire, Cable Gland, (2) Wire Nuts, Locking Nut, Fastener
Series Codefr1200-series-fr1200
Series NameFR1200 Series
Series Urlhttps://www.fillrite.com/fr1200-series-fr1200

Description

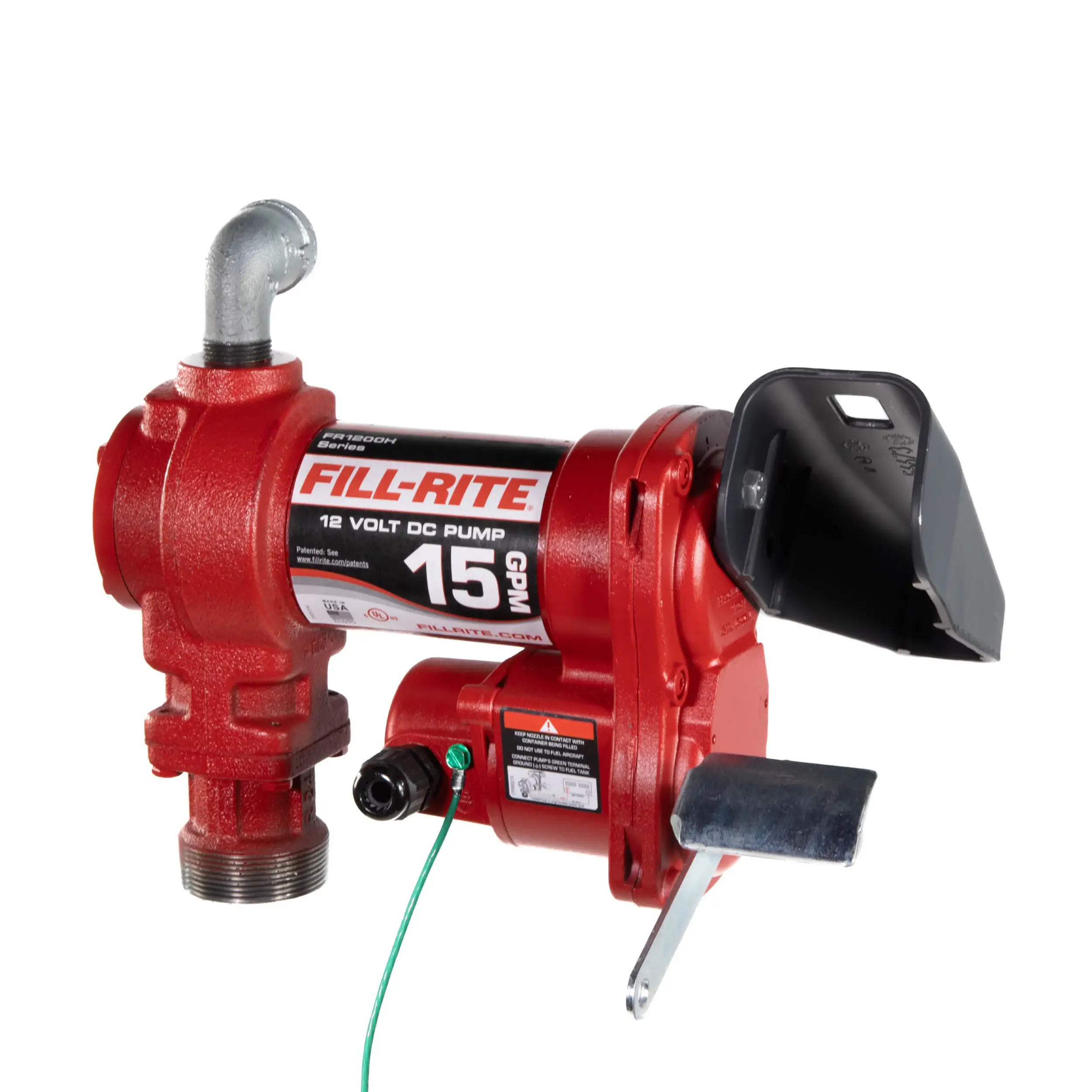

The FR1204H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Specifications

Max Flowrate15 GPM / 57 LPM
Power Type12V DC
Compatible FluidsDiesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread1 " / -- / NPT
Outlet Size / Connection / Thread0.75 " / -- / NPT
Mounting Size / Thread / Type2" / NPT / Bung Mount
Duty Cycle (min)30 min on / 30 min off
Motor Power (HP)0.25
Max Current (A)20 A
Thermal Protection SwitchYes
Self PrimingYes
Suction Lift (ft.)8 '
Dry Vacuum (in. Hg)5
Discharge Head (ft)37 '
Strainer Mesh Size (Micron)20x20
Max Operating Pressure (PSI)16
Viscosity Range (cSt)1 to 4

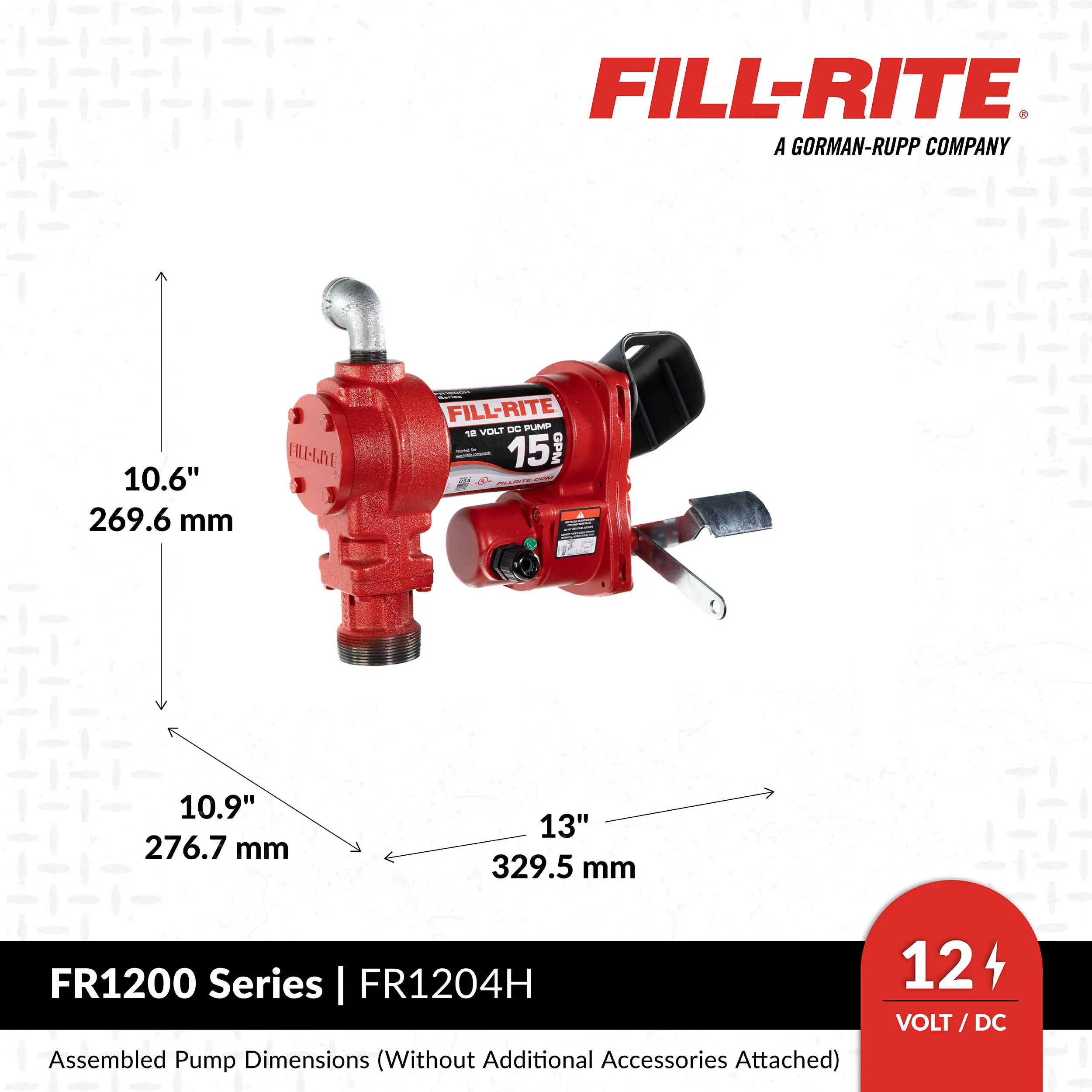

Assembled Product Height x Width x Depth (in.)9.5 x 13.0 x 6.5
Assembled Product Weight (lbs.)19.9
Package Height x Width x Depth (in.)6.63 x 12.63 x 15.25
Gross Weight (lbs.)21.00000 lbs
Less Than Load (LTL) FreightYes
