Attributes
| Features Html | Powder-Coated Exterior – thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions, Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance, Completely Configurable – adjustable design allows you to position inlet and outlet flanges for your specific application, making the RD perfect for tight spaces, Versatile Mounting – versatile design allows you to mount pump directly to a tank, set it on the ground, or even hold it during filling, Quick-Connect Power – detachable power cord makes operation, transportation, and storage more convenient, while also providing additional security measure, Compact Size – weighing under 8 pounds, can be easily transported or held during operation |
|---|---|

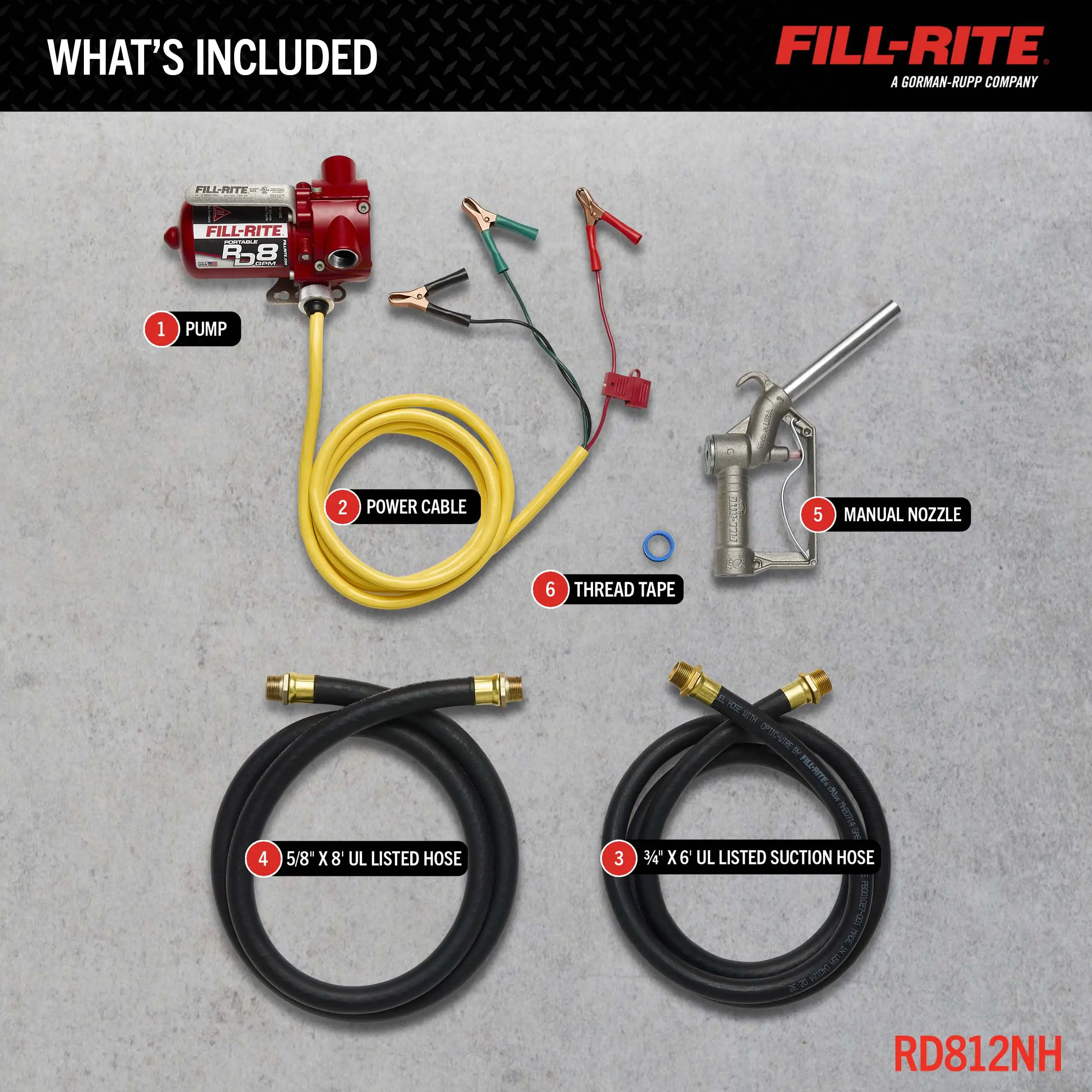

| Accessories | Additional Accessories: PTFE Tape Roll, Cable Length (ft): 10, Cable Gauge (GA): 12, Cable Connection: Battery Clips, Suction Hose: ¾” x 6’ UL Listed Suction Hose, Discharge Hose: 5/8" X 8' UL Listed Hose with Static Ground Wire, Nozzle: ¾” Cast Aluminum Manual Nozzle |
| Series Code | rd8-series-rd8 |
| Series Name | RD8 Series |
| Series Url | https://www.fillrite.com/rd8-series-rd8 |
Description
The RD812NH model is a 12V DC, 8 GPM portable fuel transfer pump. This pump and accessory bundle comes complete with a suction discharge hose, nozzle, suction hose, and installation components.
Specifications
| Max Flowrate | 8 GPM / 30 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Gasoline, Kerosene, Biodiesel up to B20, Mineral Spirits |
| Inlet Size / Connection / Thread | 0.75 " / -- / NPT |
| Outlet Size / Connection / Thread | 0.75 " / -- / NPT |
| Mounting Size / Thread / Type | -- / -- / Portable Carry Handle |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.17 |
| Max Current (A) | 14 A |
| Self Priming | Yes |
| Suction Lift (ft.) | 6 ' |
| Dry Vacuum (in. Hg) | 5 |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |

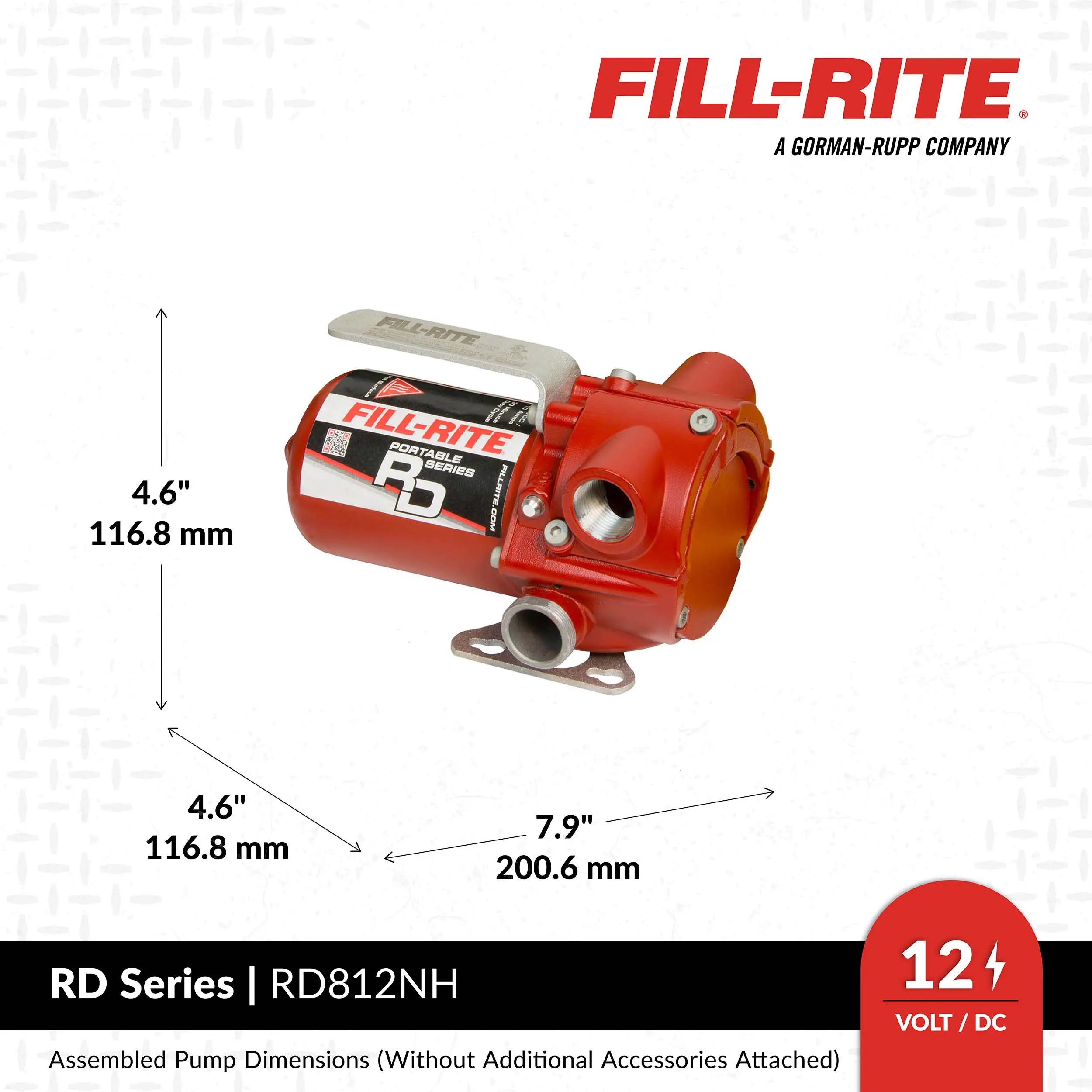

| Assembled Product Height x Width x Depth (in.) | 4.6 x 7.9 x 4.6 |
| Assembled Product Weight (lbs.) | 8.6 |
| Package Height x Width x Depth (in.) | 7.25 x 17.88 x 17.88 |
| Gross Weight (lbs.) | 18.00000 lbs |
| Less Than Load (LTL) Freight | Yes |
