Attributes
| Features Html | Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications, Economical Solution – reliably transfers 6.5 gallons per minute from 55-gallon drums in low-volume transfer applications, Air-Operated – seamlessly hook up the existing air lines in your garage or shop for a quick fluid transfer solution, Flexible Fluid Compatibility – compatible with a wide variety of fuel, oil, and chemical fluids |
|---|---|

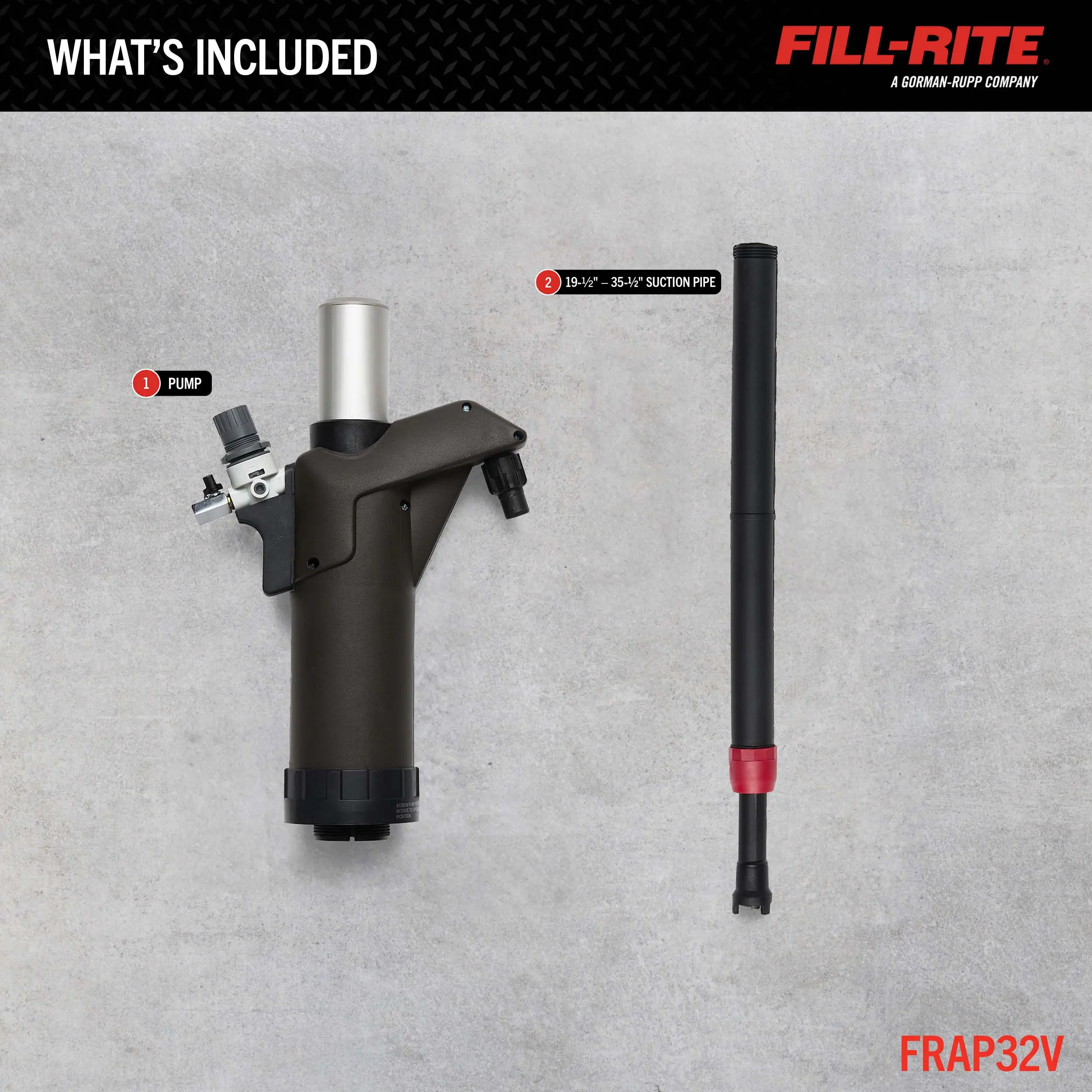

| Accessories | Suction Pipe: 19 ½" - 35 ½" Polypropylene Telescoping Suction Pipe |
| Series Code | pneumatic-hand-pumps-series-pneumatic-hand-pumps |
| Series Name | Air-Operated Pump |
| Series Url | https://www.fillrite.com/pneumatic-hand-pumps-series-pneumatic-hand-pumps |
Description

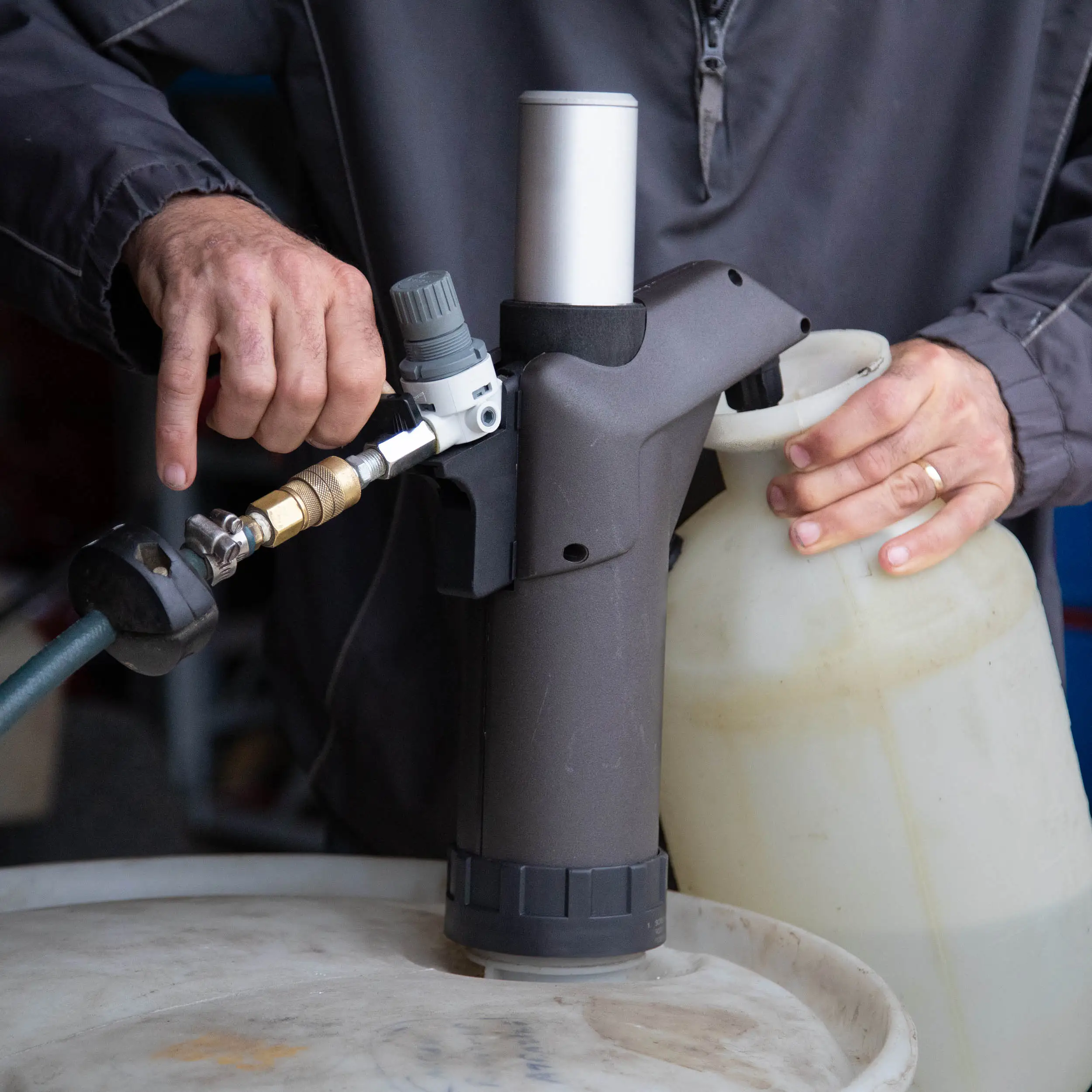

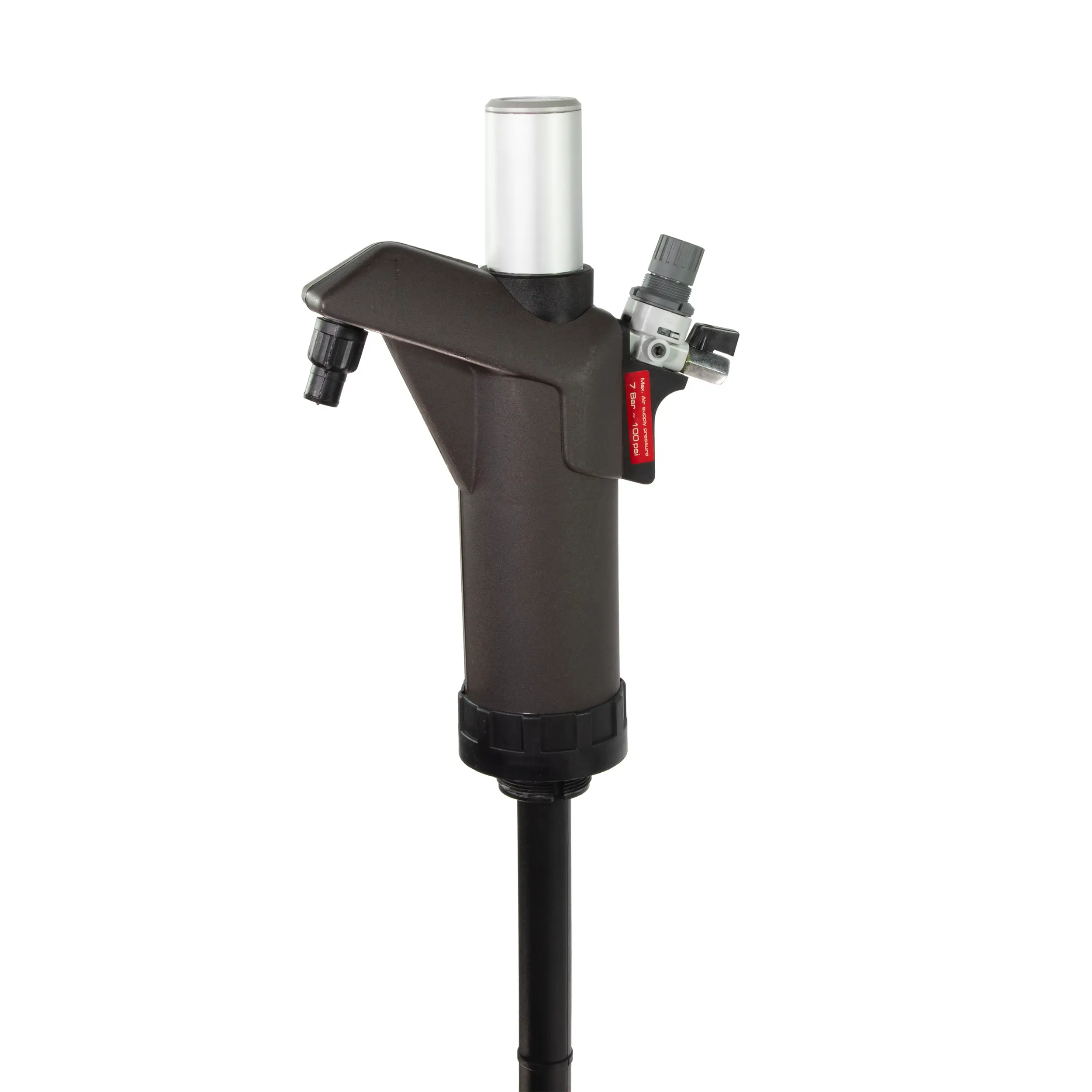

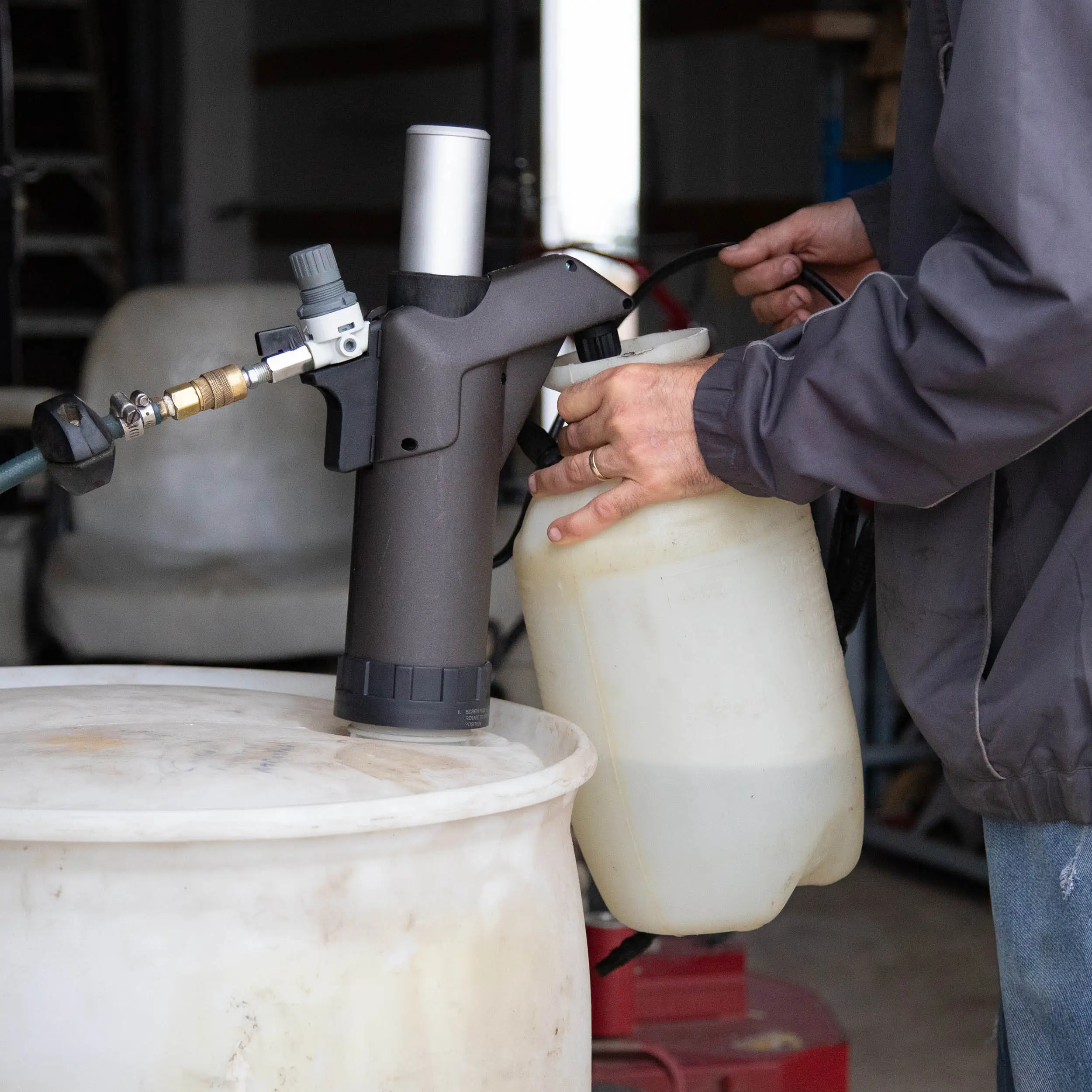

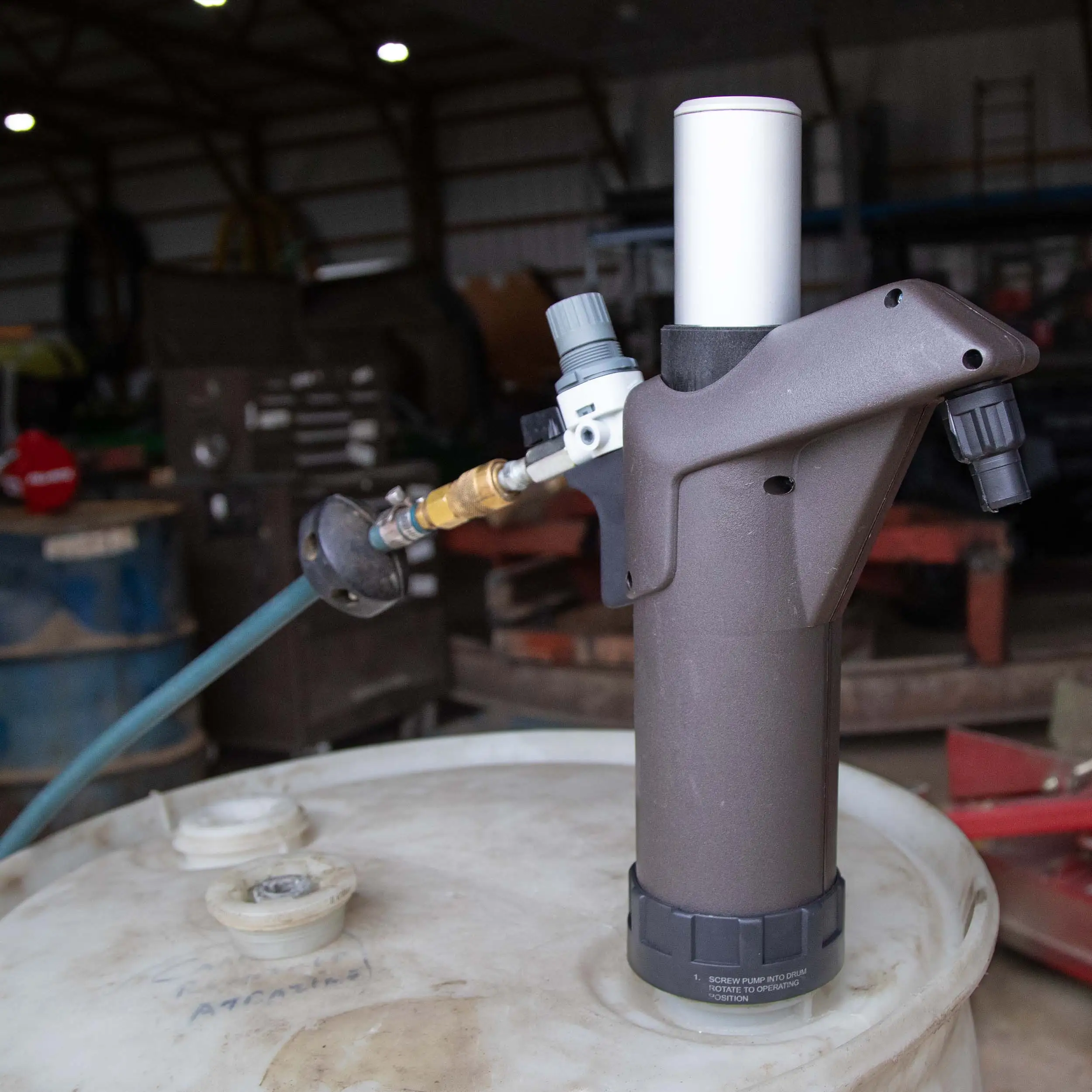

The FRAP32V model is an air-operated, 6.5 GPM economy fuel transfer pump. This pump and accessory bundle comes complete with a suction pipe and installation components.
Specifications
| Max Flowrate | 11 oz. Per Stroke / 33 mL |
|---|---|
| Power Type | Air-Operated |
| Compatible Fluids | Diesel, DEF, Antifreeze, Gear Oils, Mild Acids, Motor Oils, Hydraulic Oils |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / Hose Barb |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | Continuous Duty |

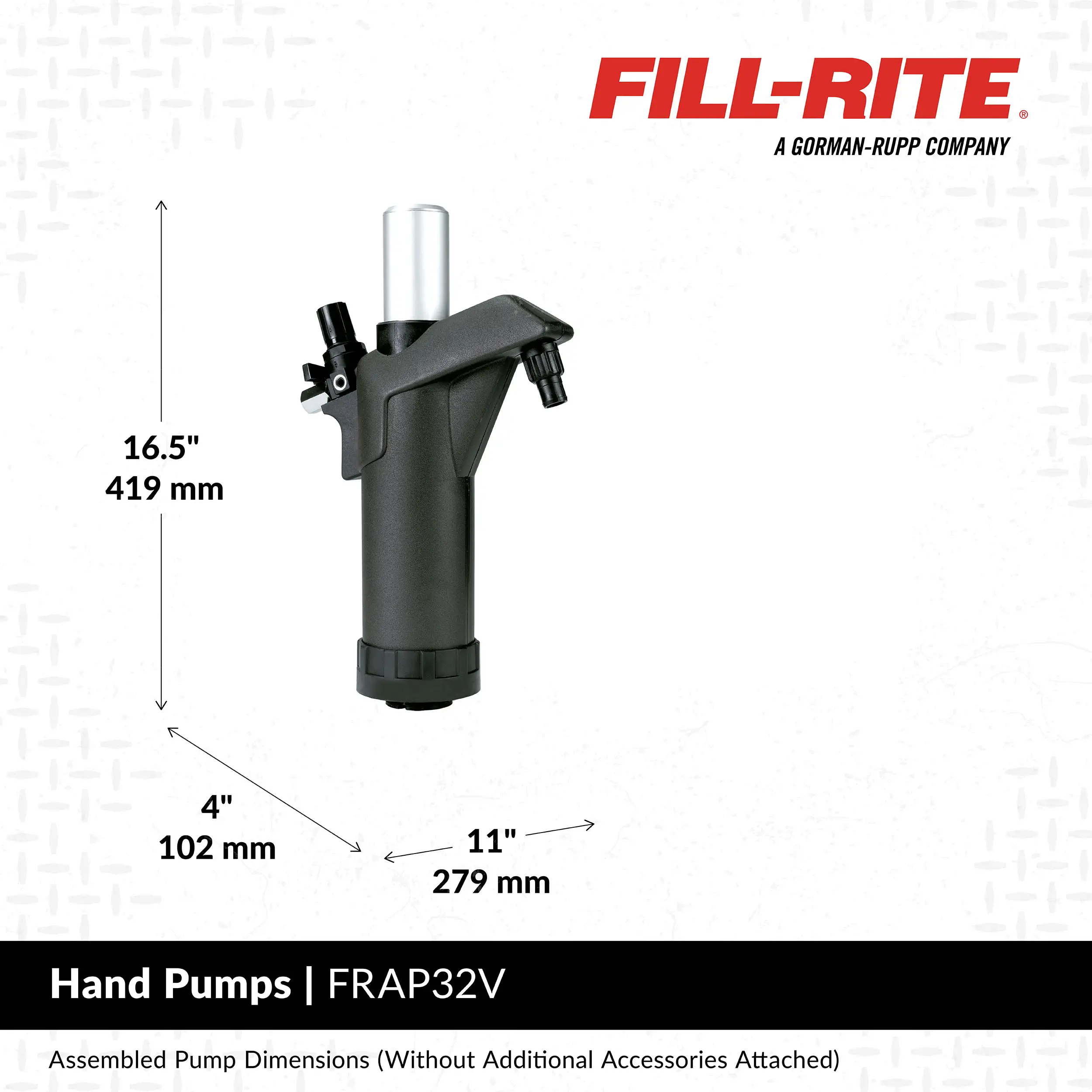

| Assembled Product Height x Width x Depth (in.) | 11 x 4.5 x 16.5 |
| Assembled Product Weight (lbs.) | 3.2 |
| Package Height x Width x Depth (in.) | 9.33 x 20.79 x 4.45 |
| Gross Weight (lbs.) | 4.40000 lbs |
| Less Than Load (LTL) Freight | Yes |
