Attributes
| Features Html | Accident Prepared — Fill-Rite breakaway devices stop fuel from draining externally should a driver accidentally drive away with a dispensing nozzle still in his or her fuel tank, Instant Closing — featuring an instant closing poppet check valve, this breakaway will stop fluid flow immediately in the event of driver accident, No Mess — systems without breakaways can suffer substantial physical and financial damages in the event of an accident, making this the ultimate affordable, no mess solution, Protects Inventory — don't let your fuel supply escape your grasps, protect your inventory with this seamless, in-line solution |
|---|---|
| Series Code | breakaway-series-breakaway |
| Series Name | Hose Breakaways |
| Series Url | https://www.fillrite.com/breakaway-series-breakaway |
Description

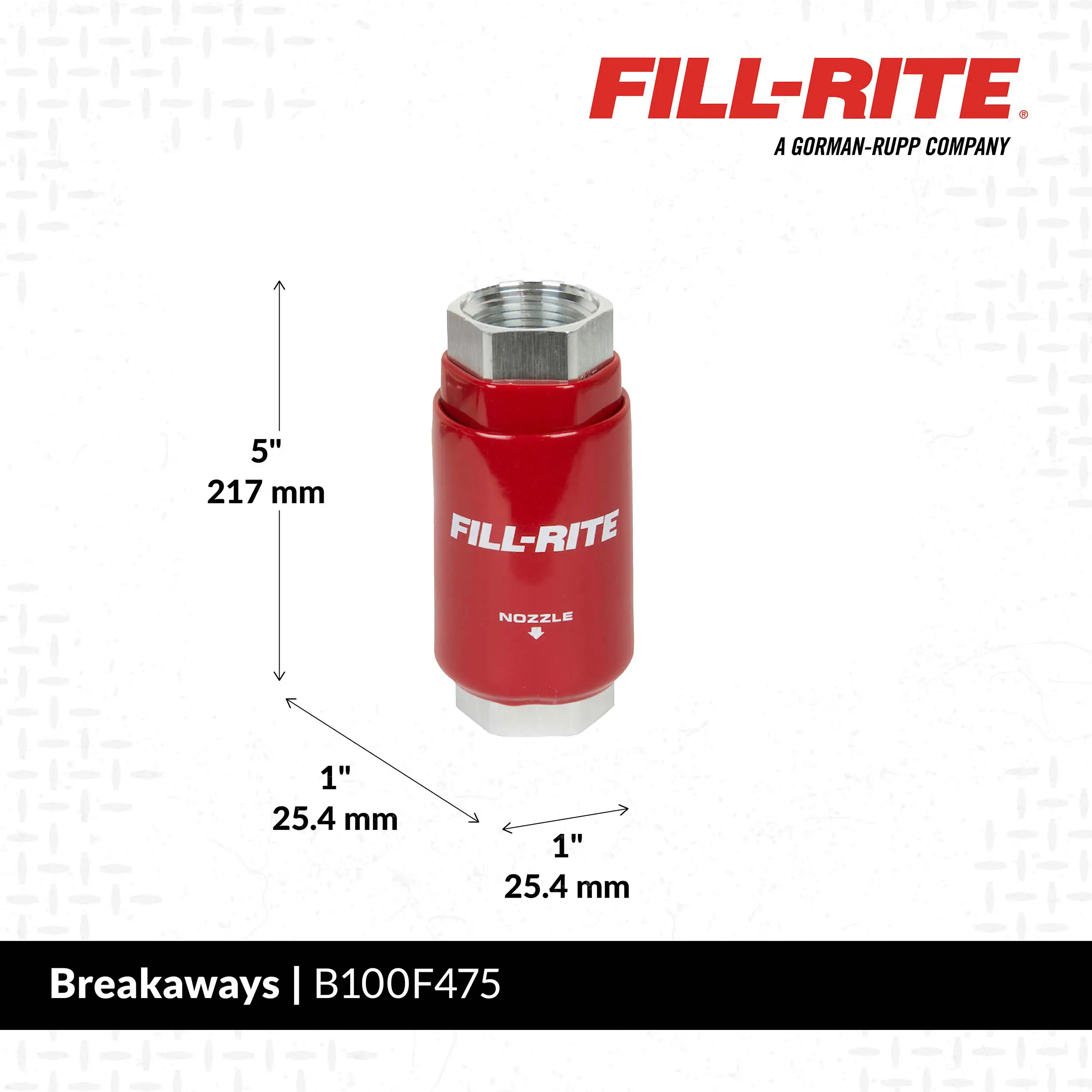

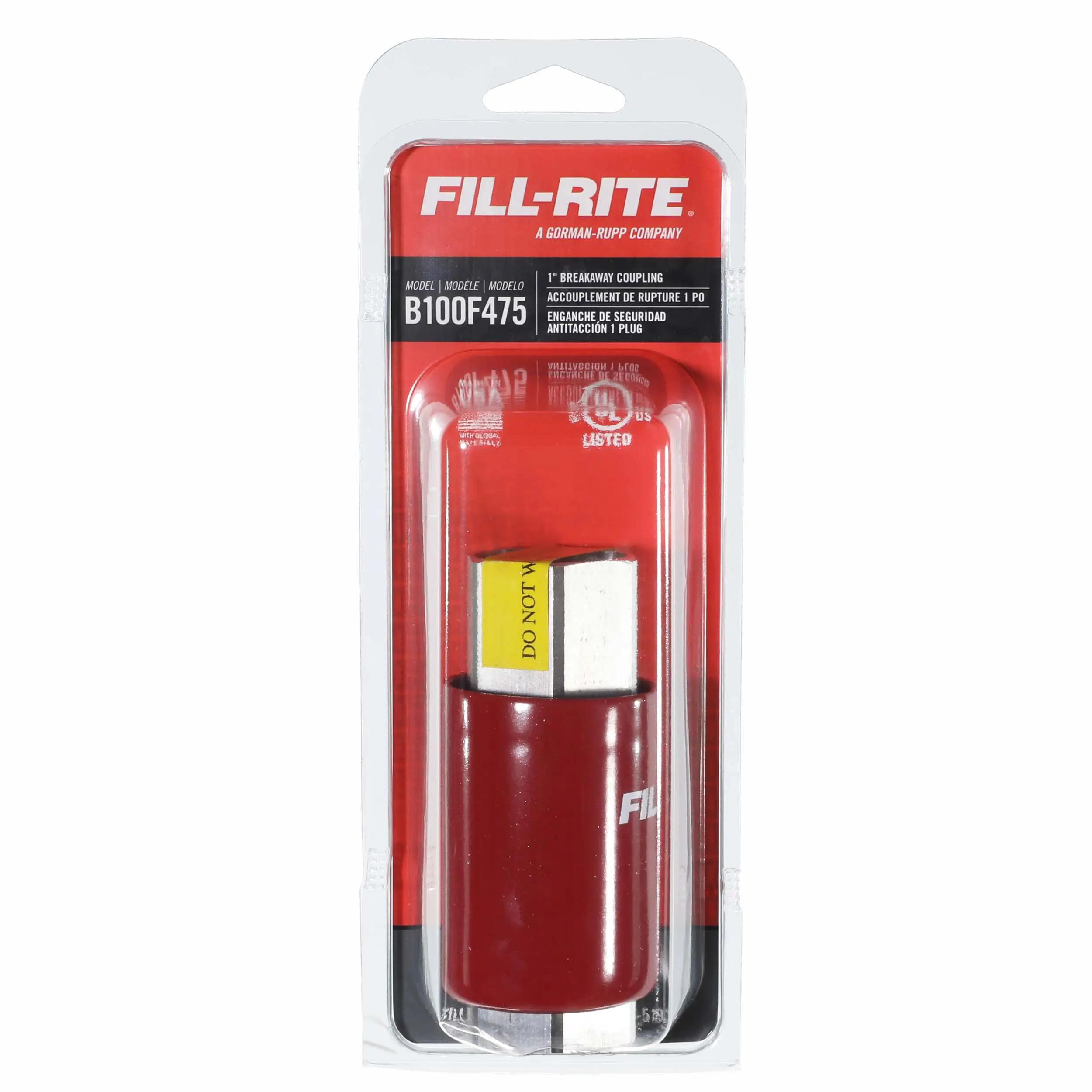

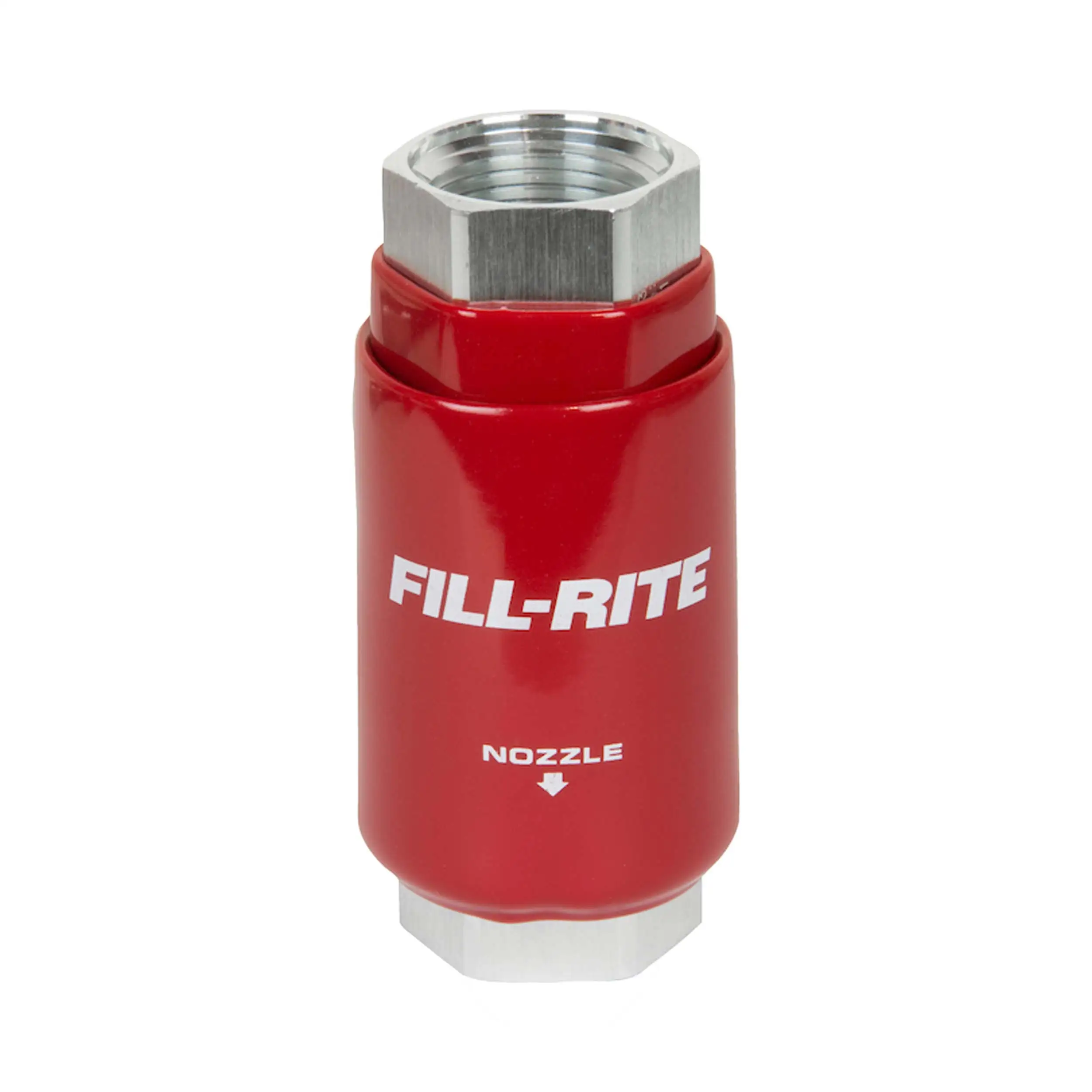

Fill-Rite's fuel transfer hose breakaway attachments are available in both ¾" and 1" sizes. Quick-break technology and a fast-closing-sealing-valve immediately stop fluid flow the event of an emergency situation. The B100F475 is a 1" hose breakaway.
Specifications
| Compatible Fluids | Diesel, Gasoline, Mineral Spirits, B20 |
|---|---|
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Assembled Product Height x Width x Depth (in.) | 5 x N/A x N/A |
| Assembled Product Weight (lbs.) | 1.75 |
| Package Height x Width x Depth (in.) | 7.5 x 8 x 10 |
| Gross Weight (lbs.) | 2.15000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
No PDF documents.
