Attributes
| Features Html | Durable Construction – nitrile inner tube resists corrosion from fuels while rugged neoprene exterior withstands abrasive outdoor environments, Anti-Kink Performance – internal spring guard reduces kinking during use, ensuring smooth fluid flow and longer hose life, Internal Ground Wire – stainless steel ground wire runs the entire length of the hose, ensuring safety by preventing static buildup, Multiple Sizes Available – configurations available in 12-, 14-, and 20-foot lengths with ¾” and 1” NPT threads, meeting the specific needs of your application, UL Listed Models Available – models FRH07512UL and FRH10012UL are UL Listed for compliance in AC voltage applications |
|---|---|
| Accessories | Discharge Hose: ¾” X 12’ Hose with Static Ground Wire, Static Wire: Yes |
| Series Code | discharge-hose-series-discharge-hose |
| Series Name | Discharge Hoses |
| Series Url | https://www.fillrite.com/discharge-hose-series-discharge-hose |
Description

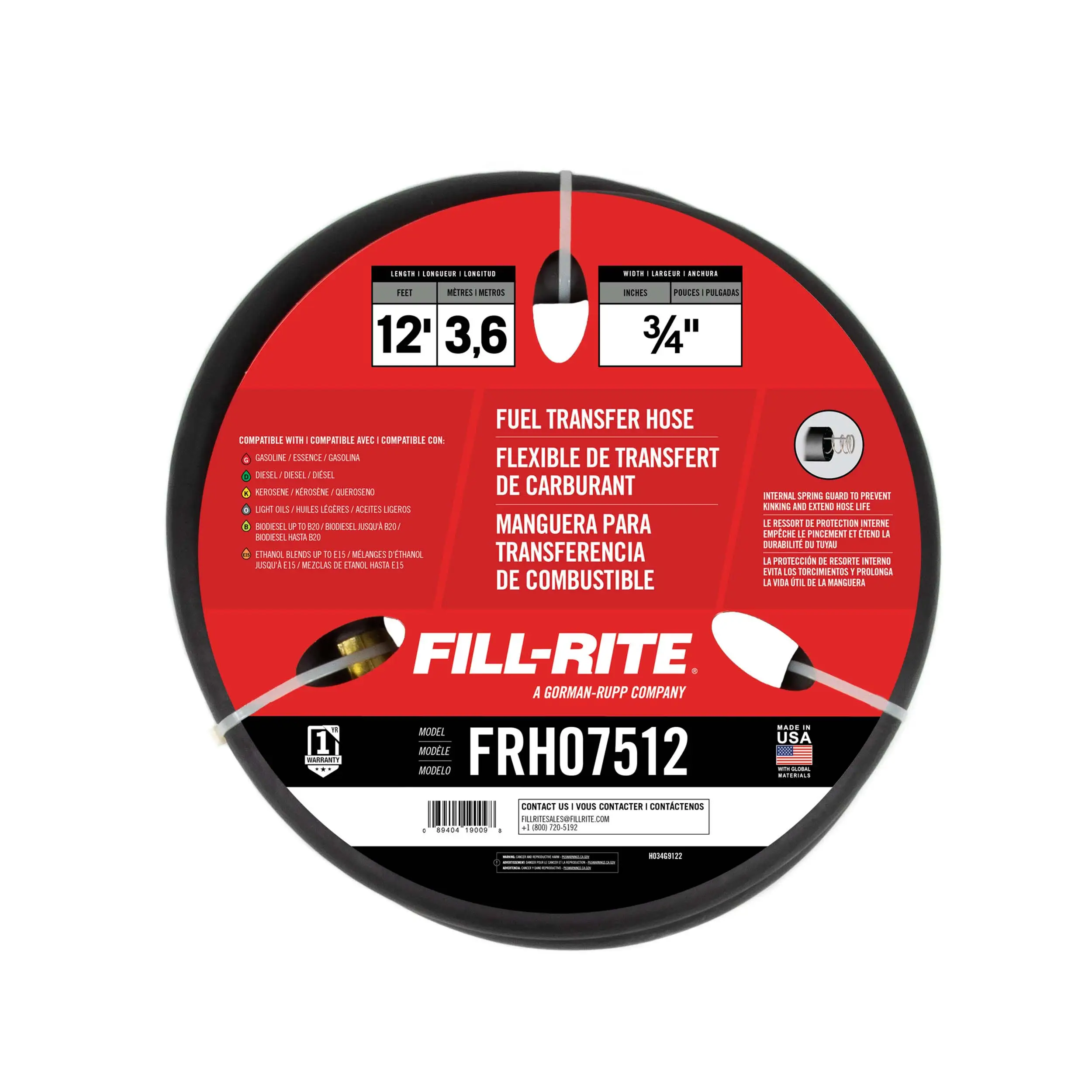

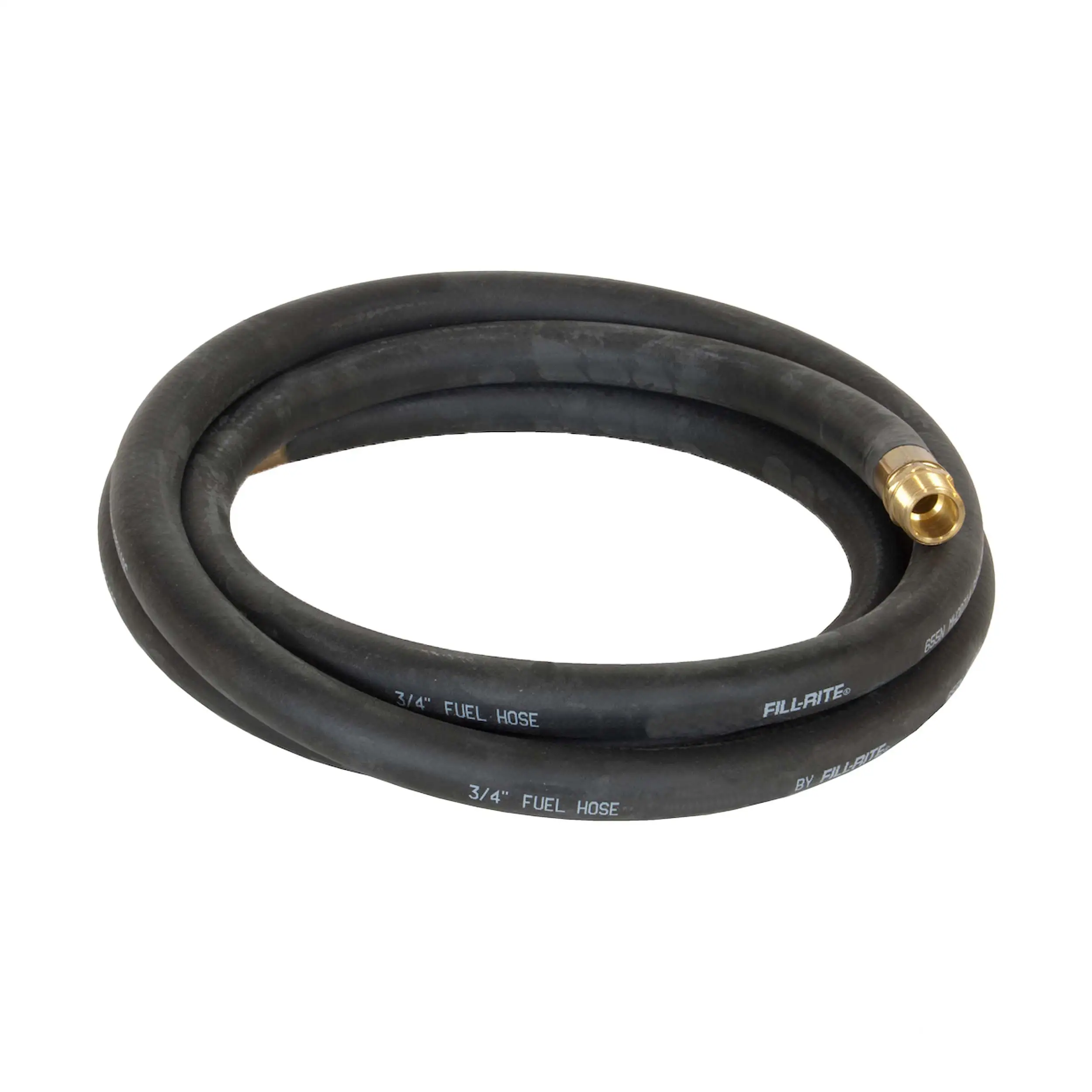

The FRH07512 is a 0.75" X 12' fuel transfer hose. This hose is equipped with a stainless steel ground wire and a 7" anti-kink spring guard to ensure safety and improve performance, respectively.
Specifications
| Compatible Fluids | Diesel, Gasoline, Crop Oil, B20, Gear Oils, Motor Oils, Hydraulic Oils |
|---|---|
| Inlet Size / Connection / Thread | 0.75 " / Male / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Male / NPT |
| Max Operating Pressure (PSI) | 50 |
| Assembled Product Height x Width x Depth (in.) | 1.4 x 1.4 x 144 |
| Assembled Product Weight (lbs.) | 4.5 |
| Package Height x Width x Depth (in.) | 5.5 x 15.5 x 19.5 |
| Gross Weight (lbs.) | 4.67000 lbs |
| Less Than Load (LTL) Freight | Yes |
