Attributes
| Features Html | Steel Construction – engineered with 15-gauge steel and a powder-coated exterior for years of high performance in the toughest applications, Convenient for Drivers – pair with large aboveground storage tanks in high-volume operations for convenient ground-level fuel access for your drivers, Extreme Accuracy – measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business, Flexible Installation – dispenser can be mounted directly to the side of your aboveground storage tank, Integrated Storage – included storage for hanging hose and nozzle eliminates equipment from being left on the ground and ran over, Included Components – includes a Fill-Rite 901C mechanical meter, ASCO solenoid valve, and remote on/off switch |
|---|---|
| Accessories | Additional Accessories: Meter Reset Knob, 1" X 4" Pipe Nipple, Locking Nut |
| Series Code | dispenser-series |
| Series Name | Dispenser Series |
| Series Url | https://www.fillrite.com/dispenser-series |
Description

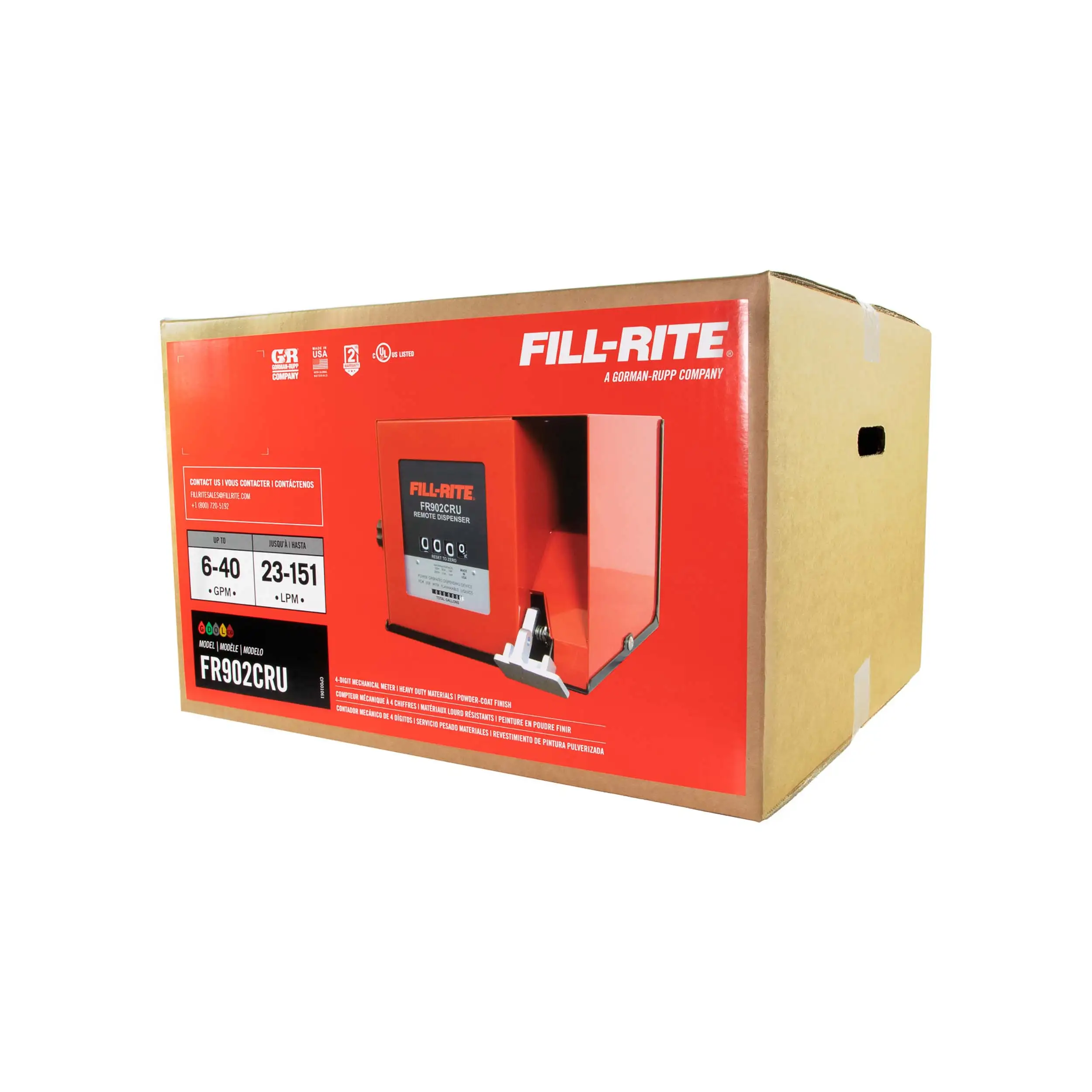

The FR902CRU model is a 115V AC heavy-duty remote fuel dispenser. This model comes complete with a remote switch, solenoid valve, meter, and installation components.
Specifications
| Max Flowrate | 40 GPM / 151 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Biodiesel up to B20, Gasoline up to E15 |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Accuracy (+/- %) | 2 % |
| Repeatability (+/- %) | 0.38 % |
| Display Type | Mechanical |
| Display Digits | 4 |
| Pulse Output | No |
| Flowrate Range (GPM) | 6-40GPM |
| Max Operating Pressure (PSI) | 50 |
| AC Frequency (Hz) | 60 |
| Max Current (A) | 20 A |
| Assembled Product Height x Width x Depth (in.) | 11.7 x 14.4 x 17.5 |
| Assembled Product Weight (lbs.) | 46.5 |
| Package Height x Width x Depth (in.) | 12.75 x 18.13 x 21.13 |
| Gross Weight (lbs.) | 47.50000 lbs |
| Less Than Load (LTL) Freight | Yes |
