40-300 GPM 5 Digit Mechanical Stainless-Steel Custody Transfer Rated E85 Fuel and Low Caustics Meter

Scraped SKU: TS30CV04CGCBMXBXXN Price: 15,334.00 USD 2026-06-05 18:18:23

Attributes

Features Html
Precision Engineering: Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Robust Construction: Built to withstand the harshest environments, the stainless-steel body of this meter boasts a robust construction that ensures durability and longevity., High Accuracy: Designed to minimize uncertainties in measurement, making it a trustworthy instrument for custody transfer applications where precision is paramount., Easy Installation and Maintenance: Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Compliance: Our oval gear flow meter meets industry standards and compliances for custody transfer applications, providing peace of mind when it comes to regulatory requirements., Cost Efficiency: By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings., Reliable Data for Transactions: Trust is essential in custody transfer transactions, and our flow meter provides the reliability you need. Eliminate uncertainties and ensure fair and accurate transactions every time., Enhanced Operational Efficiency: The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently.
Series Codets30cv04cgcbmxbxx-ts30cv04cgcbmxbxx
Series Name40-300 GPM 5 Digit Mechanical Stainless-Steel Custody Transfer Rated E85 Fuel and Low Caustics Meter
Series Urlhttps://www.fillrite.com/ts30cv04cgcbmxbxx-ts30cv04cgcbmxbxx

Description

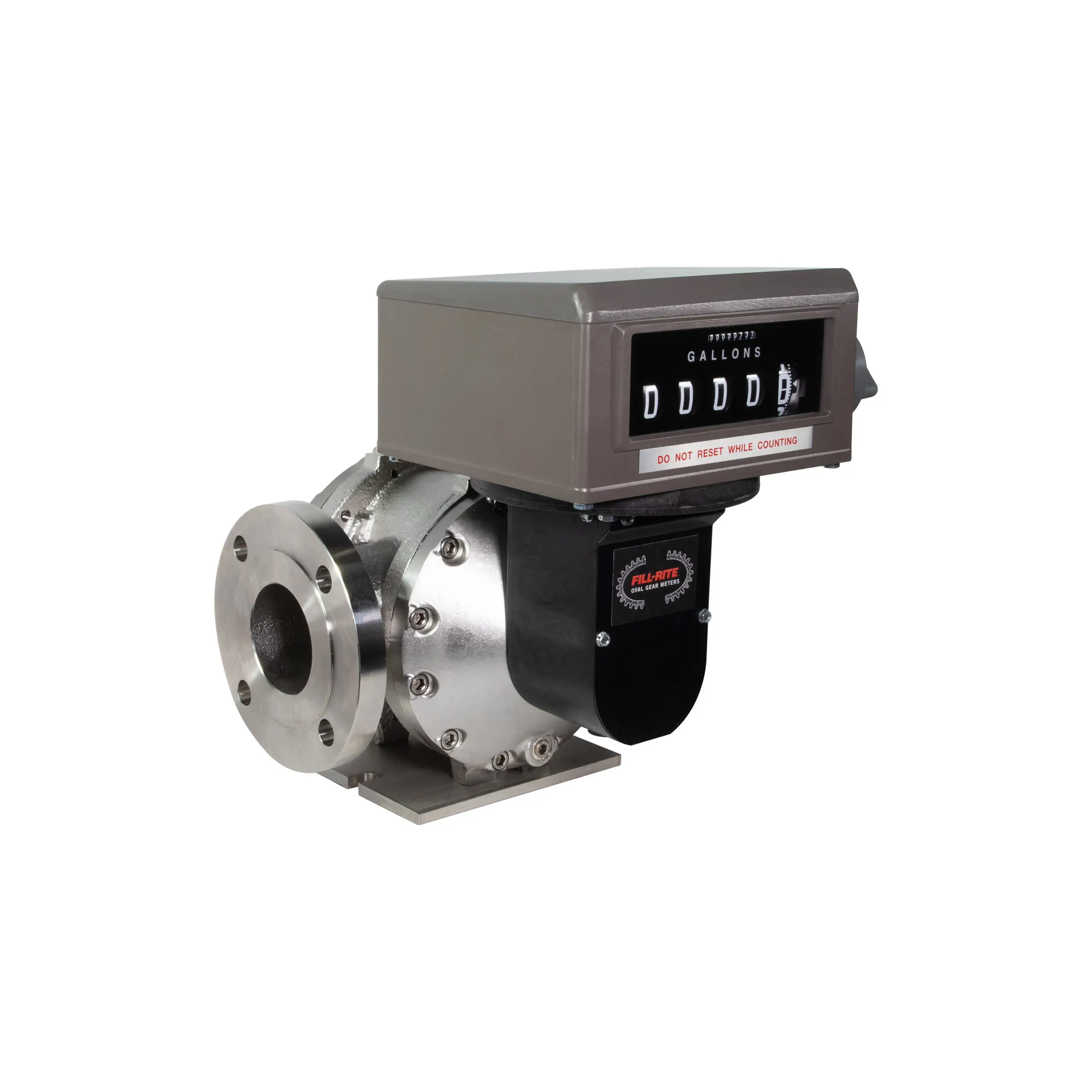

The TS30CV0CAGCBMXBXXN is a 100% stainless-steel 5-digit mechanical E85 and low caustics transfer meter. This meter is equipped with 3" ANSI Flanges and is designed to register 40-300 gallons per minute at 0.05% repeatability.

Specifications

Flowrate Range (GPM)40-300 GPM
Inlet Size / Connection / Thread3 " / ANSI / ANSI
Outlet Size / Connection / Thread3 " / ANSI / ANSI
Repeatability (+/- %)0.05 %
Linearity (+/- %) over 5:1 Turndown.175
Linearity (+/- %) over 10:1 Turndown.3
Linearity (+/- %) over 30:1 Turndown.5
Max Operating Pressure (PSI)400
Operating Temperature Range (°F)-40 - 180°F / -40 - 82°C
Power SourceMechnical
Display TypeMechanical
Display Digits5
Compatible FluidsHeptane, Hexane, Ethylene Glycol, Stoddard Solvents, E85, Benzaldehyde, Formaldehyde, Xylene, Vinegar
Housing Materials316 Stainless Steel
Seal MaterialsTeflon
Bearing MaterialsCarbon Graphite
Strainer Mesh Size (Micron)N/A
Assembled Product Weight (lbs.)117
Package Height x Width x Depth (in.)20 x 18 x N/A
Gross Weight (lbs.)117.00000 lbs
Less Than Load (LTL) FreightYes
