15-150 GPM 5 Digit Mechanical Stainless-Steel Custody Transfer Rated E85 Fuel and Low Caustics Meter

Scraped SKU: TS20CV04ATCBMXBXXN Price: 11,305.00 USD 2026-06-05 18:18:32

Attributes

Features Html
Precision Engineering: Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Robust Construction: Built to withstand the harshest environments, the stainless-steel body of this meter boasts a robust construction that ensures durability and longevity., High Accuracy: Designed to minimize uncertainties in measurement, making it a trustworthy instrument for custody transfer applications where precision is paramount., Easy Installation and Maintenance: Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Compliance: Our oval gear flow meter meets industry standards and compliances for custody transfer applications, providing peace of mind when it comes to regulatory requirements., Cost Efficiency: By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings., Reliable Data for Transactions: Trust is essential in custody transfer transactions, and our flow meter provides the reliability you need. Eliminate uncertainties and ensure fair and accurate transactions every time., Enhanced Operational Efficiency: The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently.
Series Codets20cv04atcbmxbxx-ts20cv04atcbmxbxx
Series Name15-150 GPM 5 Digit Mechanical Stainless-Steel Custody Transfer Rated E85 Fuel and Low Caustics Meter
Series Urlhttps://www.fillrite.com/ts20cv04atcbmxbxx-ts20cv04atcbmxbxx

Description

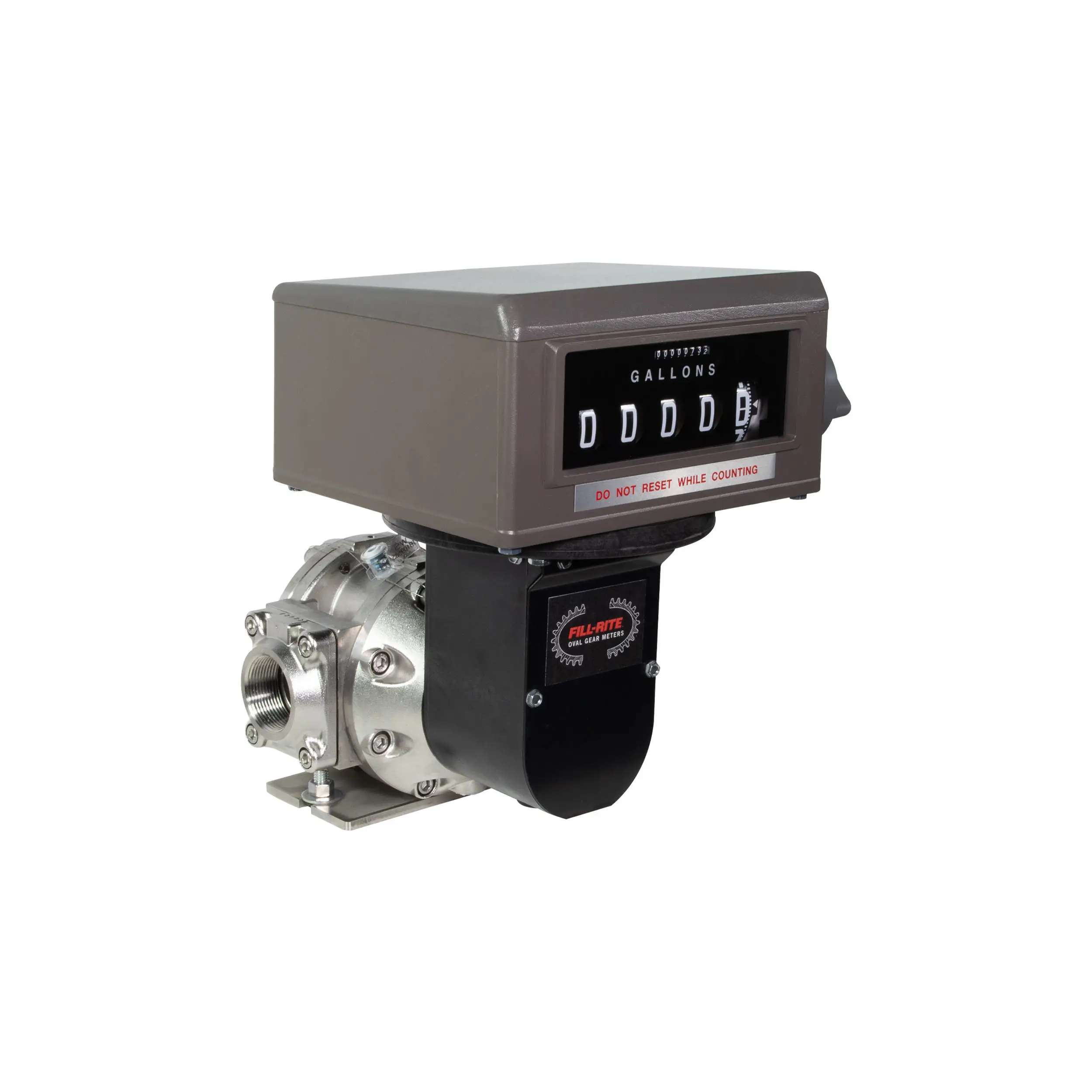

The TS20CV04ATCBMXBXXN is a stainless-steel 5-digit mechanical E85 and low caustics transfer meter. This meter is equipped with 2" NPT threads and is designed to register 15-150 gallons per minute at 0.05% repeatability.

Specifications

Flowrate Range (GPM)15-150 GPM
Inlet Size / Connection / Thread2 " / Female / NPT
Outlet Size / Connection / Thread2 " / Female / NPT
Repeatability (+/- %)0.05 %
Linearity (+/- %) over 5:1 Turndown.175
Linearity (+/- %) over 10:1 Turndown.3
Linearity (+/- %) over 30:1 Turndown.5
Max Operating Pressure (PSI)150
Operating Temperature Range (°F)-40 - 180°F / -40 - 82°C
Power SourceMechnical
Display TypeMechanical
Display Digits5
Compatible FluidsHeptane, Hexane, Ethylene Glycol, Stoddard Solvents, E85, Benzaldehyde, Formaldehyde, Xylene, Vinegar
Housing Materials316 Stainless Steel
Seal MaterialsTeflon
Bearing MaterialsCarbon Graphite
Wetted Materials316 Stainless Steel Carbon PTFE
Strainer Mesh Size (Micron)N/A
Assembled Product Weight (lbs.)19
Gross Weight (lbs.)19.00000 lbs
Less Than Load (LTL) FreightYes
