22-227 LPM 5 Digit Mechanical Meter with Strainer and Air Eliminator. Custody Transfer Approved. Compatible with E85 and Low Caustics.

Scraped SKU: TS15AV06BLCBMXBS4N Price: 7,143.00 USD 2026-06-05 18:18:35

Attributes

Features Html
Precision Engineering — Our oval gear flow meter is crafted with precision engineering, ensuring accurate and repeatable measurements. It excels in providing dependable data for custody transfer, giving you confidence in your transactional processes., Robust Construction — Built to withstand the harshest environments, the anodized aluminum body of this meter boasts a robust construction that ensures durability and longevity., High Accuracy — Designed to minimize uncertainties in measurement, making it a trustworthy instrument for custody transfer applications where precision is paramount., Easy Installation and Maintenance — Save time and resources with our user-friendly design. The installation process is straightforward, and routine maintenance is a breeze, ensuring minimal downtime for your operations., Compliance — Our oval gear flow meter meets industry standards and compliances for custody transfer applications, providing peace of mind when it comes to regulatory requirements., Cost Efficiency — By investing in our custody transfer flow meter, you are making a cost-effective choice. Its longevity, low maintenance requirements, and high accuracy contribute to overall cost savings., Reliable Data for Transactions — Trust is essential in custody transfer transactions, and our flow meter provides the reliability you need. Eliminate uncertainties and ensure fair and accurate transactions every time., Enhanced Operational Efficiency — The efficiency of your operations is directly impacted by the precision of your measurements. Improve your overall operational efficiency with a flow meter designed to deliver accurate results consistently.
Series Codets15av06blcbmxbs4-ts15av06blcbmxbs4
Series Name22-227 LPM 5 Digit Mechanical Custody Transfer Rated E85 Fuel Meter with Strainer and Air Eliminator
Series Urlhttps://www.fillrite.com/ts15av06blcbmxbs4-ts15av06blcbmxbs4

Description

The TS15AV06BLCBMXBS4N is a 100% non-ferrous 5-digit mechanical E85 transfer meter. This meter is equipped with 1.5" BSPP threads and is designed to register 22-227 liters per minute at 0.05% repeatability.

Specifications

Flowrate Range (GPM)22-227 LPM
Inlet Size / Connection / Thread1.5 " / Female / BSPP
Outlet Size / Connection / Thread1.5 " / Female / BSPP
Repeatability (+/- %)0.05 %
Linearity (+/- %) over 5:1 Turndown.175
Linearity (+/- %) over 10:1 Turndown.3
Linearity (+/- %) over 30:1 Turndown.5
Max Operating Pressure (PSI)150
Operating Temperature Range (°F)-40 - 180°F / -40 - 82°C
Power SourceMechnical
Power TypeN/A
Display TypeMechanical
Display Digits5
Compatible FluidsE85
Housing MaterialsAnodized Aluminum
Seal MaterialsTeflon
Bearing MaterialsCarbon Graphite
Wetted MaterialsAnodized Aluminum PPS Fluorocarbon
Strainer Mesh Size (Micron)40

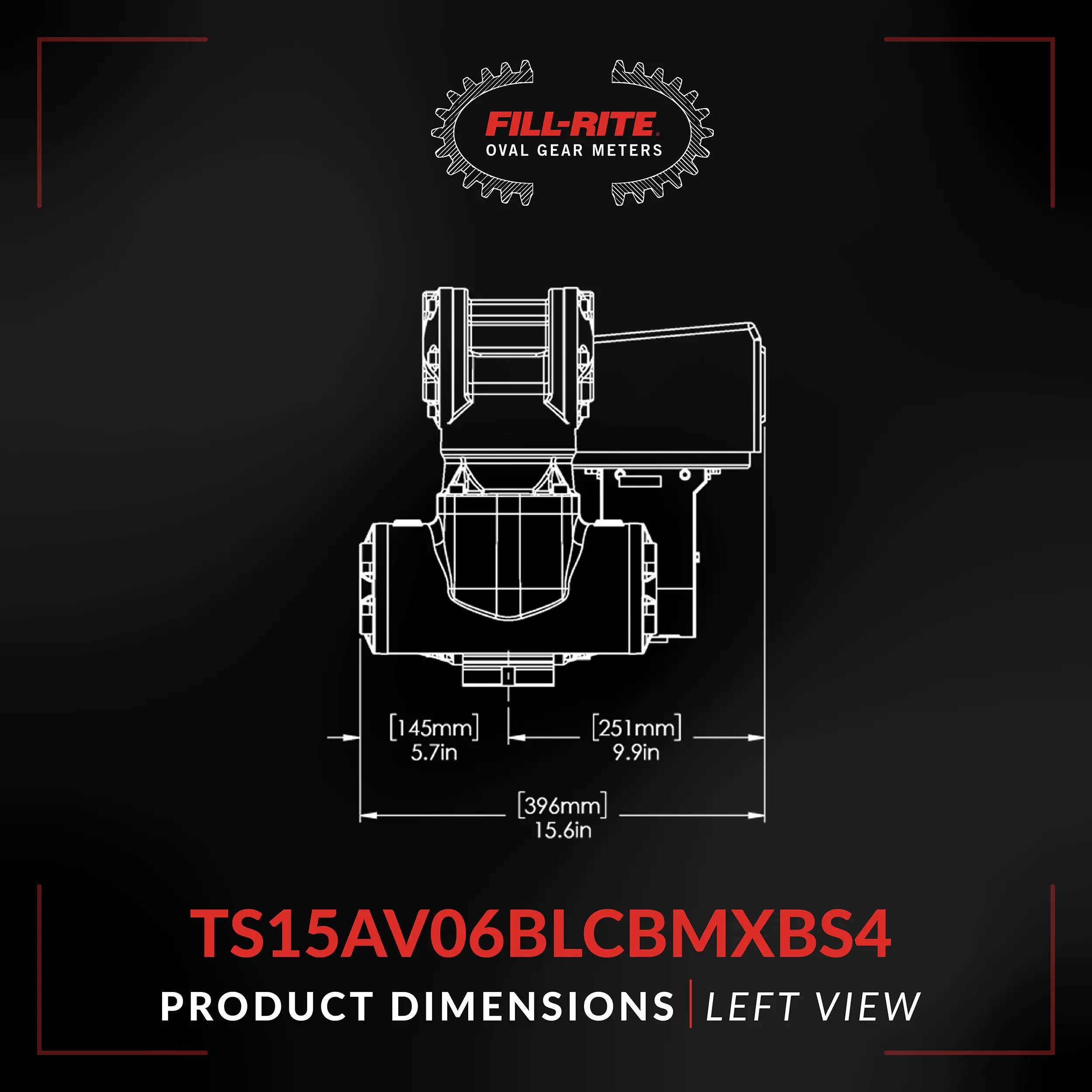

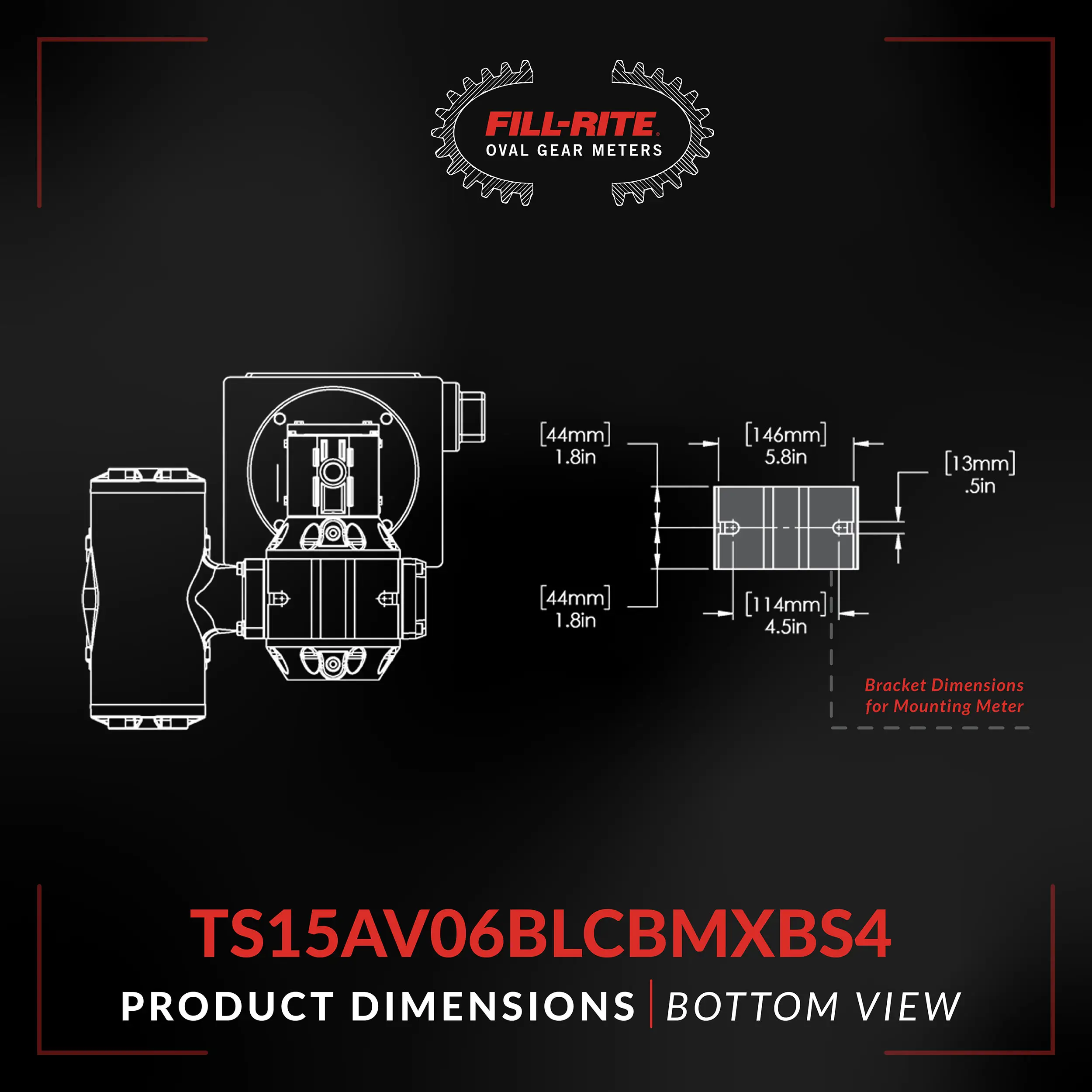

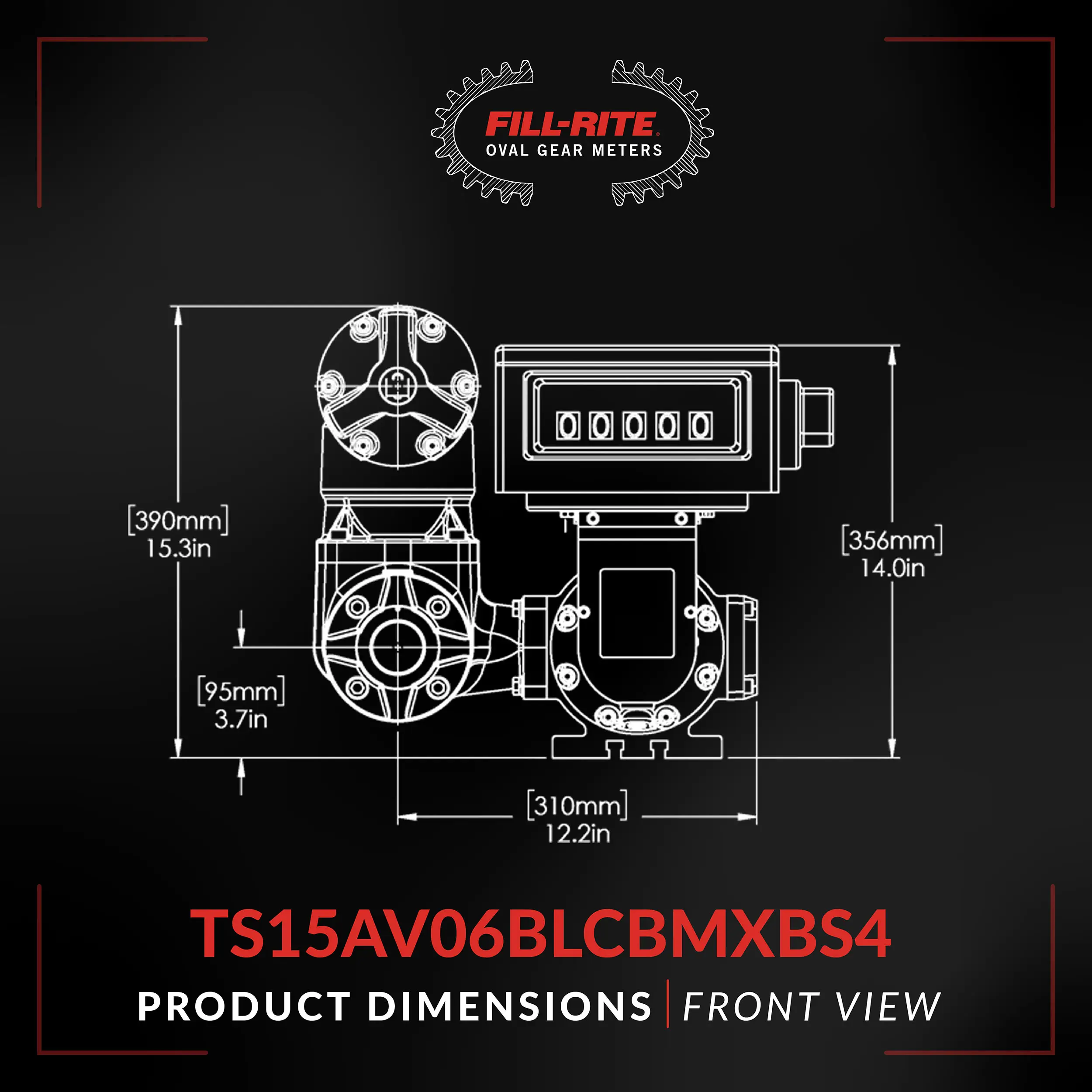

Assembled Product Height x Width x Depth (in.)14.0 x 17.5 x 15.61
Assembled Product Weight (lbs.)70
Package Height x Width x Depth (in.)24 x 20 x N/A
Gross Weight (lbs.)70.00000 lbs
Less Than Load (LTL) FreightYes
