Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: 12 AWG 20' Power Cable with 30 A Fuse and Alligator Clips, 5' Ground Wire, Cable Gland, (2) Wire Nuts, Ground Wire: Yes, Cable Length (ft): 20, Cable Gauge (GA): 12, Cable Connection: Alligator Clips |
| Series Code | 12v-dc-petroleum-based-lubricants-pump-series |
| Series Name | 12V DC Petroleum-Based Lubricants Pump Series |
| Series Url | https://www.fillrite.com/12v-dc-petroleum-based-lubricants-pump-series |
Description

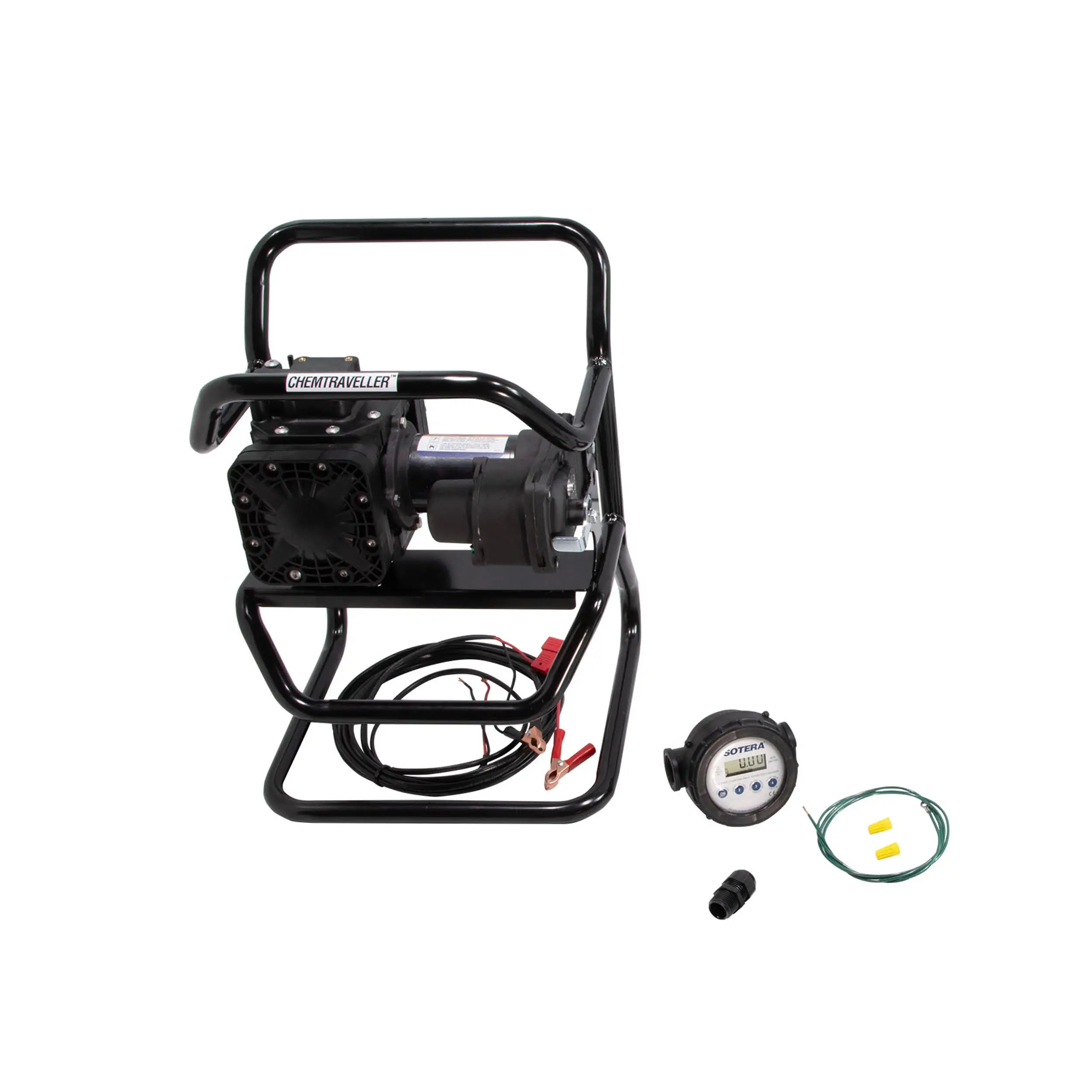

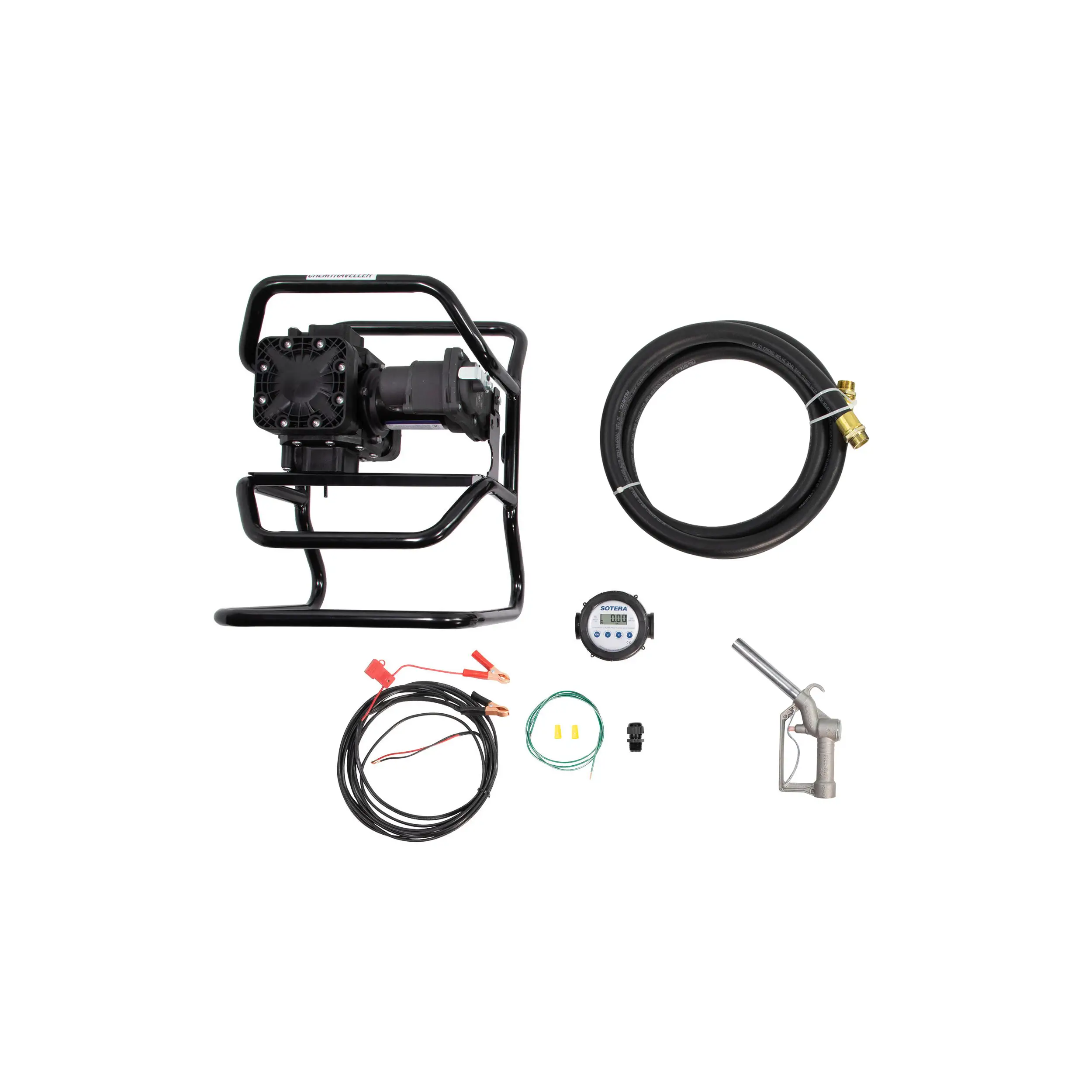

The Sotera FR455BXH4-MF1 model is a 12V DC transfer system designed for bulk transfer of a wide range of chemicals and fluids, including some aggressive chemicals. The FR455BXH4-MF0 is manufactured with an explosion-proof motor and portable Chemtraveller® frame, ensuring hassle-free transportation to and from your fields. It also comes complete with a battery cable, suction hose, discharge hose, Sotera 825 Digital Flow Meter, and other fittings.
Specifications
| Max Flowrate | 13 GPM / 49 LPM |
|---|---|
| Power Type | 12V DC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | Chemtraveller® |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 20 A |
| Package Height x Width x Depth (in.) | 14.75 x 22.38 x N/A |
| Gross Weight (lbs.) | 32.25000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
