Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Year Warranty to protect your purchase and your business |
|---|---|
| Accessories | Additional Accessories: 1" Short Poly Pipe Nipple, 1" NPT Street Elbow, 2" Female Coupler, 2" to 1" Poly Reducer Bushing, 1" Shutoff Ball Valve, (4) PTFE Tape Rolls, Cable Connection: Bare Leads, Suction Hose: 1" X 12' Hose with Static Ground Wire, Discharge Hose: 1" X 20' Hose with Static Ground Wire, Nozzle: 1” Cast Aluminum Manual Nozzle |
| Series Code | 115v-ac-petroleum-based-lubricants-pump-series |
| Series Name | 115V AC Petroleum-Based Lubricants Pump Series |
| Series Url | https://www.fillrite.com/115v-ac-petroleum-based-lubricants-pump-series |
Description

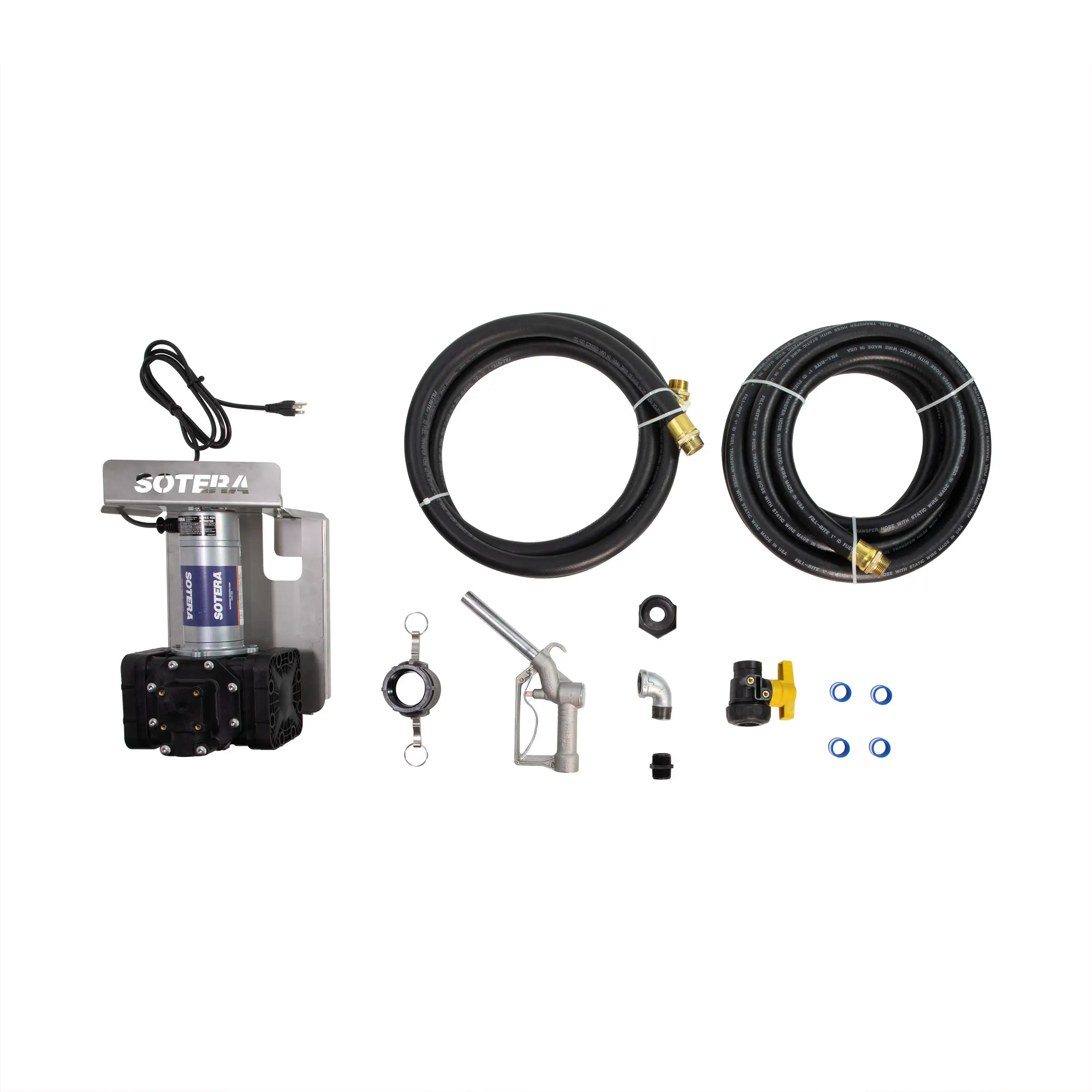

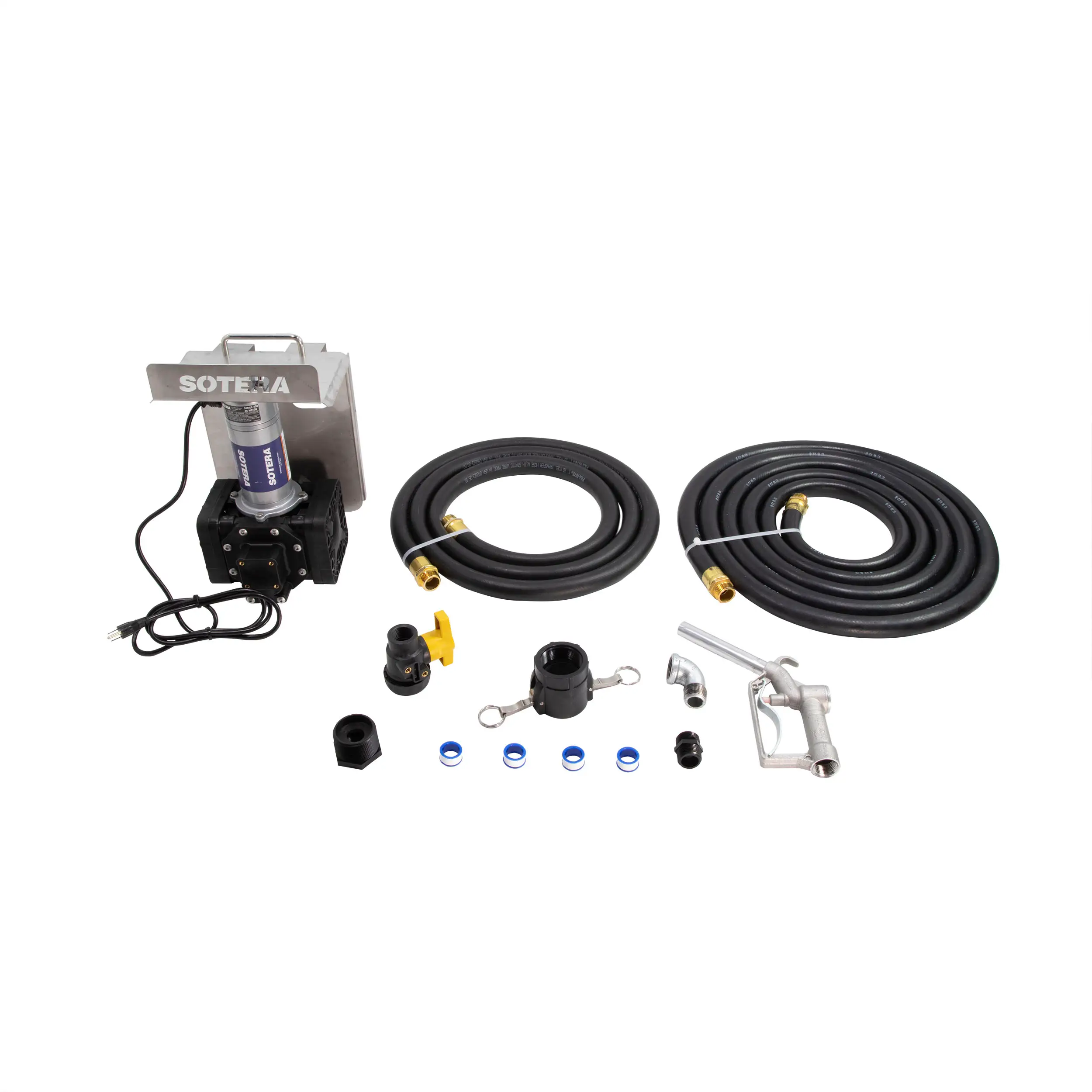

The Sotera FR491BMH4-MF0 model is a 115V AC transfer system designed for bulk transfer of wide range of chemicals and fluids, including some aggressive chemicals. The FR491BMH0-MF0 is manufactured with an IBC tote bracket and is designed to hang from IBC tote cages. It comes complete with a battery cable, suction hose, discharge hose, nozzle, and other fittings.
Specifications
| Max Flowrate | 13 GPM / 49 LPM |
|---|---|
| Power Type | 115V AC |
| Inlet Size / Connection / Thread | 1 " / -- / NPT |
| Outlet Size / Connection / Thread | 1 " / -- / NPT |
| Mounting Type | IBC Tote Bracket |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 2.5 A |
| Package Height x Width x Depth (in.) | 12.13 x 21.75 x N/A |
| Gross Weight (lbs.) | 23.20000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
