Attributes
| Features Html | Consistent & Reliable Performance — engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load, Fluid Flexibility — Hytrel® diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water, Durable Design — pump can run dry without causing any internal damage, giving you peace of mind with your investment, Long Life – thermally-protected motor prevents overheating, ensuring your pump withstands the test of time, Convenient Configurations — conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange, 5-Year Warranty — we stand behind our product with full 5-Yeaer Warranty to protect your purchase and your business |
|---|---|

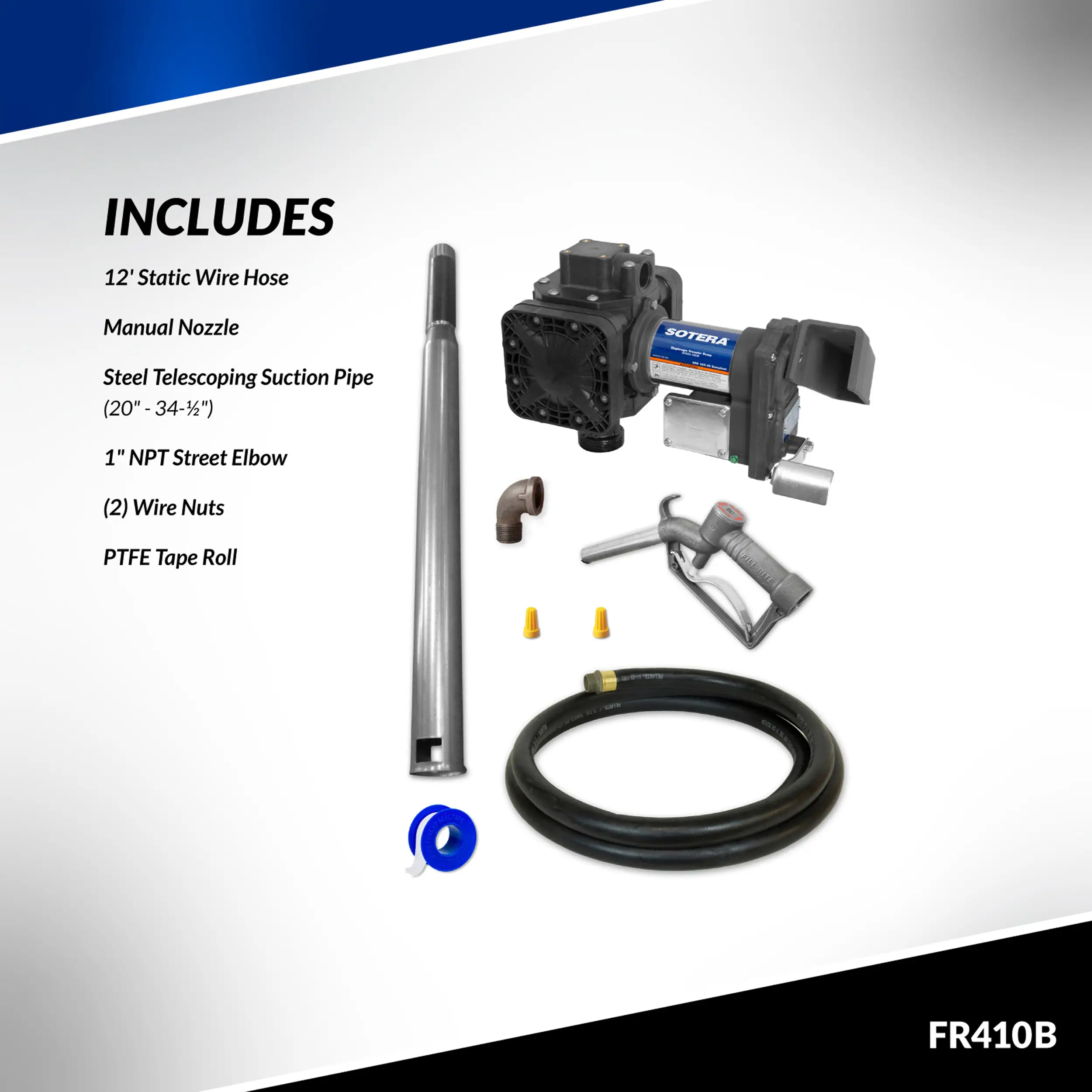

| Accessories | Additional Accessories: Nozzle Boot, 1" NPT Street Elbow, PTFE Tape Roll, Cable Length (ft): 12, Cable Connection: Bare Leads, Suction Pipe: 23” – 40 ½” Steel Telescoping Suction Pipe, Discharge Hose: 1” X 12’ Hose with Static Ground Wire, Nozzle: 1” Cast Aluminum Manual Nozzle |
| Series Code | 12v-dc-petroleum-based-fluids-pump-series |
| Series Name | 12V DC Petroleum-Based Fluids Pump Series |
| Series Url | https://www.fillrite.com/12v-dc-petroleum-based-fluids-pump-series |
Description

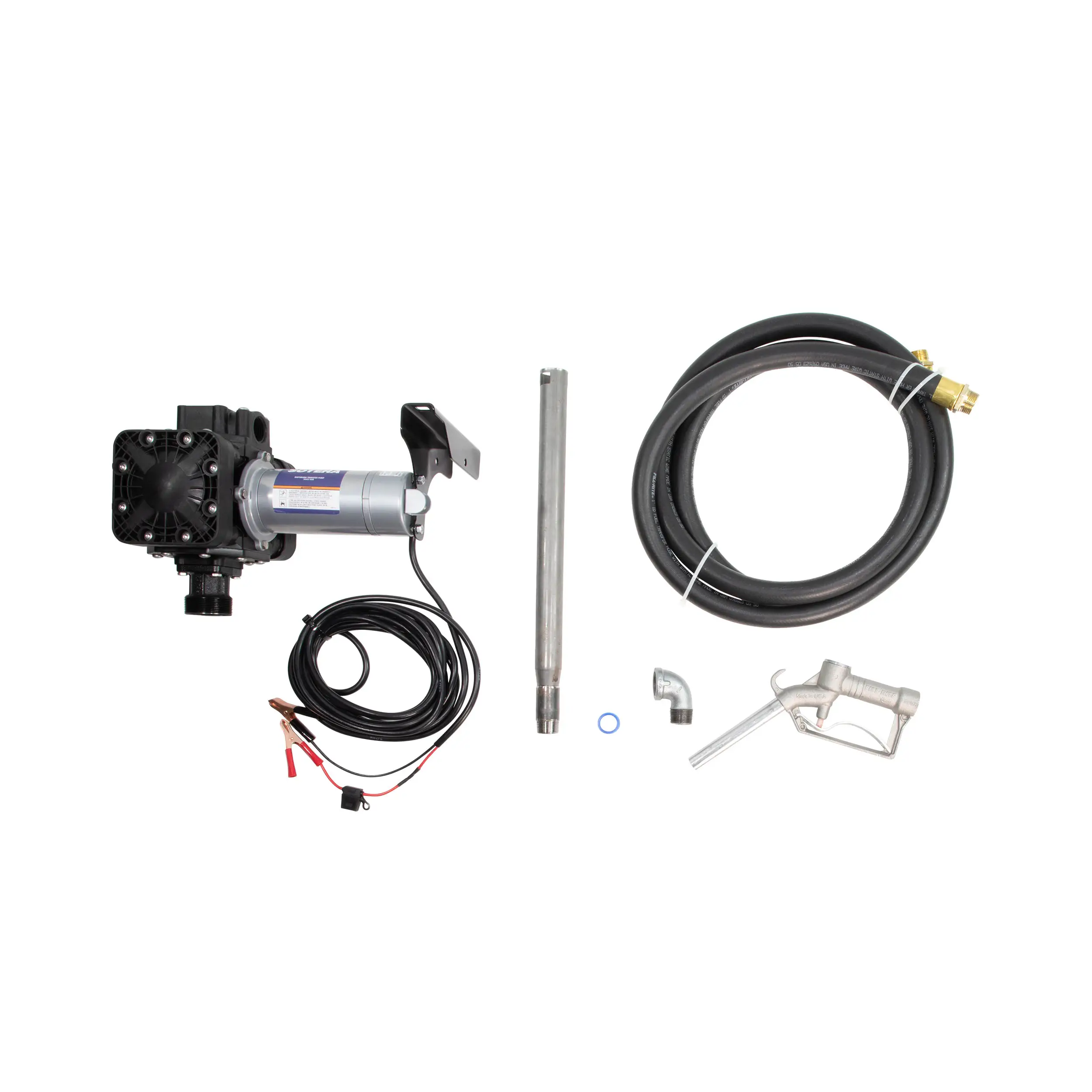

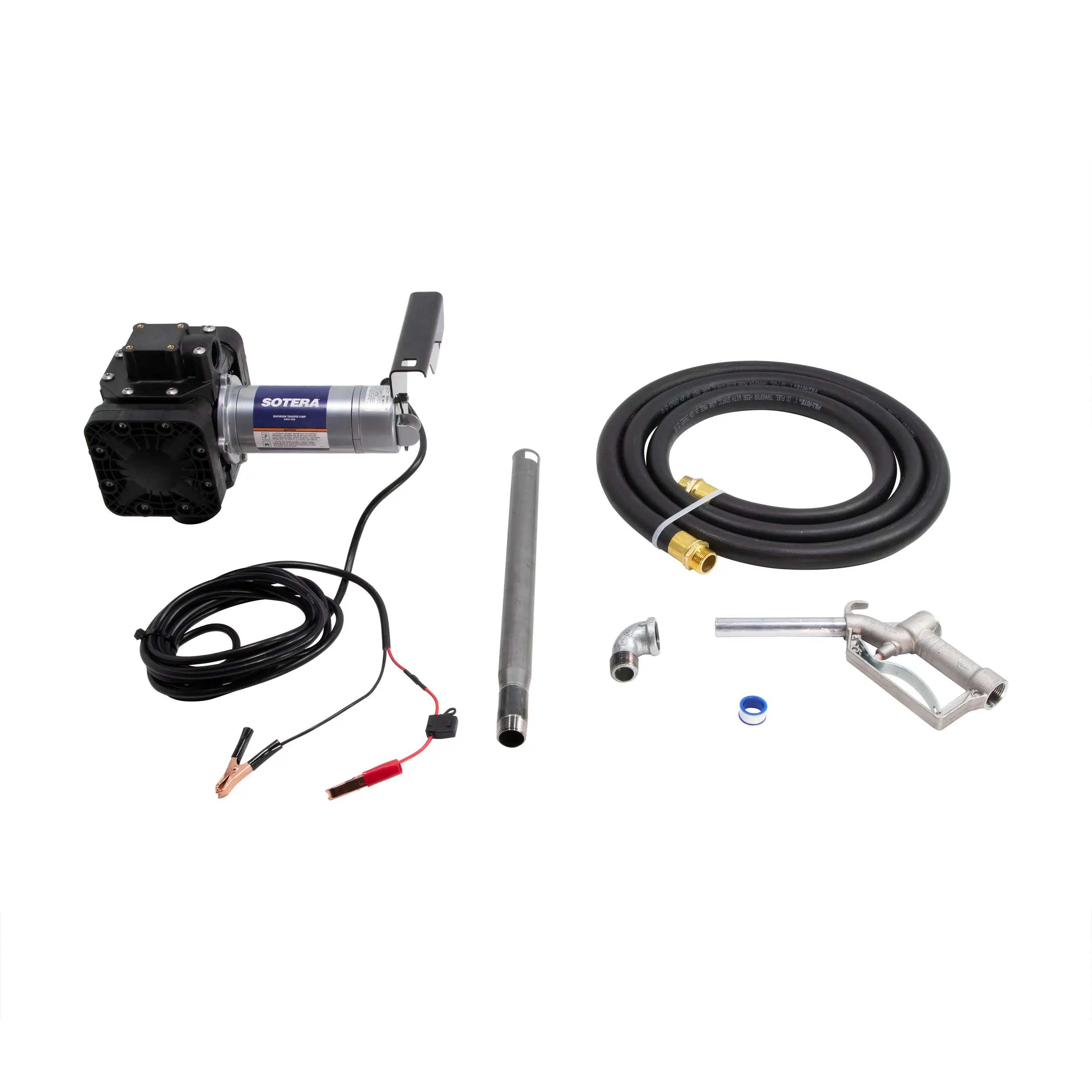

The FR410B model is a 12V DC chemical transfer system. This Sotera bundle includes a metal bung mount, polypropylene suction pipe, and additional chemical fittings.
Specifications
| Max Flowrate | 13 |
|---|---|
| Power Type | 12V DC |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Type | Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Motor Power (HP) | 0.25 |
| Suction Lift (ft.) | 9 ' |
| Max Operating Pressure (PSI) | 15 |
| Discharge Head (ft) | 38 ' |
| Max Current (A) | 20 A |
| Assembled Product Height x Width x Depth (in.) | 11 x 15.5 x 8.25 |
| Assembled Product Weight (lbs.) | 21.9 |
| Package Height x Width x Depth (in.) | 16.5 x 20.25 x 16.25 |
| Gross Weight (lbs.) | 35.30000 lbs |
| Less Than Load (LTL) Freight | Yes |
PDF Documents
400B Series - Owner's Manual
Open PDF
